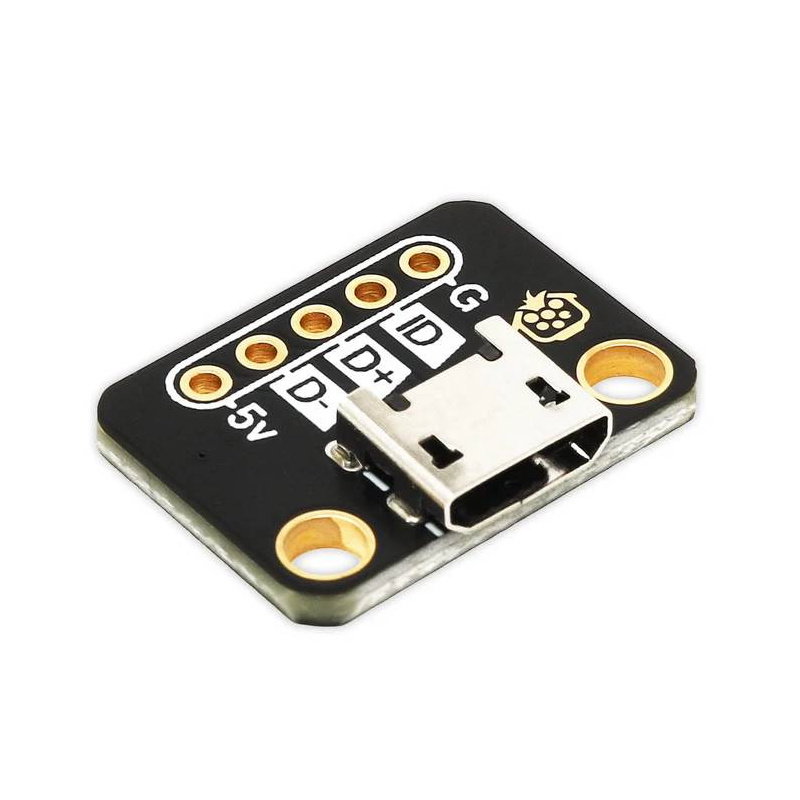

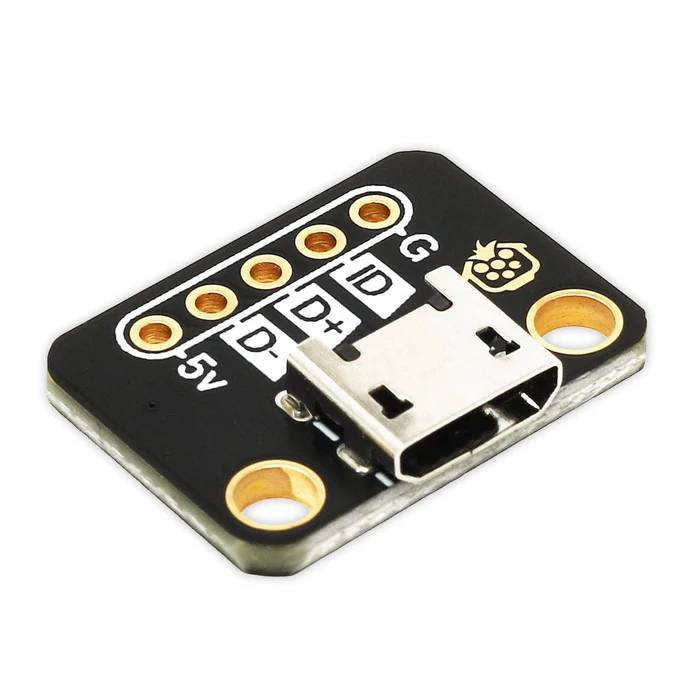

Product description: Module with microUSB socket - connector for breadboard - PiHut 106577
A practical module with a microUSB port that allows for quick use of the USB interface in DIY and embedded projects. All connector pins are routed to clearly labeled 2.54mm pitch pads , allowing for easy connection of wires , goldpin headers , or screw terminals. Additional solder pads located on the underside of the board significantly simplify modifications and re-soldering. The module also features the ability to disconnect the connector's shield ground by cutting the trace .
Technical specifications of the module with microUSB socket
- Connector type: microUSB (horizontal)
- Pin pitch: 2.54 mm
- Number of pins: 5 (VBUS, D-, D+, ID, GND)
- Mounting holes: M2.5
- Additional soldering pads: yes (bottom)
- Possibility of disconnecting GND: yes (cutting path)
- PCB coating: ENIG (gold plated)
- Dimensions: 19 x 14 mm

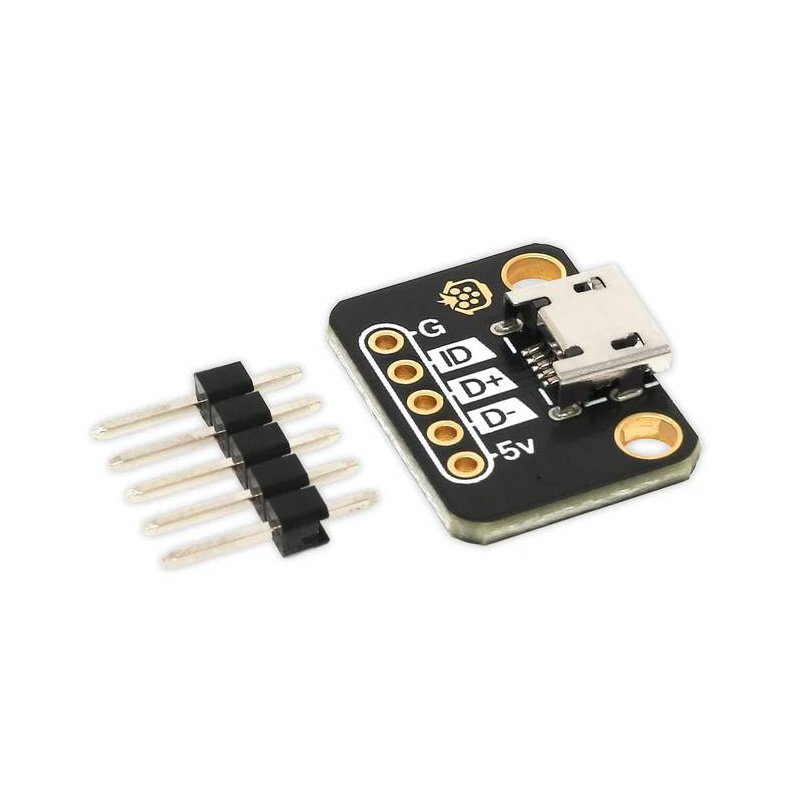

Contents of the set
- 1x Module with microUSB socket
- 1x 5-pin goldpin strip 2.54 mm
