Product description: Module with USB type A socket - connector for breadboard - PiHut 106576

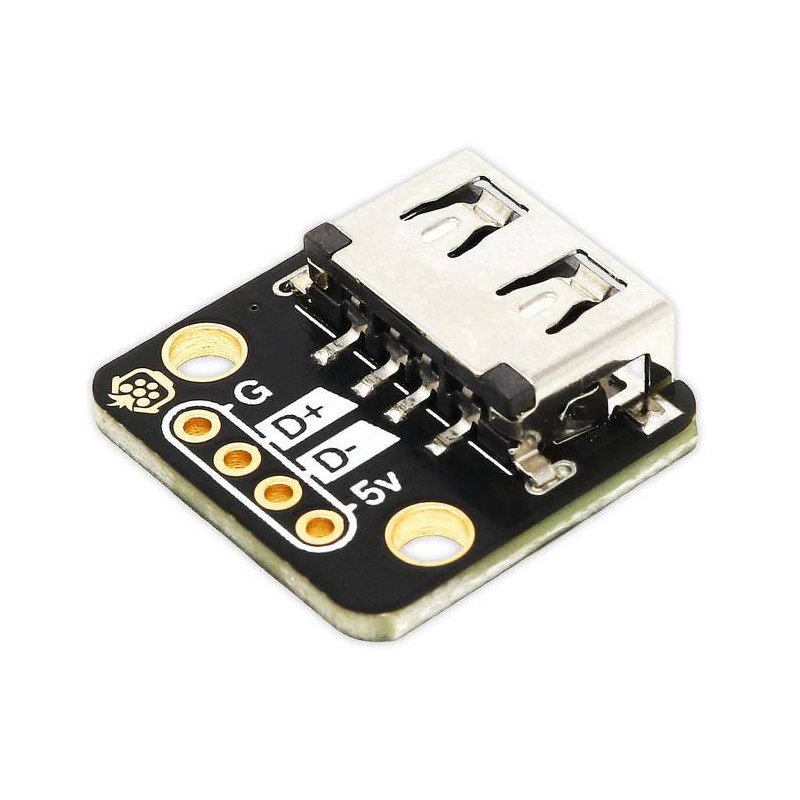

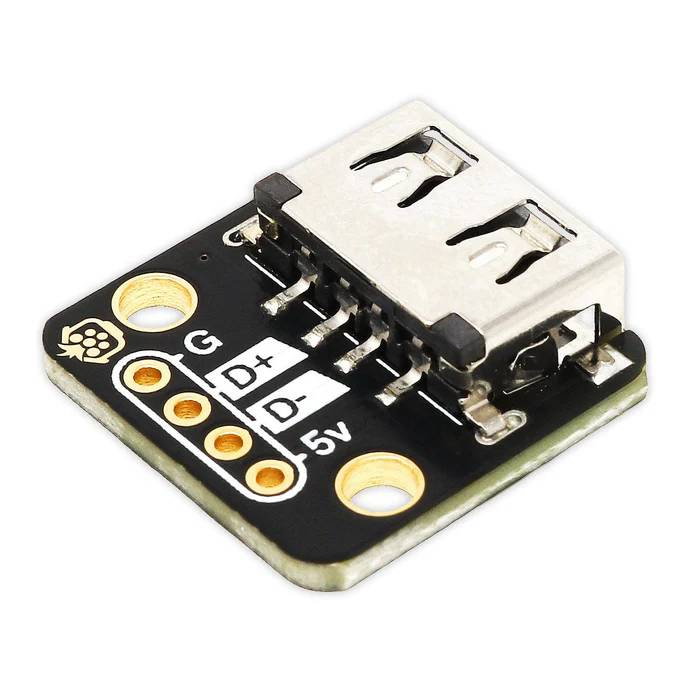

The Pi Hut USB Type-A socket module is a practical solution for adding a USB interface to your electronics projects. It utilizes a low-profile mid-PCB socket, allowing for a slim design. Each pin of the USB Type-A socket is routed to clearly marked solder pads in a standard 2.54mm pitch , making it fully compatible with breadboards and popular goldpin headers . The board design is optimized for ease of use, with additional solder pads on the bottom for easy cable assembly and subsequent adjustments. M2.5 mounting holes allow for quick and secure mounting of the module in a case or structure. An additional feature is the ability to disconnect the USB shield ground connection (GND), providing greater design control in more advanced applications.
Technical specifications of the module with a USB type A socket
- Connector type: USB Type A (female, horizontal)
- Pin pitch: 2.54 mm
- Number of pins: 4 (5V, D-, D+, GND)
- Mounting holes: M2.5
- Additional soldering pads: yes (bottom)
- Configurable: screen ground cut (jumper on the bottom)
- PCB coating: ENIG (gold plated)
- Dimensions: 19 x 18.5 mm
Contents of the set

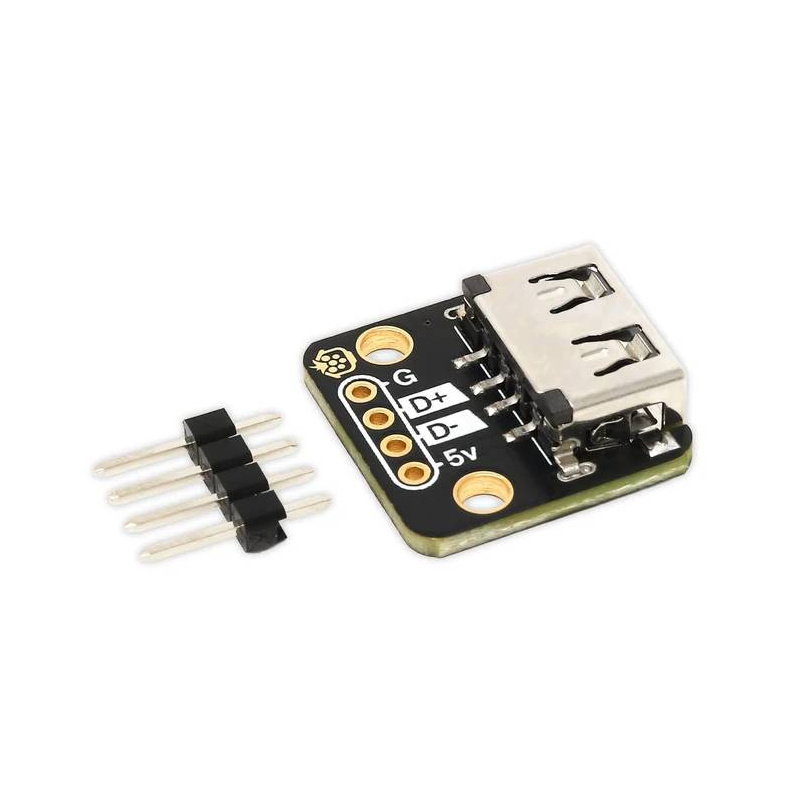

- 1x Module with USB type A socket
- 1x 4-pin goldpin strip 2.54 mm
