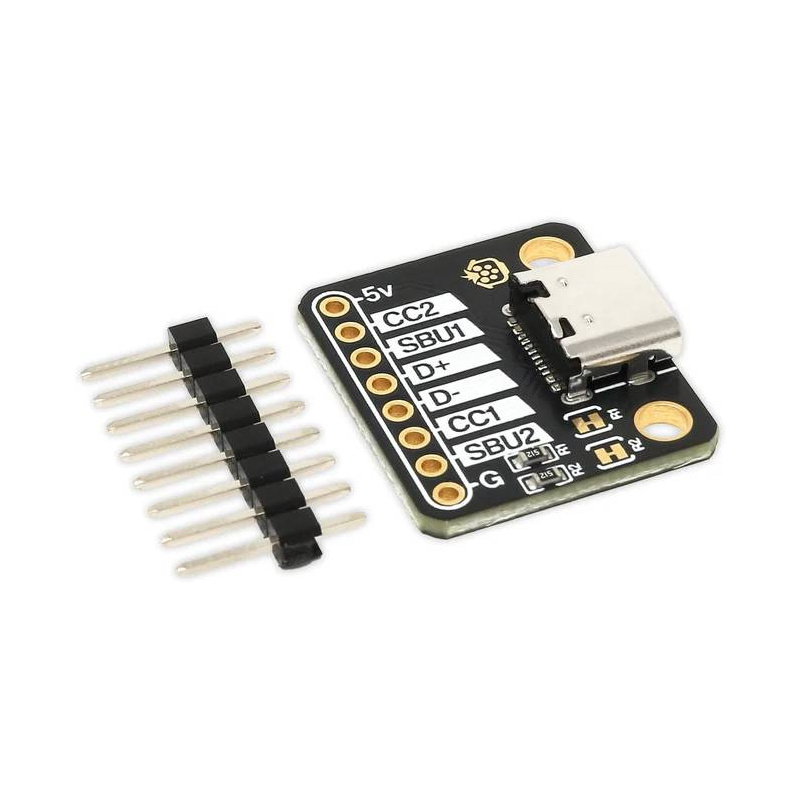

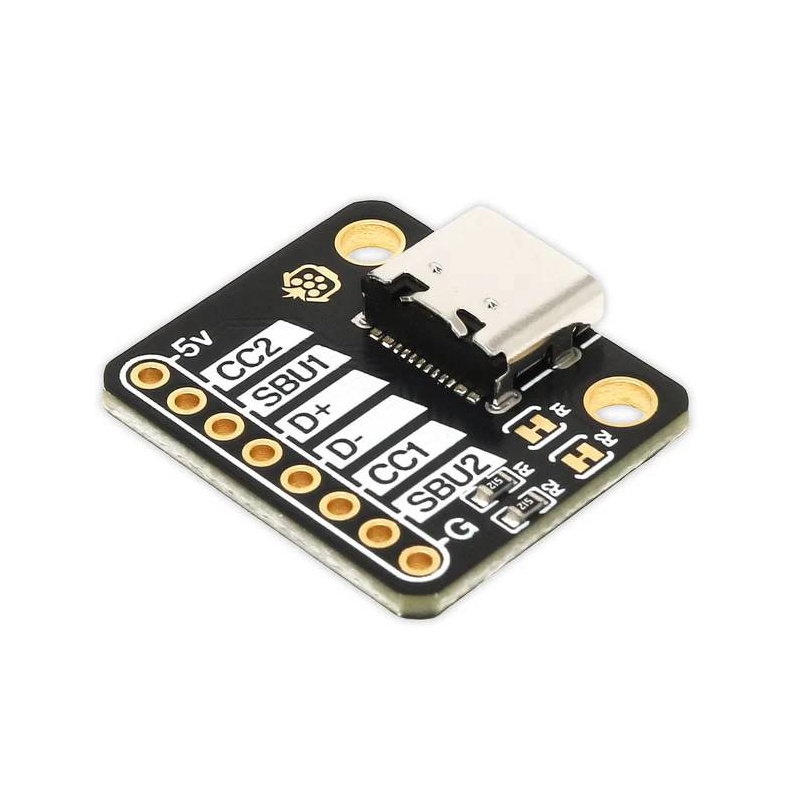

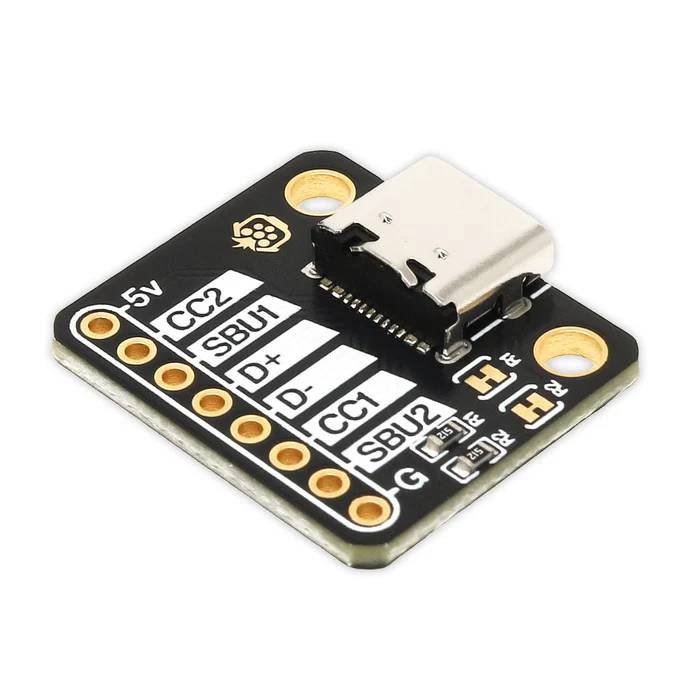

Product description: Module with USB Type-C socket - connector for breadboard - PiHut 106575
This USB Type-C module allows you to easily add a modern USB interface to your electronics projects. It outputs all the most important signals, such as 5V, GND, D-, D+, CC1, CC2, and SBU , enabling both power and data communication. The board design is optimized for user convenience. Additional solder pads on the bottom significantly simplify cable assembly and any necessary corrections. Built-in 5.1kΩ CC resistors allow for correct identification of USB Type-C devices, and the ability to disconnect them by cutting the trace increases application versatility. The module also features M2.5 mounting holes for easy and secure mounting in a case or project.
Technical specifications of the module with a USB Type-C socket
- Connector type: USB Type-C (female, horizontal)
- Pin pitch: 2.54 mm
- Number of pins: 8 (GND, 5V, D-, D+, CC1, CC2, SBU1, SBU2)
- CC resistors: 2x 5.1 kΩ (can be disconnected)
- Mounting holes: M2.5
- Additional soldering pads: yes (bottom)
- Configurable: screen ground cut (jumper on the bottom)
- PCB coating: ENIG (gold plated)
- Dimensions: 22.5 x 19.5 mm
Contents of the set
- 1x Module with USB Type-C socket
- 1x 8-pin goldpin strip 2.54 mm
