Product description: Tinycontrol - 230 V AC mains voltage presence sensor - for DIN rail
The 230 V AC DIN-mount voltage presence sensor allows you to monitor the status of mains power in home, industrial, and IT installations. It transmits information about the presence or absence of power using a logical signal that can be read by Tinycontrol tcPDU or LK devices. When the mains voltage is present, the output indicates a low logical state of approximately 0.1 V. After a power outage, the signal changes to a high logical state of approximately 2.4 V. This allows you to configure automatic notifications of mains failures in the "Events" tab of a compatible controller. The sensor is particularly useful in systems equipped with uninterruptible power supplies (UPS) . It allows you to recognize whether devices are powered directly from the mains or are already using energy stored in batteries.

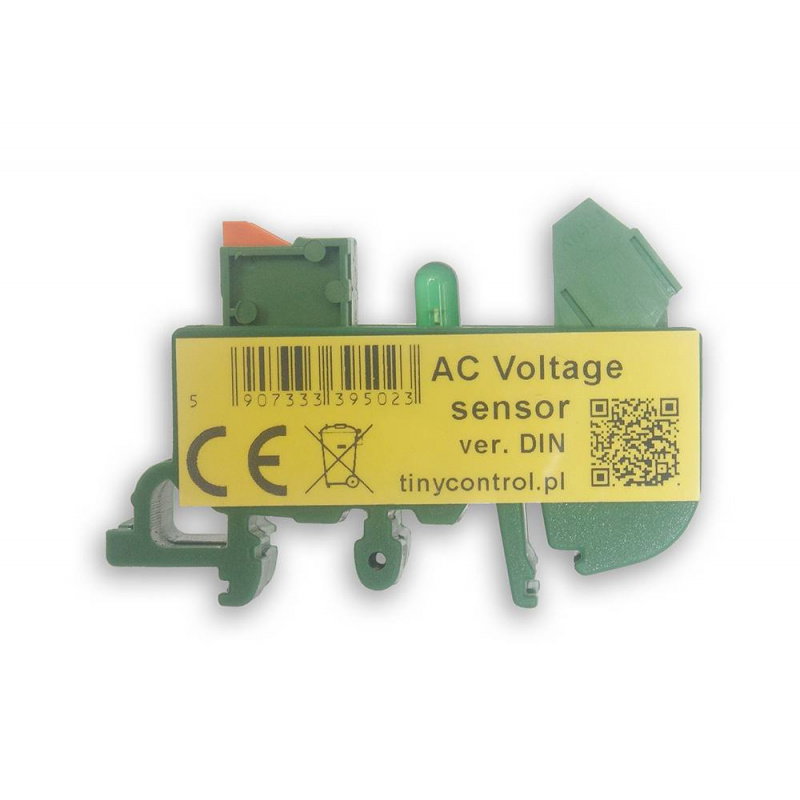

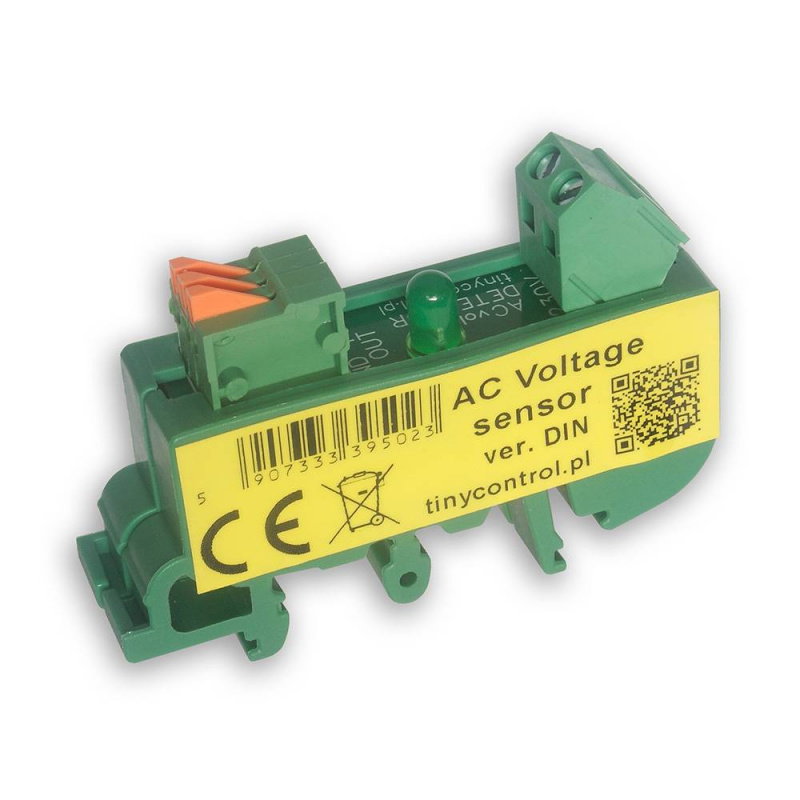

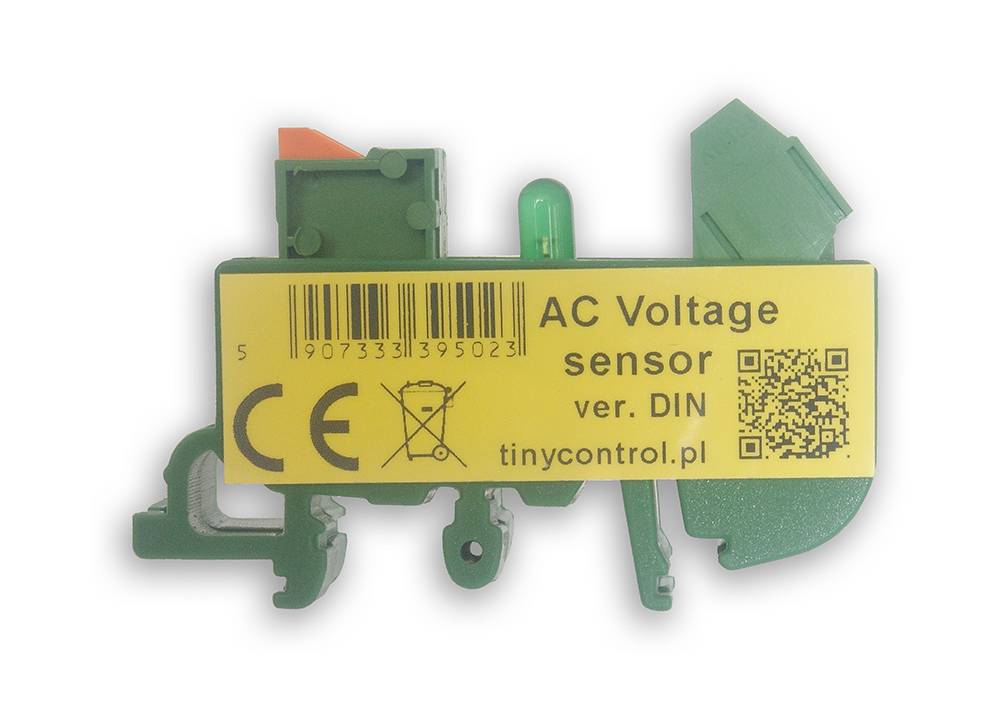

Tinycontrol - 230 V AC mains voltage presence sensor - for DIN rail.

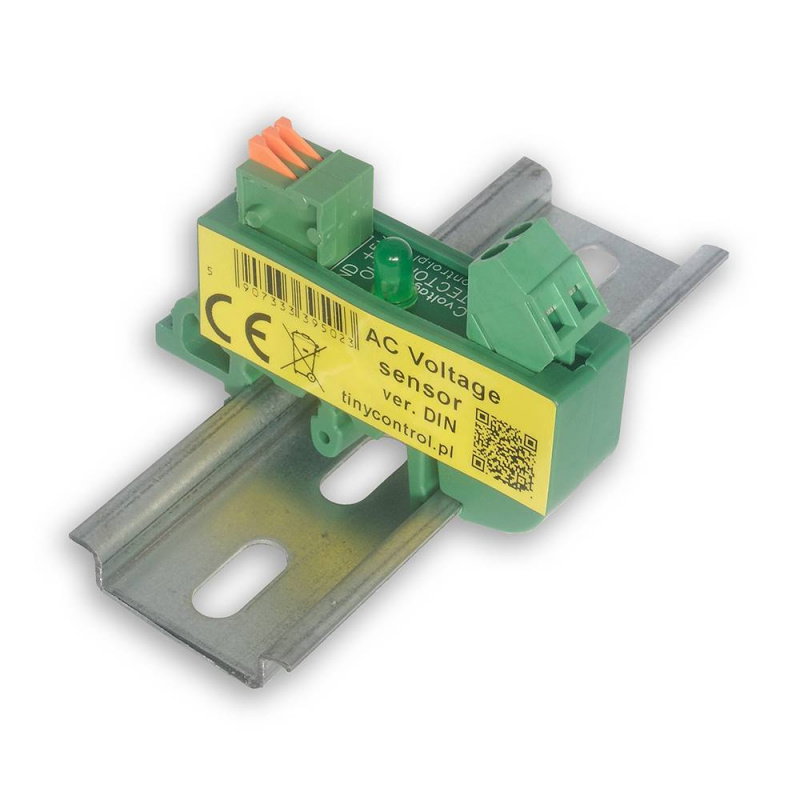

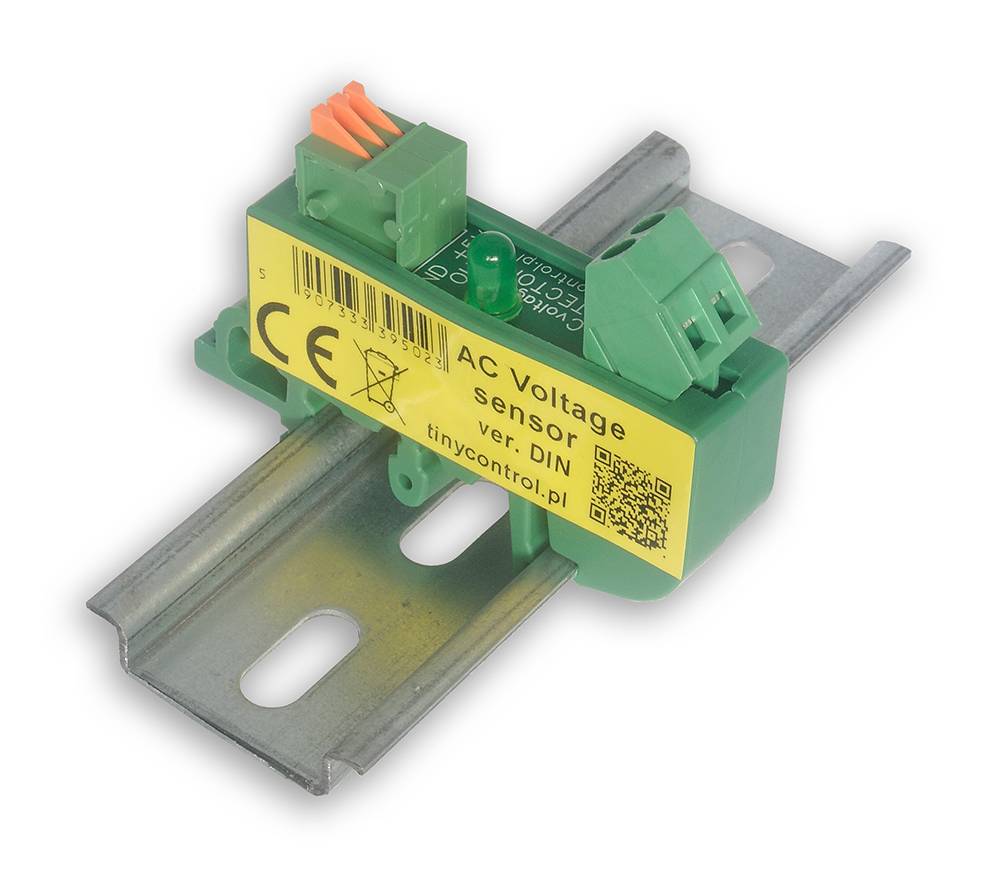

DIN rail mounting allows the sensor to be conveniently placed in the electrical distribution board.
Main features of the voltage presence sensor
- 230 V AC mains voltage detection : allows you to control the availability of power in the monitored circuit
- Galvanic isolation : optical detection method separates the 230 V circuit from the information output
- Logical output : transmits information about the presence or absence of voltage to the cooperating controller
- Cooperation with tcPDU and LK : the sensor can be connected directly to the INPD/iD logical input
- Notification support : logical state changes can be used to trigger events and alarms
- Low power consumption : the device consumes approximately 1 mA at 230 V AC

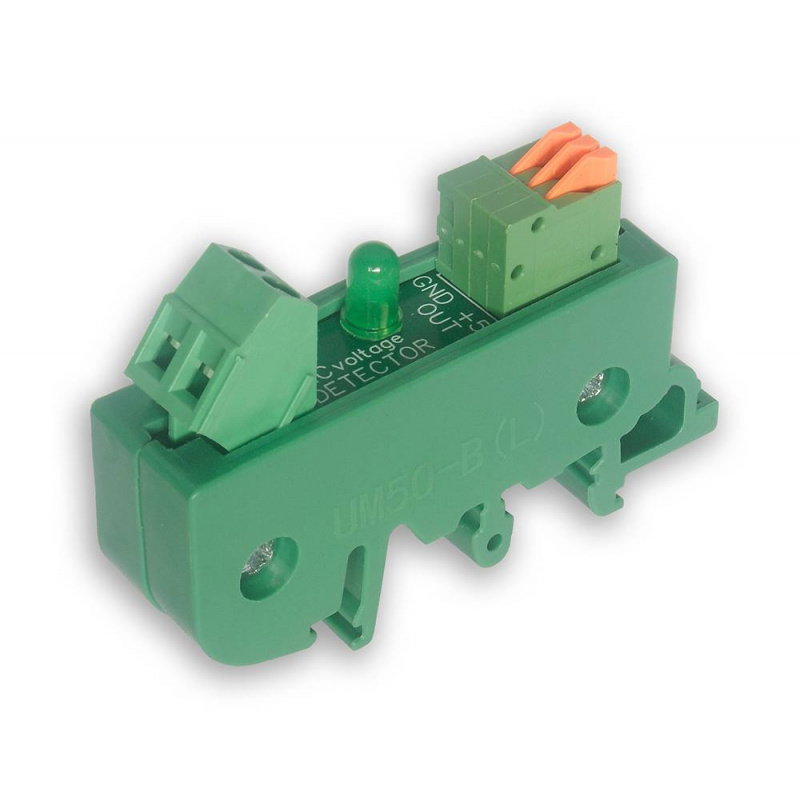

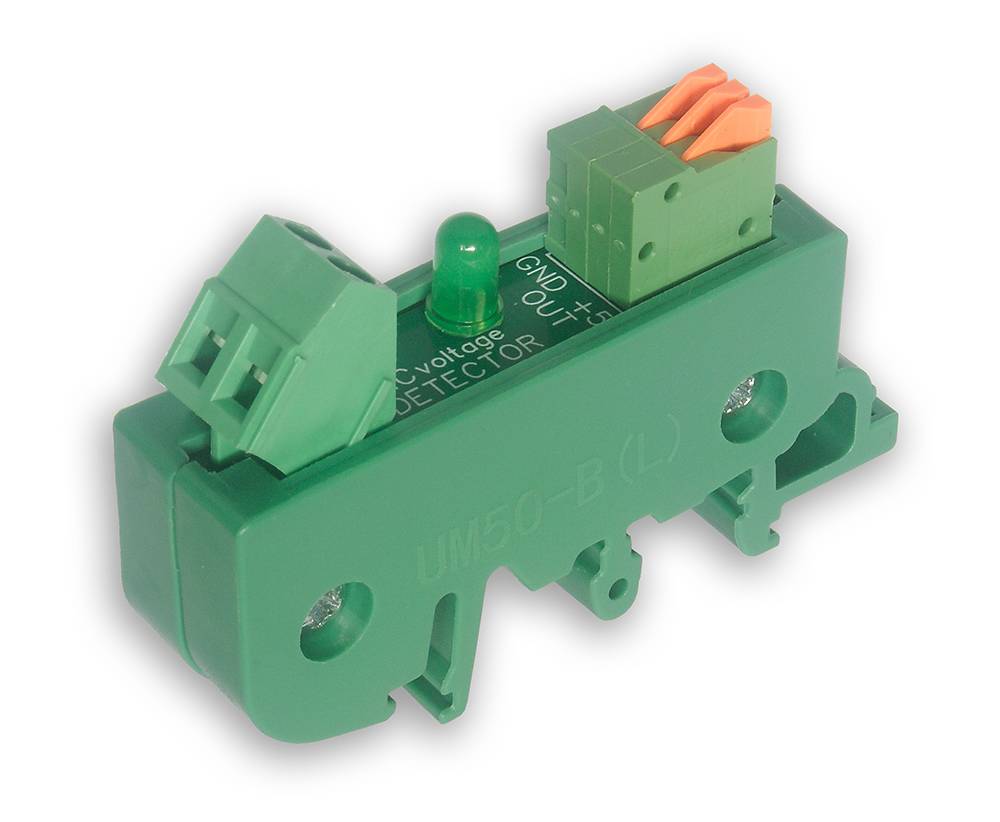

- Connection terminals : the module is equipped with GND, OUT (INPD) and +5 V terminals
Sensor technical specifications
- Monitored voltage: 230 V AC
- Operating voltage: 230 V
- Current consumption: 1 mA at 230 V AC
- Detection method: optical
- Isolation between circuits: galvanic
- Output state at 230 V: logic low (0), approximately 0.1 V
- Output state when no 230 V voltage is applied: high logic state (1), approximately 2.4 V
- Compatible inputs: INPD/iD
- Compatible devices: Tinycontrol tcPDU and LK
- Terminals: GND, OUT (INPD), +5 V
- Mounting method: DIN rail
The sensor can be used to monitor the power supply of servers, network devices, automation systems and installations protected by a UPS.
