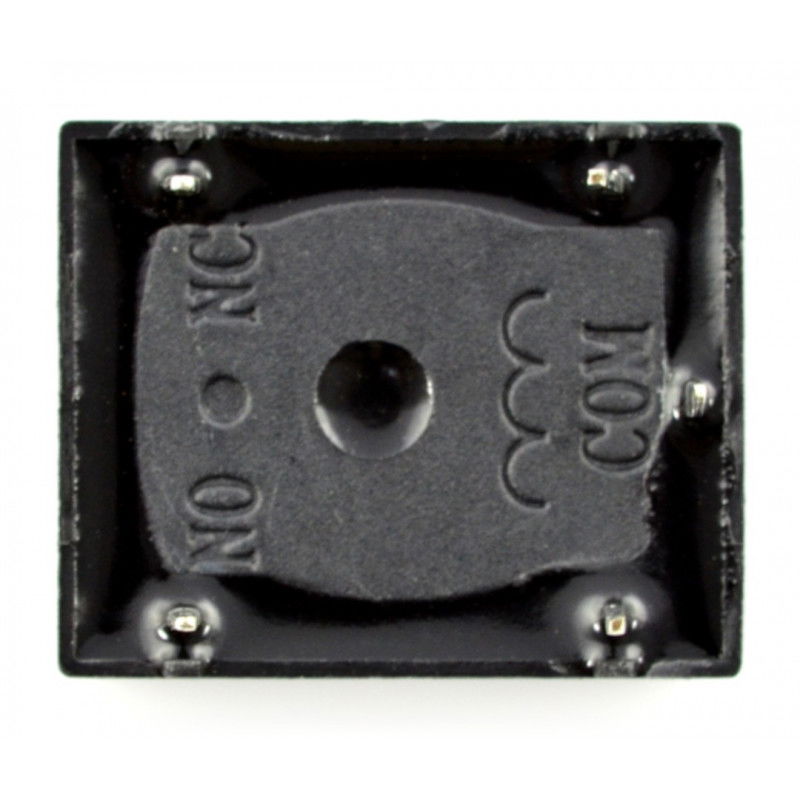

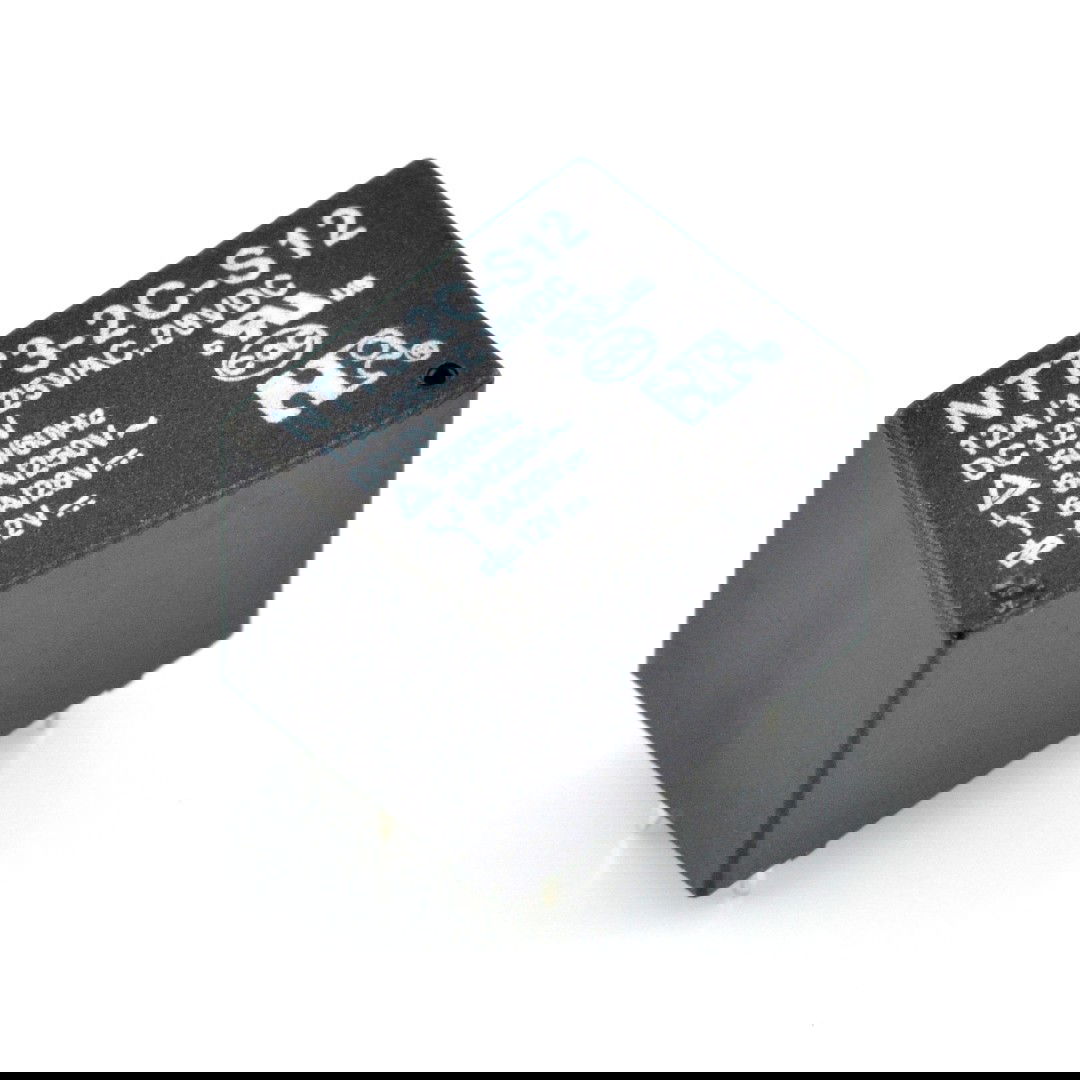

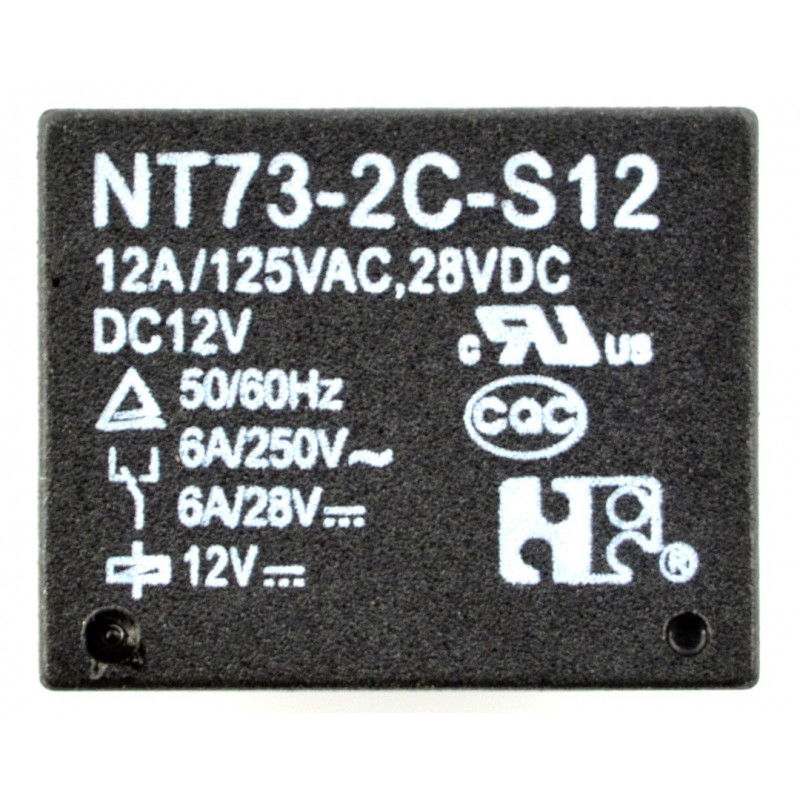

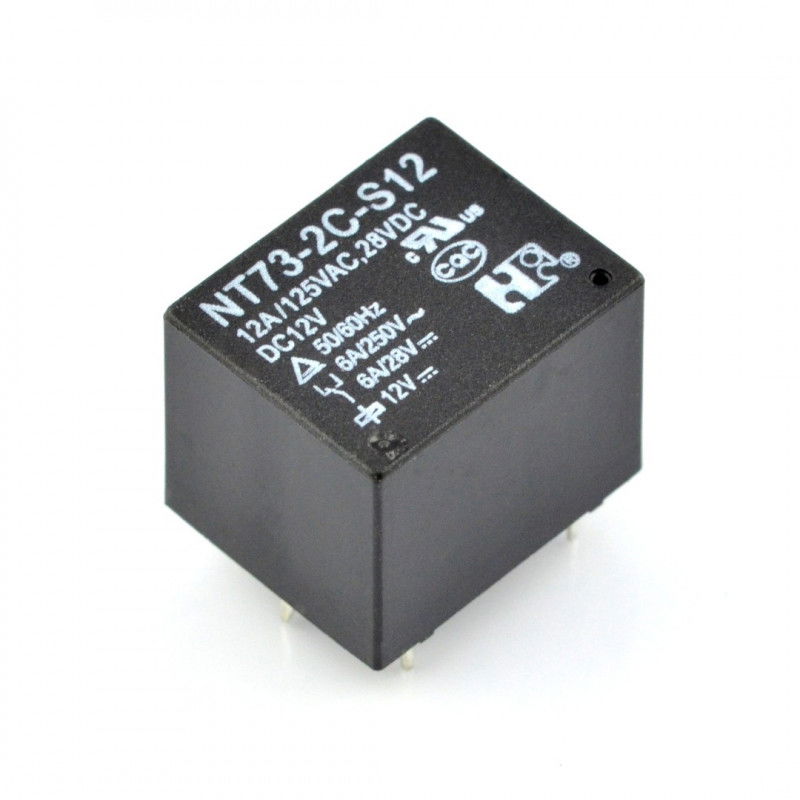

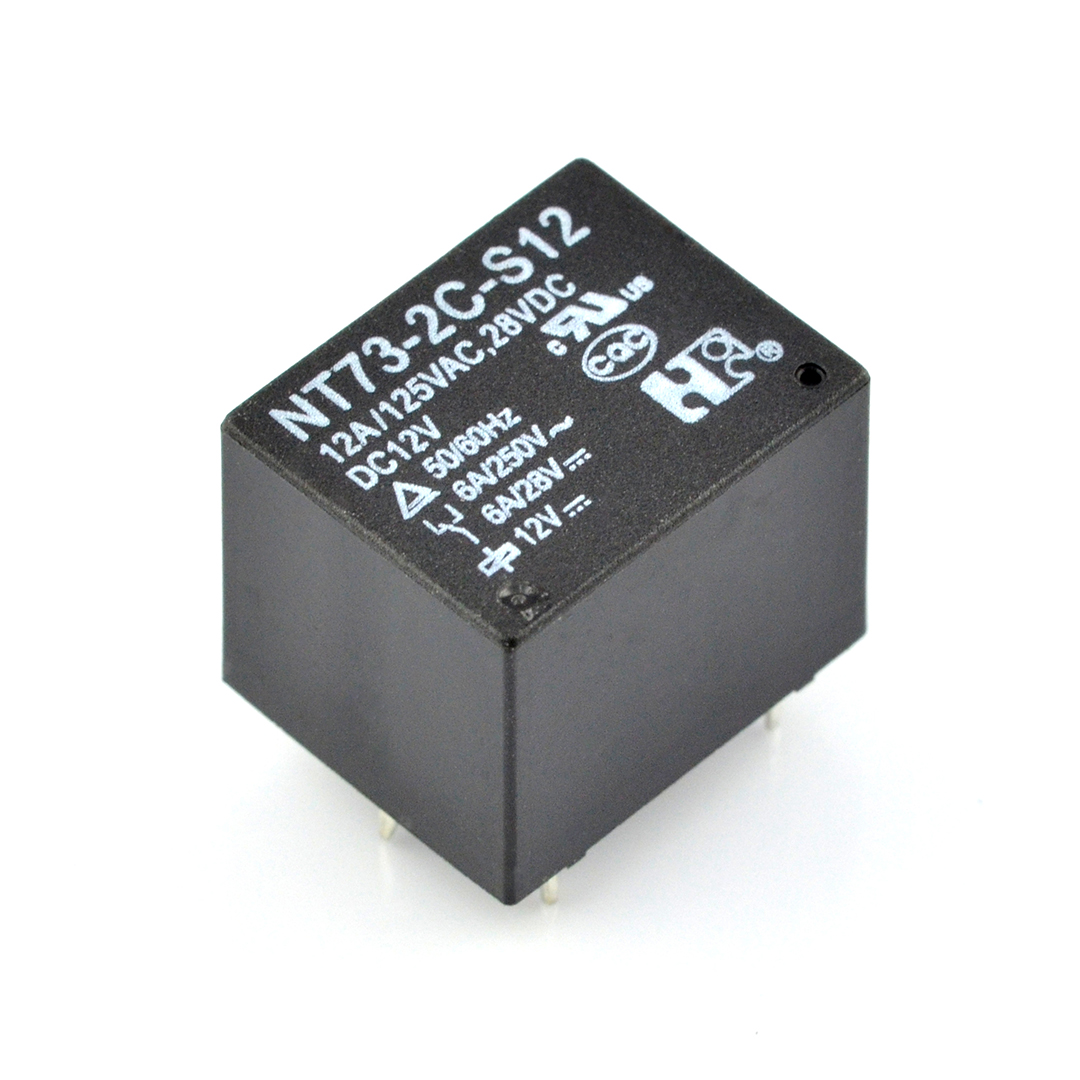

Relay NT73-2C-S12 - 12V coil, 6A/250VAC contacts
Coil voltage: 12 V, contacts: 6 A / 250 VAC / 28 V DC. Dimensions: 19.5 x 15.6 mm, height: 15.3 mm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Relay NT73-2C-S12 - coil 6 V, contacts 6 A / 250 V AC
Relay. Coil voltage: 12 V, contacts: 12 A / 125 VAC Dimensions: 19.5 x 15.6 mm, height: 15.3 mm.
Relay Specifications
- Coil voltage: 12V
- Contacts
- Maximum current: 6 A
- Maximum voltage: 250 VAC / 28 VDC
- Height: 15.3mm
- Dimensions: 19.5 x 15.6 mm
- Equivalent: JQC-3FF, G5LA-14
Details in the documentation .
NT73-2C-S12 relay - 12 V coil, 6 A / 250 V AC contacts.
Relay NT73-2C-S12 - coil 12V, contacts 6A/250VAC
The presented 12 V micro relay is a device that is distinguished by its high resistance to vibrations and mechanical damage. The element is usually used in home automation systems and telecommunications equipment. The 12 V relay can be used, among others, to control lighting.
The NT73-2C-S12 relay - 12V coil, 6A/250VAC contacts is characterized by small dimensions and low weight. An important advantage is the exceptionally low energy demand.
NT73-2C-S12 relay - what else is worth knowing about it?
The 12 V micro relay has a lifespan of 10⁵ in the case of electronic connections. The manufacturer also specifies the lifespan when the switch is operated mechanically. In this case, it is 10⁷. At a frequency of 50 Hz, the dielectric strength between the contacts is 750 V, and between the contact and the coil 1500 V.
As for the insulation resistance, it is 250 mΩ per minute, at a voltage of 500 VDC. The device ensures safe operation in a wide range of operating temperatures. The range is from -55 ℃ to +85 ℃. The maximum humidity at which the NT73-2C-S12 relay can operate at 40 ℃ is as much as 93%.
| Name | Value |
|---|---|
| Channels | 1 |
| Interface | Digital I / O |
| Width | 5 cm |
| Height | 8.5 cm |
| Depth | 1.5 cm |
| Weight | 0.008 kg |
