Product description: Tuya - ultrasonic liquid level sensor with LED display - WiFi - RTX XLD
The RTX liquid level sensor is a modern solution for monitoring water tanks and other liquids in real time. It utilizes precise ultrasonic measurement , allowing it to operate without contact with the liquid, eliminating the risk of corrosion and damage. It measures the distance from the liquid surface within a range of 10 cm to 500 cm . The sensor communicates via 2.4 GHz WiFi , allowing remote access to data from anywhere in the world using the Tuya or Smart Life app . Additionally, 433 MHz RF communication ensures a stable connection between the sensor and the display up to 150 m away. The LED display shows the liquid level , temperature, and system status.

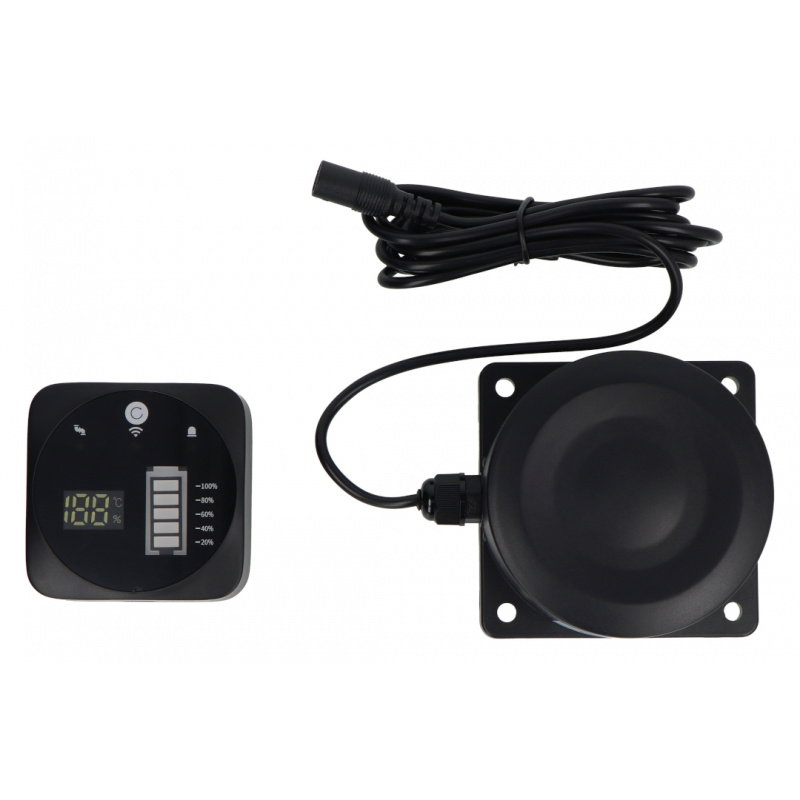

Tuya - ultrasonic liquid level sensor with LED display - WiFi - RTX XLD.
The liquid level gauge uses ultrasonic waves to precisely monitor the condition of tanks ranging from 10 cm to 500 cm.
Main features of the liquid level sensor
- Non-contact ultrasonic measurement : precise reading of liquid level without immersing the sensor
- WiFi connectivity : remote access to data via the Tuya app
- Long communication range : up to 150 m between sensor and display (RF 433 MHz)
- Measuring range : from 10 cm to 500 cm with an accuracy of ±2 cm
- Built-in temperature sensor : monitors liquid and ambient temperature
- Level Alerts : Set minimum and maximum thresholds
- Measurement history : daily, monthly and yearly data
- LED display : easy-to-read liquid level indicator in percent
- Resistance to external conditions : IP65 protection class
- Smart Home Integration : Controlling Devices Based on Liquid Levels
- Easy setup : no additional gateways required, works with any standard 2.4 GHz WiFi router
Automations with the Tuya ecosystem
Integration with the Tuya/Smart Life ecosystem allows for easy linking of measurements with the operation of other actuators . You can configure a scenario in which the submersible pump will automatically start when the rainwater tank is filled to a specific level, or shut off when the water level drops below a safe minimum. The device's built-in temperature sensor also allows for monitoring conditions in the tank, helping to protect the system from freezing. Supporting multiple trigger states, the sensor becomes a useful aid in managing your home's water management system.

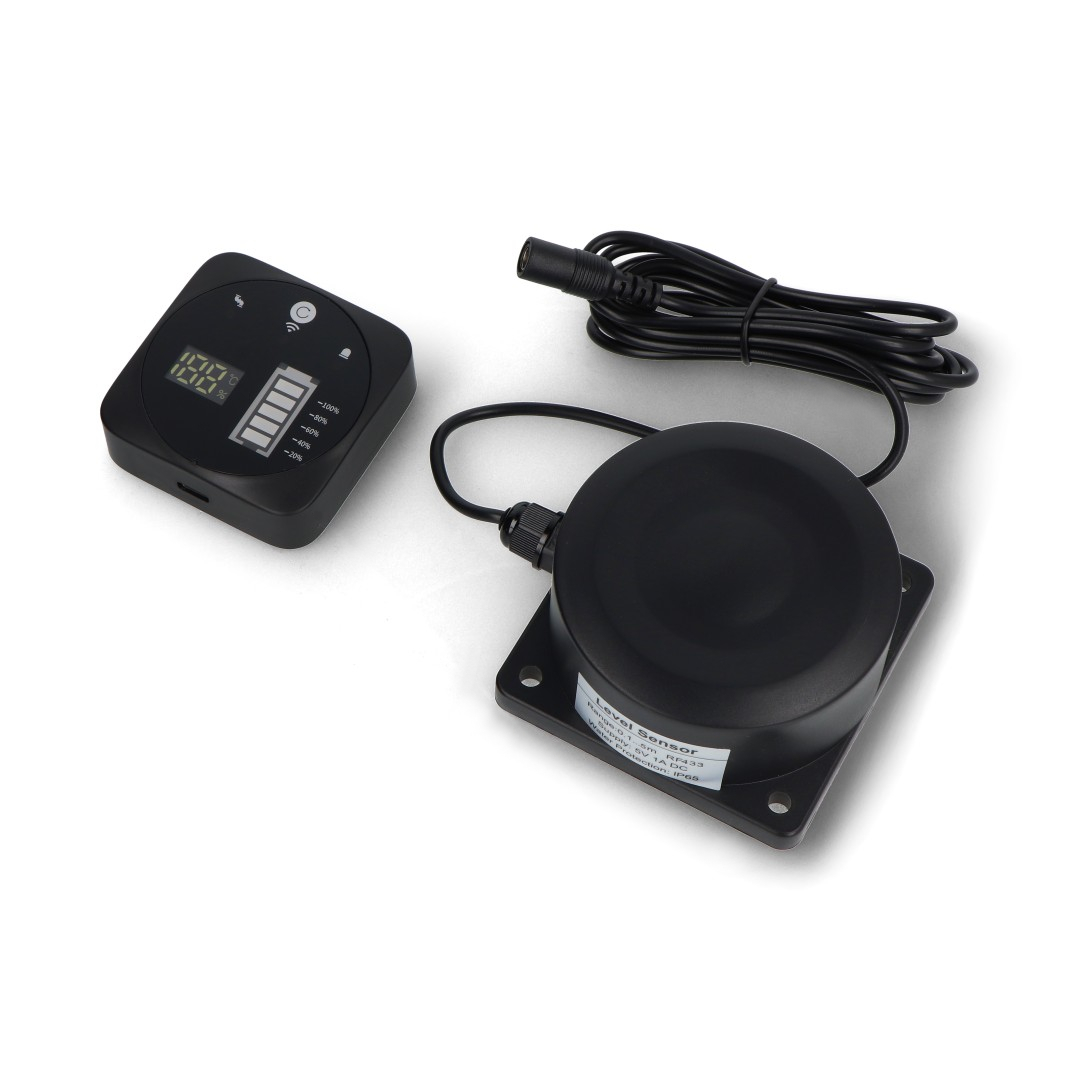

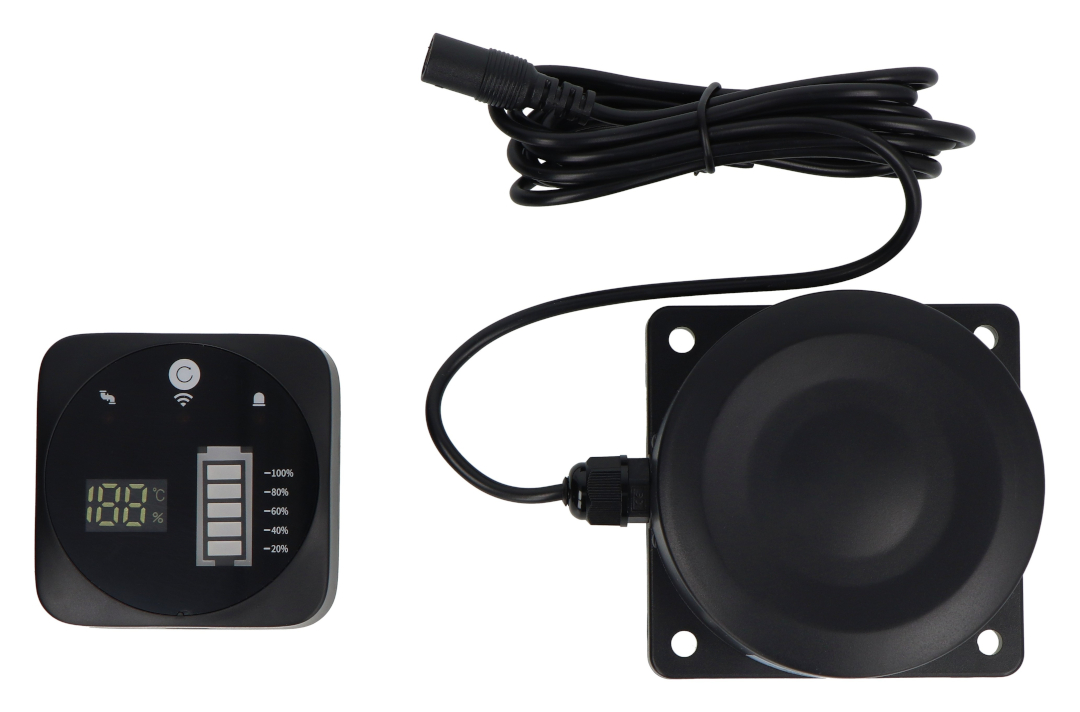

The set consists of a wireless sensor with an IP65 protection class and a readable LED panel.

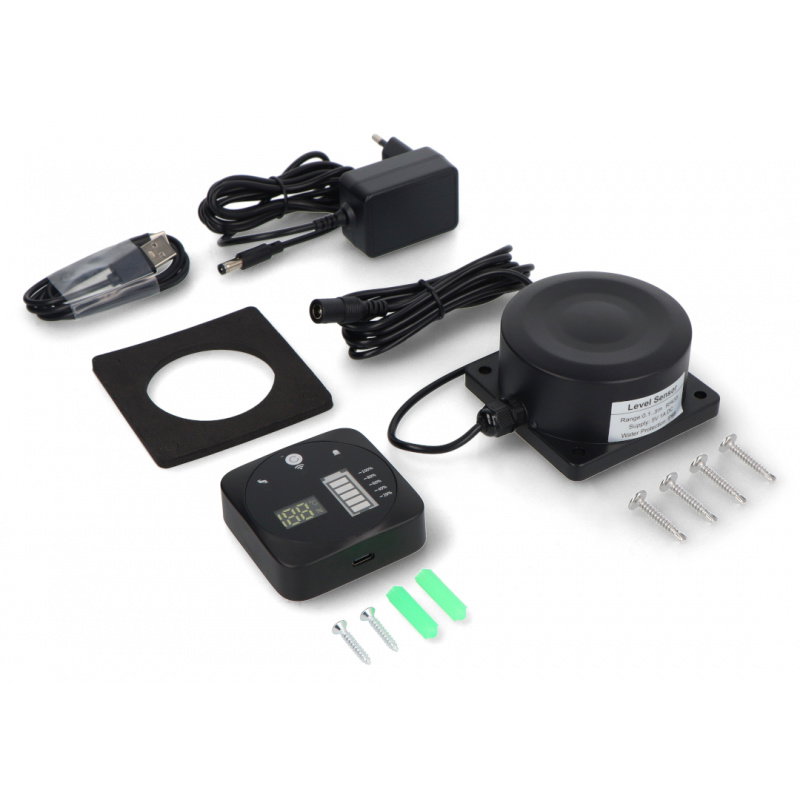

Elements included in the set.
Technical specifications of the liquid level sensor
- Communication: WiFi 2.4 GHz
- Sensor-display connectivity: RF 433 MHz
- WiFi range: up to 30 m
- RF range: up to 150 m
- Measuring range: from 10 cm to 500 cm
- Minimum measurement distance: 10 cm
- Maximum measurement distance: 400 cm
- Accuracy: ±2 cm
- Sensor power supply: 5 V DC / 1 A
- Display power supply: 5V DC / 1A
- Sensor tightness class: IP65
- Sensor operating temperature: -20°C to 70°C
- Sensor dimensions: 65 x 65 mm
- Display dimensions: 62 x 62 mm

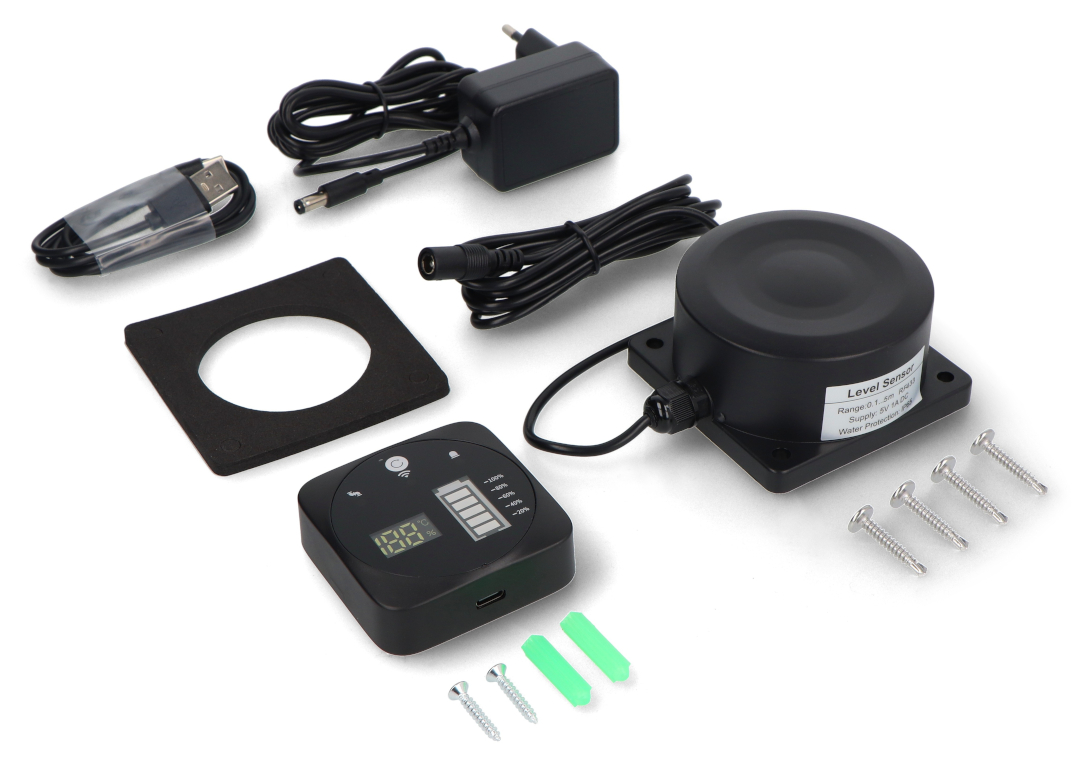

Contents of the set
- Ultrasonic sensor
- LED display
- Sensor power supply
- USB Type-C cable for display
- User manual
