Product description: Zamel Supla RNW-01 - 4-input interface 230 V AC - WiFi - Android / iOS application
The Supla RNW-01 4-input WiFi interface from Zamel is a modern solution for smart home installations. It enables wireless control of Supla receivers – both individual devices and groups. Four 230V AC inputs enable convenient control of devices such as lighting , blinds, and gates. Installation in a standard Ø 60mm junction box allows for discreet installation without compromising interior aesthetics.
Zamel Supla RNW-01 - 4-input interface 230 V AC - WiFi - Android / iOS application.

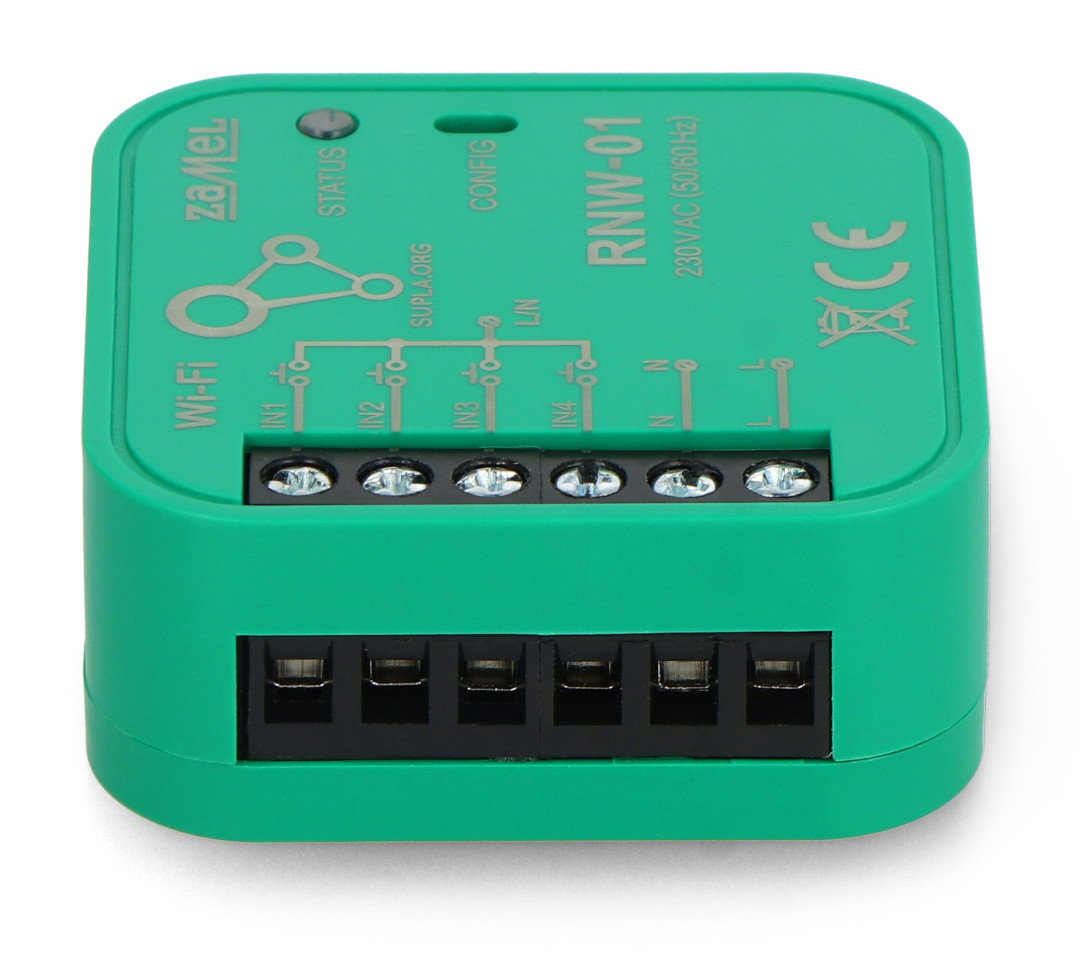

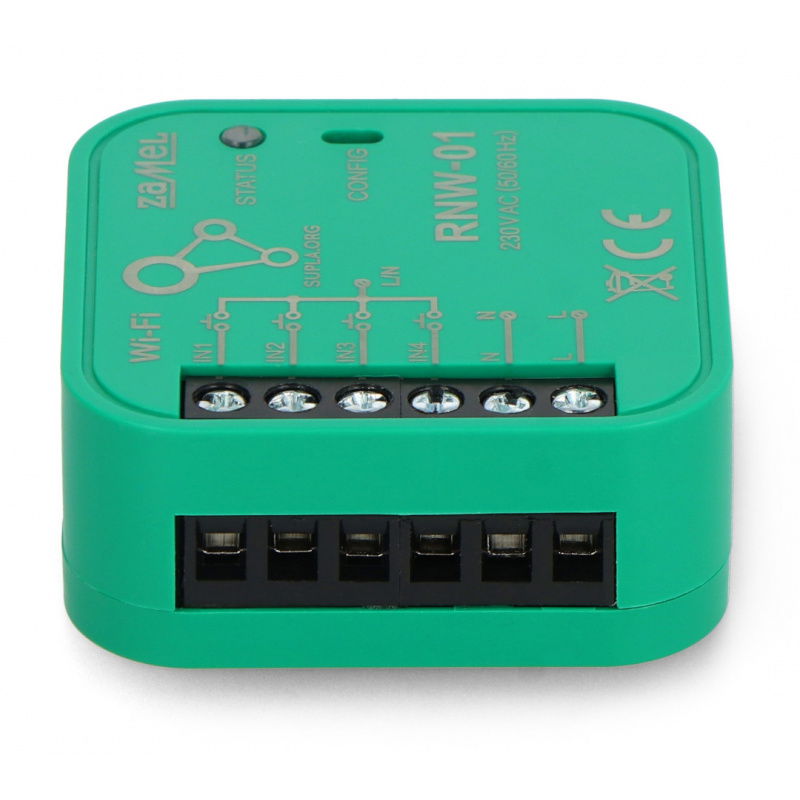

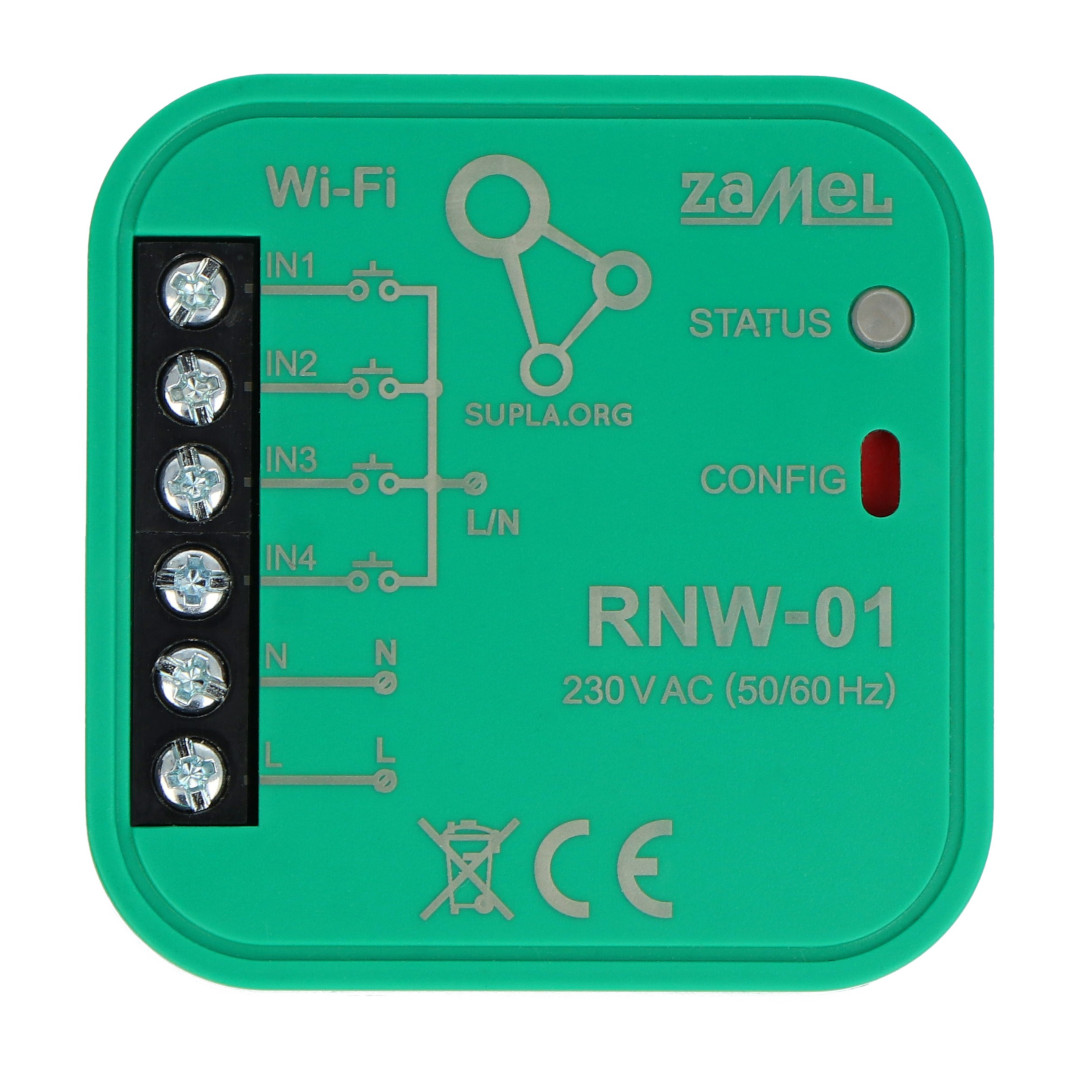

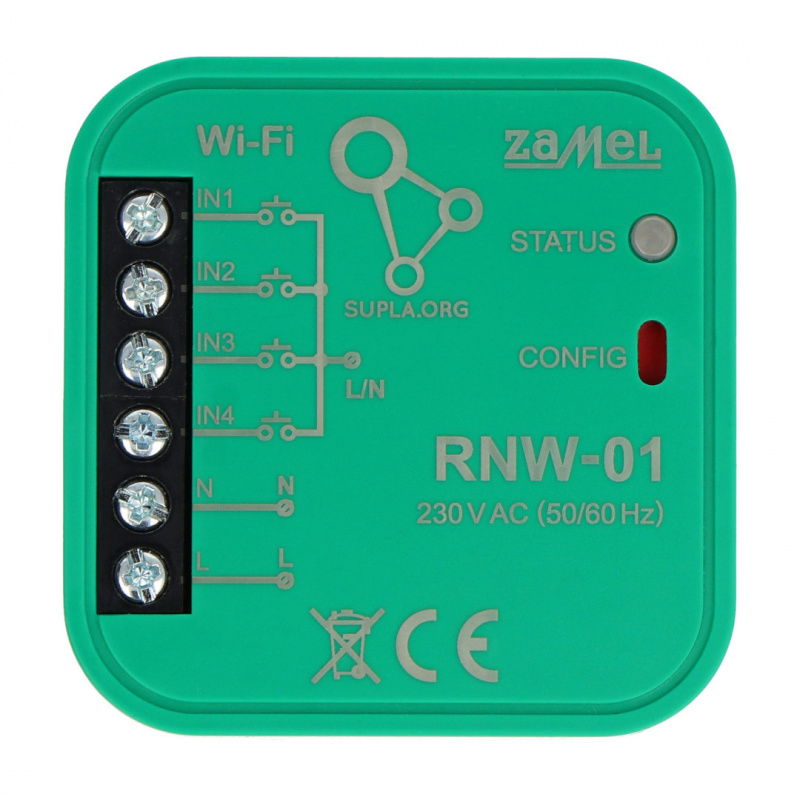

RNW-01 is a compact 4-input interface triggered by 230 V AC.
Main features of Zamel Supla RNW-01
- Wireless 2.4 GHz WiFi connectivity: allows control via the Supla app
- 4 inputs triggered by 230 V AC: versatile applications in a smart home
- Multi-click and long-press support: more control over scenes and functions
- Installation in a Ø 60 mm flush-mounted box: easy integration into existing installations
- Compatible with all electrical installation equipment: no design limitations
Practical applications
The RNW-01 is perfect for home automation systems where convenience and flexibility are key. It enables centralized lighting control —for example, turning off the entire house with a single button, operating all the blinds from a single location, or remotely opening the entrance gate . It's an ideal solution for both single-family homes and apartments in multi-family buildings.
The module is designed for installation in flush-mounted boxes.
Wirelessly controls all Supla WiFi receivers and groups of devices.
Technical specifications
- Nominal voltage: 230 V AC
- Power frequency: 50/60 Hz
- Rated power consumption: 0.75 W
- Transmission type: WiFi 2.4 GHz 802.11 b/g/n
- Number of inputs: 4 (triggered by 230 V AC)
- Cooperation with switches: monostable, bistable
- Number of screw connections: 6 - cables with a cross-section of up to 2.5 mm2
- Degree of protection: IP20
- Installation: for electrical box Ø 60 mm
- Operating temperature range: -10ºC to 55ºC
- Dimensions: 47.5 x 47.5 x 20 mm
- Weight: 0.031 kg
Contents of the set
- RNW-01 4-input WiFi interface
