Product description: Zamel Supla ANT-01 - external WiFi antenna with RP-SMA connector - magnetic base - 3 m cable
ANT-01 is an external WiFi antenna designed to increase the range and reliability of Supla and Exta Free home automation systems. Thanks to the use of a reversible SMA connector and a 3-meter cable , it allows for easy and quick signal transmission outside the switchboard. Its compact design and magnetic base allow for quick installation in any place - without the need for drilling.

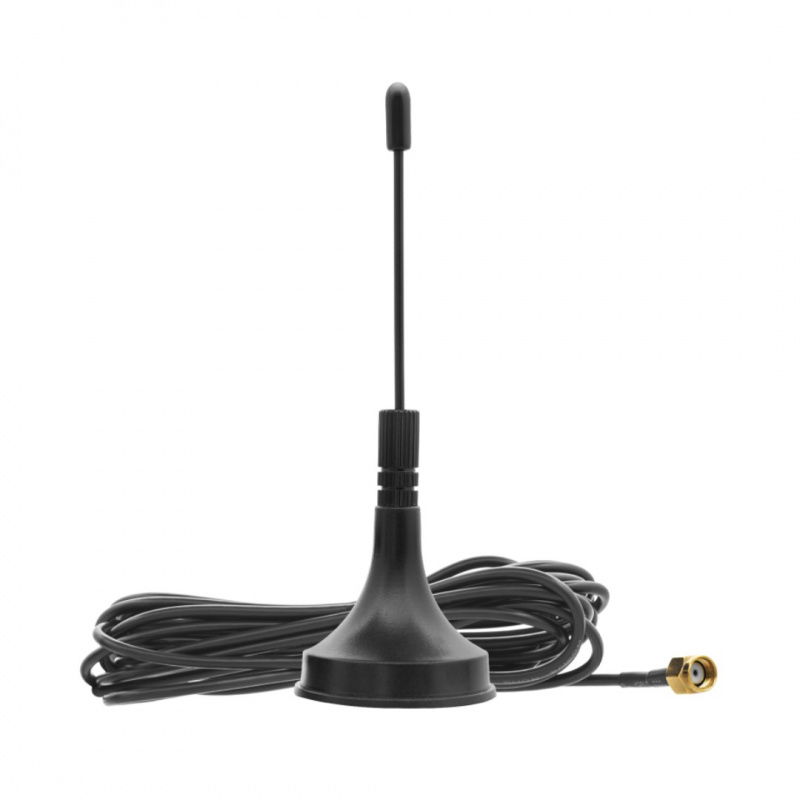

Zamel Supla ANT-01 - external WiFi antenna with RP-SMA connector - magnetic base - 3 m cable.

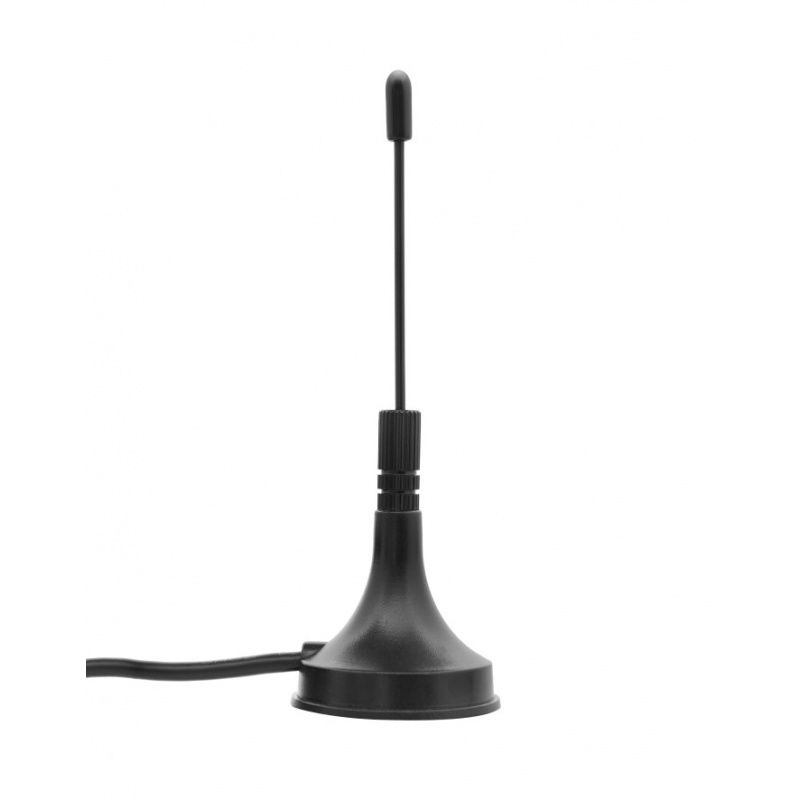

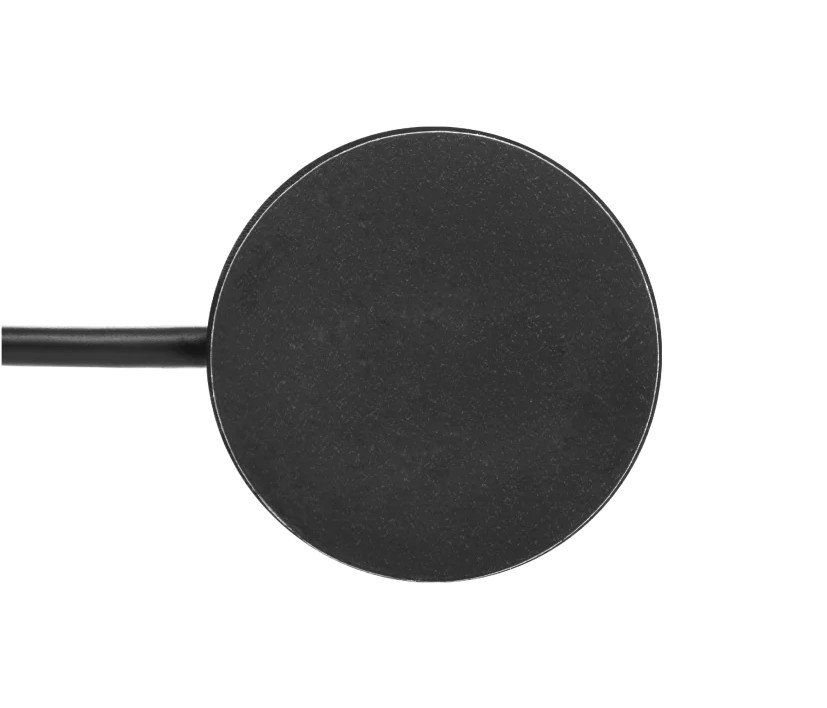

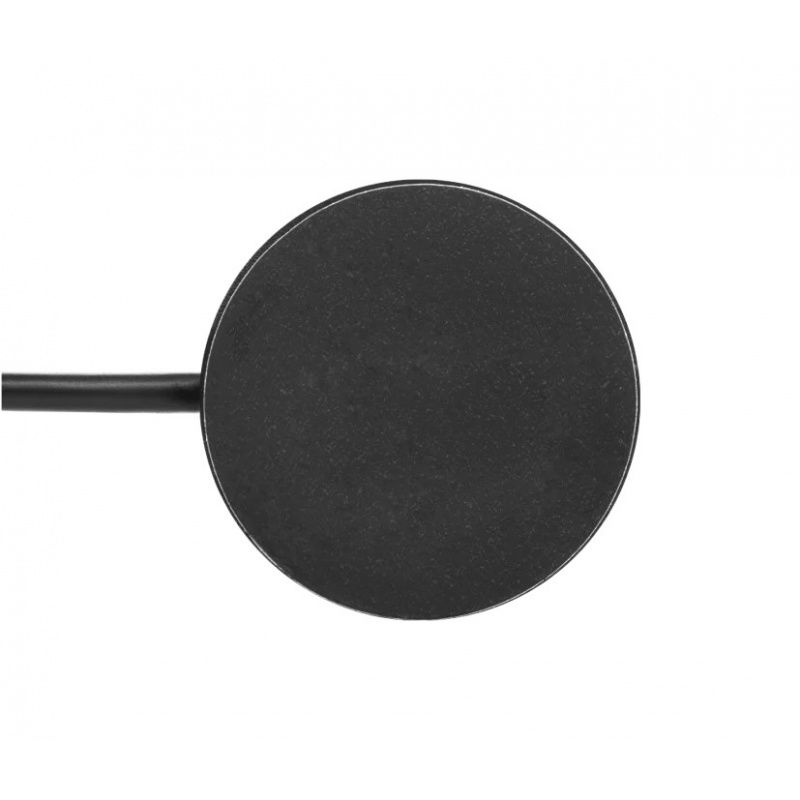

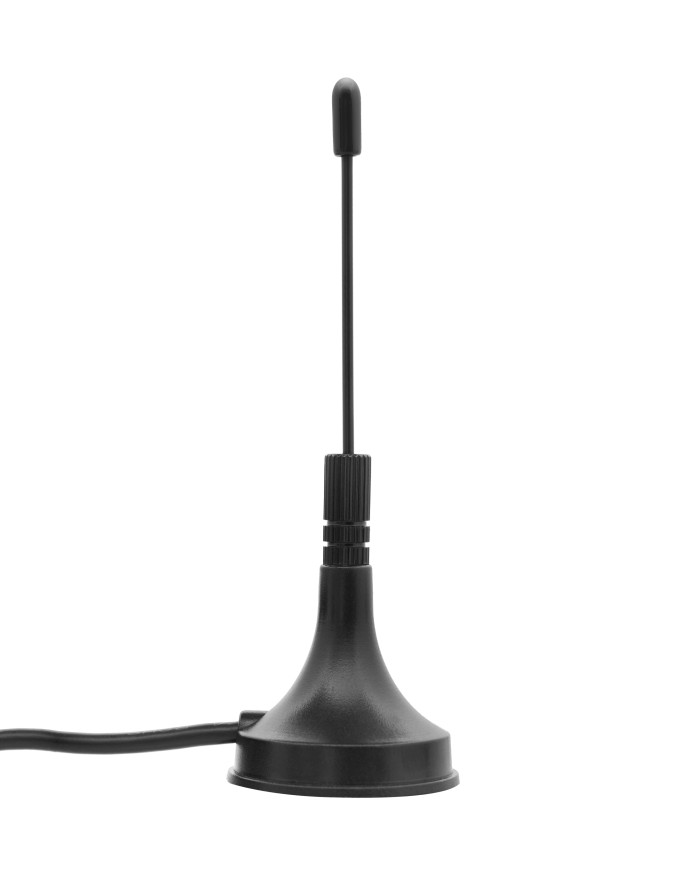

The magnetic base makes it easy to mount the antenna.
Main features of the antenna
- Additional external 2.4 GHz WiFi antenna: increases the range of Supla and Exta Free system devices
- RP-SMA connector: easy and quick connection to compatible modules
- 3m cable length: versatility in antenna placement
- Magnetic or double-sided tape mounting: quick installation without drilling
- IP20 protection class: designed for indoor or covered installation
Practical applications
The antenna is ideal for use wherever Supla or Exta Free system devices are mounted inside metal housings that can suppress the radio signal. Its use allows for effective increase in the range and reliability of communication . Recommended for devices such as MEW-01 , ROW-02M, RXM-01 or ROM-01.
Antenna Technical Specifications
- Connectivity Type: WiFi
- Connector: RP-SMA
- Mounting position: any
- Mounting: magnet built into the base or double-sided tape
- Degree of protection: IP20
- Operating temperature range: -10°C to 55°C
- Cable length: 3 m
- Dimensions: Ø 30.8 x 71.8 mm
- Weight: 0.04 kg
Kit Contents
- WiFi Antenna ANT-01

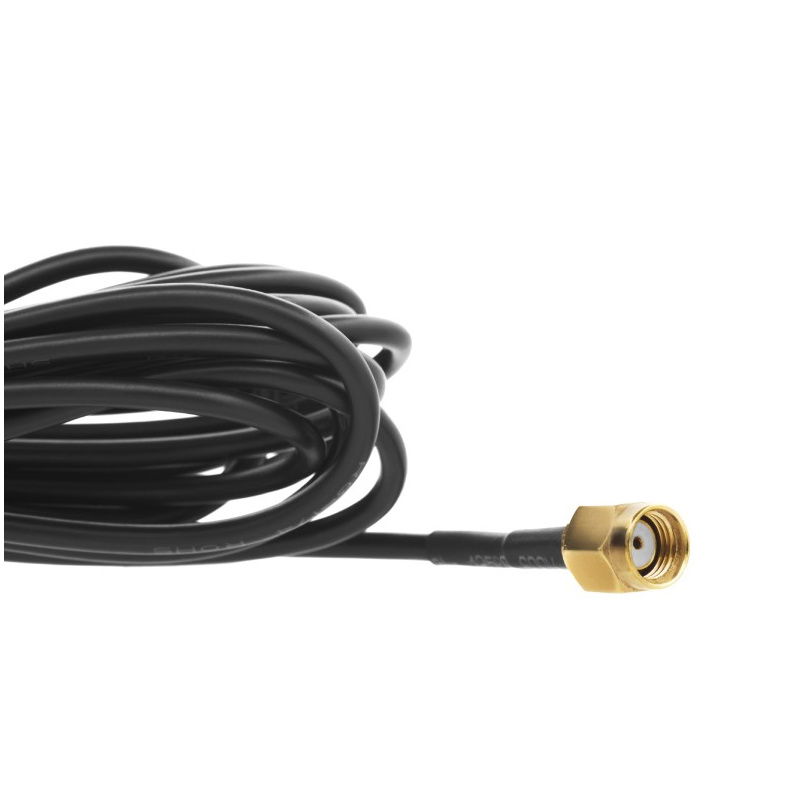

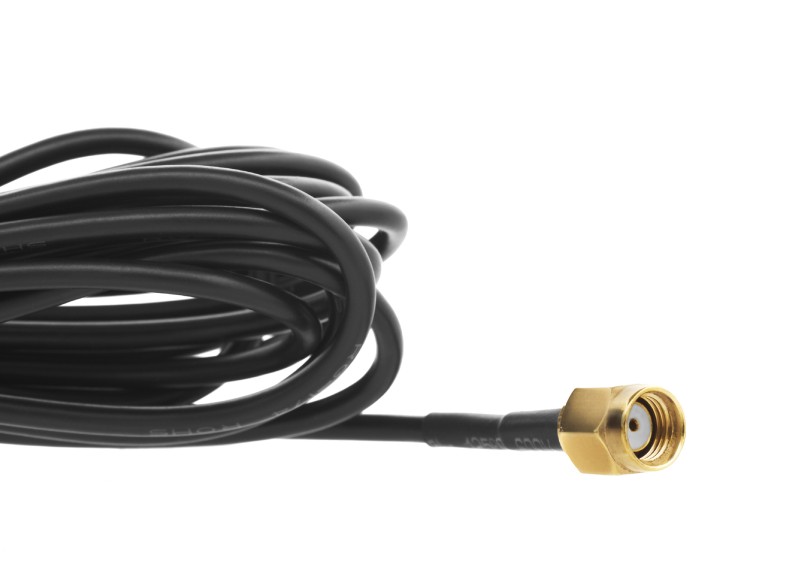

The antenna has an RP-SMA connector.
