Product description: Zamel Supla DIW-01 - WiFi lighting dimmer - Android / iOS application
The DIW-01 lighting dimmer is an innovative controller from the Supla series, designed for functional and convenient home lighting control. Supporting a variety of light sources —from classic incandescent bulbs and halogens to select LEDs and CFLs—the DIW-01 guarantees versatile use. Operation via both a mobile app and a traditional switch makes it an ideal choice for any interior.
Zamel Supla DIW-01 - WiFi lighting dimmer - Android / iOS application.
The dimmer is suitable for regulating the lighting intensity of lamps equipped with conventional incandescent and 230 V AC halogen bulbs.
Main features of the lighting dimmer
- Versatile compatibility : works with incandescent, halogen, dimmable LED and CFL bulbs
- Remote and local control : via the Supla application or a classic monostable/bistable switch
- Easy installation : mounting in a Ø60 mm installation box, four connection terminals
- Maximum load capacity : up to 150 W for resistive loads
- 2.4 GHz WiFi operation : no need for additional controllers
- Compact dimensions : only 47.5 x 47.5 x 23 mm
Safe connection and quick installation
DIW-01 installation is intuitive and quick thanks to a clear wiring diagram. The dimmer is designed for installation in a standard Ø60 mm junction box . Four connection terminals allow for easy connection of wires up to 2.5 mm². A 230 V AC supply voltage and built-in safeguards ensure safe operation. The dimmer works with both monostable and bistable switches , providing versatile configuration options.
Connection diagram.
Control can be carried out wirelessly via the Supla application or wired using a monostable or bistable switch.
WiFi connectivity and the Supla app
DIW-01 works based on A stable 2.4 GHz WiFi connection communicates wirelessly with the Supla app, available for Android and iOS . This allows you to manage your lighting from anywhere in the world. The app allows for smooth dimming, setting minimum and maximum brightness thresholds, and creating schedules . This solution aligns with the idea of a smart home – no control panels, no additional devices, no complications.
Practical applications
The DIW-01 is ideal for private homes, apartments, hotels, and offices . In the bedroom, it can create an atmospheric twilight ideal for relaxation, and in a child's room, it can provide soft light while falling asleep. Thanks to its dimmable light, the DIW-01 enhances the comfort and aesthetics of the interior , and also helps reduce energy consumption , translating into real savings.
Technical specifications of Zamel Supla DIW-01
- Nominal voltage: 230 V
- Nominal frequency: 50/60 Hz
- Rated power consumption: 0.7 W
- Max output load: 150 W (for R/100 V loads)
- Connectivity: WiFi 2.4 GHz b/g/n
- Operating range: within the range of the WiFi network
- Transmit power: ERP < 20 mW
- Number of inputs: 1
- Types of switches: monostable and bistable
- Number of output channels: 1
- Number of connection terminals: 4 (up to 2.5 mm²)
- Installation: Ø60 mm installation box
- Operating temperature range: -10°C to 55°C
- Degree of protection: IP20
- Dimensions: 47.5 x 47.5 x 23 mm
- Weight: 0.04 kg
Contents of the set
- 1x Dimmer DIW-01

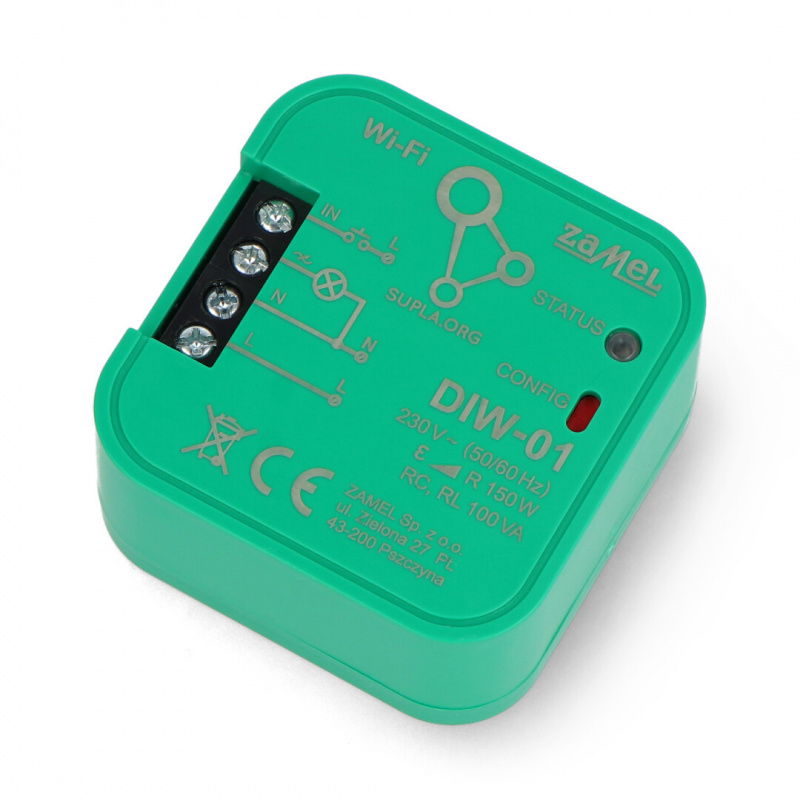

Four screw terminals allow easy connection of wires with a cross-section of up to 2.5 mm².
