Product description: Zamel Supla ROW-01 - relay 230 V 16 A - WiFi - Android / iOS application
The ROW-01 module from Zamel is a reliable solution for those looking for a simple way to remotely control lighting or electrical devices in their home. Thanks to 2.4 GHz WiFi connectivity and the Supla app , you can turn devices on and off from anywhere in the world. Compatible with monostable and toggle switches , it mounts in standard Ø 60 mm electrical boxes. Its high-power relay, rated up to 16 A, allows you to operate most home appliances.

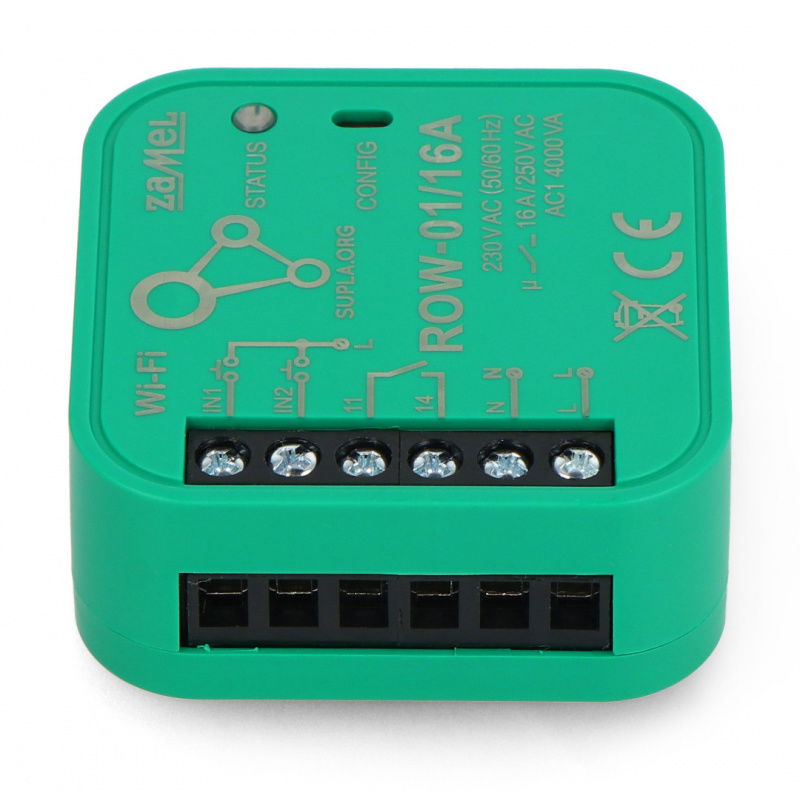

Zamel Supla ROW-01 - relay 230 V 16 A - WiFi - Android / iOS application.
The relay integrates with the Supla application via WiFi.
Main features of the Zamel Supla ROW-01 relay
- Remote control : integration with the Supla app via 2.4 GHz WiFi
- High power : supports devices up to 3600 W (16 A / 250 V AC)
- Universal installation : fits standard Ø 60 mm boxes
- Compatibility : works with doorbell buttons and classic switches
- Minimalist dimensions : only 20 mm deep, weight 0.04 kg
Practical applications
- Light control - remotely turn on and off the lights in the living room, kitchen, and bathroom via the Supla app
- Socket management - control of devices connected to sockets, e.g. kettles, lamps, heaters, from your smartphone
- Intelligent Smart Home automation - expansion of the installation with Smart Home functions without replacing the equipment, thanks to installation in standard junction boxes
- Modernization of the installation - simple installation in the existing electrical system, without the need to run new cables or break down walls

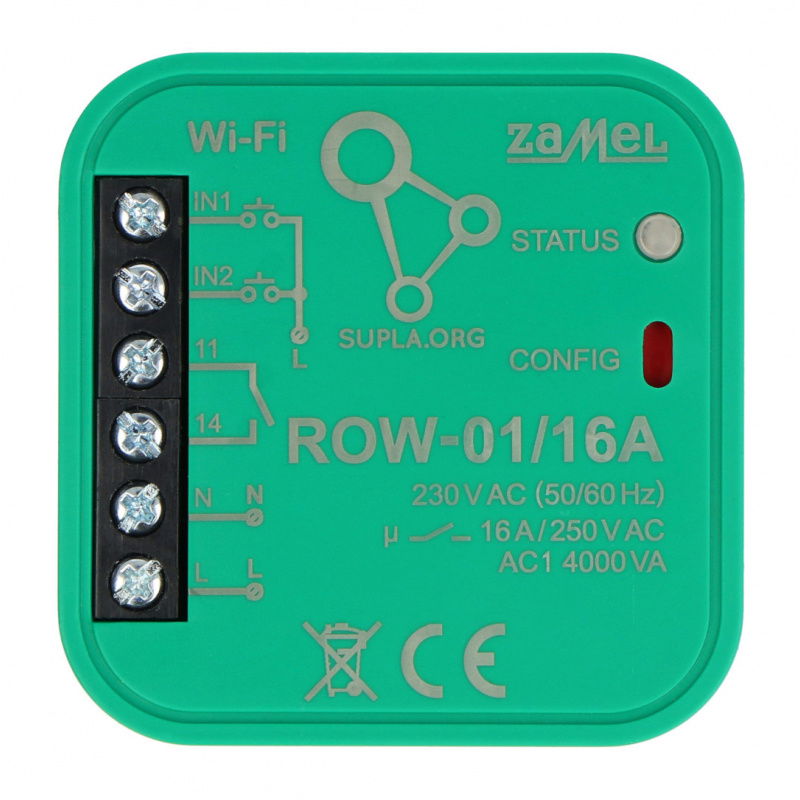

Connection diagram ROW-01
The ROW-01 offers simple installation. It has six screw connectors to which wires can be connected using a screwdriver:
- IN1 - connecting an external switch
- IN2 - connecting an external switch
- 11 - relay output 1
- 14 - relay output 2
- L - phase wire of the 230 V AC power supply
- N - neutral wire of the 230 V AC power supply
The additional Config button is used for initial device configuration.

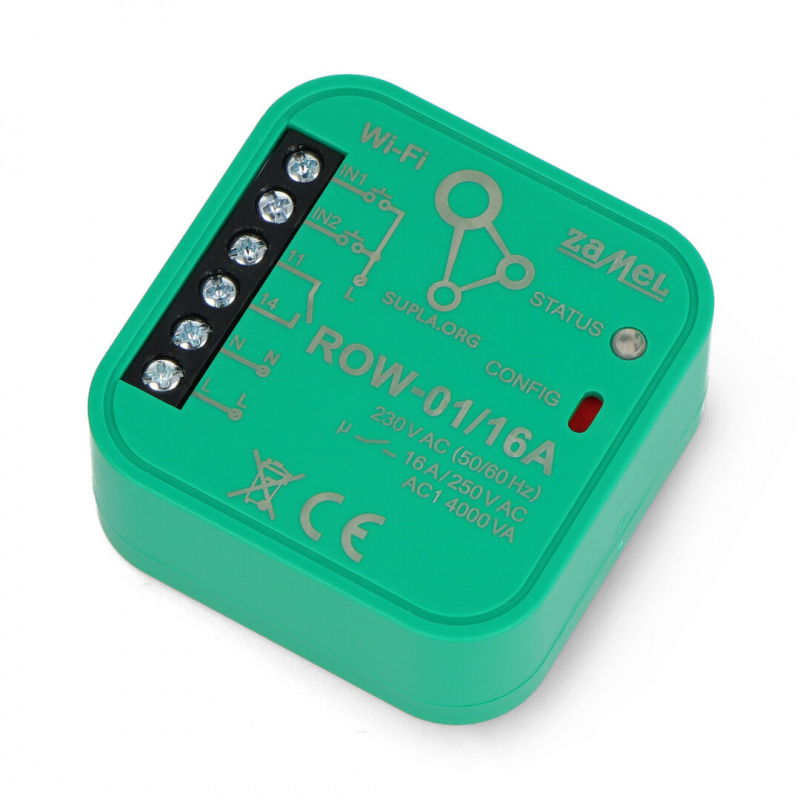

There are clear markings on the housing.
The relay fits perfectly into standard wall boxes.
Technical specification of Zamel Supla ROW-01
- Power supply voltage: 230 V AC, 50/60 Hz
- Power consumption: 0.45 W
- WiFi connectivity: 2.4 GHz, 802.11 b/g/n
- Number of entries: 2
- Switch support: monostable, bistable (no backlight)
- Output channels: 1
- Relay: 1x NO, 16 A / 250 V AC
- Maximum load: 3600 W
- Operating temperature: -10°C to 55°C
- Degree of protection: IP20
- Installation: installation box Ø 60 mm
- Screw terminals: 6 (wires up to 2.5 mm²)
- Dimensions: 47.5 x 47.5 x 20 mm
- Weight: 0.04 kg
Contents of the set
- 1x Module ROW-01 / 16 A
