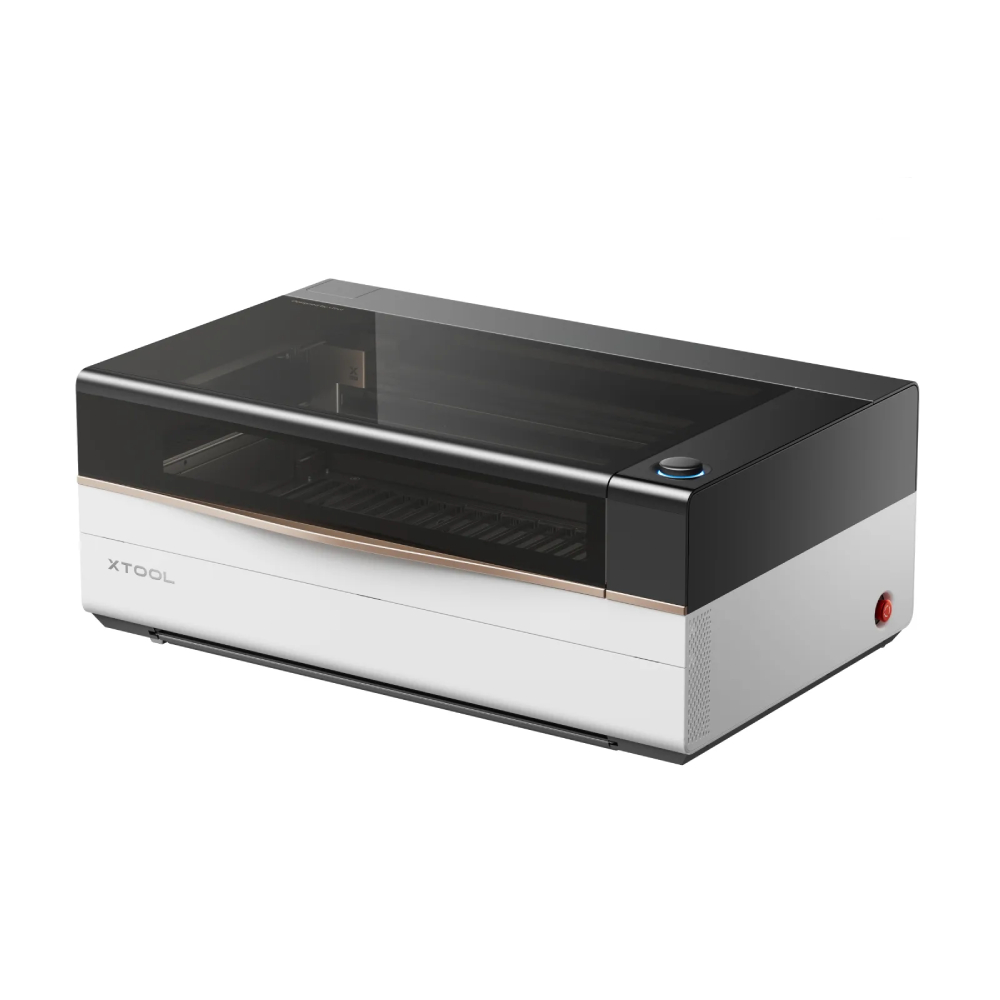

Product description: xTool P3 - CO2 laser engraving and cutting machine - 80 W
The xTool P3 is an advanced, premium laser engraving and cutting machine equipped with an 80W CO2 laser . Designed for professional production, mass marking, and precise cutting of a wide range of materials, the xTool P3 boasts a large work area of 914 x 457 mm , a high operating speed of up to 1200 mm/s, and intelligent positioning systems, making it ideal for both production workshops and creative studios.
xTool P3 - CO2 laser engraving and cutting machine - 80 W. xTool P3 is an advanced premium laser engraving and cutting machine equipped with an 80W CO2 laser.
Special features
- 80W CO2 Laser: Fast cutting and engraving of a wide range of materials
- Very large working area: 914 x 457 mm
- Working speed up to 1200 mm/s: high production efficiency

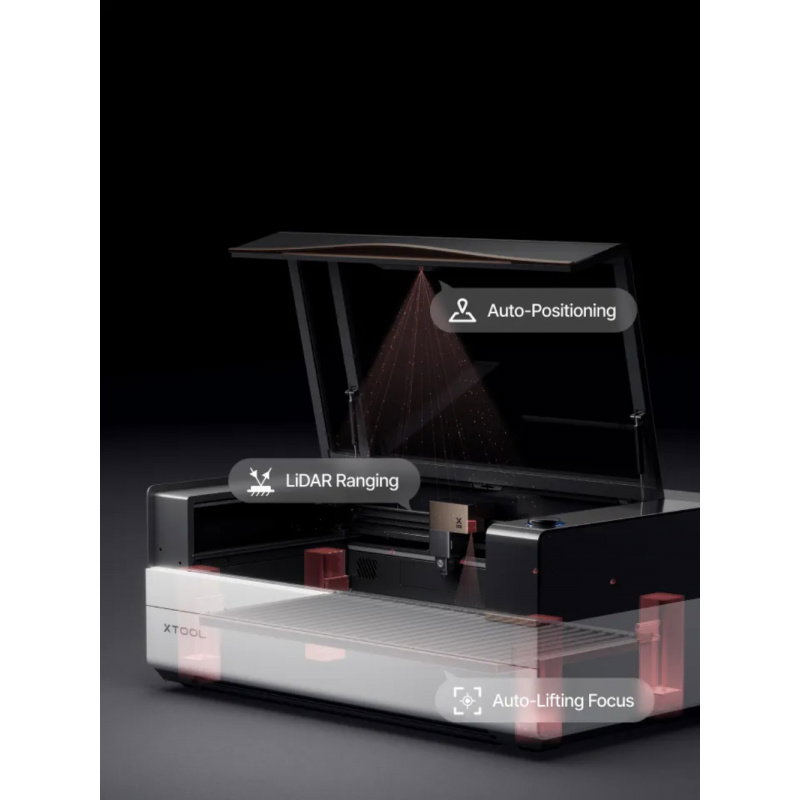

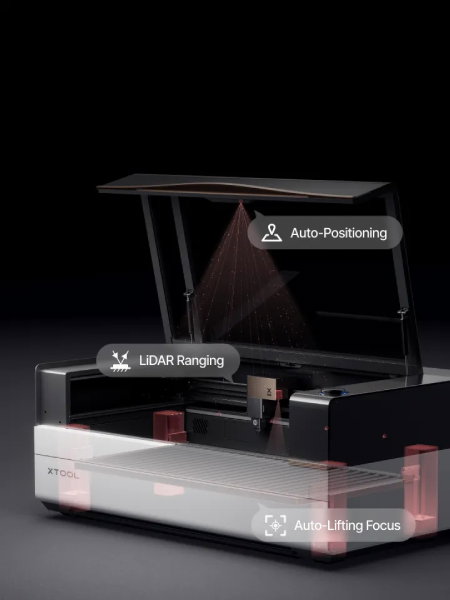

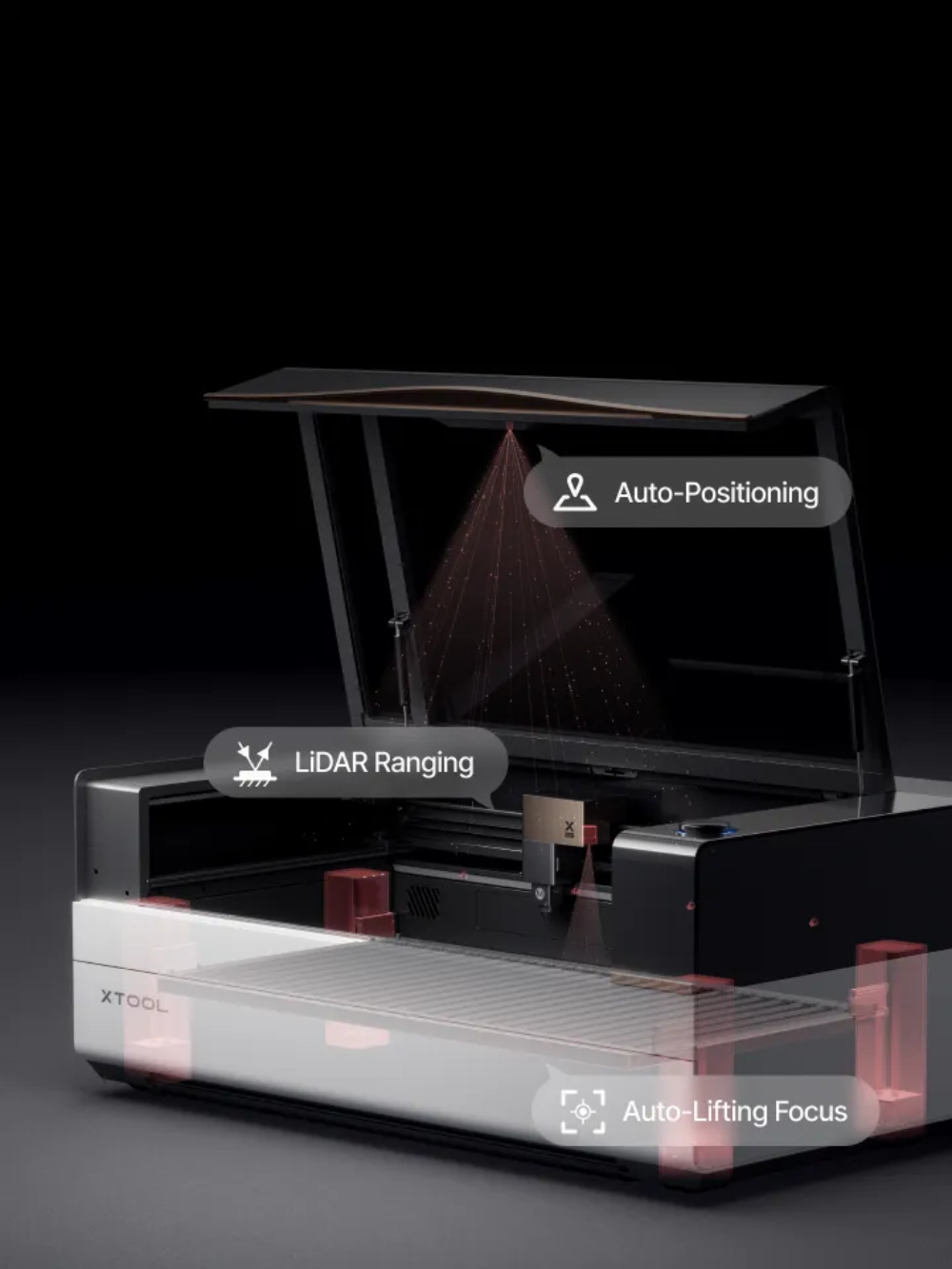

- Dual AI Camera System: Accurate Footage Positioning
- Autofocus and LiDAR: Automatic focus and elevation adjustment
- AutoLift Base: automatic height adjustment of the working field
- Conveyor System: Long Material Processing and Batch Production
- RA3 Rotary support: engraving cylindrical elements
- Laser Class 1 Safety: Closed and safe design
- Multi-material support: wood, acrylic, leather, fabric, glass, metal, and ceramics
- AI Make Compatible: Support for Intelligent Design Features
Intelligent AI camera system
xTool P3 utilizes an advanced dual HD camera system supported by AI algorithms, enabling highly precise design placement on the material. The panoramic camera provides a view of the entire workspace, while the close-up camera increases the accuracy of positioning small elements and details. This solution significantly reduces the risk of errors and accelerates production preparation.
AutoLift automatic height adjustment
The xTool P3 is equipped with the AutoLift system, which automatically adjusts the working height to the material being processed. This significantly speeds up setup and eliminates the need for manual table adjustments. With a maximum working height of 221 mm, the device allows for convenient engraving of larger objects, three-dimensional elements, and cylindrical objects using the RA3 Rotary module.
The device was designed for professional production, serial marking and precise cutting of a wide range of materials.
xTool P3 uses an advanced system of two HD cameras supported by AI algorithms.Technical specifications
- Model: P3
- Device type: CO2 laser engraving and cutting machine
- CO2 laser power: 80 W
- Working area: 914 x 457 mm
- Maximum operating speed: 1200 mm/s
- X-axis acceleration: 19600 mm/s²
- Maximum material height: 220 mm
- Maximum rotary engraving diameter: 0 to 200 mm
- Maximum wood cutting thickness: 20 mm in one pass
- Maximum acrylic cutting thickness: 25 mm in one pass
- Supported materials: wood, acrylic, fabrics, leather, glass, bamboo, metal, ceramics
- Positioning system: Dual AI camera, LiDAR
- Positioning accuracy: 0.2 mm
- Movement accuracy: 0.01 mm
- Autofocus: yes
- Camera operation preview: yes
- Communication interface: USB, WiFi
- Supported systems: Windows, macOS
- Supported file formats: SVG, DXF, JPG, JPEG, PNG, BMP, TIFF
- Software: xTool Studio
- AI Make Compatibility: Yes
- Safety Certification: Laser Class 1
- Power supply: 100 V to 240 V AC, 50/60 Hz
- Maximum power consumption: 1400 W
- Weight: 105 kg
- Dimensions: 1250 x 780 x 496 mm

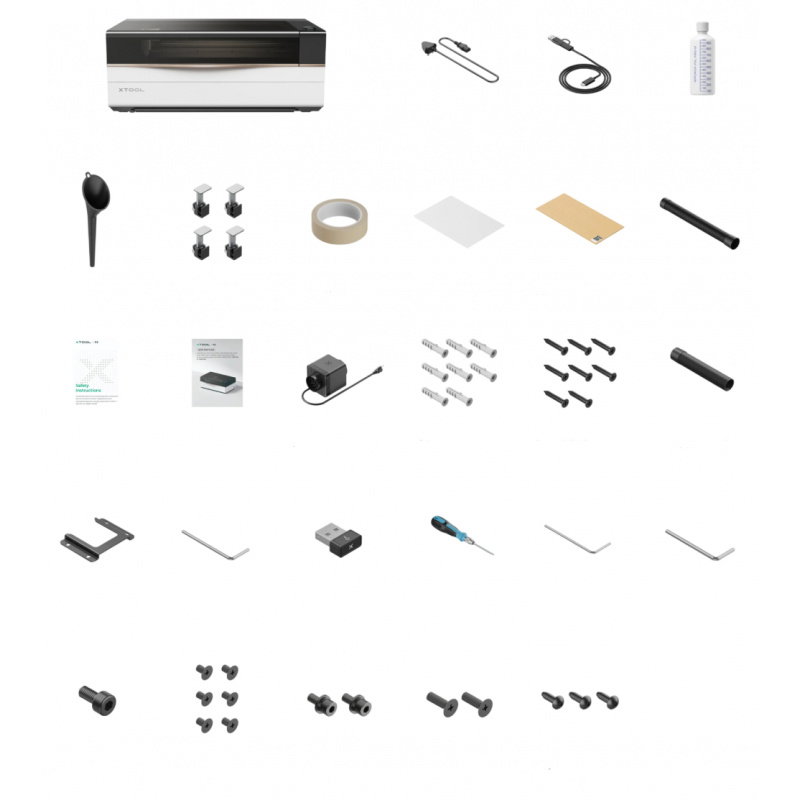

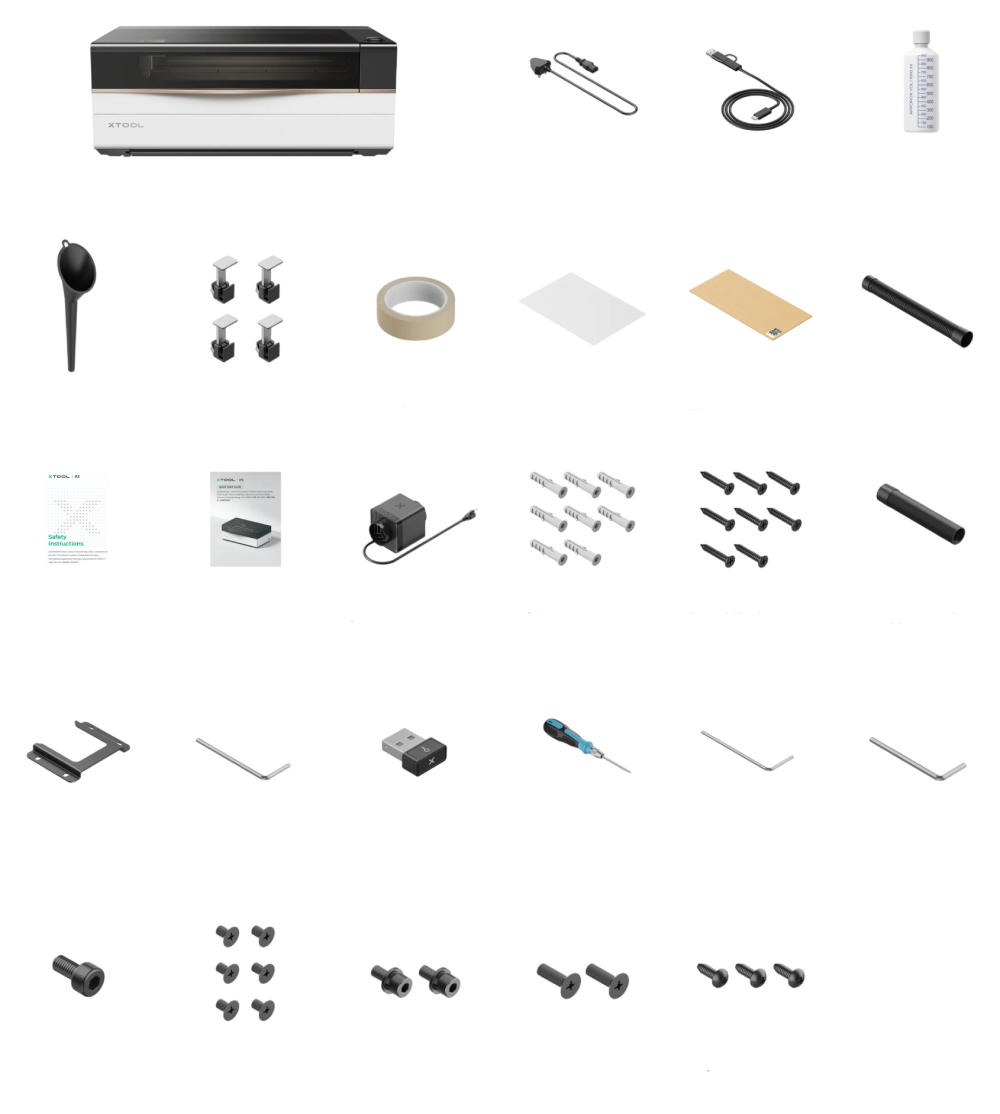

Contents of the set
- xTool P3
- Power cord
- USB cable
- Antifreeze
- Funnel
- Material clamps
- Masking tape
- Cardboard sample
- Basswood sample 3 mm
- Smoke extraction pipe
- Safety instructions
- Quick start guide
- SafetyPro IF2.0 module
- Mounting elements
- Allen keys
- Screwdriver
- Wall mounting bracket
Contents of the set.
