Product description: Toocaa L2 40W Plus Bundle
The TOOCAA L2 is a high-end laser plotter designed for users who demand maximum power and precision. Thanks to its 40W diode laser , the device easily cuts thicker materials— up to 15mm of wood or MDF —and enables deep, clean engraving. Its 415 x 395mm working area allows for the completion of even large projects, while a precise positioning mechanism (0.01mm) ensures a high-quality finish.

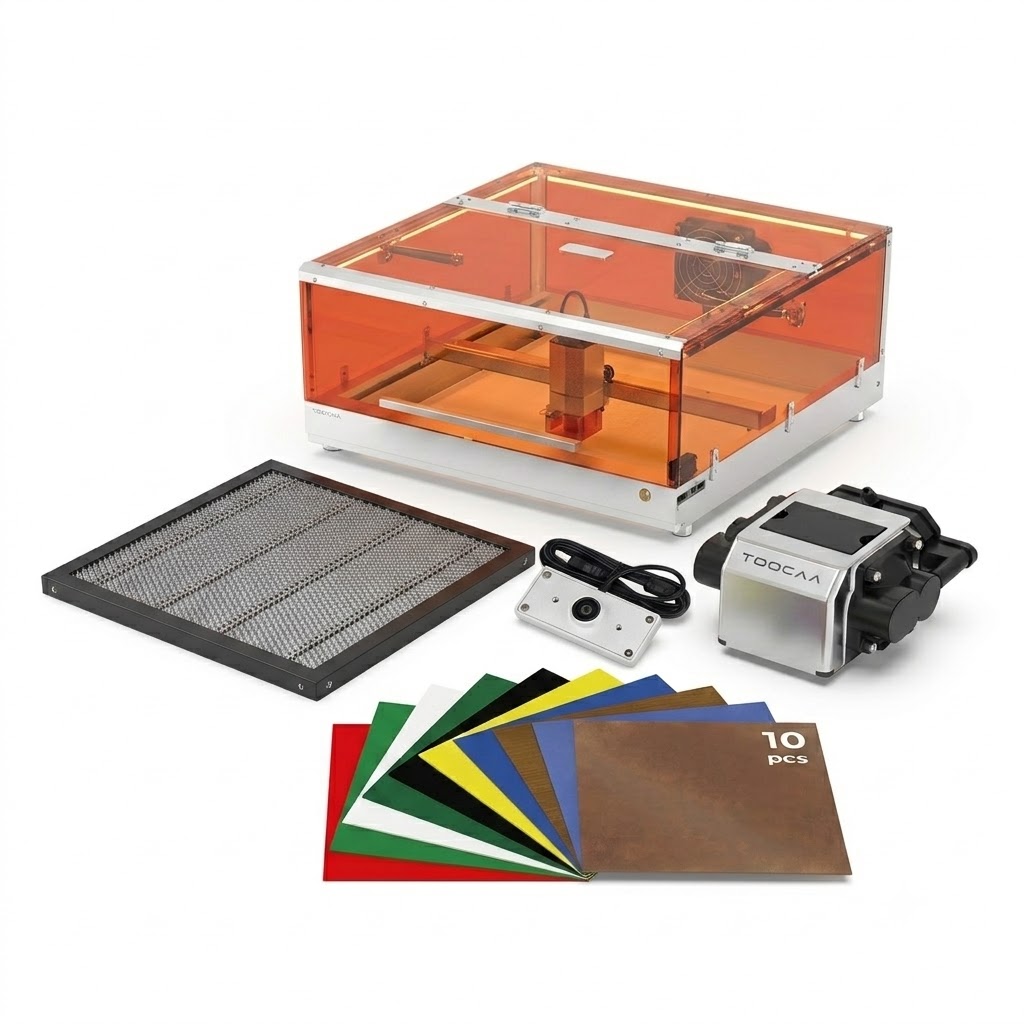

The kit includes a TOOCAA L2 40W laser plotter , an Air Assist air pump, a honeycomb work table, a TOOCAA Material Magic Box and a smart camera.
Products offered as part of packages are shown on sales documents (invoice, receipt) as separate items.
Bundle - Toocaa L2 40 W Basic Bundle.
The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems
The TOOCAA L2 40W plotter is designed with user safety in mind. It meets Class 1 laser standards and is equipped with numerous sensors, including a fire detector, tilt detector, cover open detector, emergency button, and USB interlock . Combined with a physical LED power switch and emergency stop function, the system allows for safe and stable operation even in a home environment.
Effective smoke extraction system
A fume extraction system with a fan and exhaust pipe removes harmful fumes generated during engraving and cutting. This ensures a safe, clean, and comfortable work environment . Improved filtration minimizes the risk of contaminants settling on lenses and mechanical components.
Easy installation and pre-assembly
The plotter comes pre-assembled , saving up to 95% of assembly time compared to other devices. Quick connection via USB Type-C or TF card allows you to get started immediately, without lengthy setup.
TOOCAA Smart Camera
The TOOCAA intelligent camera for the L2 plotter enables precise material positioning and real-time engraving preview. Equipped with a 5 MP sensor (2592 x 1944 px) , it allows for perfect pattern alignment within a 400 x 400 mm area, eliminating the risk of errors. A one-click calibration function makes setup extremely fast, while the robust metal housing and USB 2.0 interface guarantee durability and stable operation. This is the key to convenience and complete control over your projects!
Practical use of the Air Assist pump
During laser operation, smoke, dust and material residues are produced, which can settle on the lens, cause discoloration, and reduce cut quality. The TOOCAA Air Assist kit eliminates this problem with a powerful airflow (up to 28 L/min) that instantly removes contaminants from the cutting area .The airflow system significantly lowers the temperature of the processed surface , preventing deformation, burns, and contamination. Cutting lines become smoother, edges cleaner, and details more precise. Additionally, the laser module lens remains protected , allowing the laser to operate more efficiently and last longer.
The TOOCAA L2 offers a large work area that allows you to tackle medium-sized projects such as cutting acrylic, wood or leather accessories.
The LED strip shows the operating states of the plotter by displaying different colors.
Honeycomb work table
The 400 x 400 mm honeycomb worktable is a solid platform for laser engravers and plotters. The openwork metal structure ensures optimal airflow and efficient smoke extraction, preventing burns on the underside of wood, plywood, or acrylic. Furthermore, the panel stabilizes the material and reduces unwanted laser beam reflections, resulting in higher precision and exceptionally clean, aesthetic cut edges. An ideal choice for both hobbyist and professional workshops!
TOOCAA Material Magic Box
The package also includes a set of materials designed specifically for laser engraving. Thanks to the multi-layered sheets, you can easily achieve clear and contrasting designs—the laser precisely reveals the underlying color layer. You'll find durable plastic sheets and soft, splash-resistant PU leather with an elegant finish. It's the perfect choice for creating personalized keychains, information signs, ornaments, and unique DIY projects!
Contents of the set
- TOOCAA L2 laser plotter
- 40W laser module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- User manual
- Air pump + accessories
- TOOCAA Honeycomb Work Panel - 400 x 400 mm
- Camera for laser plotter
- TOOCAA Material Magic Box
- 1x Red/White Plastic Sheet
- 1x Green/White Plastic Sheet
- 1x Plastic sheet black/white
- 1x Black/Green Plastic Sheet
- 1x Plastic sheet black/red
- 1x Plastic Sheet Black/Yellow
- 1x Plastic sheet black/blue
- 1x PU Synthetic Leather Sheet Bamboo/Black
- 1x PU Synthetic Leather Sheet Blue/Silver
- 1x Sheet of PU synthetic leather brown/silver
The plotter is compatible with Toocaa Studio and LightBurn software, as well as Windows, macOS and Linux systems.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 40 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 15 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.13 x 0.15 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 10A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 240 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
