Inkplate 10 with case and battery - 9,7'' 1200x820px e-paper display - ESP32 - Soldered 333247 - Outlet

Index: OUT-29374

Ask a question

Remove from wishlist Add to wishlist

Inkplate 10 with case and battery - 9,7'' 1200x820px e-paper display - ESP32 - Soldered 333247 -...

€156.34

€131.38 tax excl.

The store is available only to registered B2B customers Create an account

Check quantity

Manufacturer: Soldered

Product description: Inkplate 10 with housing and battery - e-paper display 9.7'' 1200x820px - ESP32 - Arduino compatible - Soldered 333247 - Outlet

Current product status:

The product comes from a customer return
No USB cable included

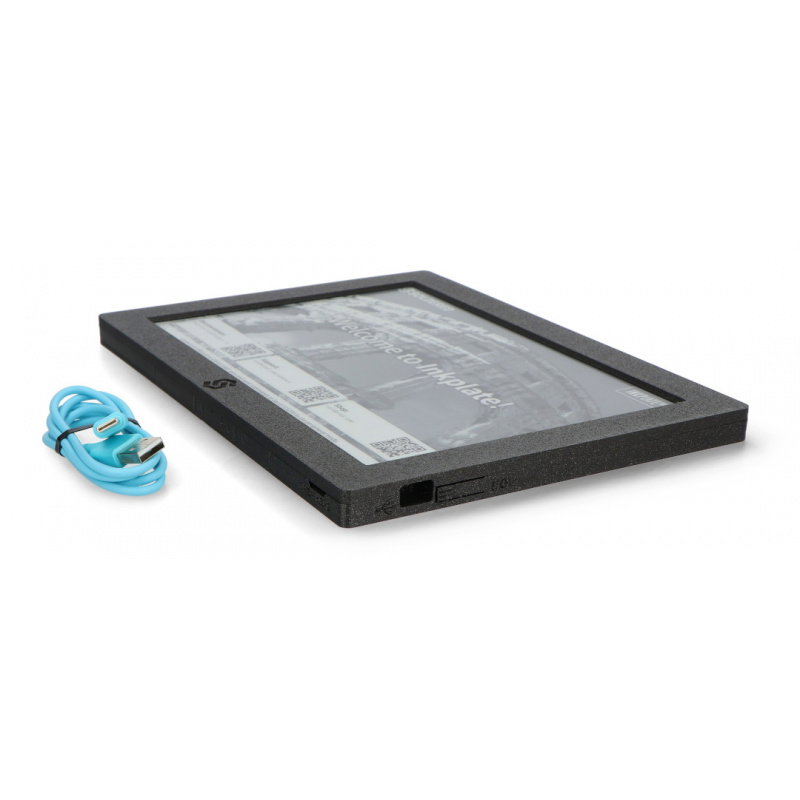

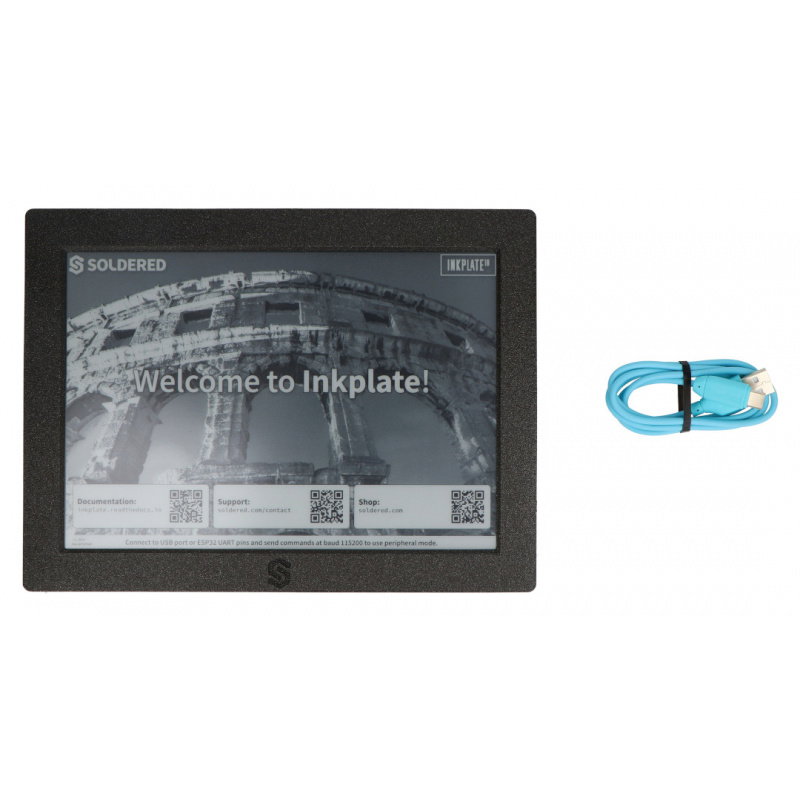

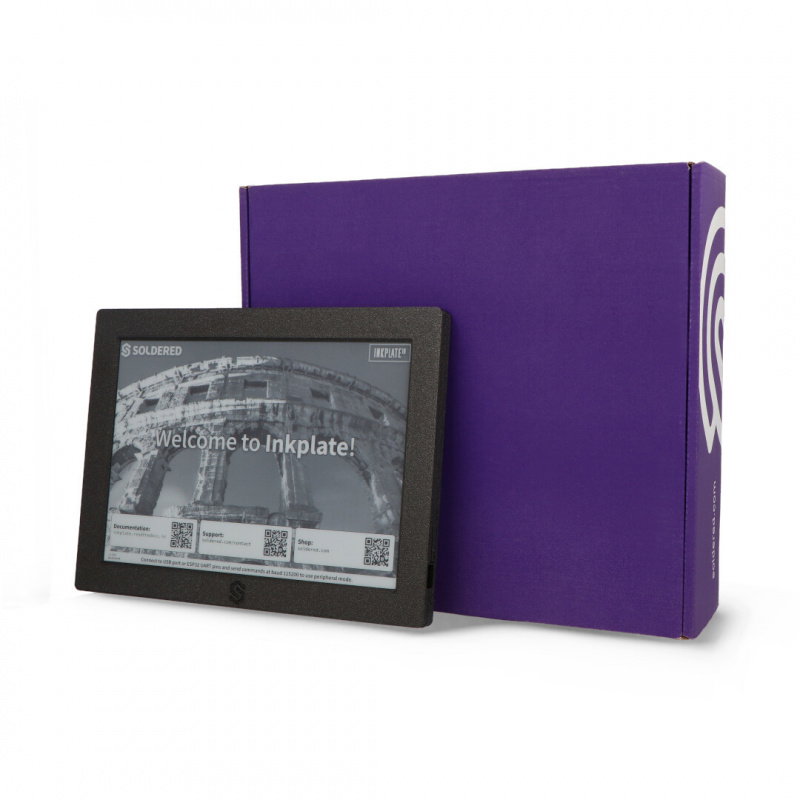

Inkplate 10 with case and battery - e-paper display 9.7'' 1200 x 820 px - ESP32 - for Arduino - Soldered 333247

Inkplate 10 with case and battery - 9.7'' e-paper display 1200 x 820 px - ESP32 - Arduino compatible - Soldered 333247.

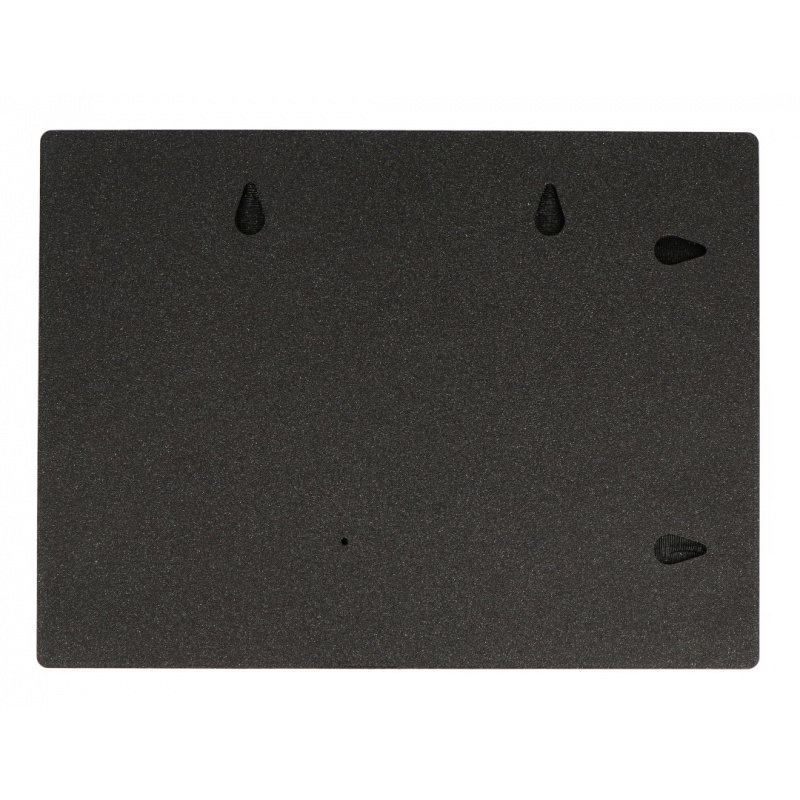

The housing made using 3D printing technology protects the module and the display.

Display technical specifications

Display diagonal: 9.7"
Display resolution: 1200 x 820 px
Display colors: black, white, grayscale
Microcontroller: ESP32
Connectivity: WiFi, Bluetooth 4.0 (BLE)
Refresh rate: 1.61 s
Power consumption: 22 µA in sleep mode
Built-in microSD card reader: yes
Connectors: USB Type-C, easyC, GPIO, battery connector
Communication: USB, I2C, SPI
USB to UART Converter : CH340C
Buttons: three capacitive touchpads, power button and additional user button
Programming: Arduino and MicroPython compatible
Dimensions: 240 x 179.5 x 13.5 mm

Contents of the set

1x Arduino compatible board
1x e-paper display
1x Housing
1x Battery
1x USB cable

Useful links

Package width	28.5 cm
Package height	7.8 cm
Package depth	25.3 cm
Package weight	0.553 kg

Send us your question

Be the first to ask a question about this product!

Instructions and documents

Certyfikat RoHS

Dane GPSR

Country of Origin: Poland

Manufacturer Contact Details: BOTLAND B. DERKACZ SP. K. Gola 25A - 63-640 Bralin

EU Marketer Contact Details: BOTLAND B. DERKACZ SP. K. Gola 25A - 63-640 Bralin

Botland

Declaration of conformity RoHS

The EU Directives 2011/65/EU and 2015/863 restrict the use of ten substances listed below in the manufacturing of certain types of electrical and electronic equipment.

Although these restrictions does not legally apply to components, it is acknowledged that the "compliance" of components is important to many customers.

Definition of RoHS compliance according to Botland:

The product does not contain any substances subject to restrictions in concentrations or applications prohibited by the directive.
In the case of components, the product is suitable for processing at higher the temperatures required for lead-free soldering.

The restricted substances and their maximum allowable concentrations in homogeneous material, by weight, are as follows:

Substance	Concentration (max)
Lead (Pb)	0,1%
Mercury (Hg)	0,1%
Poły Brominated Biphenyls (PBB)	0,1%
Poły Brominated Diphenyl ethers (PBDE)	0,1%
Hexavalent Chromium (Cr VI)	0,1%
Cadmium (Cd)	0,01%
Bis (2-ethylhexyl) phthalate (DEHP)	0,1%
Butyl benzyl phthalate (BBP)	0,1%
Dibutyl phthalate (DBP)	0,1%
Diisobu I hthalate DIBP	0,1%

The supplier of the component listed below has informed Botland that the product is “RoHS compliant.” Botland has taken all reasonable steps to verify this declaration. This information applies exclusively to products sold on or after the issue date of this certificate.

Details of compliant products

SKU: OUT-29374

Product description: Inkplate 10 with case and battery - 9,7'' 1200x820px e-paper display - ESP32 - Soldered 333247 - Outlet

Manufacturer: Soldered

The information contained herein pertains to the product sold no earlier than the date shown below.

Issue date: 27.07.2026
