Product description: Two Trees TTS-20 Pro 20 W Laser Plotter
Plotter from Two Trees equipped with a super- light 20 W laser head with an updated COS chip. The laser module is 40% lighter compared to the TTS-55 version, making its movements smoother and faster. The plotter can work at a speed of up to 500 mm / s . The device offers a large working area of 418 x 418 mm , which will meet the requirements of even very complex projects. The compressed laser beam is 0.08 mm thick and guarantees high precision. The plotter is 98% assembled, so its entire calibration will take you about 5 minutes.

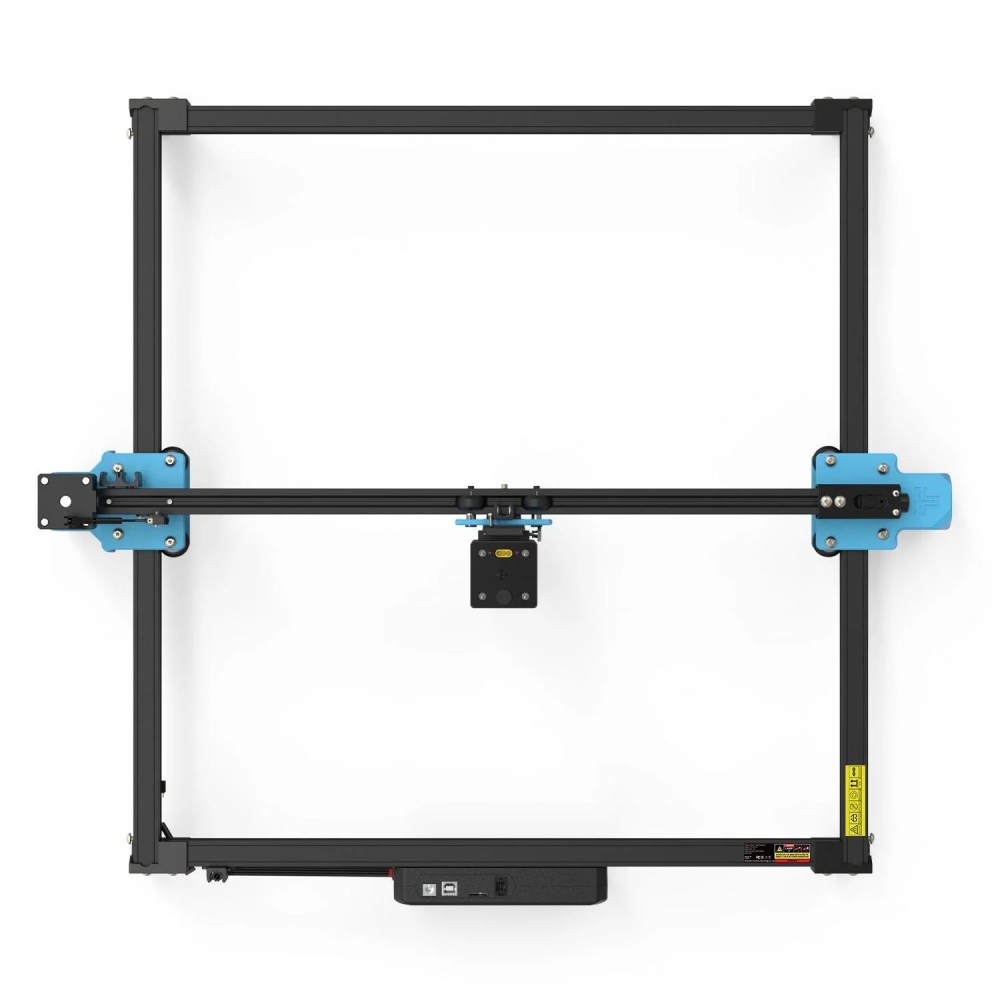

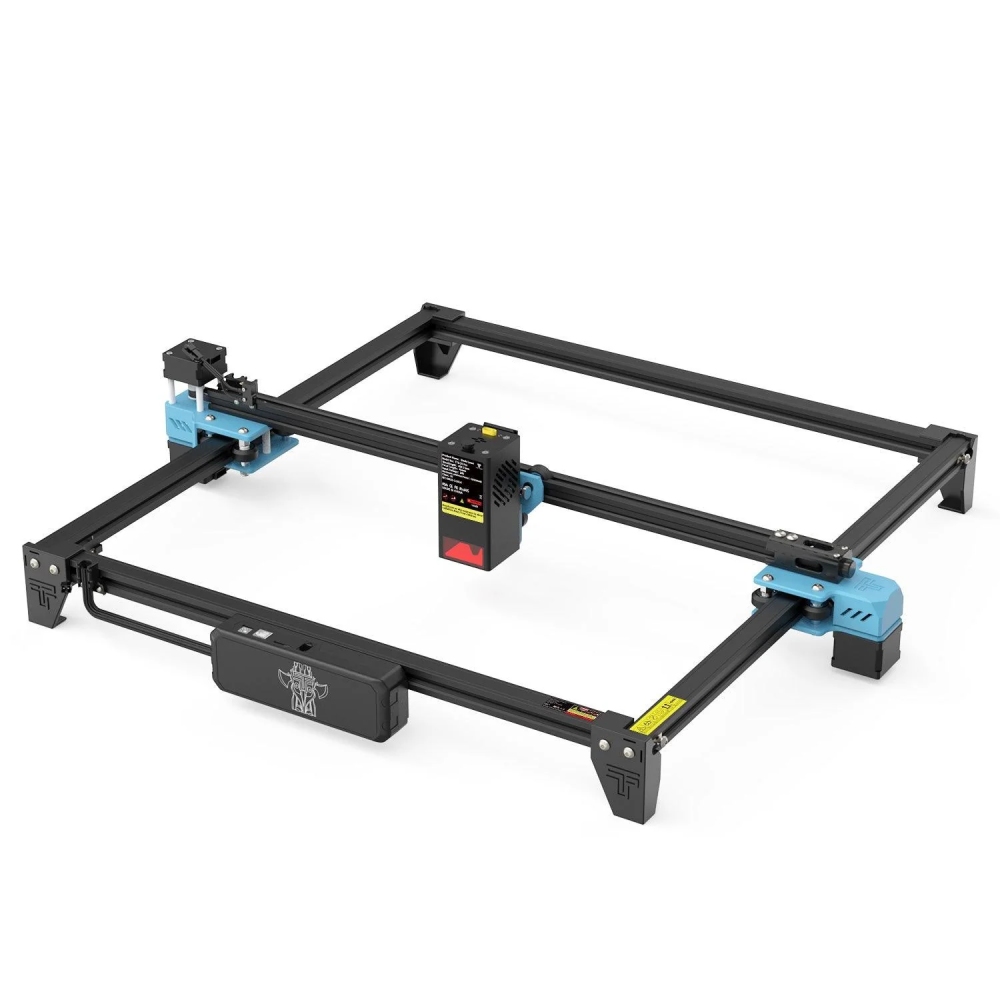

Two Trees TTS-20 Pro 20 W Laser Plotter
Create more designs with a lightweight, fast laser head.Large working area
The TTS-20 Pro boasts a large work area that allows you to create large-sized projects. Its dimensions are 418 x 418 mm, which is 40% larger than the work areas of previous TTS models.
Lighter and faster laser head
The plotter is equipped with an improved high-power 20 W laser head. The compressed laser beam is 0.08 mm thick and guarantees high precision. The head design is much lighter than previous versions, which allows for faster and smoother operation. The plotter can work at speeds of up to 500 mm/s . This makes it efficient and will allow you to create more works in less time .
Pre-assembled
The device delivered to you will be 98% assembled . To start working with the plotter, just a few simple steps are enough. Thanks to this, even if you have no experience in operating this type of device, you will easily manage to configure the TTS-20 Pro.
Engrave in color
The powerful laser head allows you to engrave metal surfaces. When the metal is heated by the 20-watt laser beam, it can take on a variety of beautiful colors that will bring your design to life .
Just a few simple steps are enough to assemble the plotter. | TWO TREES TTS-20 Pro 20 W TECHNICAL SPECIFICATION | |
|---|---|
| Laser power: | 20 W |
| Work area: | 418 x 418 mm |
| Movement speed: | up to 30000 mm/min, 500 mm/s |
| Laser wavelength: | 450nm (+/- 5nm) |
| Laser spot size: | 0.08x0.08mm |
| Communication: | USB, App, Webpage |
| Supported files: | NC, DXF, BMP, JPG, PNG, GCODE |
| Software: | LaserGRBL, Lightburn |
| Operating system: | Windows, macOS |
| Supported languages: | Chinese, English, Italian, French, German |
| Engraving materials: | wood, plastic, paper, leather, sponge paper |
| Material of manufacture: | aluminum, plastic |
| Operating voltage: | 24V / 4A |
| Product size: | 695x595x125mm |
| Product weight: | 3.2kg |
