Product description: Two Trees TS5 7 W laser plotter
The Two Trees TS5 is the first enclosed 4-in-1 laser engraver of its kind, allowing for operation in various modes without the need to rebuild the entire machine. With a 7W laser power and a spot size of just 0.035 x 0.1mm , the device delivers extremely high precision engraving on materials such as stainless steel, glass, wood , leather, and ceramics . A working area measuring 249 x 123 x 123mm allows for marking both small and larger, irregularly shaped objects. The enclosed housing with a built-in smoke and dust filtration system protects the user and ensures a clean work environment, even in a home environment. A large transparent window with a blue light filter protects eyes while allowing monitoring of engraving progress. The device is 95% factory-assembled – ready to use almost right out of the box . It supports the most popular file formats and operating systems, and with Wi-Fi, USB, and TF card support, integration with a computer or local network is quick and convenient. The Two Trees TS5 is the ideal tool for anyone looking for an efficient, secure, and flexible engraving solution—from hobby to light production.

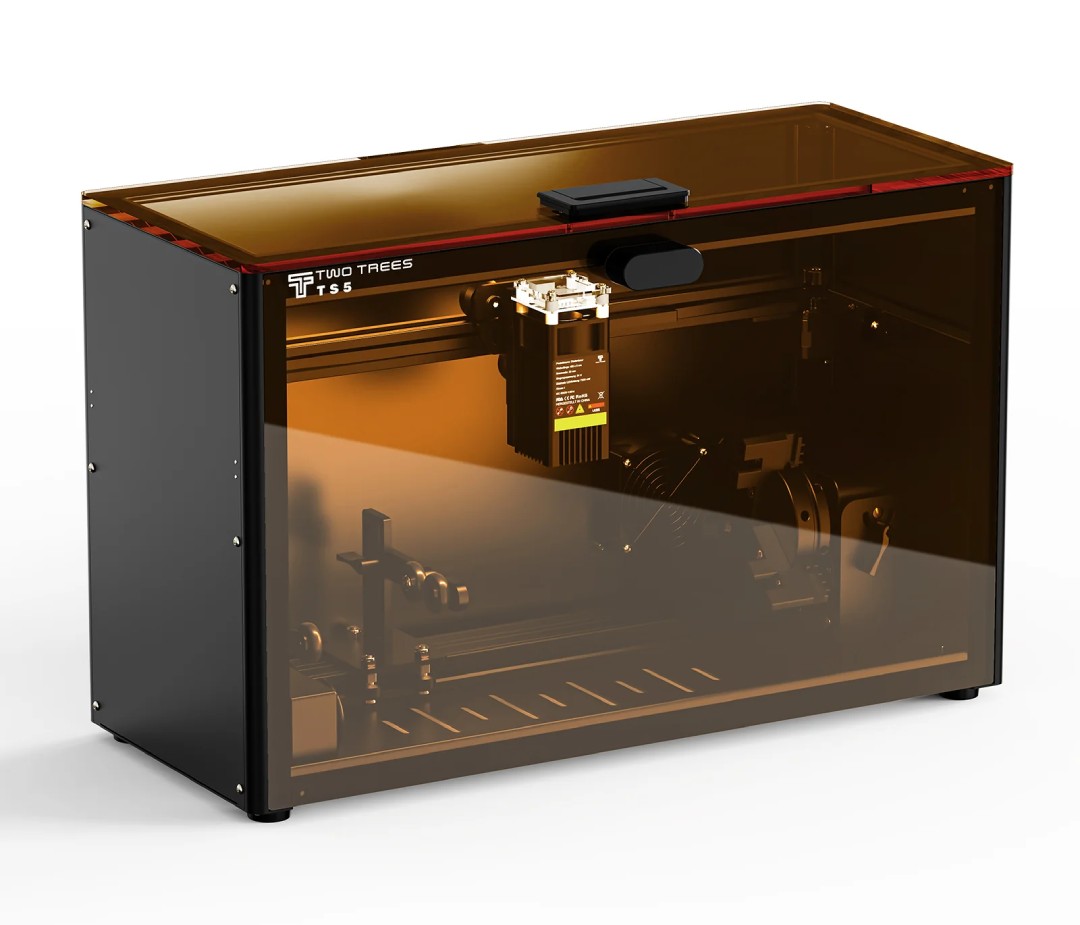

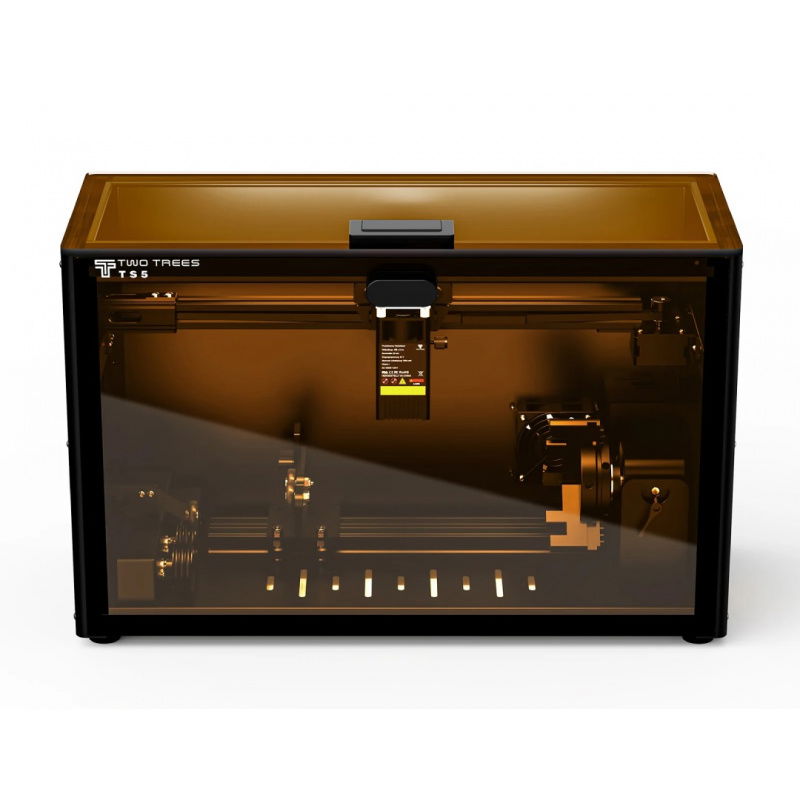

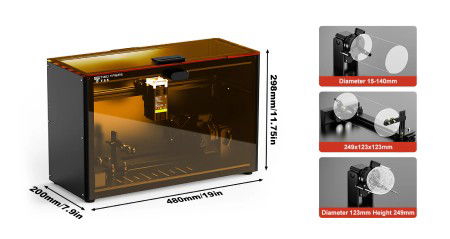

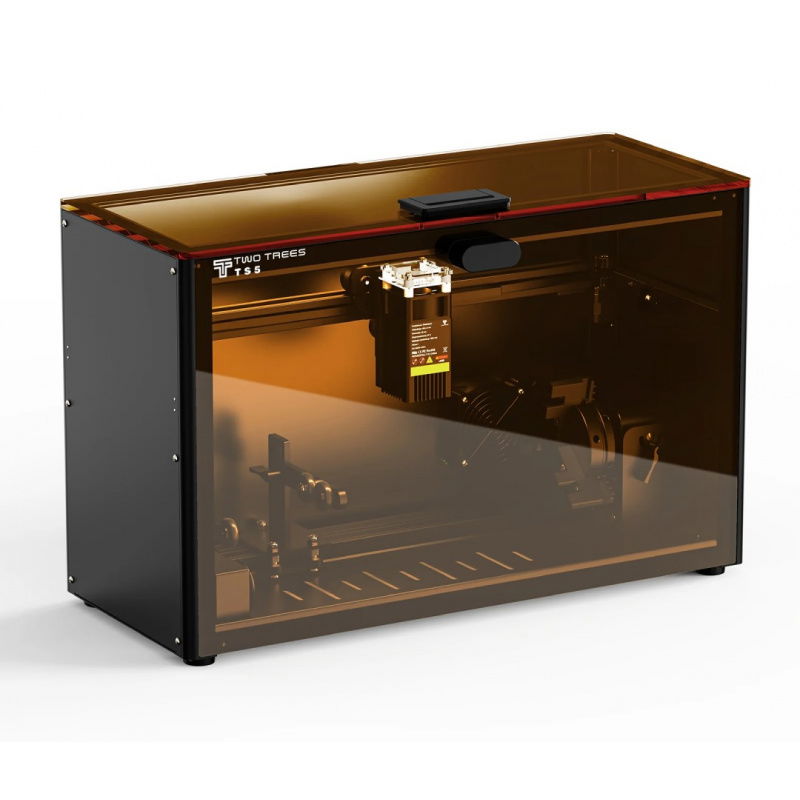

Two Trees TS5 7 W Laser Plotter
4-in-1 laser plotter with a power of 7 W and a working area of 249 x 123 x 123 mm.
Engraving with high precision and speed
The Two Trees TS5 offers incredible engraving accuracy, providing 0.1 mm precision in XY axis positioning . This allows engraving even small elements such as numbers, text, or details on metal objects with exceptional precision. The device operates at a maximum speed of up to 10,000 mm/min , significantly reducing project turnaround time while maintaining excellent quality. This speed allows for the rapid processing of both small and medium-sized objects, making the device ideal for production applications.
4-in-1 rotation system for even more versatility

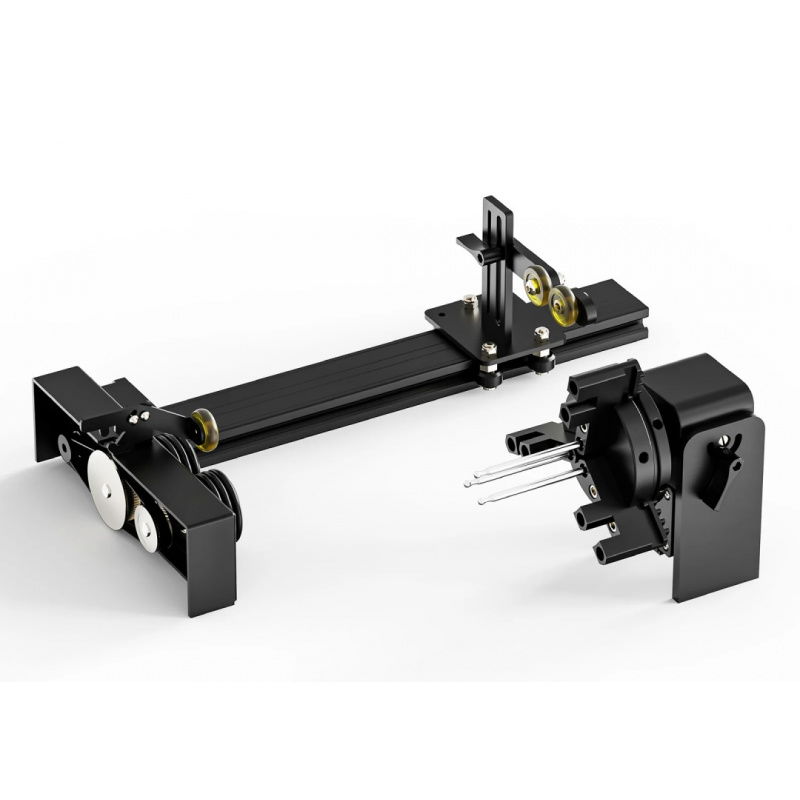

The TS5 features a 4-in-1 rotary module that allows for precise engraving on a wide range of items, from glasses to rings . Each mode is easy to install and adapted to a specific surface type:
- Chuck Rotary : perfect for cups, glasses and objects with a rounded base, whether closed, open or irregular
- Roller Rotary : suitable for long, cylindrical or irregular objects - e.g. thermoses, bottles, pipes
- Sphere Rotary : designed for engraving spherical objects such as balls, ornamental spheres or 3D objects
- Ring Rotary : designed specifically for ring engraving, wedding rings and small jewelry items
Thanks to its modular design, you can easily switch between operating modes depending on the shape of the item being engraved , making the TS5 an exceptionally versatile tool - both for personalising individual products and for semi-professional applications.

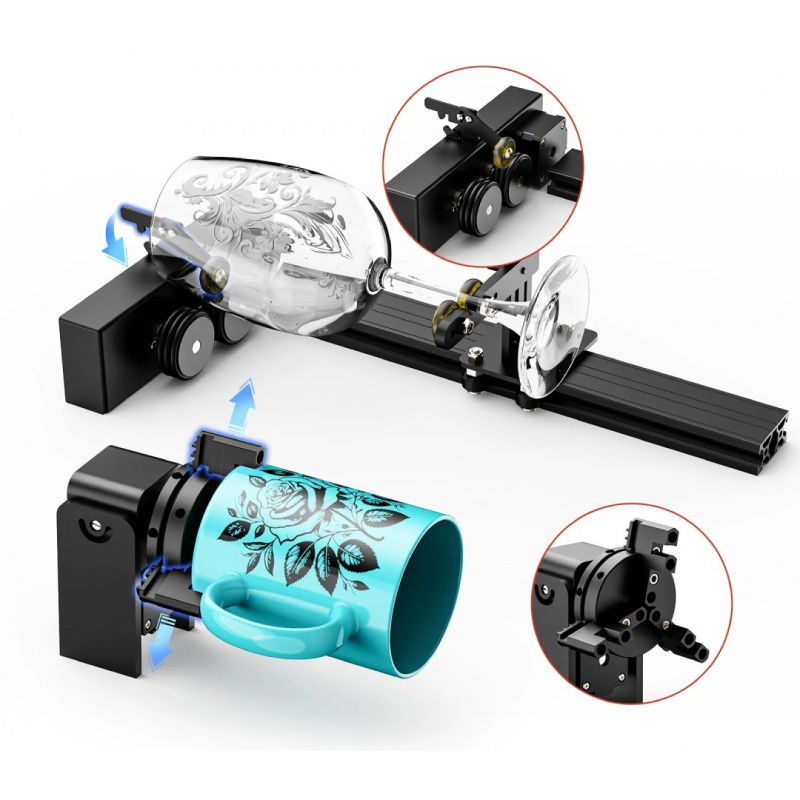

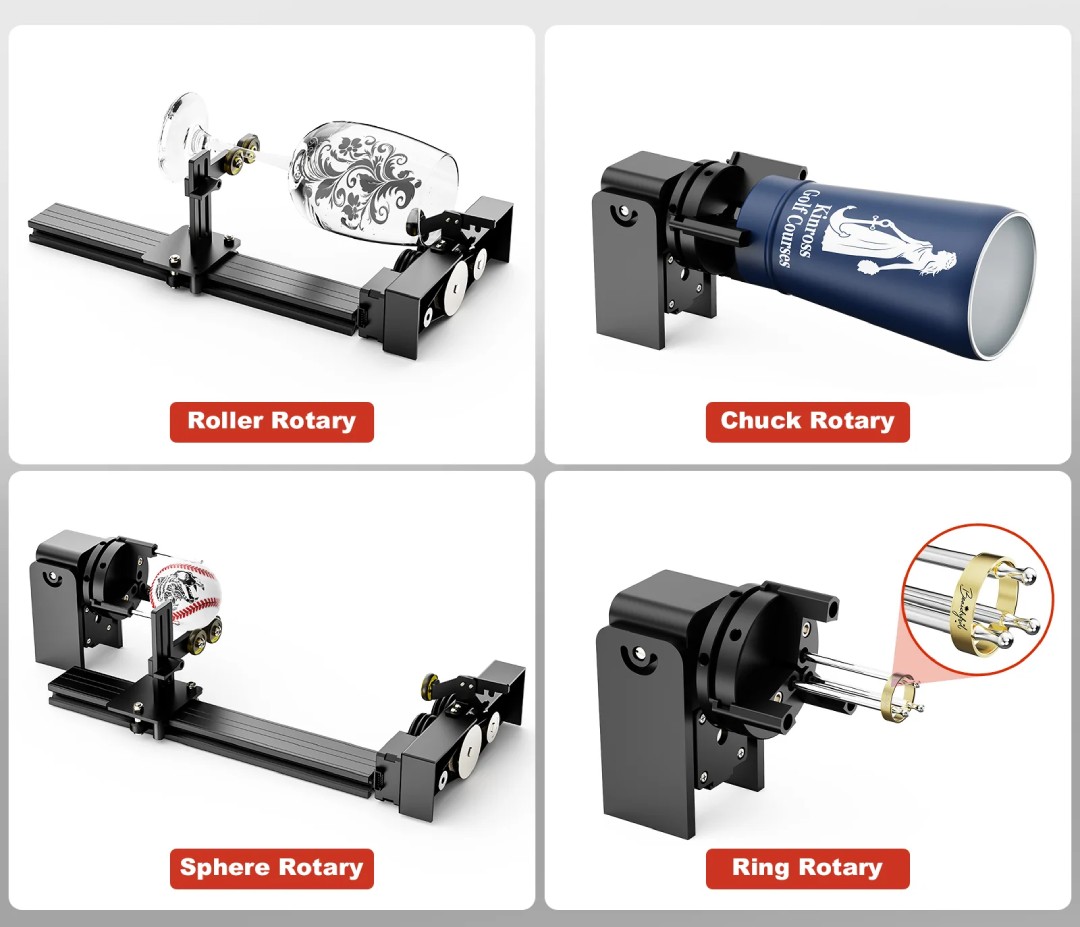

The 4-in-1 rotary module allows for precise engraving of a wide range of items.

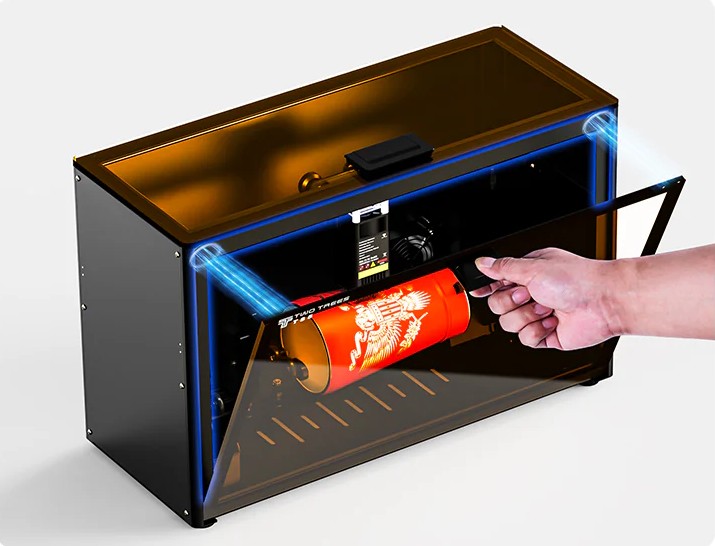

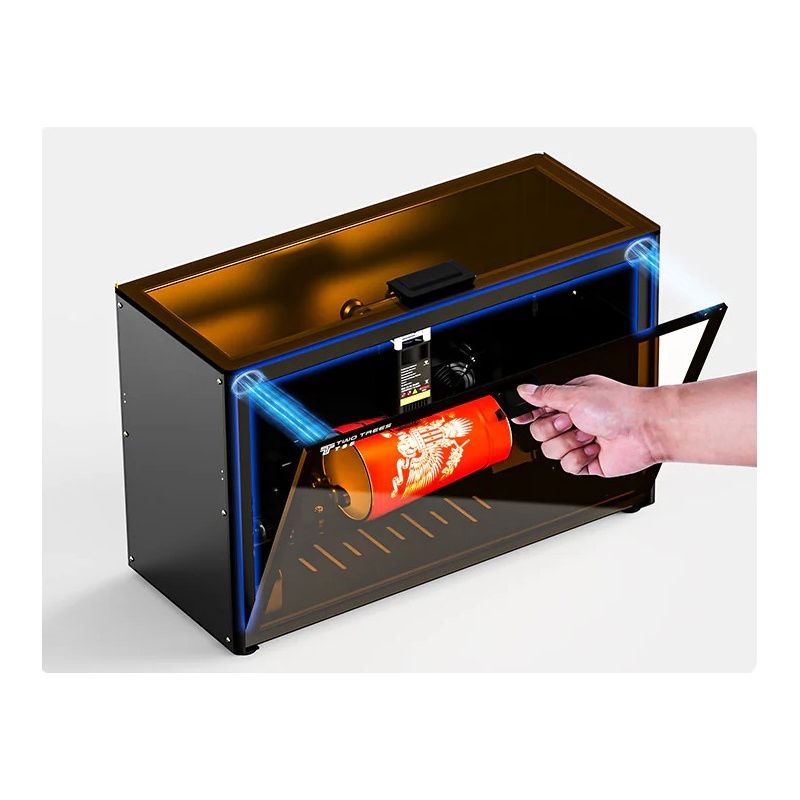

Magnetic housing panels allow for tool-free removal for easy cleaning and part replacement.

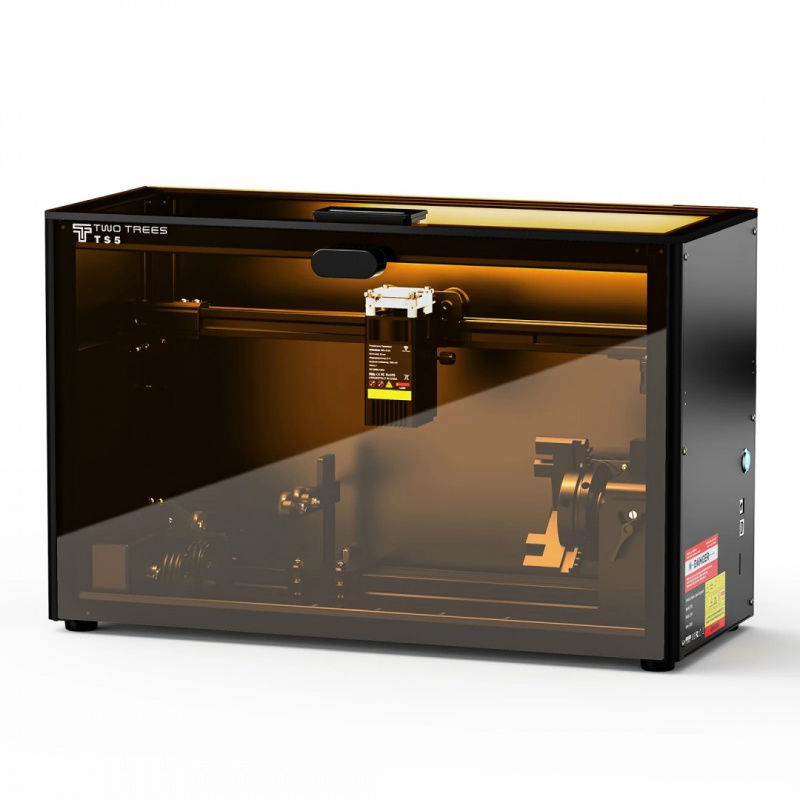

Advanced housing with air filtration system
This model ensures user safety and work comfort thanks to its housing that protects against radiation and dust. The housing is equipped with a smoke and dust extraction system , allowing for engraving in a clean environment. A special air filter effectively blocks harmful blue light and smoke generated during material processing, ensuring safety and improved visibility. This allows engraving in an enclosed environment without having to worry about air pollution.
Compatibility with popular software
The device is fully compatible with popular design and engraving programs like LaserGRBL and LightBurn , allowing for complete creative freedom. The software supports a wide range of file formats, including .lbrn, .bmp, .jpg, .png, and .gcode , allowing engraving of designs created in other graphics programs. Thanks to seamless integration with Windows, macOS, and Linux operating systems, the Two Trees TS5 is very easy to use and customize.

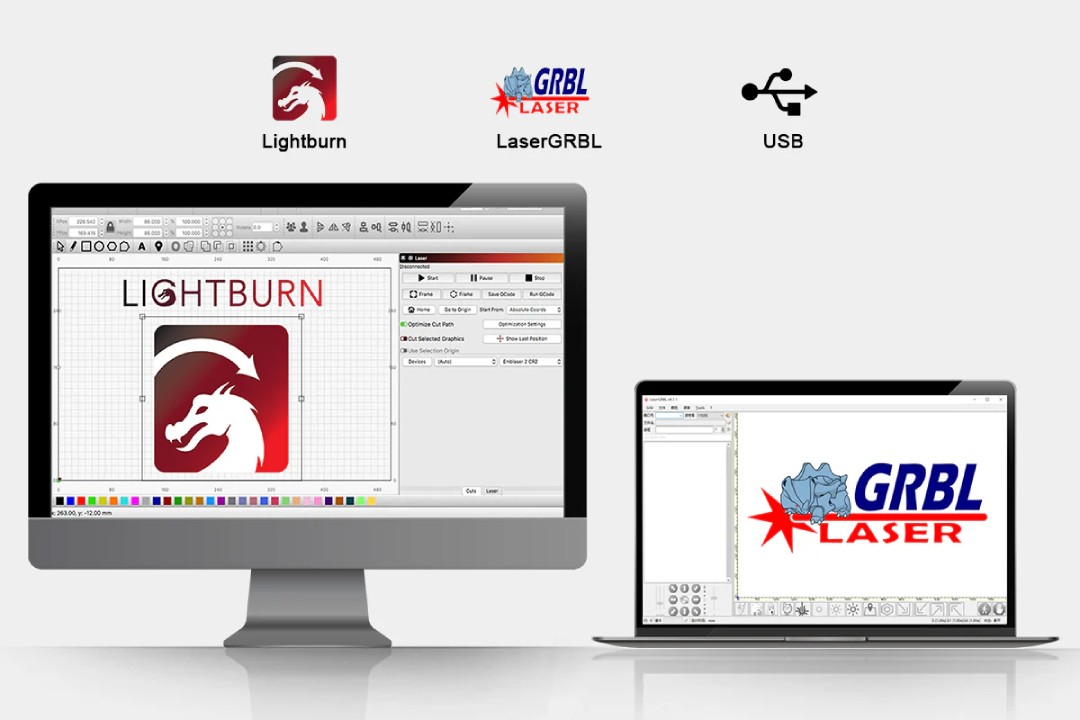

Compatibility with LightBurn and LaserGRBL software, it is an ideal solution for workshops, DIY and small production.
| Technical specifications of the Two Trees TS5 laser cutter | |
|---|---|
| Laser power | 7 W |
| Work area | 249 x 123 x 123 mm |
| Wavelength | 450 ± 5 nm |
| XY axis positioning accuracy | 0.1 mm |
| Maximum speed | 10000 mm/min |
| Spot size | 0.035 x 0.1 mm |
| External clamp range | from Ø26 to Ø140 mm |
| Internal clamp range | from Ø15 to Ø110 mm |
| Adjusting the clamp angle | from -8° to 8° |
| Input voltage | from 100V to 240V ~ 50/60Hz |
| Output voltage | 24V |
| Total power | 60 W |
| Supported devices | TF card, USB, WiFi |
| Engraving materials | mugs, glasses, stainless steel, rings |
| Movement structure | two-axis XY |
| Software | LaserGRBL, LightBurn |
| Supported operating systems | macOS / Windows / Linux |
| Software languages | Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean |
| Supported software formats | lbrn, BMP, JPG, PNG, GCODE |
| File format for engraving | .nc |
| Construction material | aluminum + high-carbon steel |
| Operating temperature | from 5°C to 40°C |
| Operating humidity | from 20% RH to 60% RH |
| Dimensions | 480 x 200 x 298 mm |
| Mass | 9.13 kg |
