Product description: xTool F2 Ultra - MOPA 60 W laser cutter and engraver
The xTool F2 Ultra is an advanced laser cutter and engraver , utilizing a 60W MOPA laser . The device allows for the implementation of complex designs at speeds of up to 15,000 mm/s , within a 220 x 220 mm working area. Thanks to MOPA technology, over 100 shades of color can be achieved on stainless steel and titanium, creating durable, striking markings and decorative patterns . This version is compatible with the optional Auto Streamline conveyor belt , which expands the working area to 220 x 500 mm , significantly increasing productivity in mass production. Dual 48 MPx cameras supported by artificial intelligence ensure exceptional positioning precision , allowing for precise engraving of even the smallest details. Integrated autofocus and intuitive xTool Creative Space software make the F2 Ultra fully ready for professional applications.

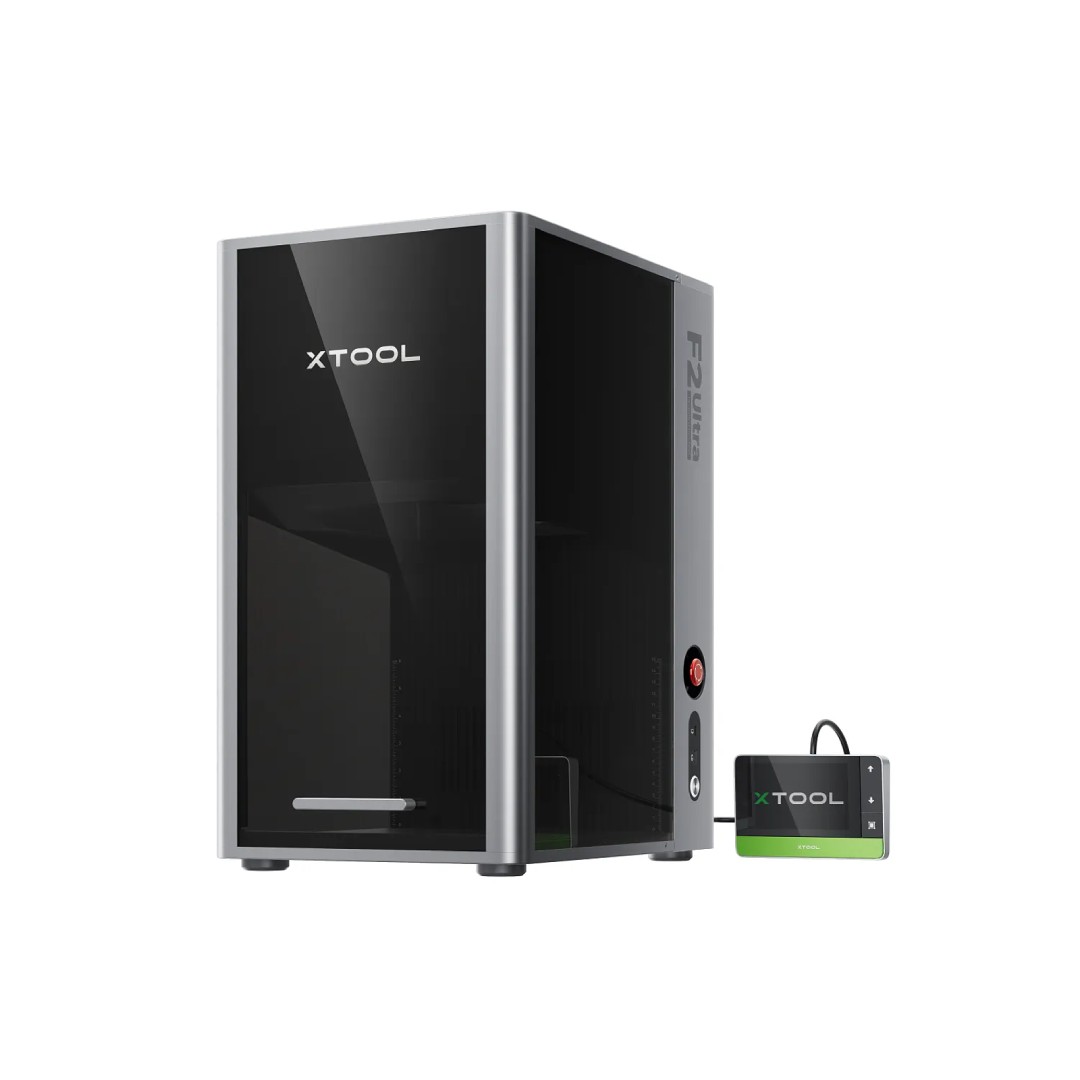

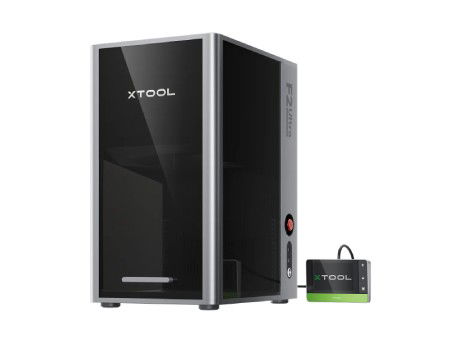

xTool F2 Ultra - MOPA 60 W laser cutter and engraver.

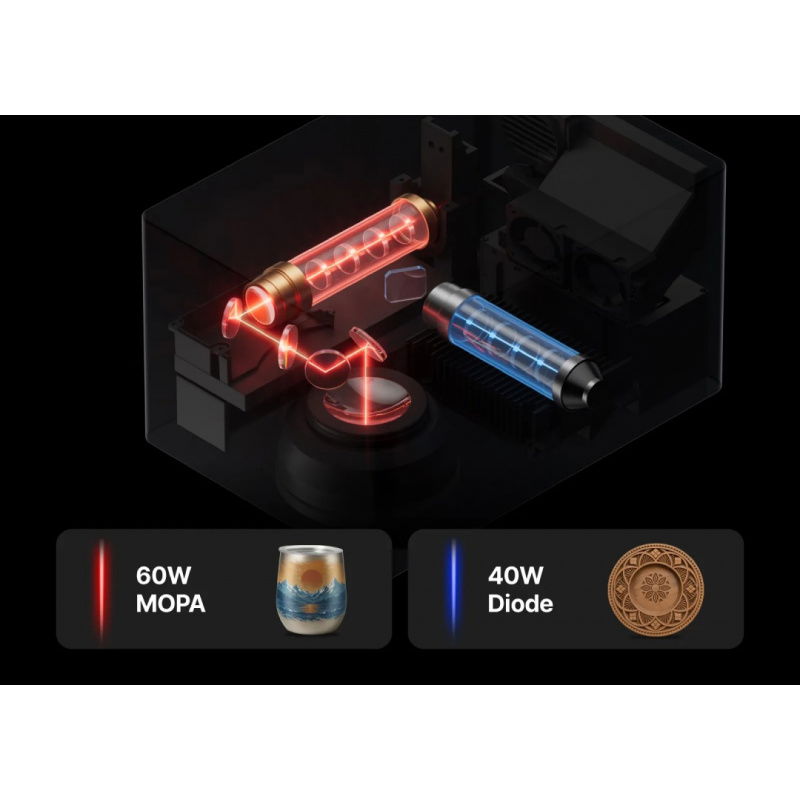

xTool F2 Ultra is also available in a version with an additional 40 W diode laser.
Advanced MOPA laser system
The xTool F2 Ultra utilizes a state-of-the-art 60W MOPA laser , providing exceptional versatility for industrial applications. This technology allows for precise control of pulse width and frequency, resulting in deeper, cleaner cuts and complex engraving effects—including holographic patterns and a full range of colors on metals . This allows the F2 Ultra to offer capabilities far beyond traditional diode lasers.
Precise positioning thanks to AI cameras
The device is equipped with a dual 48MPx camera system , which provides exceptional positioning accuracy of 0.2mm . Using artificial intelligence and two cameras, the F2 Ultra guarantees perfect detail reproduction and perfect alignment of the design to the work surface . This solution is particularly useful for engraving small details, jewelry production, or mass marking of small components.
Precision cutting and color engraving of metals
The MOPA technology used in the xTool F2 Ultra enables engraving and cutting a wide range of metals, such as stainless steel, aluminum, brass, silver, platinum, and titanium . The device allows for deep cuts up to 2 mm and creates permanent, abrasion-resistant markings . With adjustable pulse and frequency settings, the laser allows for smooth tonal transitions and full-color engraving effects—particularly appreciated in the jewelry, electronics, and decorative arts industries.
High industrial efficiency
The xTool F2 Ultra achieves a working speed of up to 15,000 mm/s , ensuring maximum efficiency and allowing you to complete large projects in less time without compromising quality. Its optimized workflow and automation features —including the ability to work with an optional conveyor belt—make the device ideal for mass production and anywhere else where where precision and speed of action count.
Two 48MP AI cameras increase accuracy to 0.2mm.

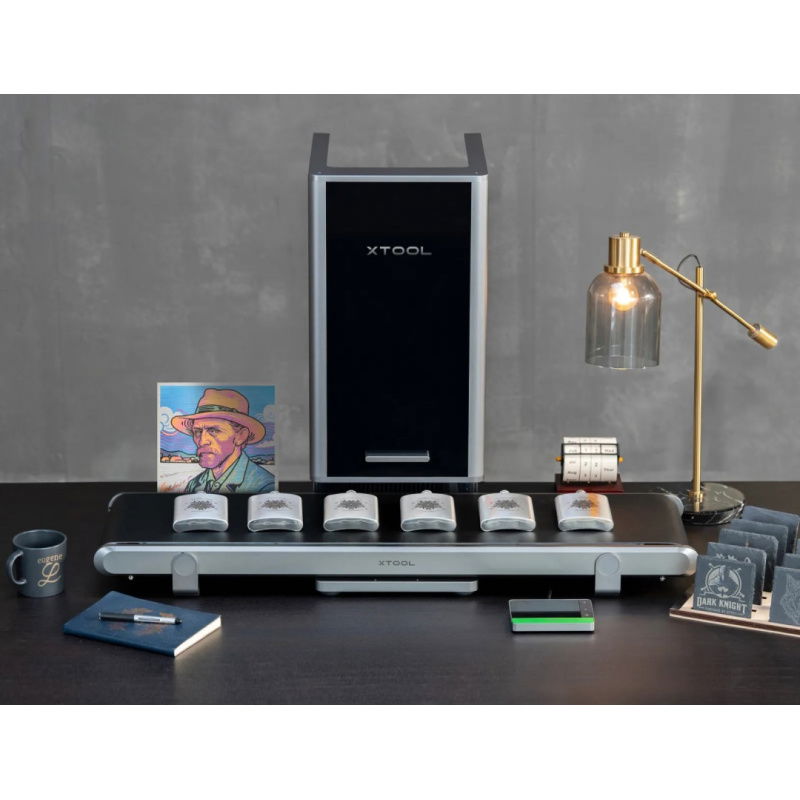

Thanks to the separately available conveyor belt, the dimensions of the working area are increased to 220 x 500 mm.
Extended working area thanks to the conveyor belt
The standard 220 x 220 mm work area of the xTool F2 Ultra can be easily expanded to 220 x 500 mm using the optional conveyor belt . This is ideal for automated production and working with longer items such as nameplates, key rings, tools, and metal housings. The belt system allows for continuous processing without the need for manual material movement , saving time and achieving highly repeatable results.
Smart features and easy operation
The xTool F2 Ultra works with xTool Creative Space software and the Atomm platform , offering access to an extensive library of projects, presets, and AI-powered features. The system automatically recognizes colors, allows for the rapid creation of 3D models, and provides real-time previews . The intuitive interface means even beginners can get started almost immediately.
Contents of the set
- xTool F2 Ultra
- Touch controller
- Drain pipe
- Charger
- Power cord
- USB cable
- USB key
- Panel with strips
- Positioning element
- Lint-free cloth
- Screwdriver
- Materials package
- Instructions

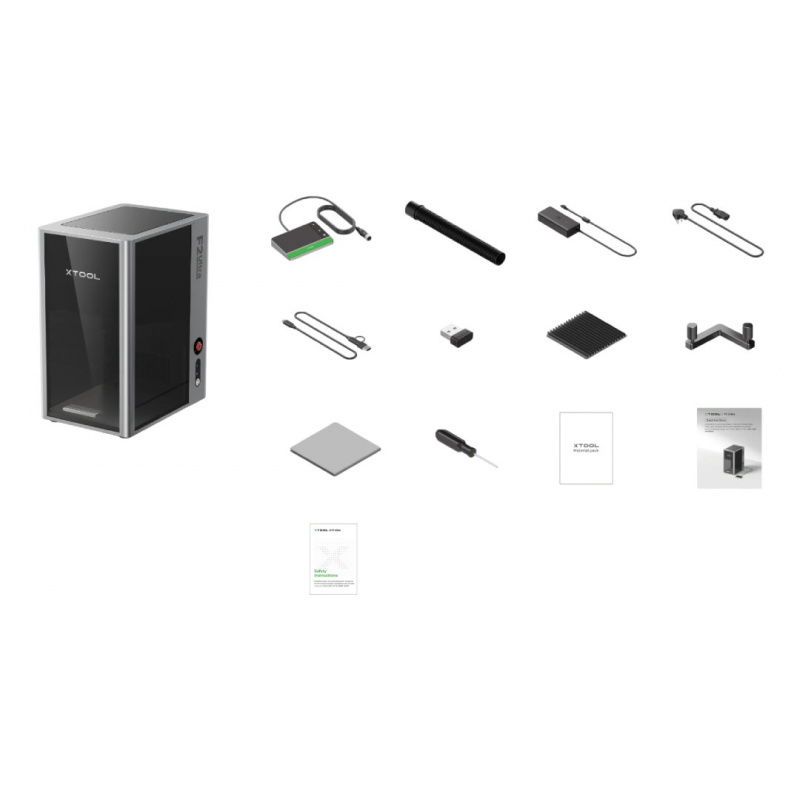

Elements included in the set.
| xTool F2 Ultra Technical Specifications | |
|---|---|
| Laser type | MOPA 60W Laser |
| Operating modes | Engraving, cutting |
| Supported materials - cutting |
brass, stainless steel, aluminum |
| Supported materials - engraving |
stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold |
| Work area | 220 x 220 mm (220 x 500 mm with conveyor belt) |
| Max operating speed | 15000 mm/s |
| Max processing height | 150 mm |
| Max rotary engraving diameter | 150 mm |
| Supported software | xTool Creative Space / Atomm |
| Operating system | Windows / macOS |
| Connection method | USB / WiFi / IP |
| Built-in camera | Dual 48 MPx camera |
| Positioning method | Camera positioning |
| Focus mode | Autofocus |
| Preview method | Smart Camera Preview |
| Movement accuracy | 0.00482 mm |
| Safety certificate | Class 4 |
| Max input power | 400 W |
| Power supply input voltage | From 220V to 240V, AC 50/60 Hz |
| Dimensions | 294 x 429 x 521 mm |
| Mass | 21.6 kg |
