Product description: LaserPecker LP2 - 5W laser engraver - basic kit
The LaserPecker LP2 is a compact, portable laser engraver utilizing a 5W, 450nm blue diode laser , designed for fast and precise personalization of a variety of materials. The device offers engraving resolution up to 2K and accuracy down to 0.05mm , allowing for the faithful reproduction of details, graphics, and photos. The standard work area is 100 x 100mm , making the LP2 ideal for working with small and medium-sized objects. With an engraving speed of up to 600mm/s and intuitive operation via a mobile app and desktop software, the LaserPecker LP2 allows for quick start-up without complicated setup. The device's design allows for both stationary and handheld operation , making it a practical tool for workshop, educational, and mobile applications. Built-in security systems and Class 1 certification ensure a high level of safety during everyday use.

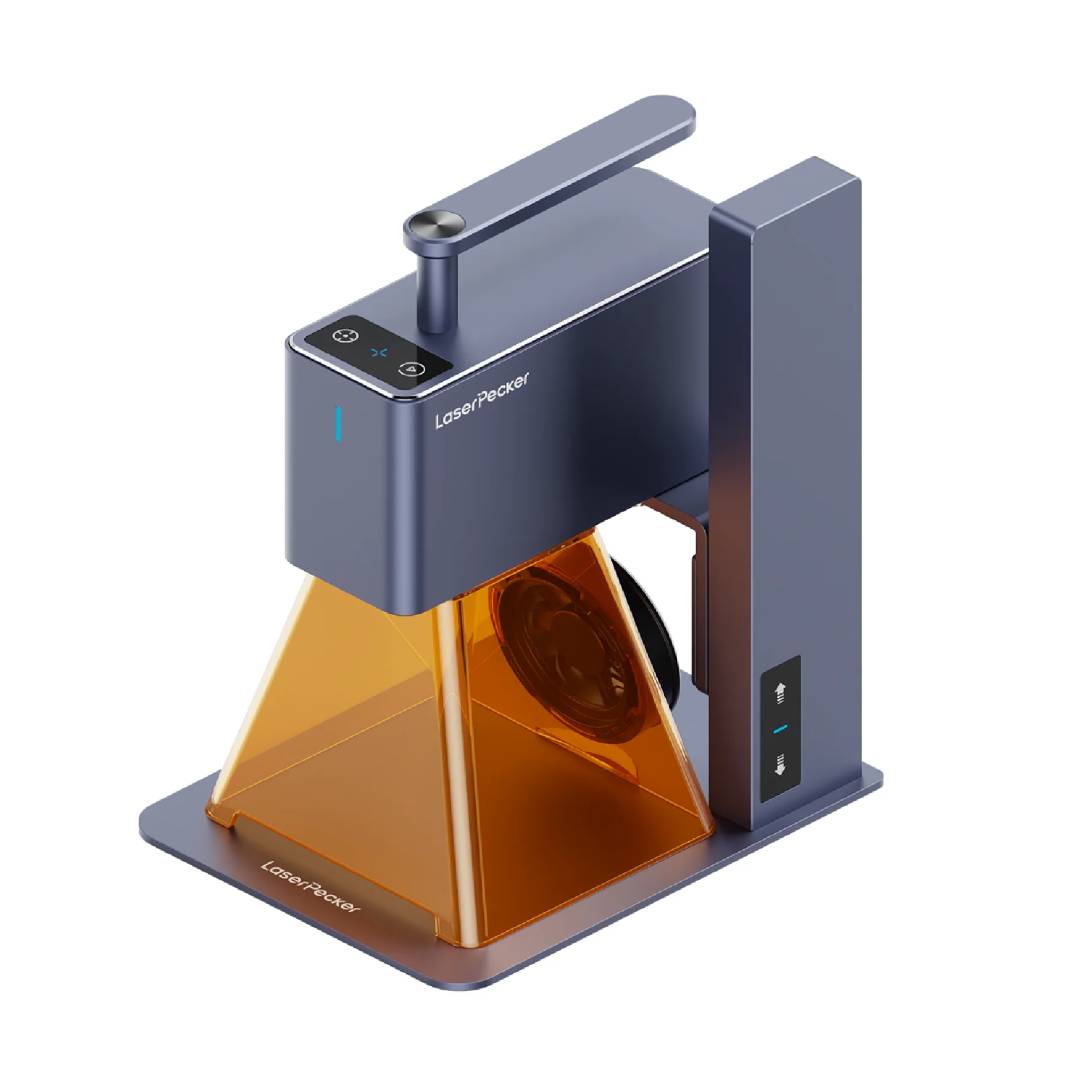

LaserPecker LP2 - 5W laser engraver - basic kit.

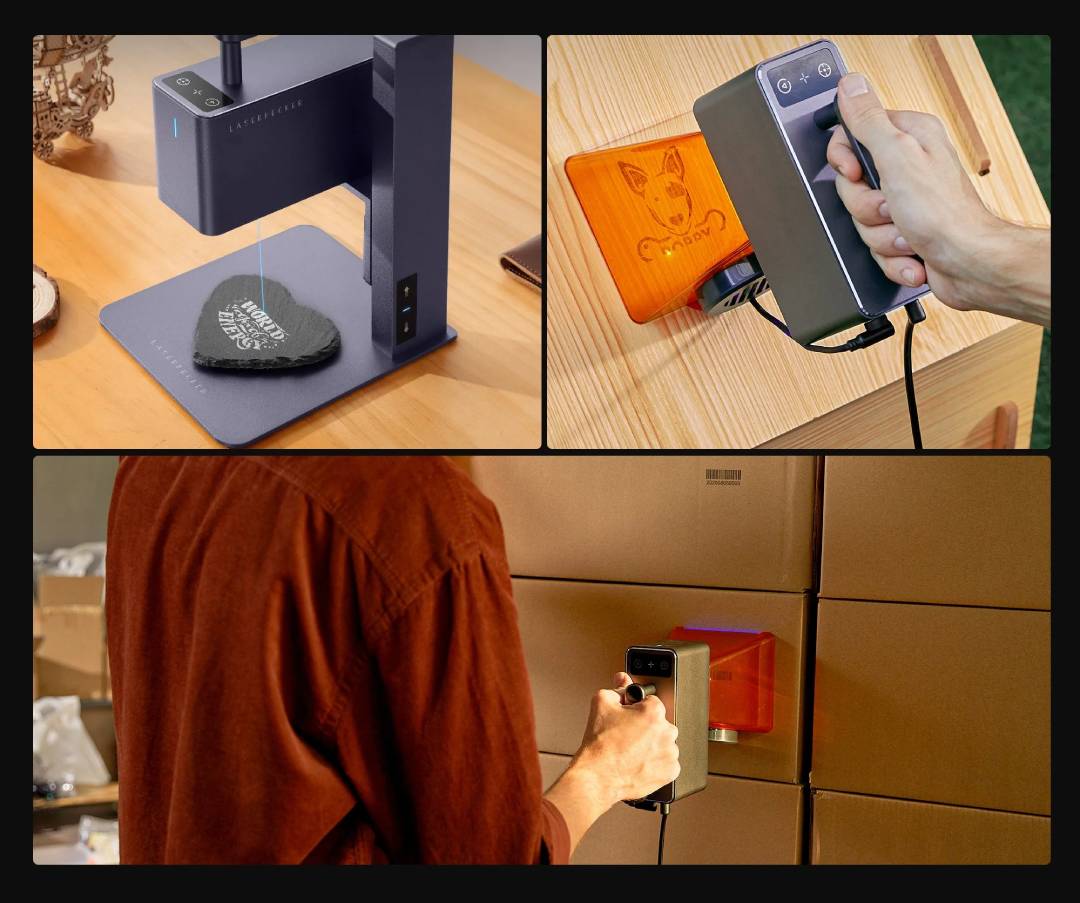

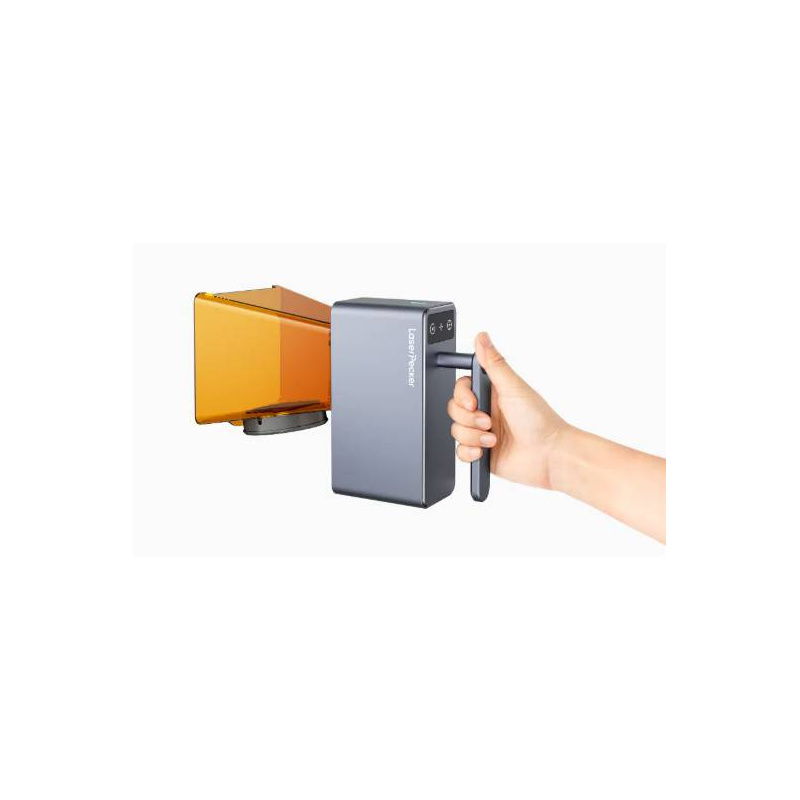

Thanks to its compact and portable design, you can take the LP2 with you almost anywhere.
Precise parameters and functionality of the LP2 engraver
The LP2 is equipped with a 5W 450nm diode laser with an accuracy of 0.05mm , enabling engraving in 2K resolution. It supports various viewing modes—from rectangular to contour—and allows for quick adjustment of the starting point . Its high operating speed makes the device ideal for both single-item and batch production.
Mobility and ease of use

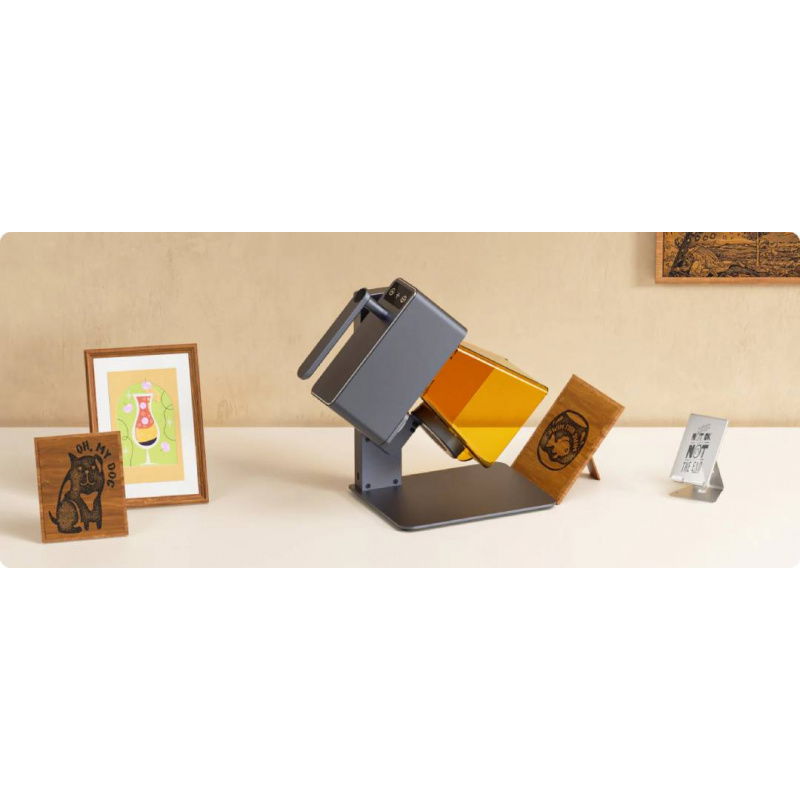

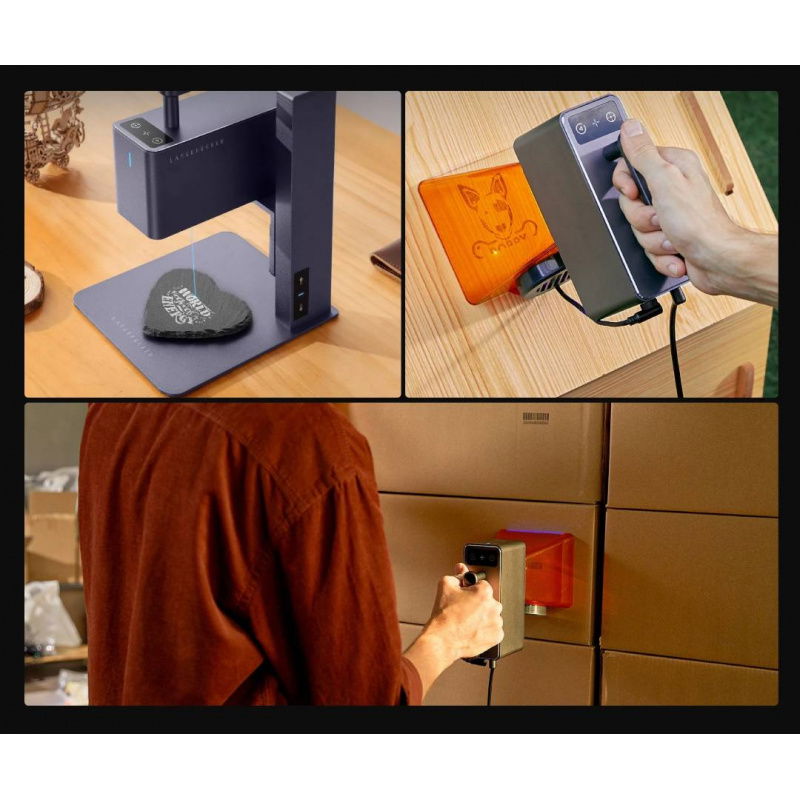

Weighing only 1.75 kg and boasting compact dimensions, the device is ideal for mobile work. Its design allows for comfortable handholding and allows for work on non-standard surfaces. The LaserPecker LP2 is an excellent solution for field work, events, or workshops. The LP2 model is distinguished by its expandability with optional extensions, such as a rotation module.
Extensive security features
The LaserPecker LP2 meets Class 1 safety requirements , offering features such as automatic shutdown in the event of overheating, tilting, or shock. Additionally, the kit includes a protective shield and safety glasses that effectively protect the user's eyes while working with the laser.
Software and Compatibility
LaserPecker LP2 can be operated via a mobile app (Android/iOS) or LaserPecker Design Space (Windows, macOS). The device supports popular file formats such as JPG, PNG, SVG, G-code, and DXF , ensuring broad compatibility and intuitive operation for both beginners and advanced users. The connection is made wirelessly via the Bluetooth 5.0 standard , which eliminates the need to use unnecessary cables in the workplace.

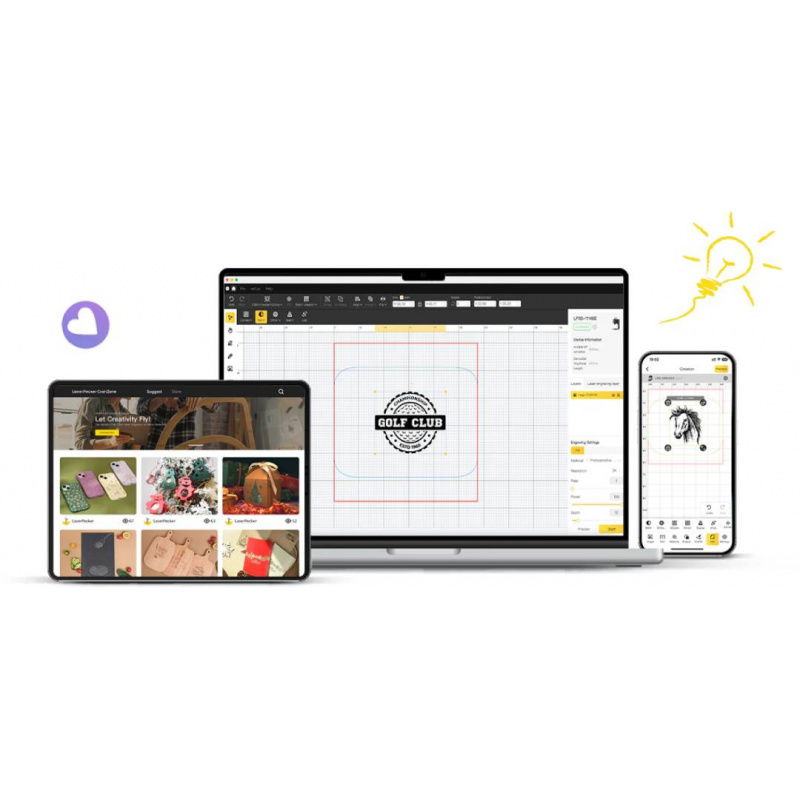

The engraving machine can be easily operated using a mobile application.

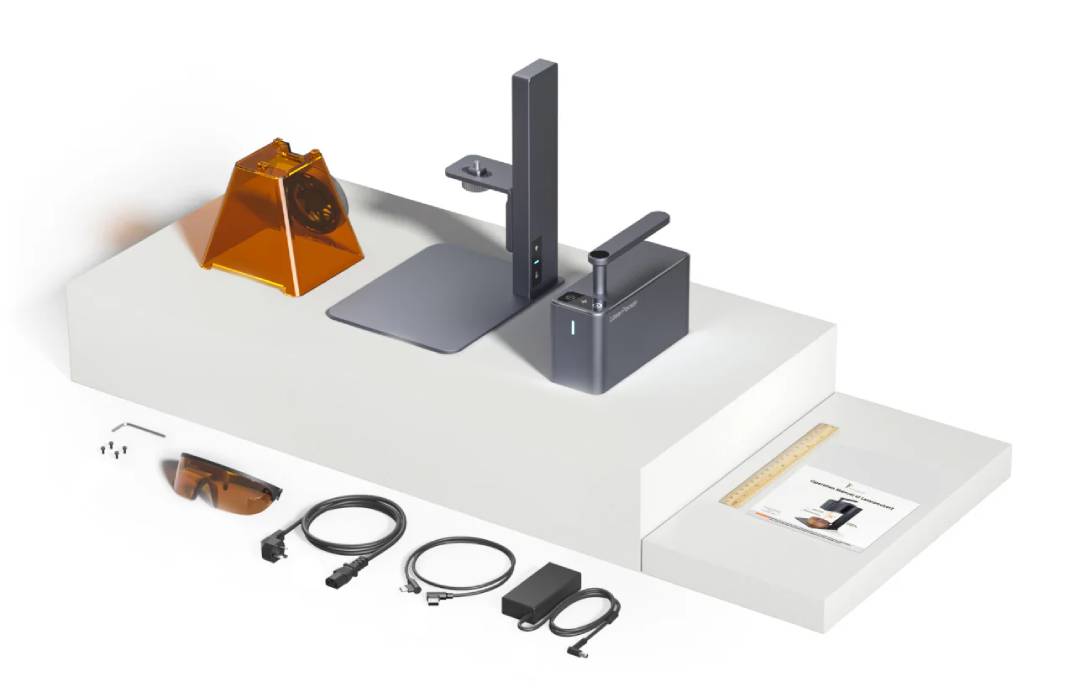

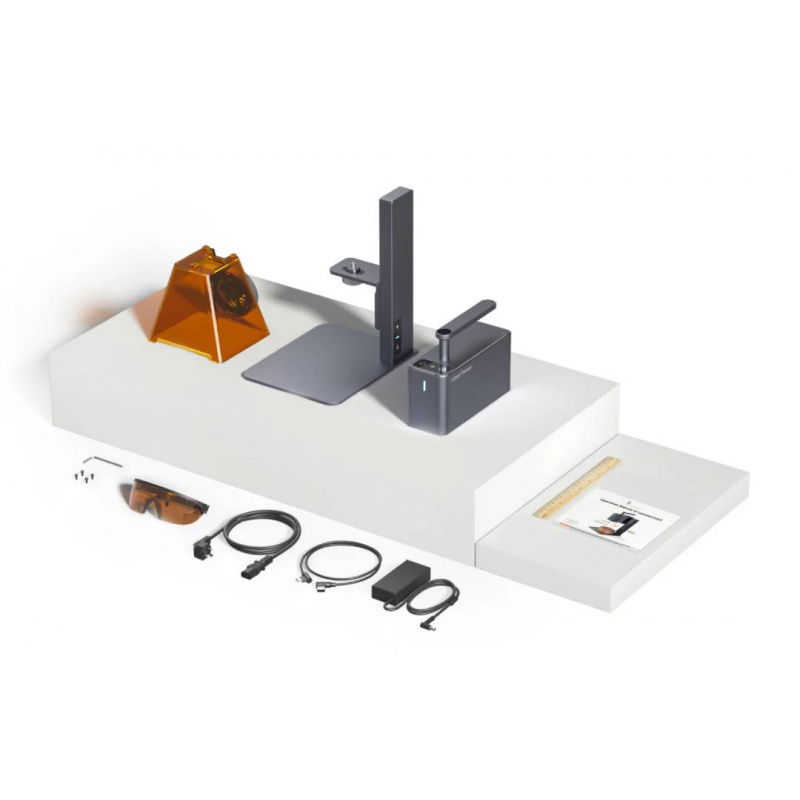

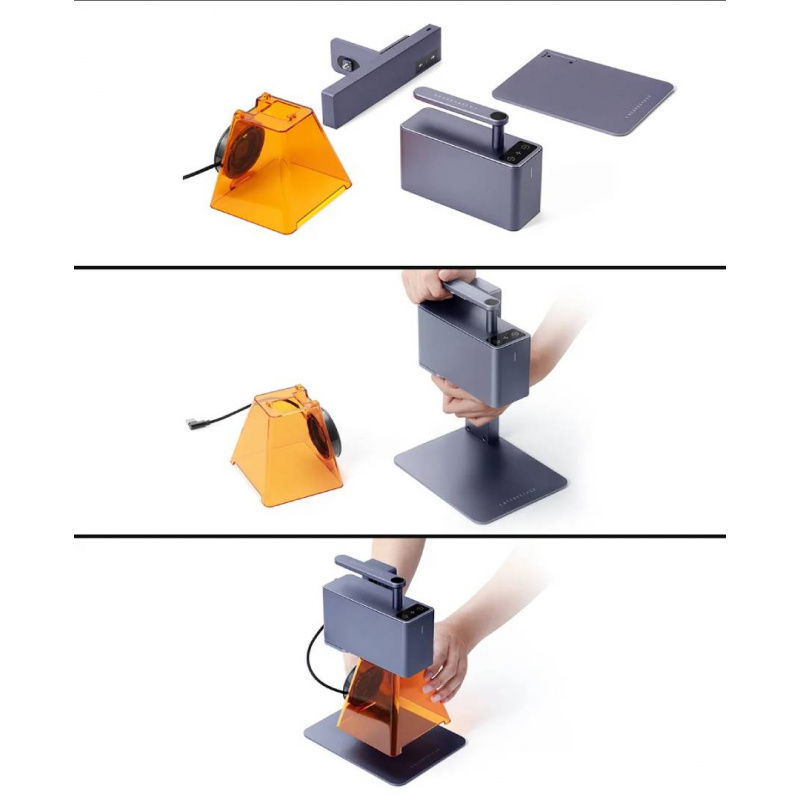

Elements included in the set.
Kit contents
- LaserPecker LP2 Engraving Machine
- Protective cover
- Electric stand
- Line
- Allen key and screws
- Goggles
- Power cord
- 2 USB cables
| Technical specifications of the LaserPecker LP2 laser engraving machine | |
|---|---|
| Laser type | blue diode 450 nm |
| Laser power | 5 in |
| Laser spot size | 0.05 x 0.05 mm |
| Wavelength | 450 ±5 nm |
| Resolution | 1K / 1.3K / 2K |
| Engraving speed | from 6 mm/s to 600 mm/s |
| Preview modes | preview of the area in a rectangular frame, preview of the outline, preview of the center point |
| Preview speed | 3750 mm/s |
| Workspace (standard) | 100 x 100 mm |
| Work area with optional roller | 100 x 2000 mm |
| Focal length | 110 mm |
| Electric tripod range of motion | 120 mm |
| Supported materials | painted metal, anodized aluminum, 304 stainless steel, wood, bamboo, leather, food, paper, fabric, plastics, acrylic, stained glass, glazed ceramics, etc. |
| Supported file formats (PC) | G-code, JPG, PNG, BMP, SVG, DXF |
| Supported file formats (mobile app) | JPG, PNG, G-code |
| Operating system (computer) | Windows 10+, macOS 10+ |
| Operating system (mobile) | iOS 9.0+, Android 7.0+ |
| Connections | Bluetooth 5.0, USB, Bluetooth dongle (PC) |
| Power supply | DC 12V/5A, AC 100-240V, 50-60Hz |
| Device power | 60 W |
| Operating temperature | from 0°C to 65°C |
| Working humidity | from 5% RH to 80% RH |
| Safety certificates | EC 60825-1 (Laser Level I), CDRH (Laser Level IV), CE, ROHS, FCC, FDA, NCC, KC, UKCA, TECLEC |
| Dimensions | 194 x 153.5 x 236 mm |
| Mass | 1.75 kg |
