Product description: Inkplate 13SPECTRA - 13.3'' color e-paper display 1600 x 1200 px - ESP32-S3 - Soldered 333365

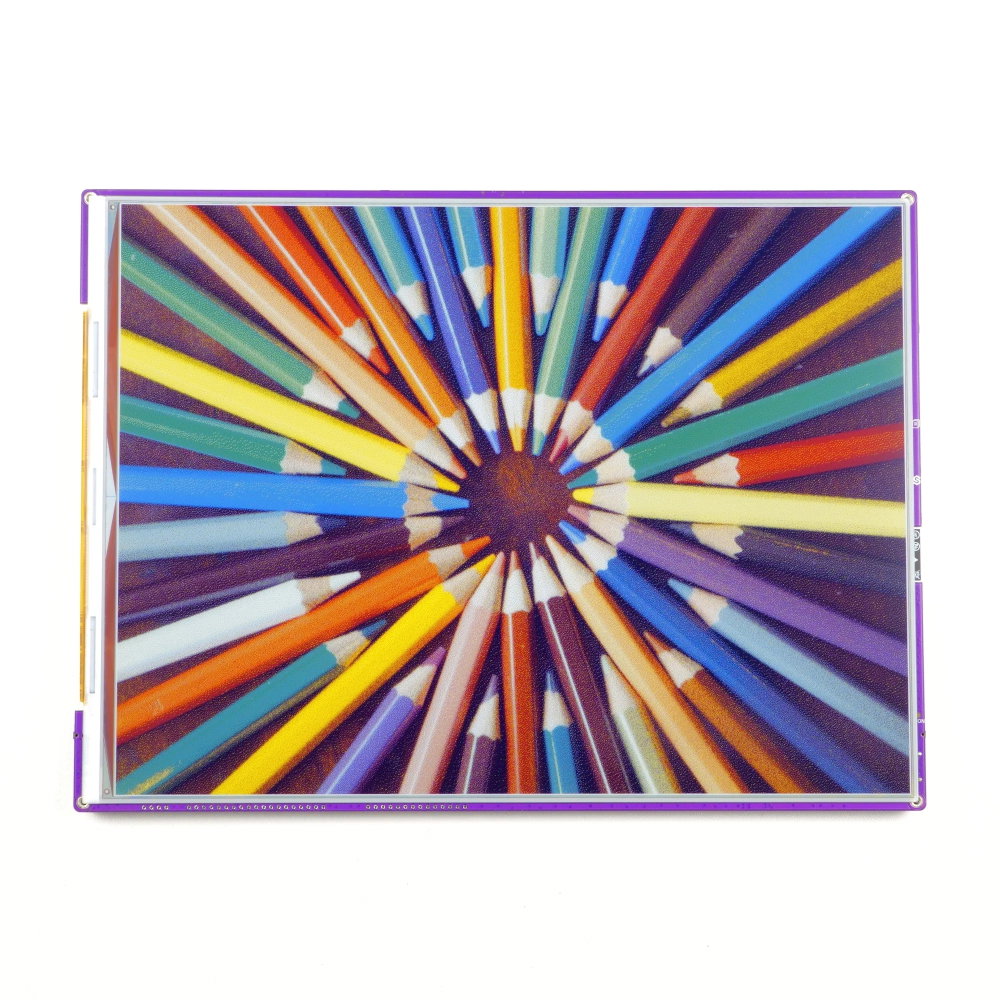

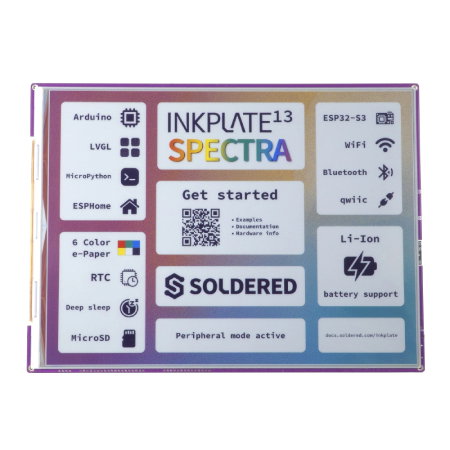

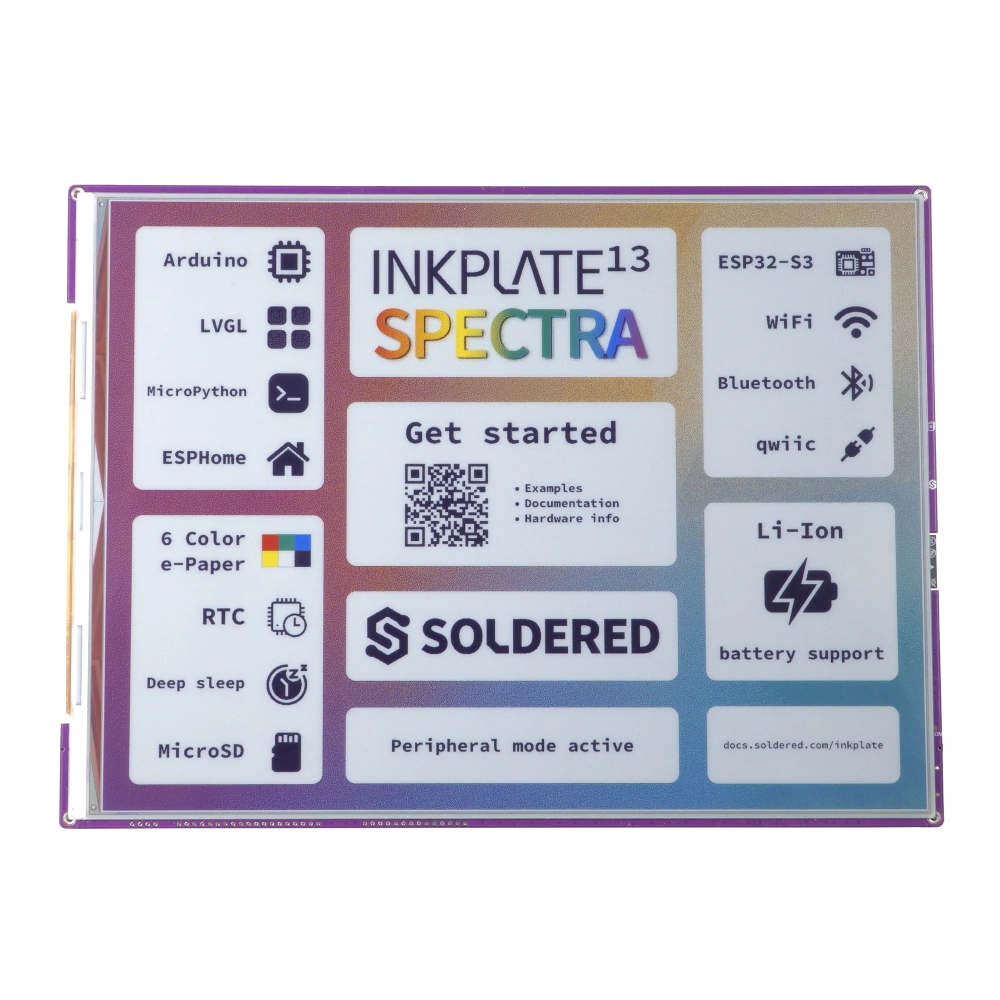

Inkplate 13SPECTRA is an advanced development platform with a large, 13.3" color e-paper display. It uses E-Ink Spectra 6 technology , offering six colors: black, white, yellow, red, blue, and green , allowing you to create impressive visualizations with minimal power consumption. At the heart of the module is the efficient ESP32-S3 microcontroller with WiFi and Bluetooth 5 LE support, making it ideal for IoT projects, intelligent information panels, and digital photo frames.
We also offer othere-paper displays - please check out our selection!
Inkplate 13SPECTRA - 13.3'' color e-paper display 1600 x 1200 px - ESP32-S3 - Soldered 333365.
Inkplate 13SPECTRA is an advanced development platform with a large, 13.3" color e-paper display.Special features
- 13.3" e-paper display: large screen with 1600 x 1200 px resolution and 6-color support for attractive visualizations
- E-Ink Spectra 6 technology: very low energy consumption and excellent readability even in direct sunlight
- ESP32-S3 microcontroller: dual-core processor up to 240 MHz for high performance
- Wireless connectivity: built-in 2.4 GHz WiFi and Bluetooth 5 LE
- Memory: 32 MB Flash and 16 MB PSRAM for extensive applications
- Low power consumption: deep sleep mode at around 14 µA enables long battery life
- Partial Update: Sparkle partial update support allows you to refresh only a portion of the screen
- Project expansion: 3 Qwiic (I2C) connectors, microSD slot and GPIO expander
- Built-in RTC: PCF85063A with battery backup for precise scheduling
- Extensive programming support: compatible with Arduino IDE, MicroPython, ESP-IDF and LVGL
Practical applications
The Inkplate 13SPECTRA is perfect for projects requiring a large, energy-efficient display. It can be used as a smart home panel displaying data from smart home systems, a family calendar, or a message board. Its ability to display color graphics also makes it ideal as a digital photo frame or a display for presenting IoT data. Its long battery life allows it to be used in installations without a constant power supply, such as monitoring or information systems.
Specification
- Display type: e-paper
- Diagonal: 13.3"
- Resolution: 1600 x 1200 px
- Colors: black, white, yellow, red, blue, green
- Refresh time: about 19 sec (full screen)
- Microcontroller: ESP32-S3-WROOM-2-N32R16V
- Processor: Dual-core Xtensa LX7 up to 240 MHz
- Memory: 32 MB Flash, 16 MB PSRAM
- Connectivity: WiFi 802.11 b/g/n 2.4 GHz, Bluetooth 5 LE
- Current consumption (deep sleep): about 14 µA
- Power supply: 3.7V Li-ion battery (JST connector, on-board charging)
- RTC: PCF85063A with CR2032 battery
- USB interface: USB Type-C
- Connectors: 3 x Qwiic (I2C), microSD, GPIO expander (16 pins + interrupt)
- Programming: Arduino IDE, MicroPython, ESP-IDF, LVGL
Contents of the set
- E-paper display board

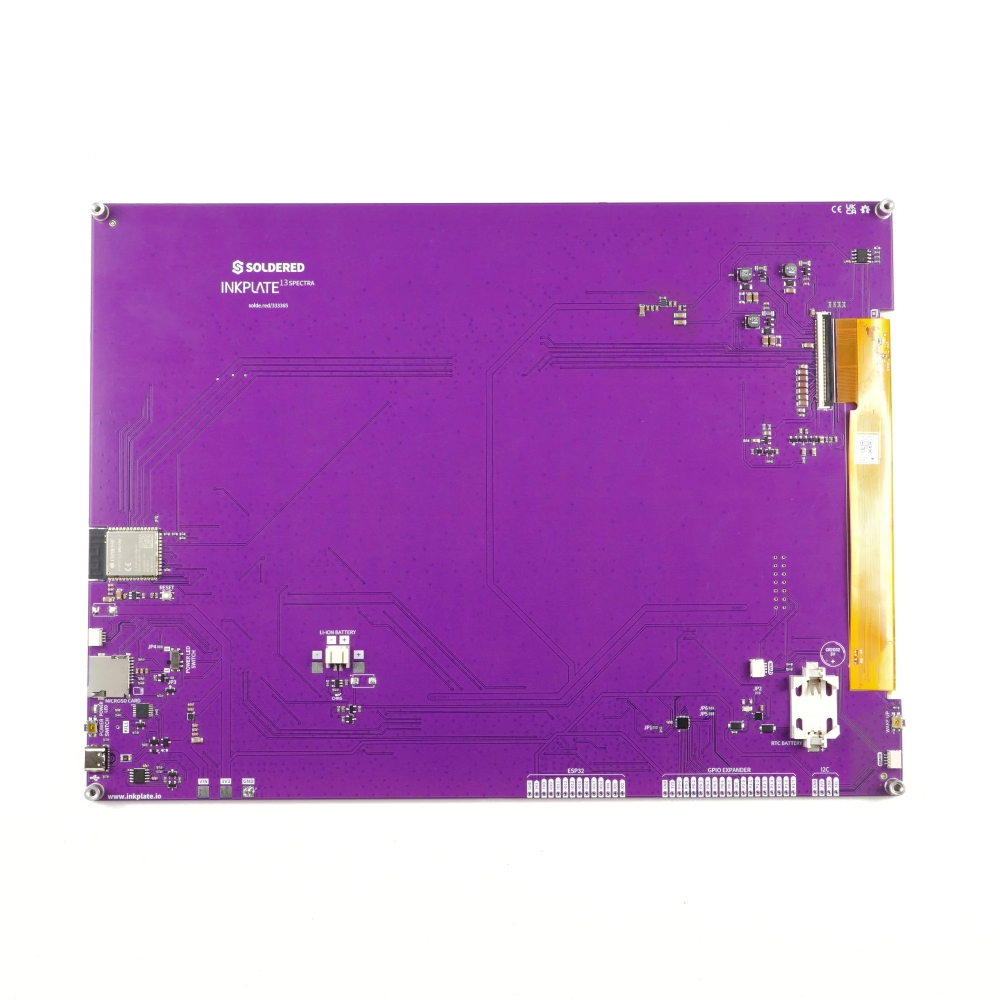

The heart of the module is the efficient ESP32-S3 microcontroller with WiFi and Bluetooth 5 LE support.
