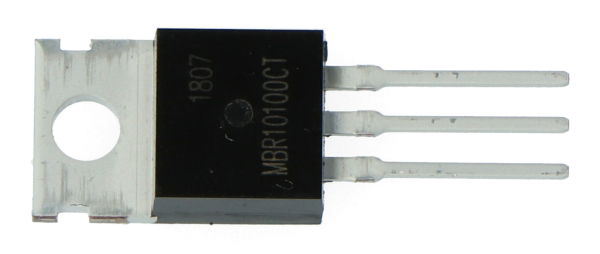

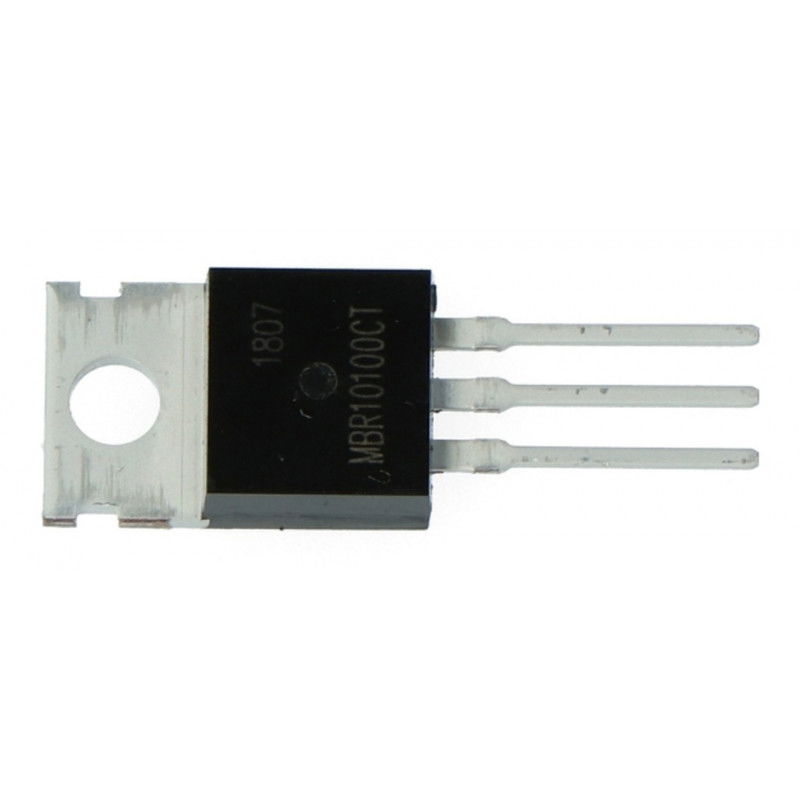

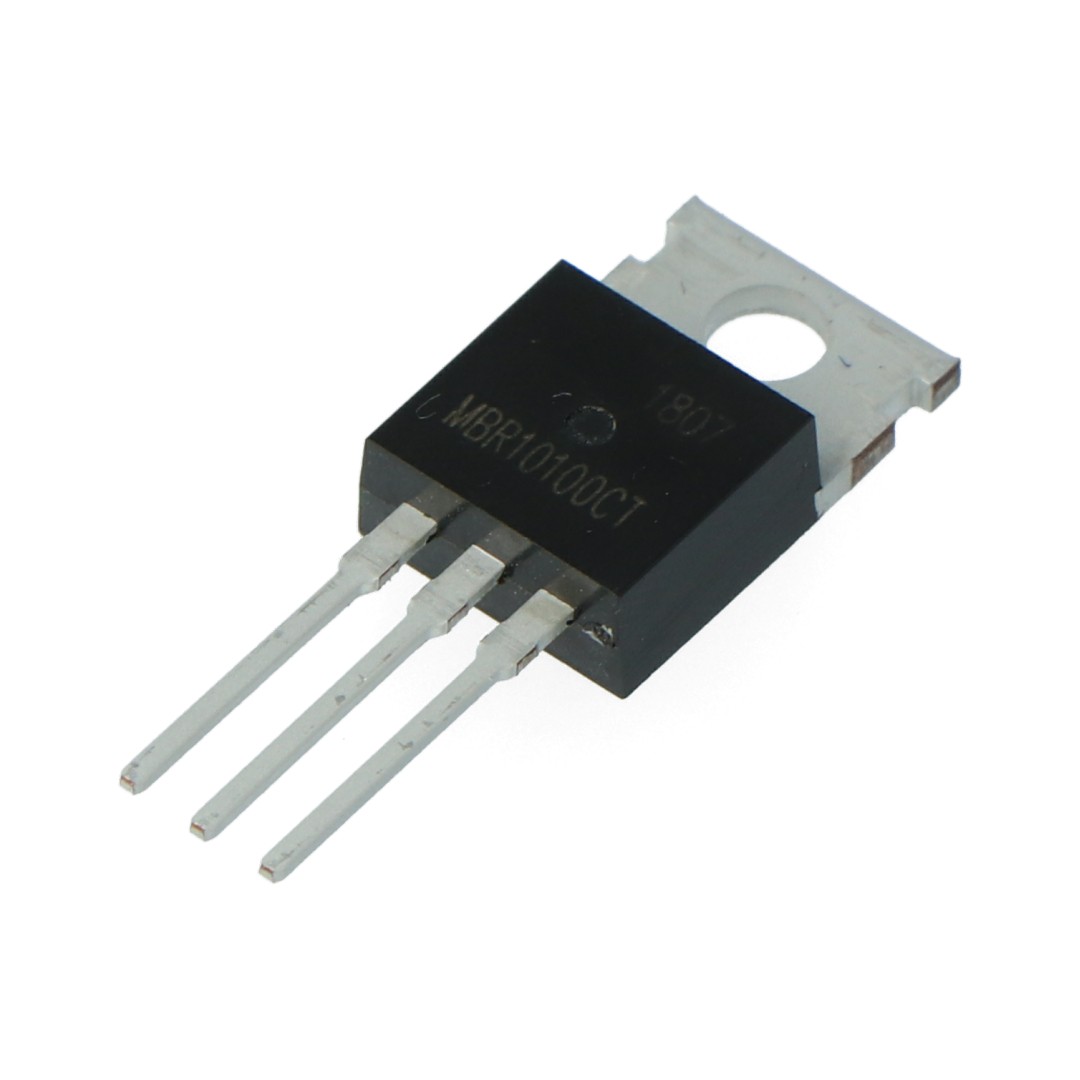

Product description: Schottky diode MBR10100 CT 10 A / 100 V
The MBR10100 is a high-current dual Schottky diode with an operating voltage of up to 100 V and a current capacity of up to 10 A. It features a single common cathode and dual anode configuration, enabling its use in rectification, reverse-biasing, and protection circuits. Thanks to Schottky technology, it features low forward voltage drop and fast switching time , which translates into increased energy efficiency and reduced thermal losses. The TO-220AC package ensures good heat dissipation and easy installation.
Schottky diode MBR10100 10A / 100V.
Double Schottky diode.
Main features
- Reverse voltage: up to 100 V
- Forward current: up to 10 A (5 A per diode)
- Type: Single Common Cathode Schottky Diode
- Low forward voltage drop: 0.75V to 0.85V
- Switching time: very short, suitable for fast applications
- Housing: TO-220AC – easy assembly and good cooling
- Thermal protection: low reverse current at 125°C
Technical specifications
- Diode type: double Schottky
- Configuration: one common cathode, two anodes
- Reverse Voltage (VR): up to 100 V
- Forward current (IF): up to 10 A (5 A per diode)
- Peak current (IFSM): 175 A (for 8.3 ms)
- Forward voltage drop (VF): 0.75 V to 0.85 V (at 5 A, 25°C)
- Reverse current (IR): 2 mA max (at 100 V, 125°C)
- Connector capacitance: typical 200 pF (at 4 V, 1 MHz)
- Housing: TO-220AC
- Operating temperature: -65°C to +150°C
- Dimensions: TO-220AC compliant
- Weight: approx. 2 g
Contents of the set
- 1 x MBR10100 Dual Schottky Diode in TO-220AC Package
Schottky diode with common cathode in the center.
