Product description: Aeotec WallMote Quad - scene and action activation remote control - 4 buttons - Z-Wave - white
The Aeotec WallMote Quad is a four-button smart remote control designed for convenient control of Z-Wave- enabled smart home components. It combines the functions of a stationary wall switch with a mobile controller, which can be used either mounted on a bracket or removed from the wall. Four touch-sensitive panels allow for efficient activation of scenes and automations, as well as control of Z-Wave-enabled devices. The remote recognizes various interaction methods, including touch, hold, and swipe, allowing for assigning even several practical functions to a single panel. The WallMote Quad's slider function can be used, among other things, to smoothly dim and brighten compatible lighting, adjust the mood lighting in the living room, or quickly adjust the conditions in both the workspace and relaxation area. During operation, the device provides clear feedback – it uses vibrations and an integrated color LED indicator to inform the user that the command has been registered. The wireless design, minimalist housing and Z-Wave Plus technology make the remote control not only an extremely practical but also aesthetic addition for smart home users.
The remote control requires a compatible Z-Wave gateway to function properly.
The Aeotec WallMote Quad is not fully compatible with all devices. Check the list of compatible Z-Wave gateways here .

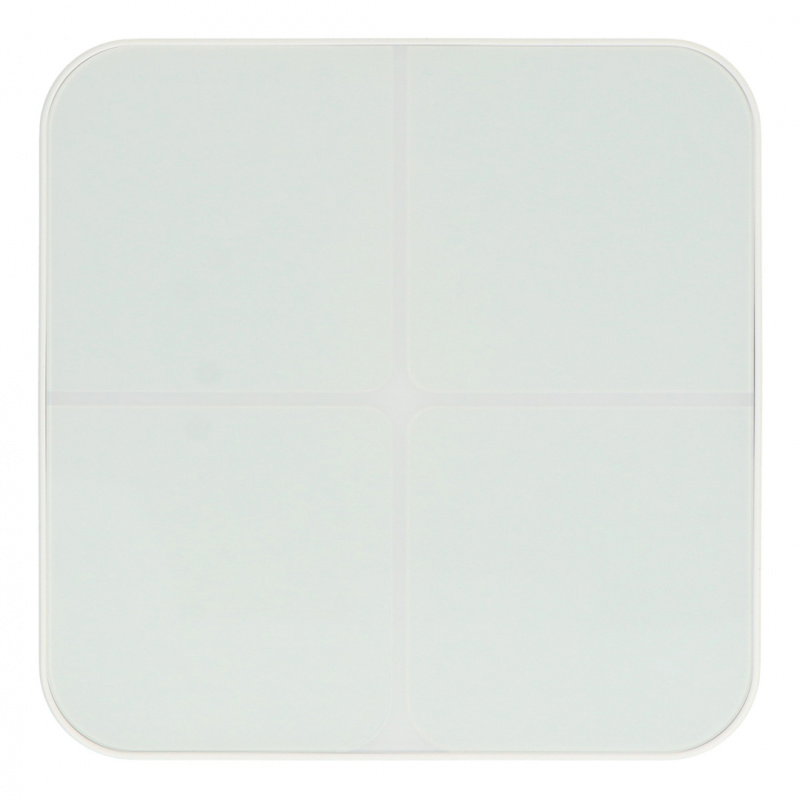

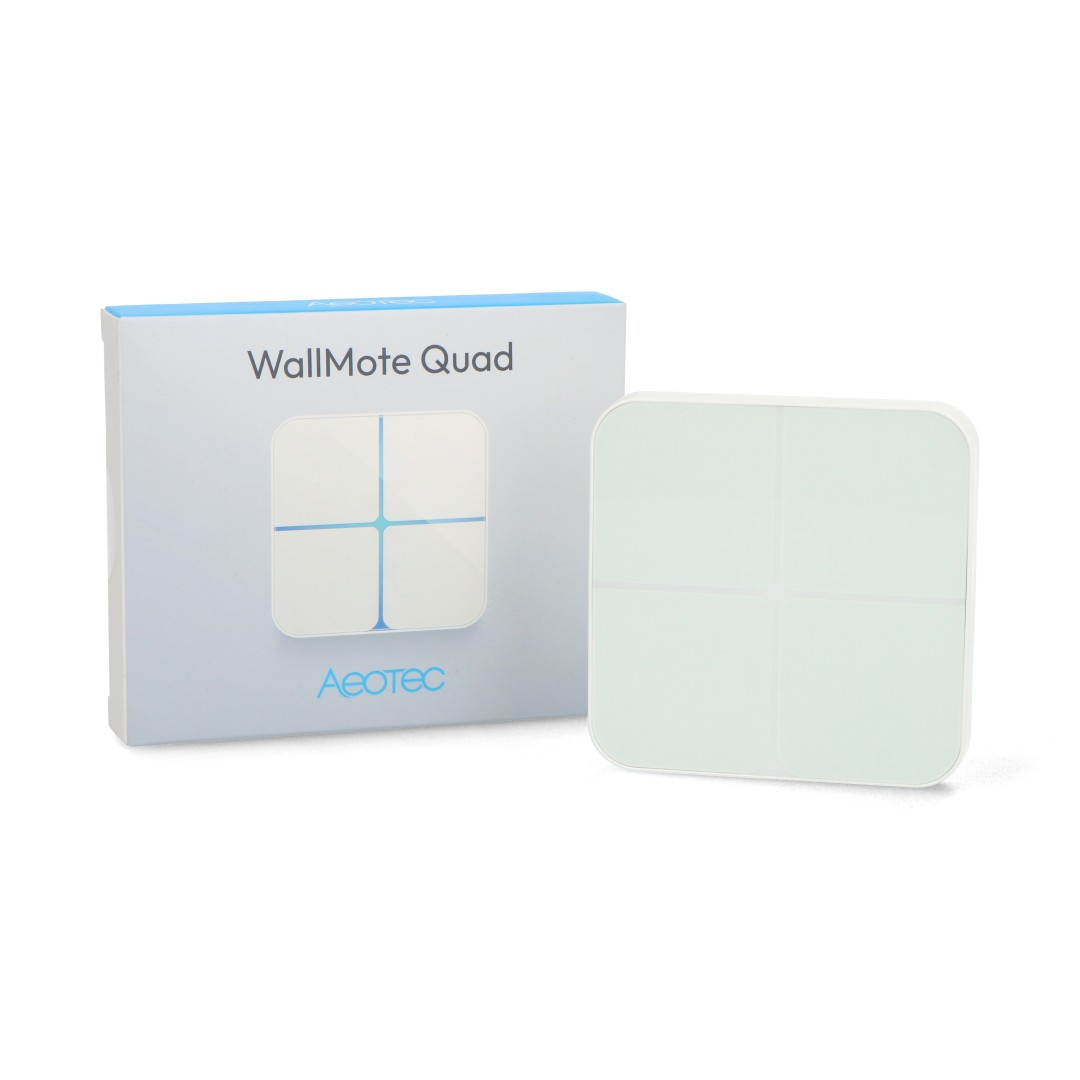

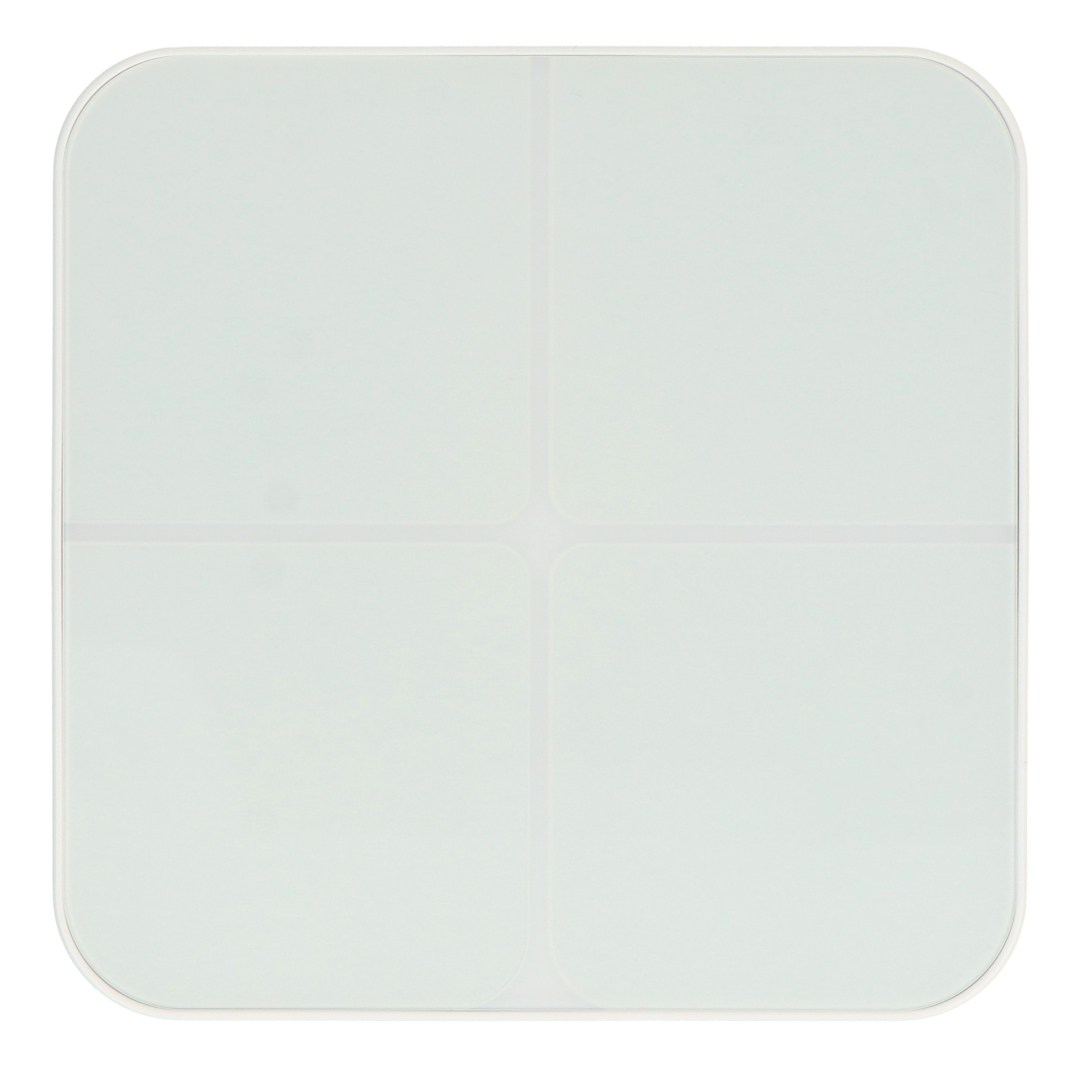

Aeotec WallMote Quad - scene and action activation remote control - 4 buttons - Z-Wave - white.

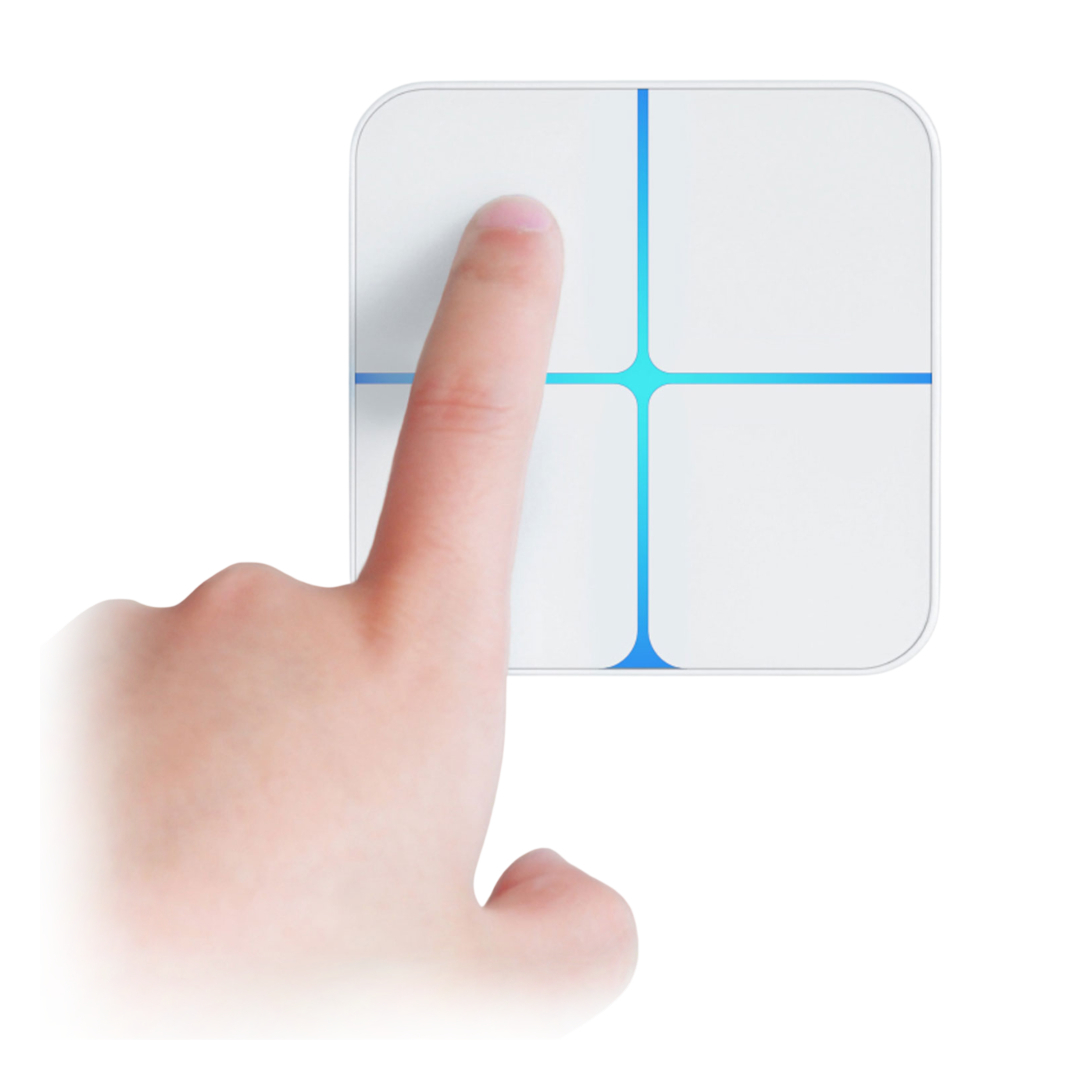

The colored LED indicator informs the user about the device's operating status and the execution of the selected action.
Key Features of the Aeotec WallMote Quad Remote Control
- Wireless control: operation of devices and activation of intelligent scenes in the Smart Home system based on Z-Wave Plus technology
- 4 touch areas: ability to assign different actions and automations to individual buttons
- Device and scene control: enabling quick activation of lighting, blinds, sockets and other compatible system components
- Slider function: option to assign a swipe gesture to, among other things, smoothly brighten or dim the light
- Vibration feedback: receive tactile confirmation that your command has been registered
- Color LED indicator: clear indication of the device's operating status and the execution of the selected action
- Z-Wave Plus technology: energy-saving, stable and wireless communication with compatible Smart Home control units
- Wall-mounted and mobile use: use the remote as a wall switch or portable controller
Versatility of installation and use
The Aeotec WallMote Quad can be used as a remote control for controlling smart scenes and automations , but also as an aesthetic wall panel tailored to a specific room and the user's individual needs. The device comes with a wall mount that can be permanently installed to the wall using double-sided adhesive tape. The controller is attached to it with a magnet , allowing for easy removal from the wall and use as a portable controller. Examples of remote use include activating movie scenes in the living room, adjusting the lighting, and controlling the blinds. In the bedroom, it can be used to activate night mode, turn off the lights, or activate a soft morning light. In the hallway, it can be assigned an exit scene, which includes turning off selected devices and lights. With four touch zones and a finger swipe function, one small controller can replace several traditional switches and simplify everyday smart home operation, significantly improving user comfort.

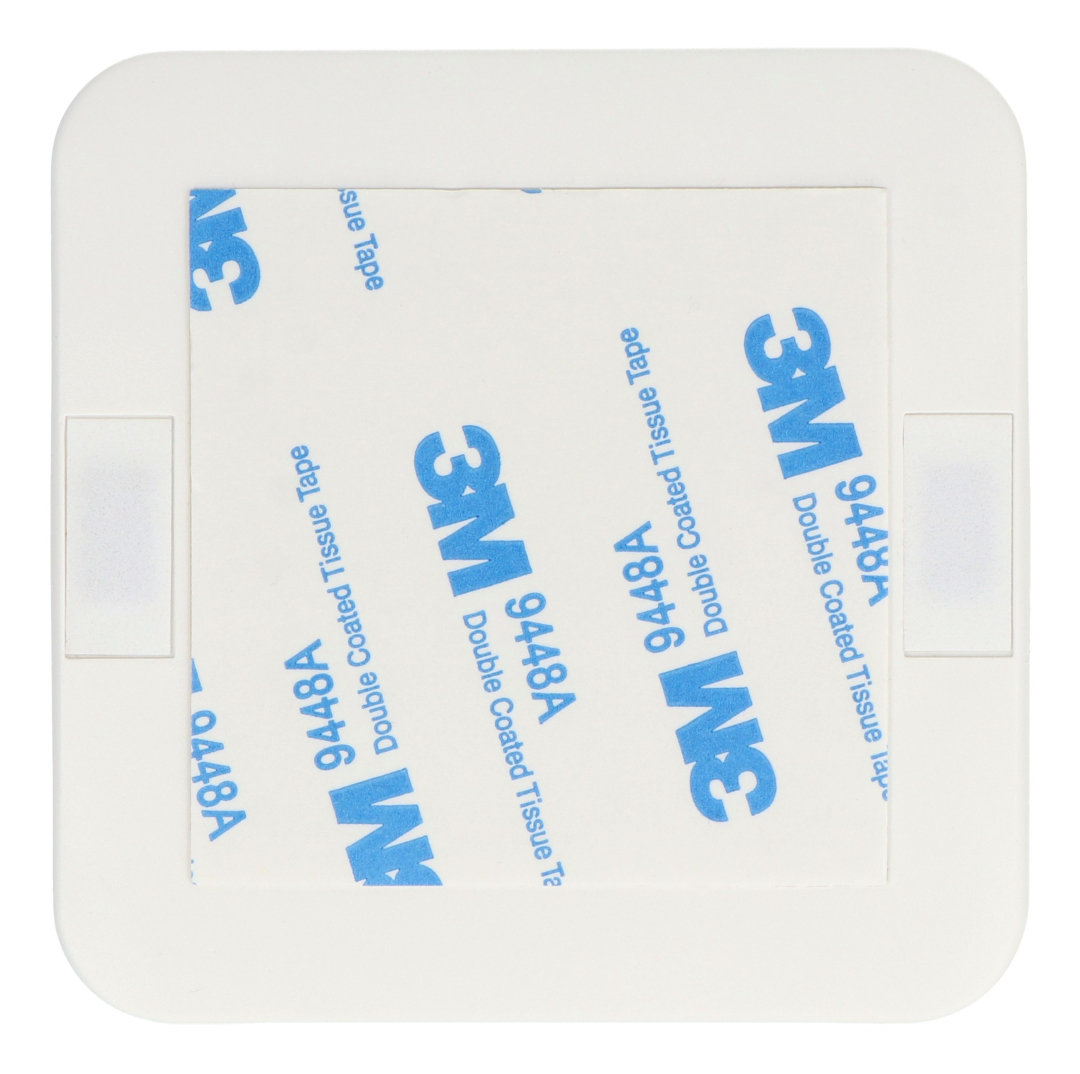

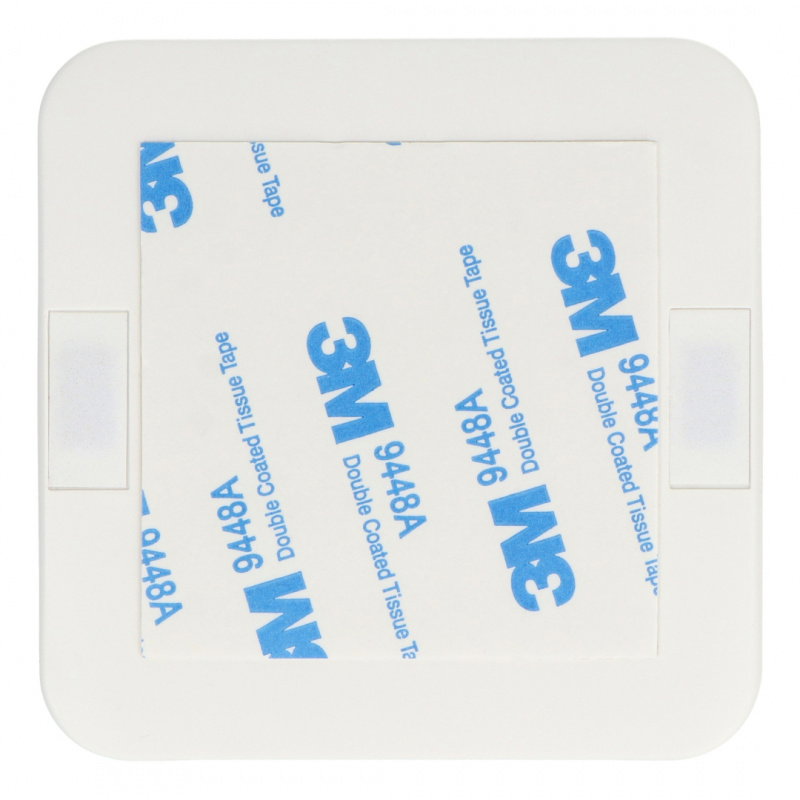

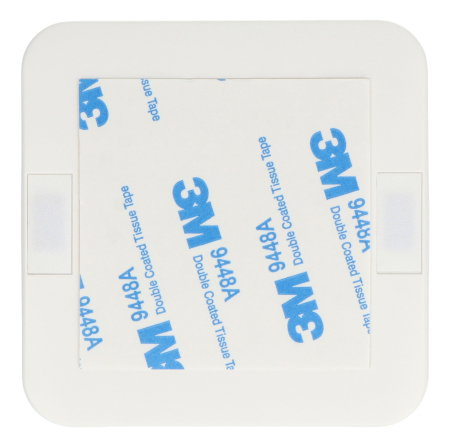

The device has a wall bracket that is permanently glued to the wall, while the controller is attached to it with a magnet.
Z-Wave Plus technology ensures energy-efficient, stable and wireless communication with compatible Smart Home control units.
Aeotec WallMote Quad as a main or additional Z-Wave controller
The device can operate in a Z-Wave network in two ways – as a main controller or as an additional controller. As a main controller, the device can create its own Z-Wave network and enable direct management of compatible home automation components , without the need for a separate remote control for basic operations. This allows you to control devices such as lighting, dimmers, blinds, wall sockets, electronic locks, and other actuators that support the Z-Wave standard. This is a practical solution for simpler installations where quick control of multiple devices or scenes from a single, convenient panel is paramount. The WallMote Quad can also be added to an existing Z-Wave network as an additional controller . In this configuration, the remote does not replace the Smart Home control unit, but rather expands its capabilities with convenient, wireless control of scenes, automations, and selected devices . This allows it to function as a handy panel in the living room, bedroom, office, or at the entrance to the house, providing quick access to frequently used functions. This flexibility of configuration makes the Aeotec WallMote Quad suitable for both a simple Z-Wave system and a more complex smart home installation with a separate control unit.
Technical specifications
- Device type: WallMote
- Number of buttons: 4 touch areas
- Supported functions: device control, scene activation, slider function
- Feedback: vibration, color LED status indicator
- Communication: Z-Wave Plus
- Hardware platform: Z-Wave 700
- SmartStart support: yes
- Operating frequency: 868.4 MHz
- Maximum transmission power: 5 mW
- Hardware platform: ZM5202
- Power supply: built-in Li-Pol 302323 battery
- Battery voltage: 3.7 V
- Recommended charging power supply: 5V/1A
- Charging connector: micro USB
- Degree of protection: IP20
- Security: Secure S0 pairing and encrypted communication in the Z-Wave network using a compatible control panel
- Color: white
- Material: plastic
- Manufacturer number: ZW130
- Dimensions: 76.8 x 76.8 x 10.9 mm
- Weight: 0.069 kg
Kit contents
- 1 x Aeotec WallMote Quad - action and scene activation remote control - 4 buttons - Z-Wave - white with wall mount
- Li-Pol battery 302323 (built-in)
- User manual

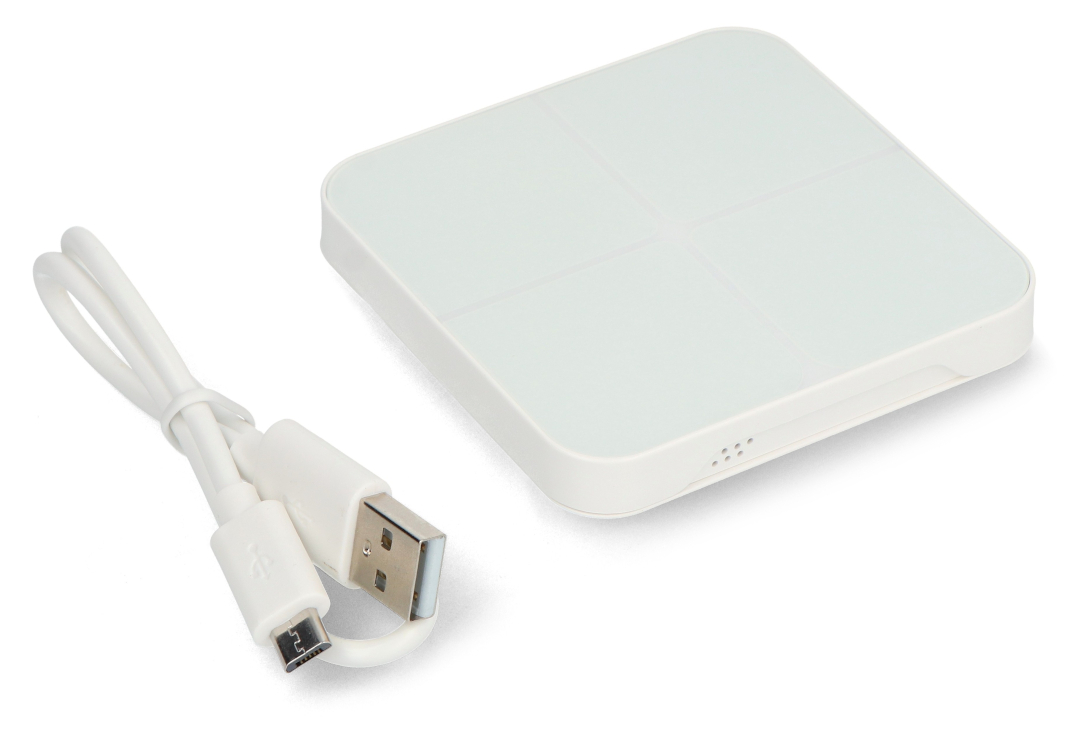

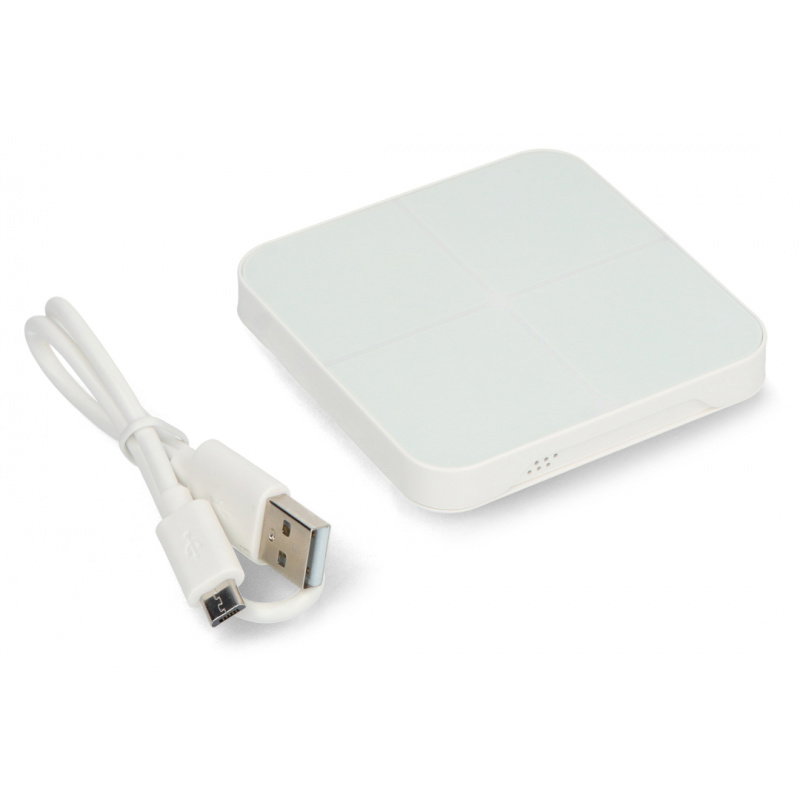

Contents of the set.
