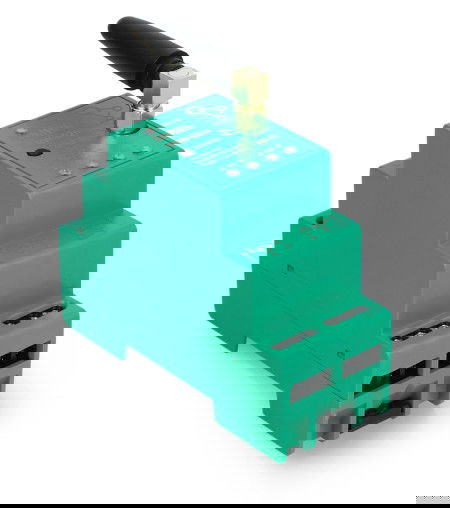

Product description: Zamel Supla SRW-02M - two-channel modular roller shutter controller 230 V WiFi - Android / iOS application
The SRW-02M from Zamel Supla is a two-channel roller shutter controller designed for installation in an electrical panel thanks to its two-module housing. It allows for manual control of two roller shutters using pushbuttons, or remote control via the Supla mobile app. The device supports cloud-based schedules , allowing for automatic opening and closing of roller shutters at pre-programmed times. Thanks to its Wi-Fi connection and the absence of an external controller, installation is simple and functional.
Zamel Supla SRW-02M - two-channel modular roller shutter controller 230 V WiFi - Android / iOS application.
SRW-02M from Zamel Supla is a two-channel roller shutter controller designed for installation in an electrical switchboard.Special features
- Dual-channel roller shutter control: ability to independently control two roller shutters
- Remote and manual control: operation via the Supla app and classic roller shutter buttons
- Compatibility with 230V drives and potential-free outputs: works with a wide range of roller shutter actuators
- Cloud scheduling: automate the opening and closing of blinds at set times and days
- DIN 2M housing: quick and safe installation in the electrical distribution board on a TH35 rail
- 2.4 GHz WiFi: wireless communication with your home network - no controller required
Practical applications
The SRW-02M controller is perfect for any smart home or office where electric blinds need to be controlled. It can be used to automatically raise blinds in the morning and lower them at dusk – without user intervention. The Supla app also allows for immediate response to changing weather conditions, even when away from home.
Controller technical specifications
- Power supply: 230 V AC
- Number of channels: 4 (for 2 blinds - up / down)
- Number of relays: 4 x NO
- Relay load capacity: 5 A / 250 V AC (per channel)
- Transmission: WiFi 2.4 GHz, 802.11 b/g/n
- Output type: potential-free contacts
- Mounting: on DIN rail (TH35)
- Housing: 2-module
- Dimensions: 90 x 35 x 66 mm
- Weight: 130 g
The device supports schedules stored in the cloud, allowing you to automatically open and close your blinds at pre-programmed times. Useful links |
