Product Description: DC 12V 60RPM Motor with Worm Gear
The DC motor with a 1:37.3 worm gear ensures reliable and stable operation at a rated voltage of 12 V , supporting a voltage range of 6 V to 15 V. It is energy-efficient, drawing only 180 mA of current under load and 1 A with the shaft stationary, allowing it to handle momentary overloads. The robust 6 mm diameter and 18.5 mm long shaft ensures compatibility with many standard drive mechanisms. A torque of 0.55 kg*cm is sufficient for many standard applications. The motor 's compact dimensions and low weight make it suitable for a wide range of applications, such as robotics and industrial automation .
In our store you can find a wide range of DC motors , we also invite you to check out our other models.

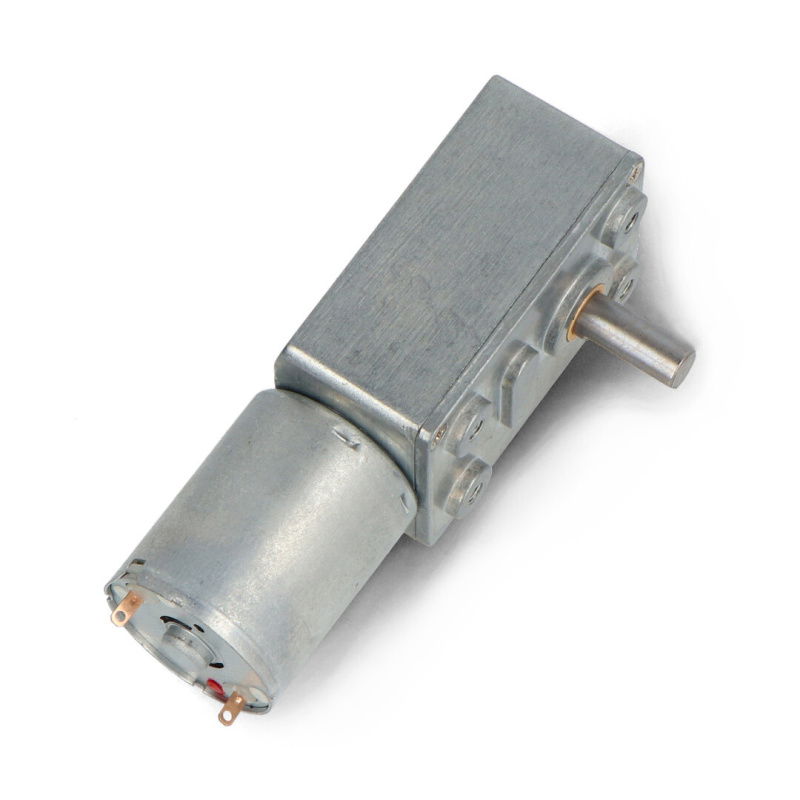

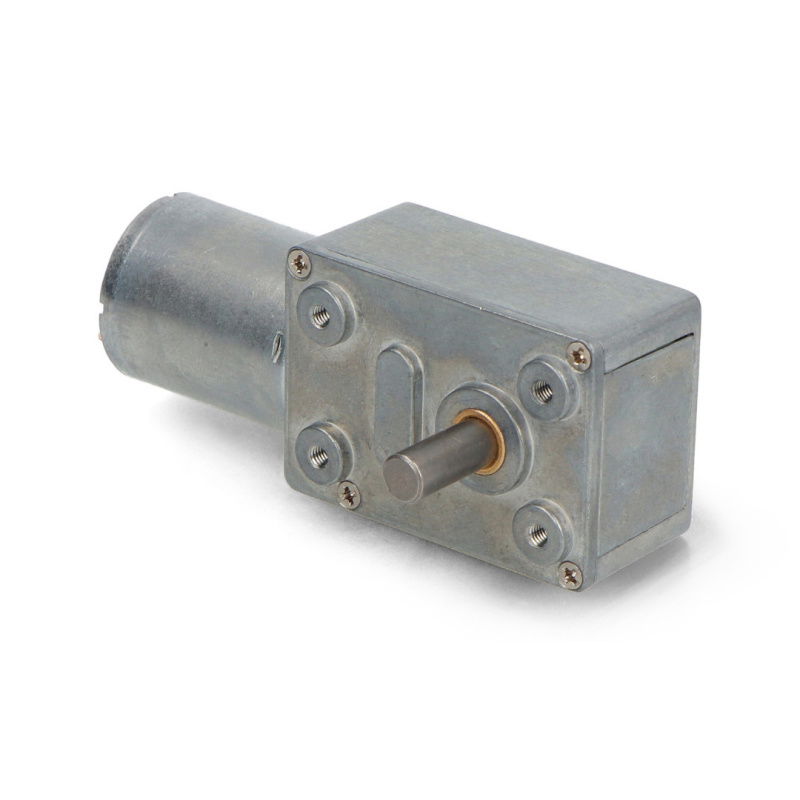

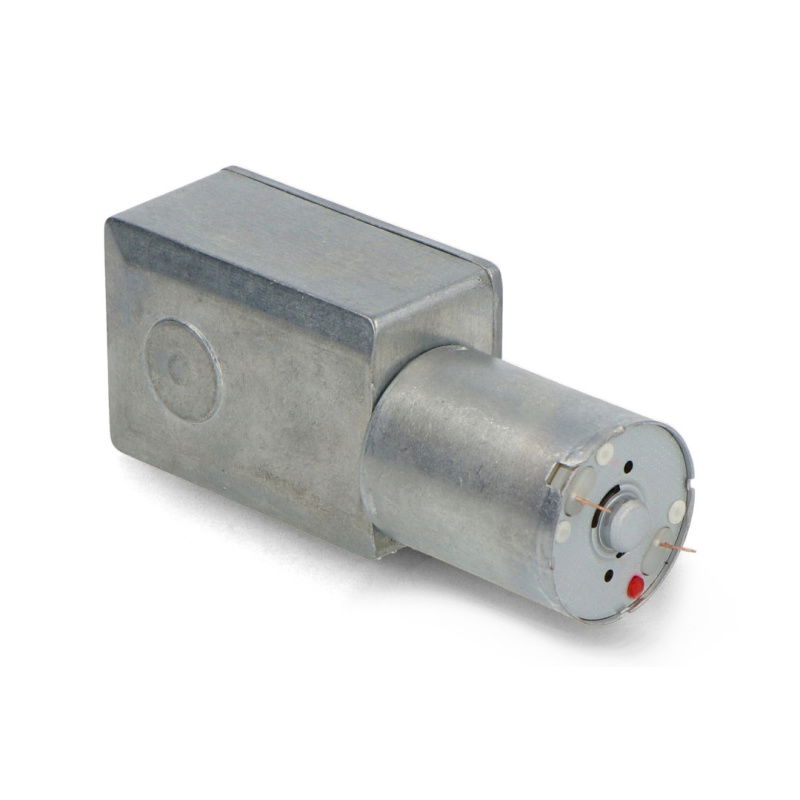

DC 12V 60RPM motor with worm gear.
The engine dimensions are 77 x 32 x 26 mm.DC Motor Specifications
- Supply voltage: 6 V to 15 V
- Nominal voltage: 12 V
- Gear ratio: 1:37.3
- No-load current: 35 mA
- Nominal current: 180 mA
- Current with shaft stopped: 1 A
- Idle speed: 60 rpm
- Rated rotation speed: 50 rpm
- Rated torque; 0.55 kg*cm (0.05 Nm)
- Torque with shaft stopped; 1.2 kg*cm (0.12 Nm)
- Output shaft diameter: 6 mm
- Output shaft length: 18.5 mm
- Dimensions: 77 x 32 x 26 mm
- Weight: 155 g
