Product description: 10.1DP-CAPLCD capacitive touchscreen LCD IPS 10.1'' 1280 x 800 px HDMI + USB - Waveshare 23739
The Waveshare 10.1DP-CAPLCD is a universal touchscreen display designed for use with PCs, Raspberry Pi minicomputers, NVIDIA Jetson platforms, and other HDMI-enabled devices . Its 1280 x 800 px IPS display provides wide viewing angles of 178° and excellent readability. The capacitive touchscreen, which supports up to 10 touch points, is protected by tempered glass with a 6H hardness , increasing the surface's resistance to everyday use. Optical Bonding technology reduces the amount of air between the touchscreen and the display, improving image quality and reducing light reflections. The screen is equipped with an HDMI port for image transmission, a USB Type-C port for touch functionality, a 3.5mm audio jack, and a speaker jack . Support for popular operating systems and driver-free operation means the display can be quickly activated after connecting to a compatible device.

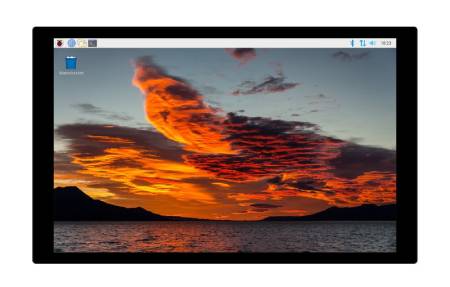

10.1DP-CAPLCD capacitive touchscreen LCD IPS 10.1'' 1280 x 800 px HDMI + USB - Waveshare 23739.

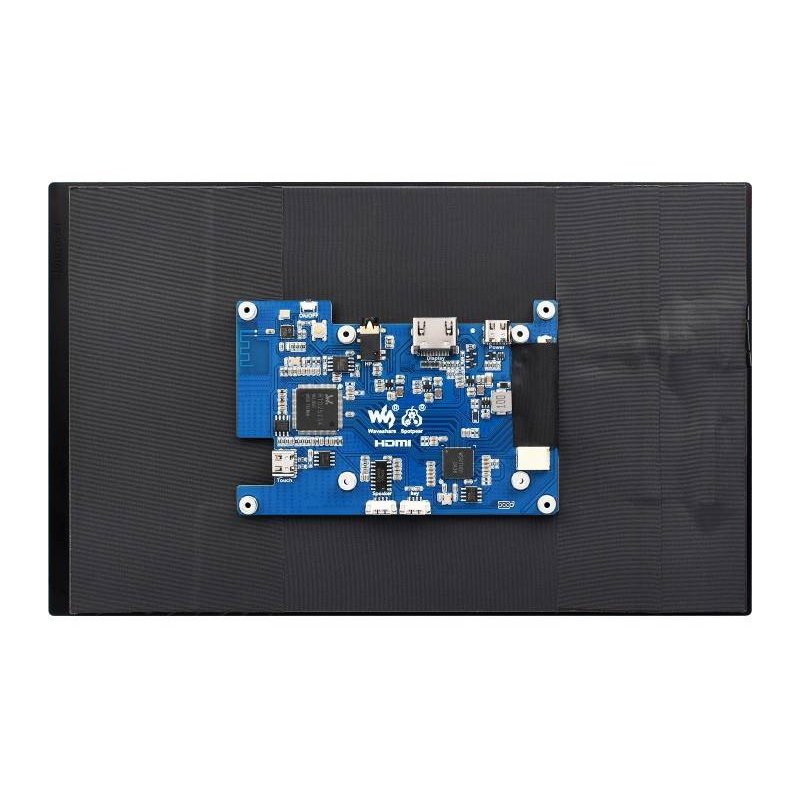

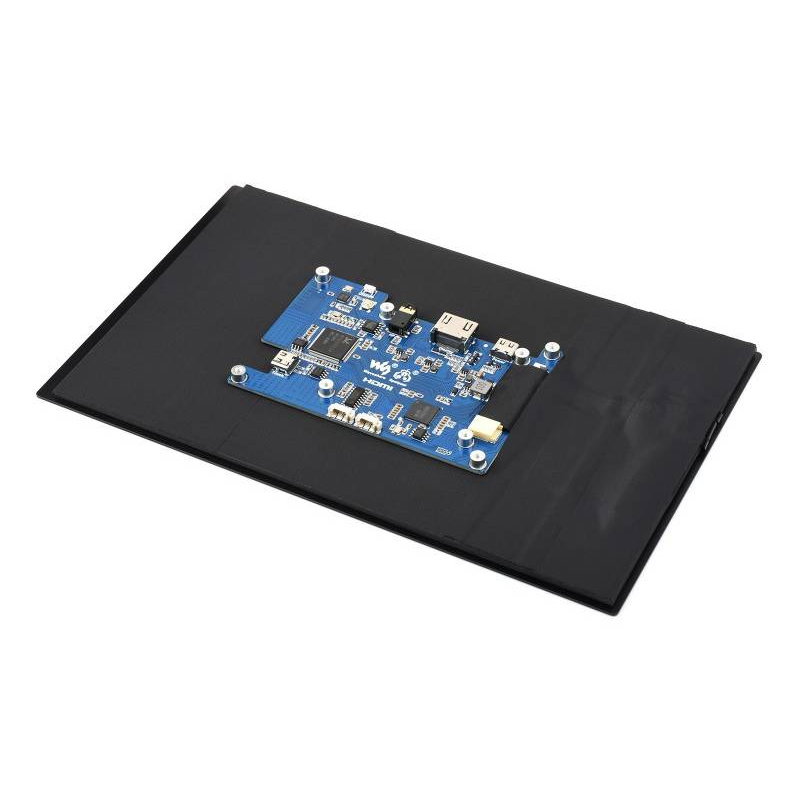

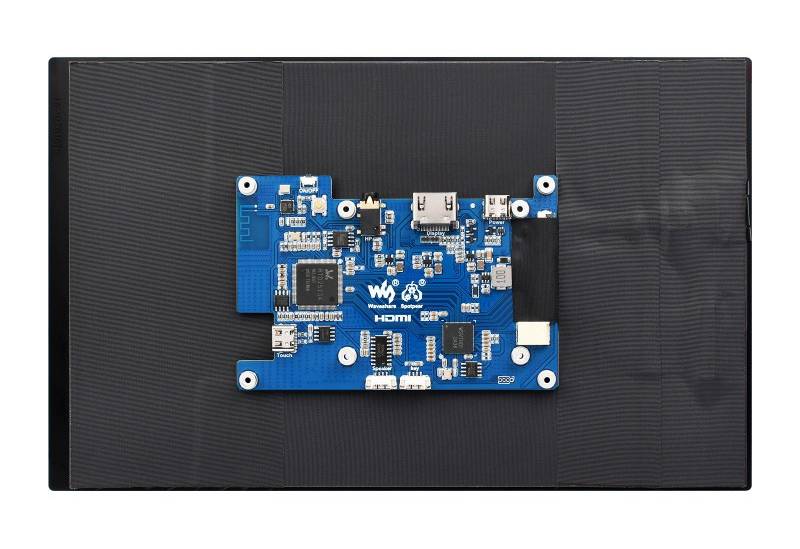

The display is equipped with a standard HDMI connector, a USB Type-C port for touchpad operation, a 3.5 mm audio jack and a speaker connector.
Main screen features
- 10.1'' IPS matrix : provides wide viewing angles of 178° and faithful color reproduction
- HD resolution 1280 x 800 px : guarantees a detailed and clear image
- Capacitive touchscreen : supports up to 10 touch points depending on the operating system used
- Optical Bonding Technology : Improves image quality, reduces reflections and increases dust resistance
- Tempered 6H glass : protects the panel against scratches and mechanical damage
- HDMI interface : compatible with computers, minicomputers and embedded platforms
- Brightness adjustment via OSD : convenient adjustment of image parameters
- Audio output : 3.5mm headphone jack and speaker connector
Compatibility and display connection
The display is designed as a universal HDMI monitor that works with a wide range of devices. It supports all popular Raspberry Pi versions, including the Raspberry Pi 4 , Raspberry Pi 3B+ , Raspberry Pi Zero 2W , and other single-board computers equipped with an HDMI output. The screen is also compatible with NVIDIA Jetson Nano platforms and Windows PCs . Connecting the device is very simple. The image is transmitted via an HDMI cable, while the touch function uses a USB Type-C connection. Most systems automatically detect the screen, without the need to install additional software.

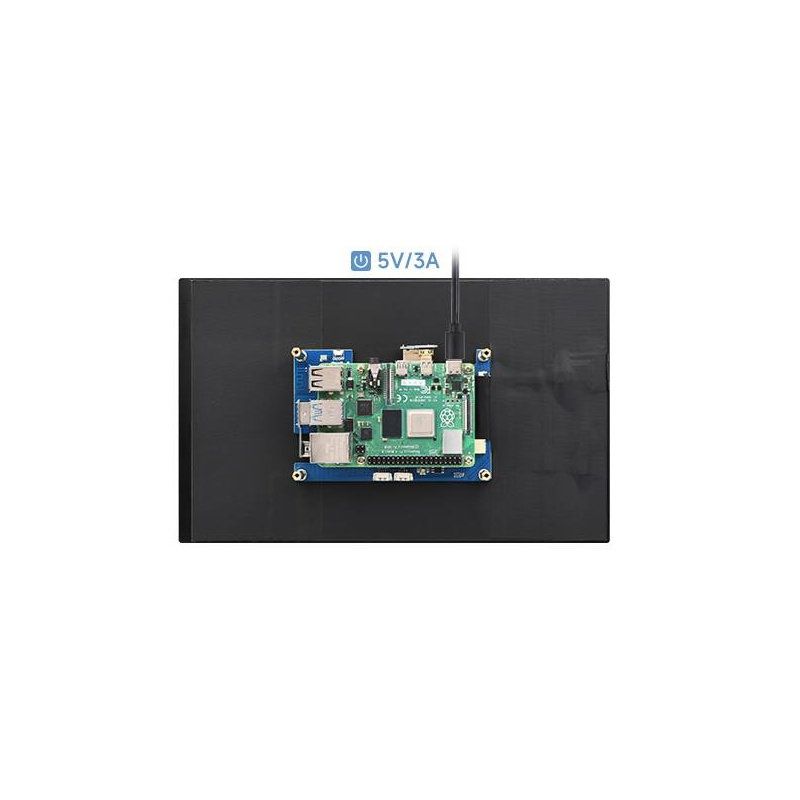

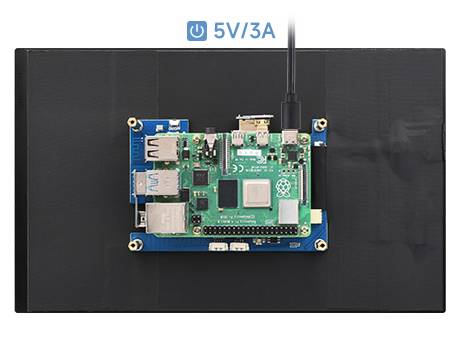

Thanks to the HDMI and USB Type-C touch interface, it works with PCs, Raspberry Pi and NVIDIA Jetson platforms.

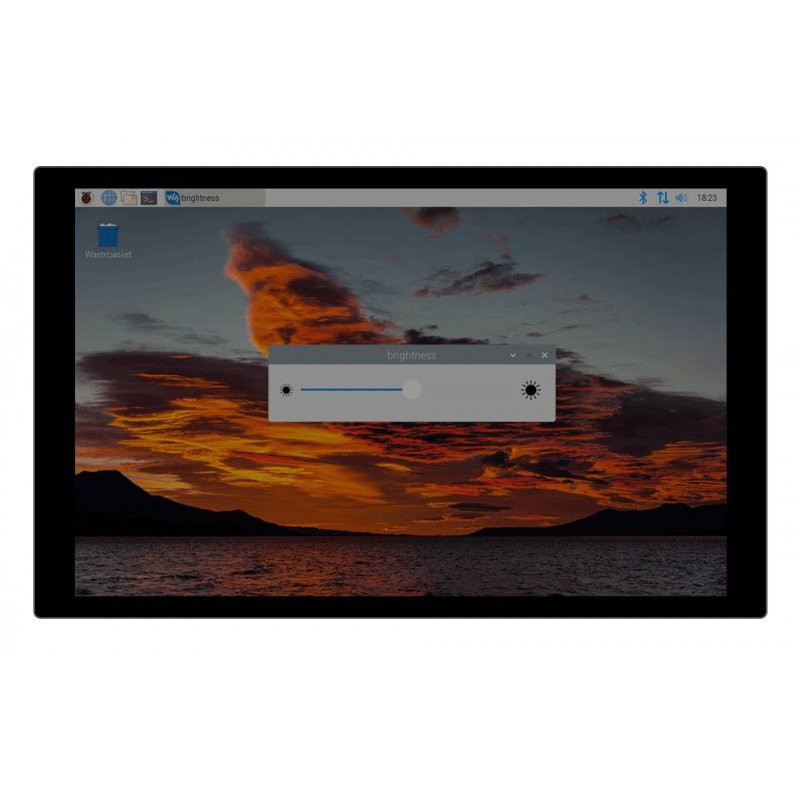

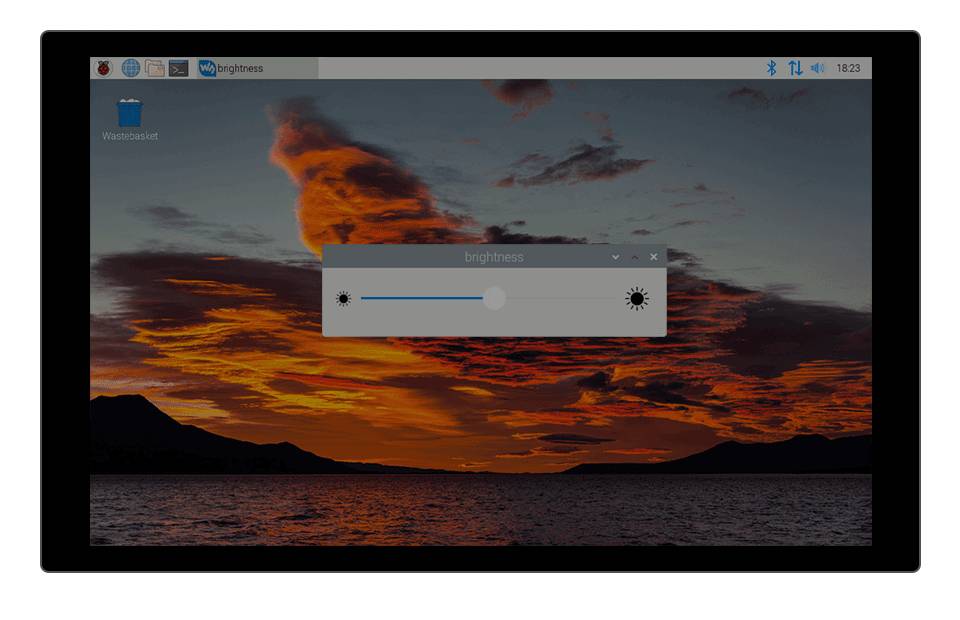

Screen brightness can be controlled via software.
Software and supported operating systems
Waveshare 10.1DP-CAPLCD offers seamless compatibility with popular operating systems . For Raspberry Pi, it supports Raspberry Pi OS, Ubuntu, Kali Linux, and RetroPie . On PCs, the display works with Windows 11, Windows 10, Windows 8.1, Windows 8, and Windows 7. The touchpad works without additional drivers, significantly speeding up device deployment. The display also features an OSD menu for adjusting brightness and other image parameters , and in Linux and Windows, software backlight control is possible using tools using the DDC/CI standard.
Display technical specifications
- Screen diagonal: 10.1''
- Matrix type: IPS
- Resolution: 1280 x 800 px
- Viewing angles: 178°
- Touch panel type: capacitive
- Number of touch points: up to 10
- Panel technology: Optical Bonding
- Panel material: tempered glass
- Glass hardness: 6H
- Image interface: HDMI
- Touch interface: USB Type-C
- Audio output: 3.5mm jack socket
- Speaker connector: 4-pin
- Brightness: 350 cd/m²
- Contrast: 800:1
- Refresh rate: 60 Hz
- Color gamut: 58% NTSC
- Supply voltage: 5 V
- Power consumption: 4 W
- Operating temperature: 0°C to 60°C
- Storage temperature: -10°C to 70°C

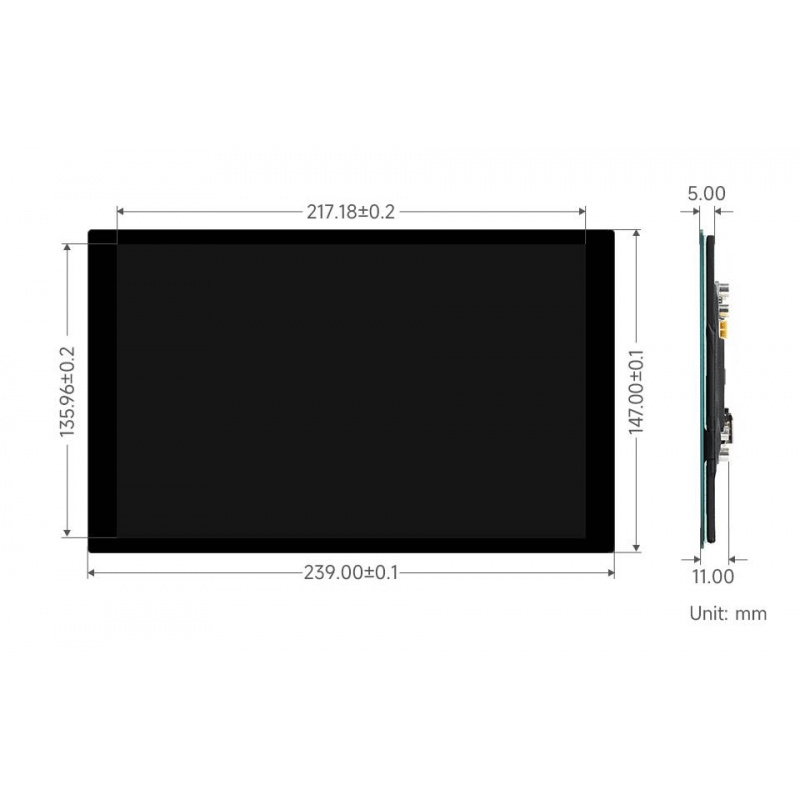

- Touch panel dimensions: 239 x 147 x 2 mm
- Display active area: 216.58 x 135.36 mm
- Total thickness: 11 mm
- Weight: 664 g

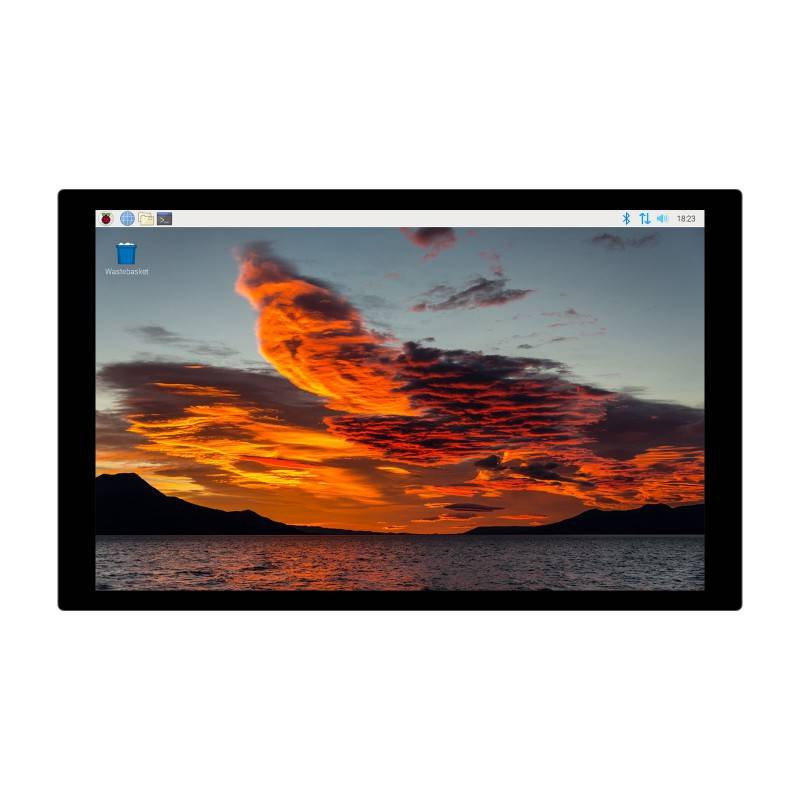

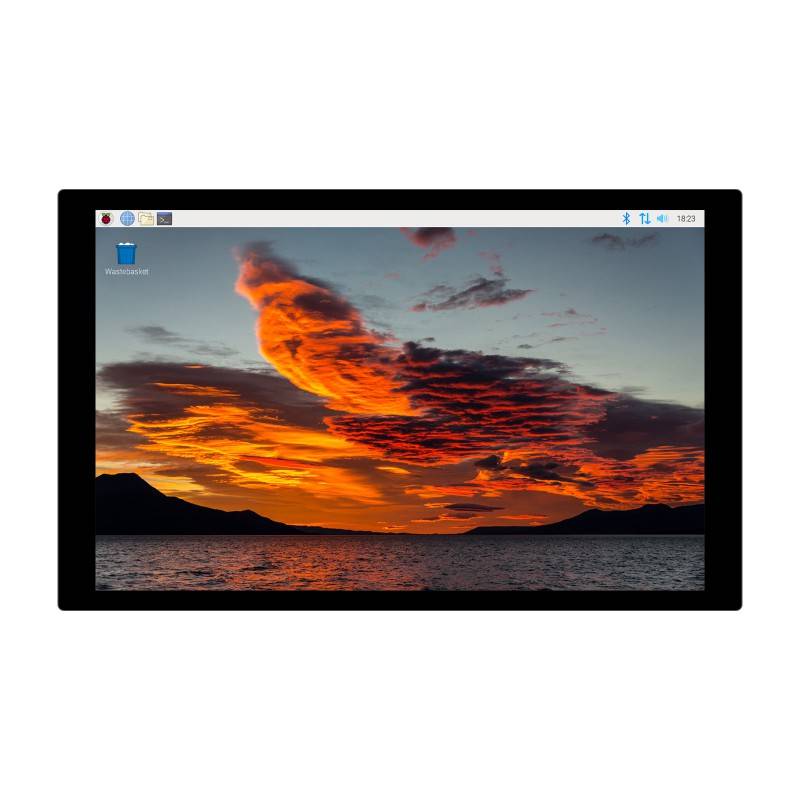

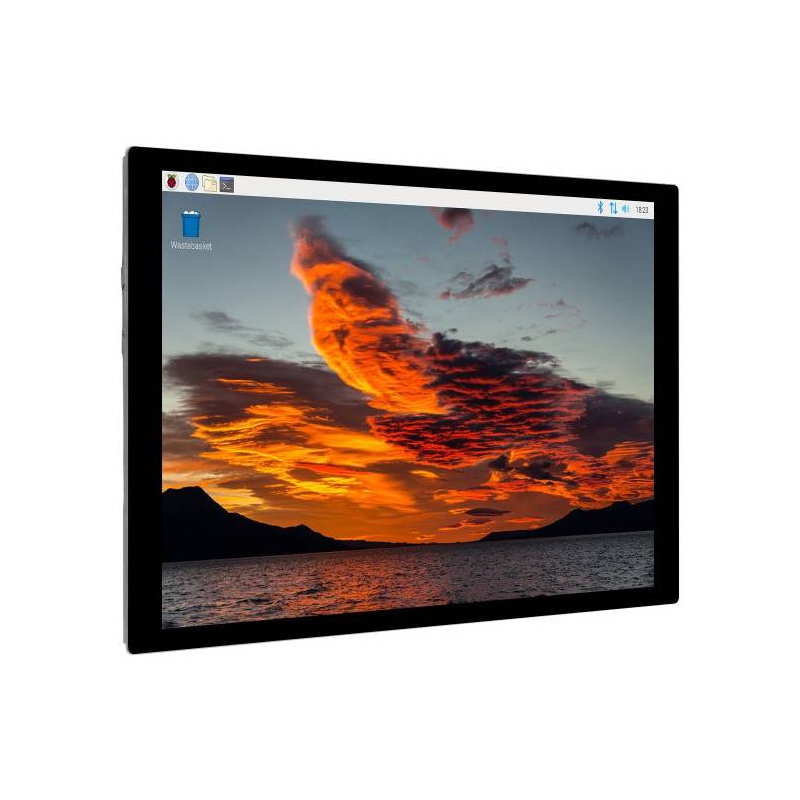

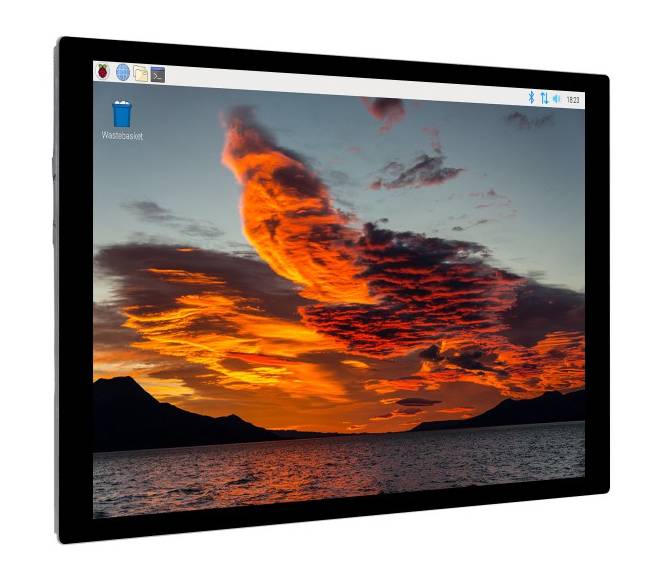

The screen offers a resolution of 1280 x 800 px and wide viewing angles of 178°.

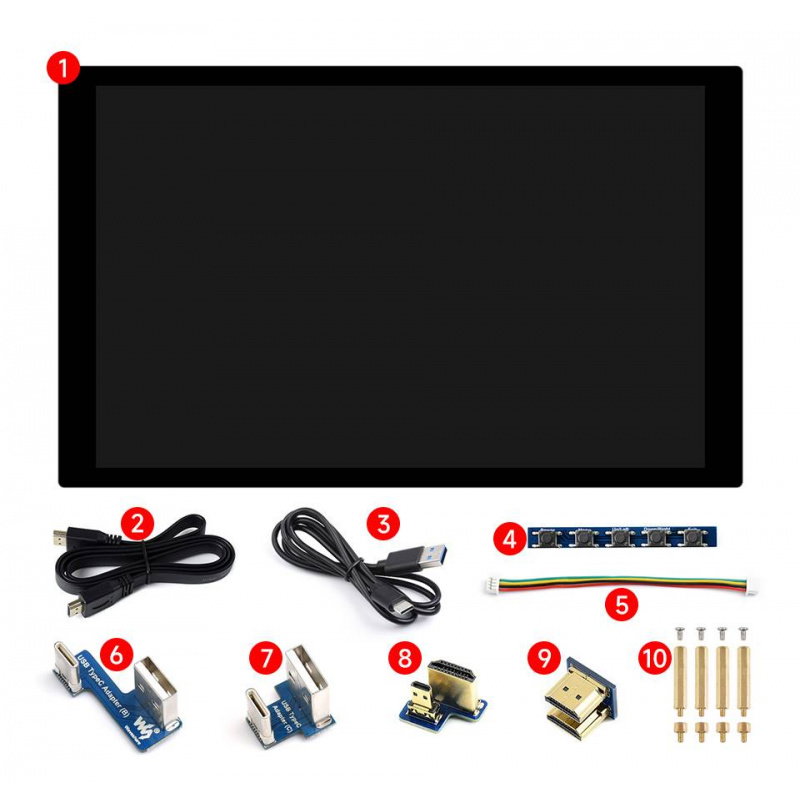

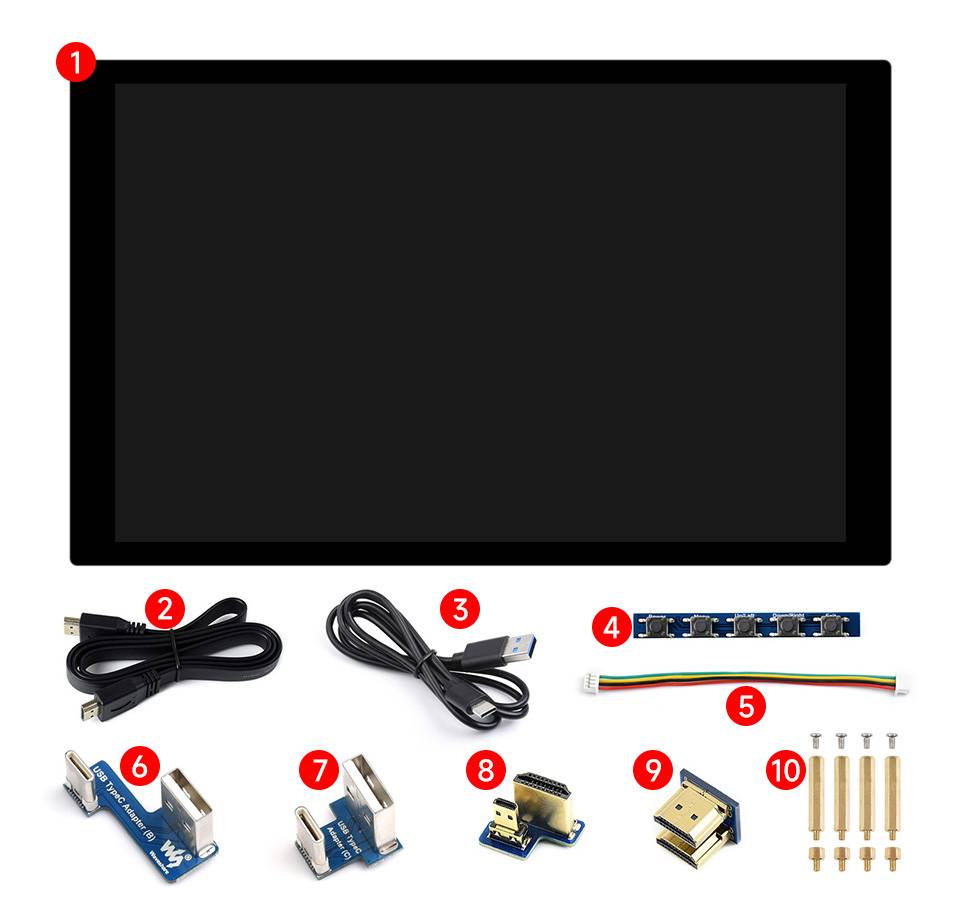

Contents of the set
- Waveshare 10.1DP-CAPLCD Display
- HDMI flat cable approx. 1 m
- USB Type-A to USB Type-C cable approx. 1 m
- OSD button board
- Cable for button board
- USB to USB Type-C (B) Adapter
- USB to USB Type-C Adapter (C)
- HDMI to microHDMI adapter
- HDMI adapter
- Set of mounting elements
