Product description: TOOCAA NOVA 20 W laser plotter
The TOOCAA NOVA is a modern, AI-enabled laser engraver equipped with a 20W module. The device features a fully enclosed Class 1 enclosure with a multi-level safety system, making it suitable for use in residential, educational, and office environments. The intelligent system automatically recognizes materials, focuses, and adjusts operating parameters , eliminating the need for manual configuration. The TOOCAA NOVA fits on a desk, offering an A4 workspace . A built-in HD camera enables real-time preview and precise project positioning using the "What You See Is What You Get" method. Operation is via an intuitive touchscreen or TOOCAA Studio and LightBurn software, with the option of connecting via USB or Wi-Fi . The modular design allows for easy replacement of laser heads (available as a separate accessory), adapting the power to your current needs—from precise engraving to deep cutting.

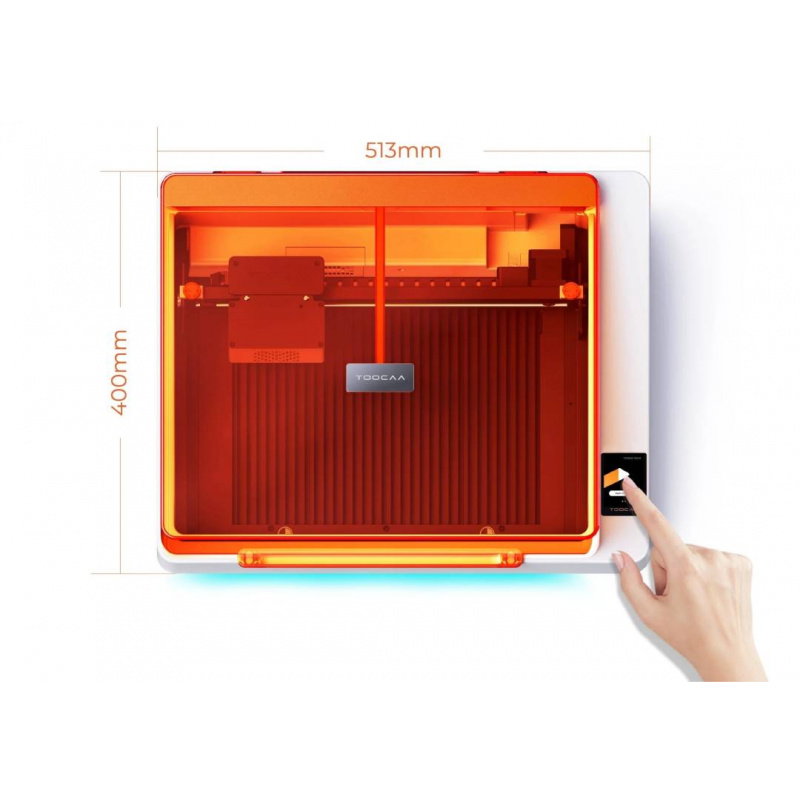

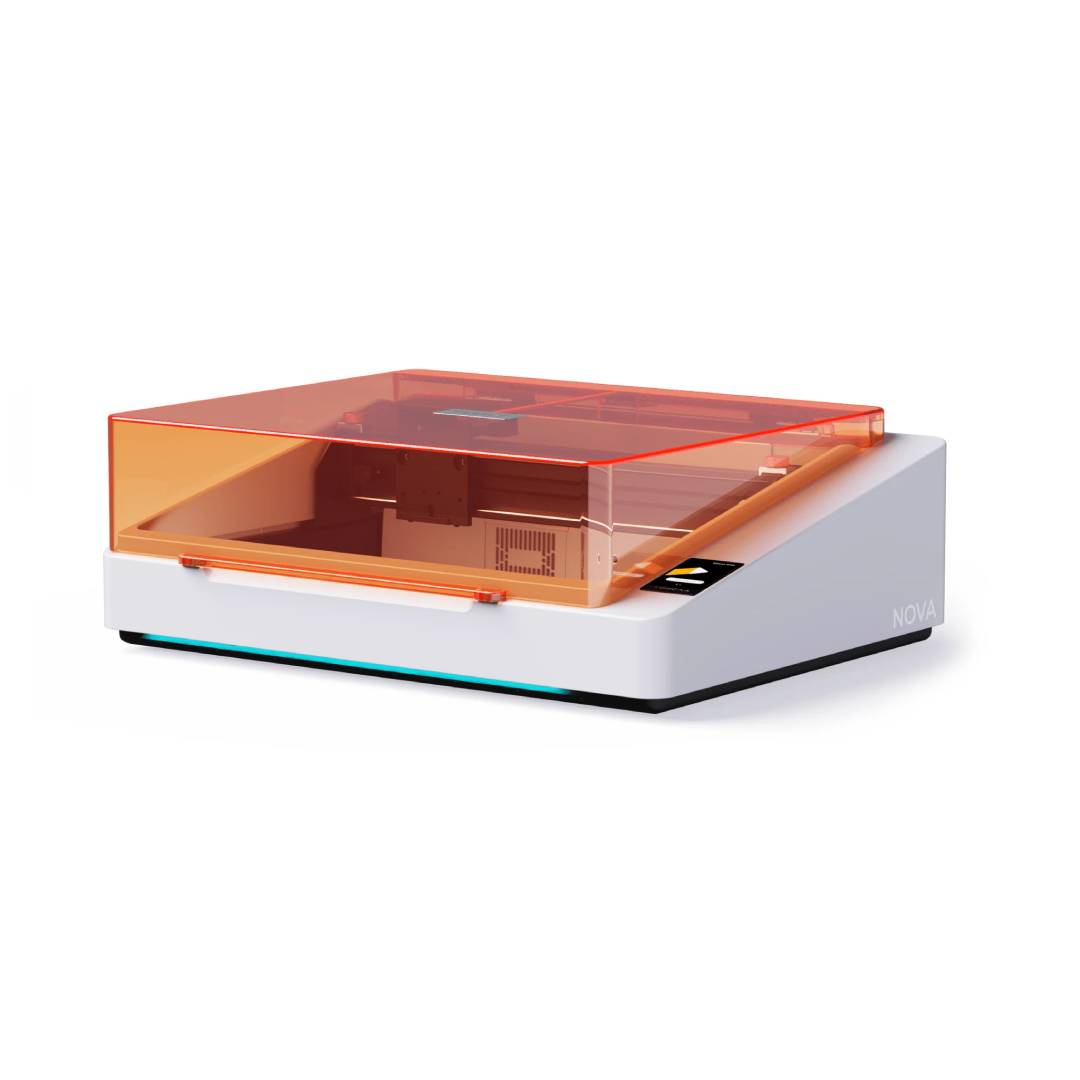

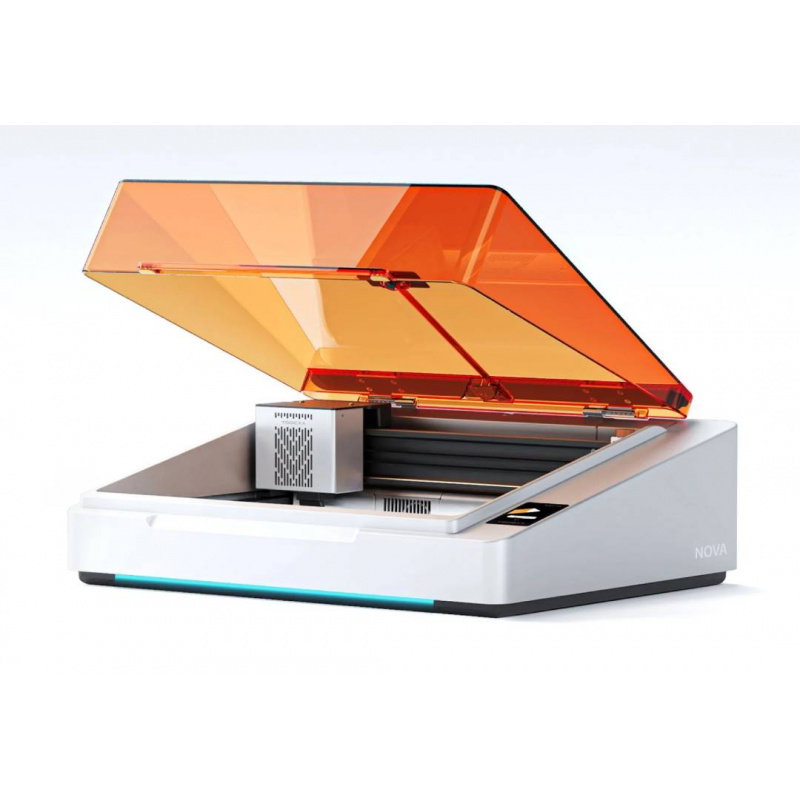

TOOCAA NOVA 20 W laser plotter.

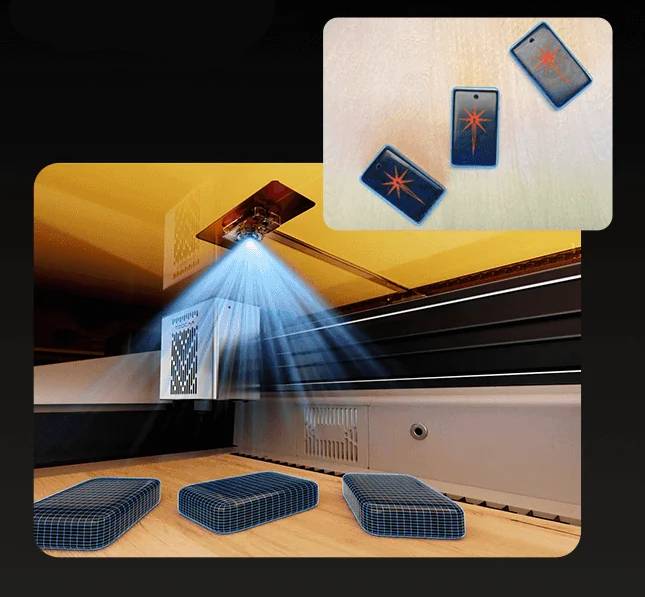

The built-in HD camera allows you to position the project on the material and view the work progress live.
Smart creation with AI and live preview
The TOOCAA NOVA 20 W utilizes advanced artificial intelligence algorithms that automate the process of preparing a design for engraving. The system intelligently recognizes the material, selects optimal parameters , and eliminates the need for manual testing. The built-in 5MP HD camera provides a real-time "What You See Is What You Get" preview , allowing you to precisely position the design on the material. With a positioning accuracy of less than 1 mm, you see exactly what will be engraved before you begin. This solution significantly shortens turnaround time and minimizes the risk of errors.
Automatic material management and precise autofocus
The device features automatic recognition of selected materials based on their identification cards or system settings , allowing for instant adjustment of power, speed, and engraving depth. The Auto Focus function automatically adjusts the laser head height relative to the material thickness, ensuring optimal beam sharpness. This solution works well with both thin sheets and thicker wood or acrylic elements. You can also use the advanced mode and manually enter the material thickness . The entire job preparation process is reduced to a few simple steps. The A4 working area ( 297 x 210 mm ) and high degree of automation make that operating the plotter is almost as intuitive as using a traditional office printer.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

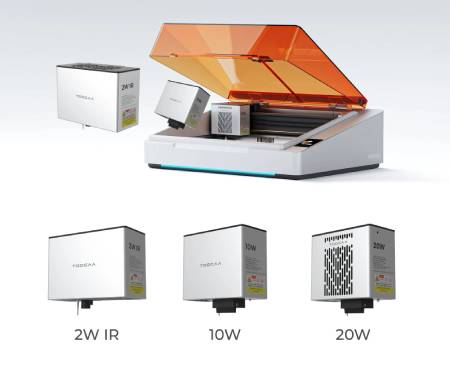

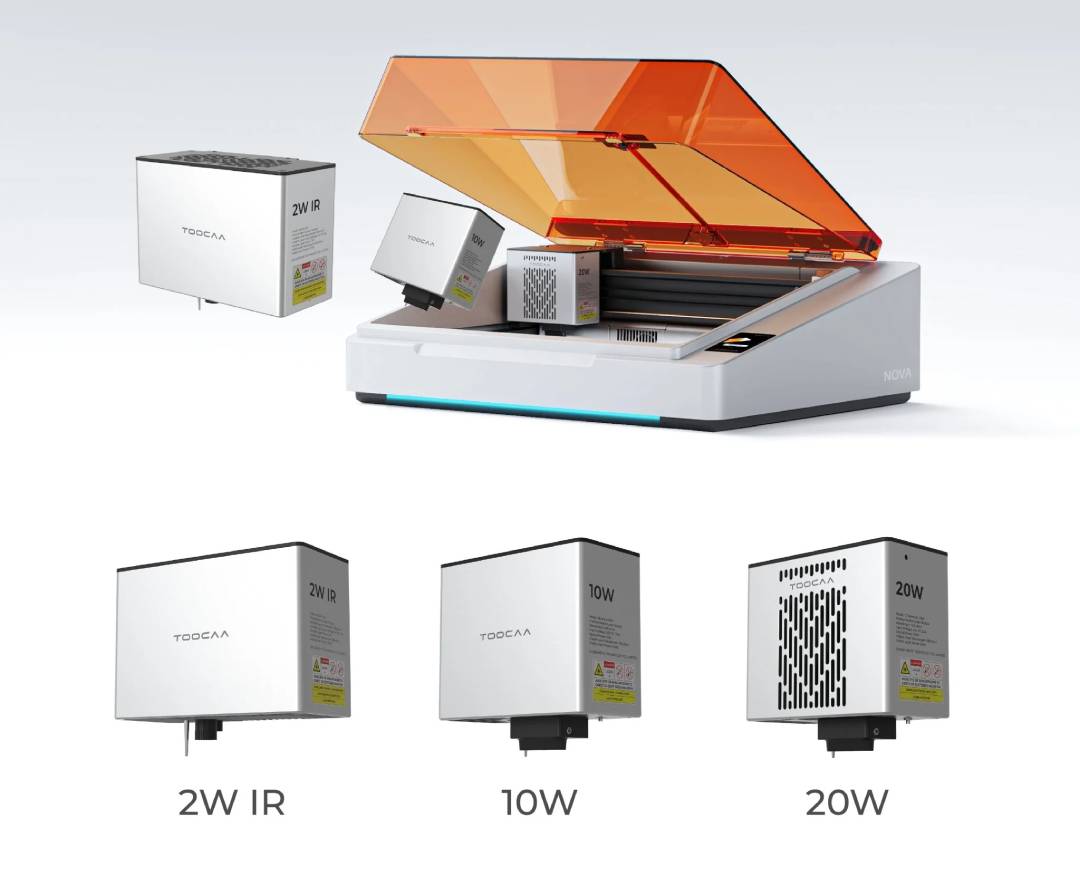

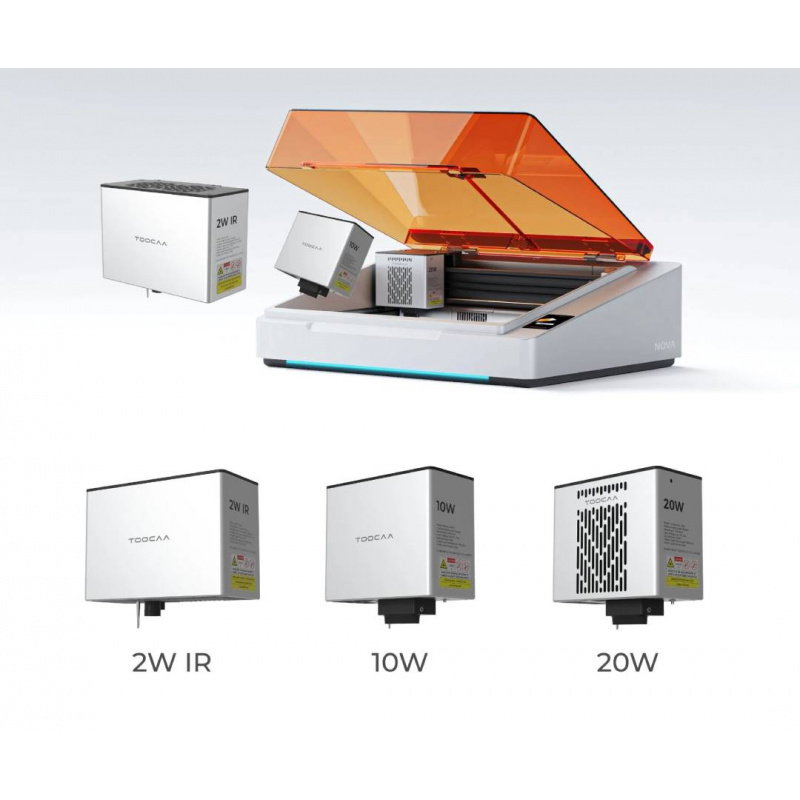

The interchangeable laser module supports 2W , 10W , and 20W IR options to accommodate a wide range of materials. Only the 20W module is included.
High operating speed and modular laser design
The TOOCAA NOVA achieves engraving speeds of up to 36,000 mm/min , making it an efficient tool for larger project runs. The high-power 20W laser enables deep engraving and clean cutting of thicker materials in a single pass . The device's design is based on interchangeable laser modules, allowing for future configuration changes or expansion without replacing the entire machine. The availability of 10W, 20W, and 2W IR modules provides flexibility tailored to various applications. This solution extends the device's lifespan and reduces operating costs.
Secure housing and modern connectivity
The full SafeShell enclosure meets Class 1 standards , meaning the device is completely safe for use at home, at school, or in the workshop. The security system includes flame detection, a tilt sensor, a lid lock, and a parental lock , protecting the user at every stage of the process. An integrated filtration system and the intelligent Air Assist air pump ensure smoke extraction, keeping the lens and workspace clean. The NOVA is compatible with TOOCAA Studio and LightBurn software and offers USB and Wi-Fi connectivity. It can be operated from a computer or directly from the built-in touchscreen.
TOOCAA NOVA allows for quick cutting of thick materials and precise marking of surfaces with a laser spot measuring 0.15 x 0.15 mm.

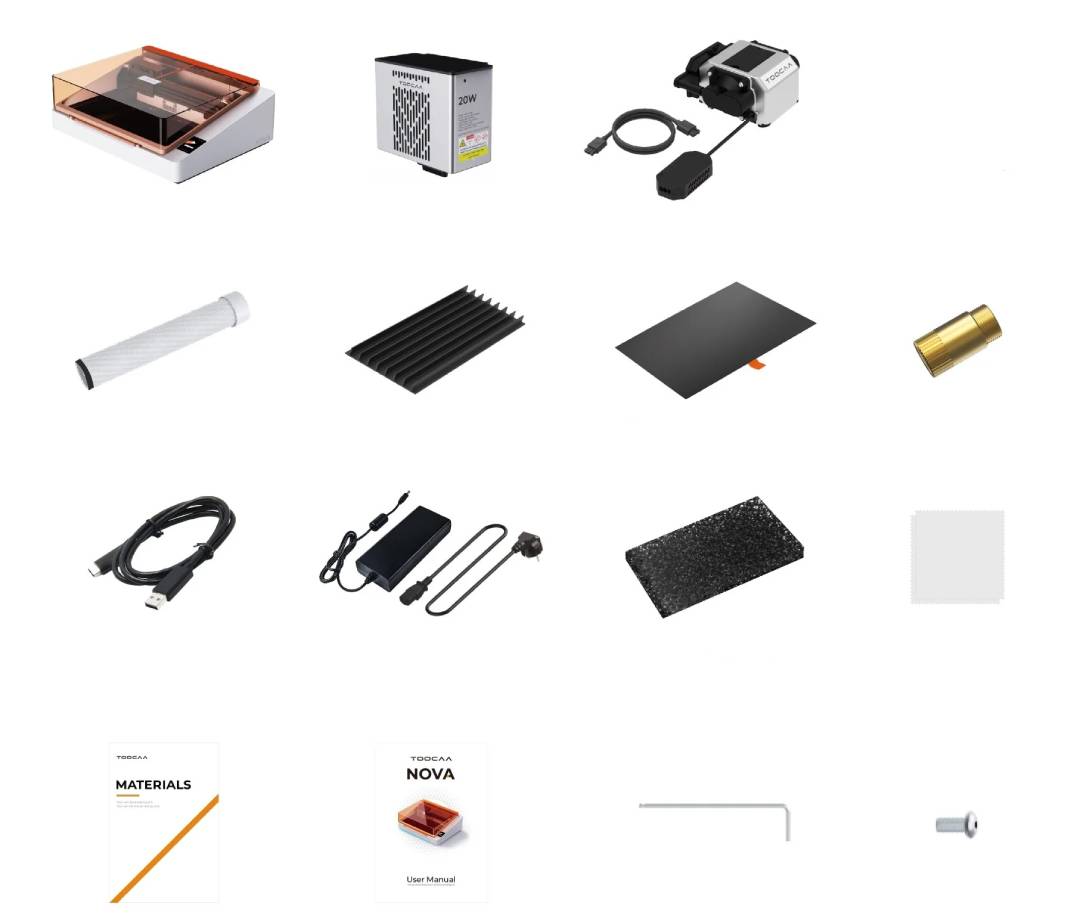

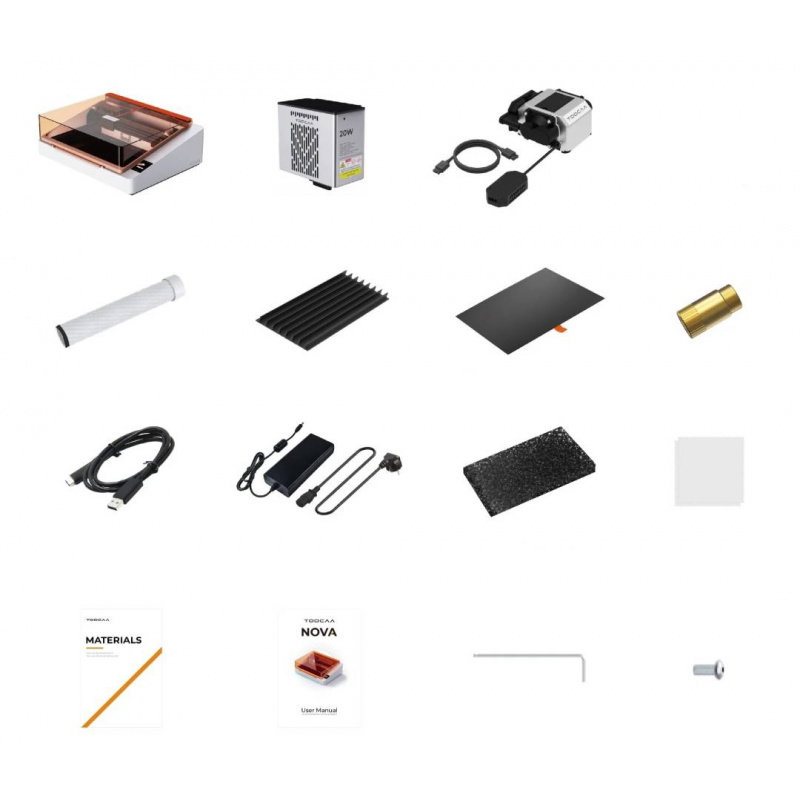

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 20W laser module
- Air Assist Kit
- Cutting work panels x4
- Aluminum protective plate
- Pipe + connector
- Lens holder
- USB cable
- Power supply and power cord
- Air filters x2
- Lint-free cloths x2
- A4 test material
- Allen key
- M3 screw x2
- User manual
| Technical specifications of the TOOCAA NOVA laser plotter | |
|---|---|
| Laser type | diode |
| Laser wavelength | 455 ± 5 nm |
| Laser output power | 20 W |
| Spot size | 0.15 x 0.15 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36,000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Single pass cutting (basswood plywood) | up to 6 mm (for 10 W version) |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |
| Communication | USB Type-C, WiFi |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz |
| Operating voltage | 24V |
| Housing material | aluminum alloy, ABS, PC |

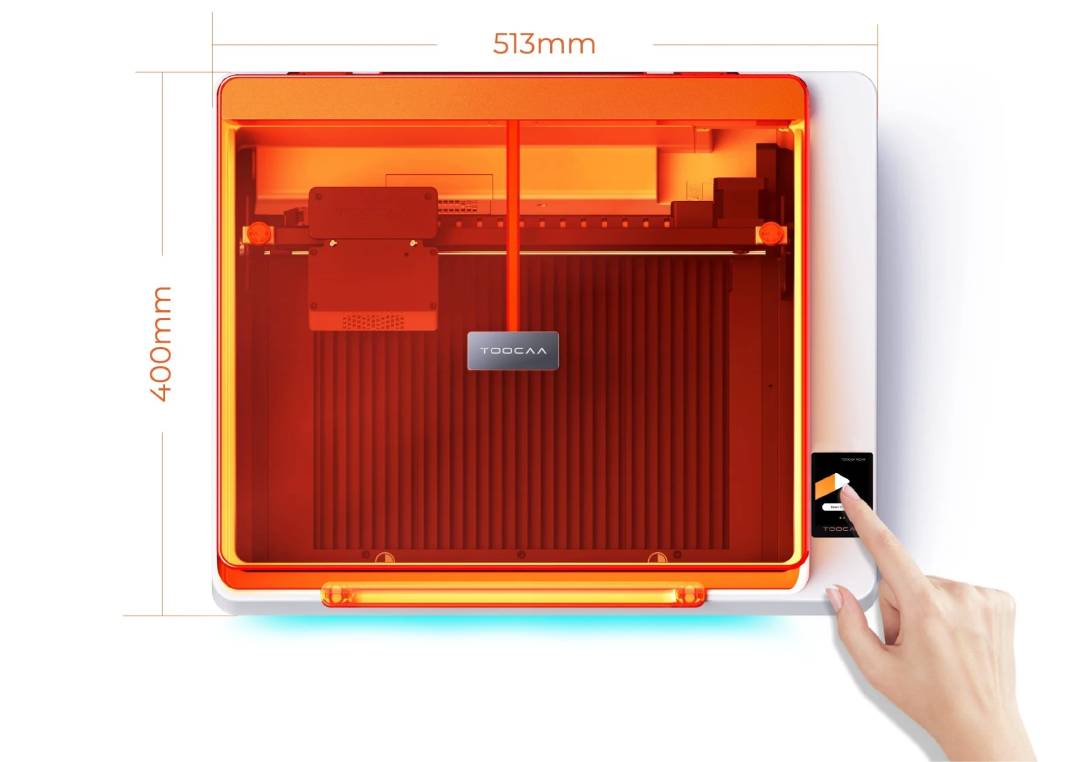

| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
