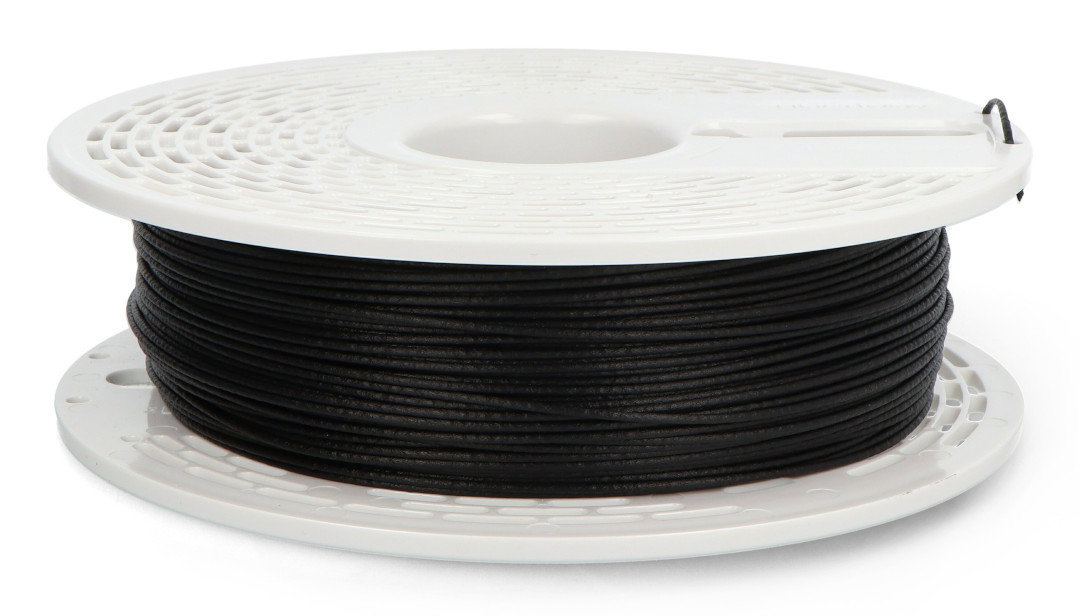

Product description: Filament Fiberlogy Nylon PA12+CF15 1.75 mm 0.5 kg - Black
Filament Fiberlogy PA12 + CF is a material for advanced 3D printing users, combining polyamide 12 with carbon fiber . It is characterized by excellent strength, lightness and resistance to deformation . It is resistant to high temperatures, chemicals and UV radiation, making it ideal for the production of prototypes, mechanical parts and automotive and aviation components. Thanks to their low density, the components are lightweight, and low shrinkage ensures precise printing , especially with larger models. The black material weighing 0.5 kg was wound on a spool, and its width is 1.75 mm .
In our range of filaments you will also find other materials and colours.
Properties of Nylon PA12+CF15 filament
- Mechanical strength thanks to carbon fibers
- Resistance to high temperatures and chemicals
- Lightness of the material, crucial for technical applications
- Low shrinkage for precise prints
- Resistance to UV radiation and weather conditions
- Easy to machine with appropriate steel/hardened nozzles
- Excellent dimensional stability, even in larger objects
Suggested Filament Printing Parameters
| Printing temperature | From 255°C to 270°C |
| Table temperature | From 90°C to 110°C |
| Print cooling | Recommended |
| Due to differences in printer designs, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |
The filament is resistant to high temperatures, chemicals and UV radiation, making it ideal for the production of prototypes, mechanical parts and automotive components. Fiberlogy Filament Specifications
| Parameter | Range |
|---|---|
| Filament diameter | 1.75mm |
| Filament dimensional tolerance | +/- 0.02mm |
| Color | Black |
| Printing temperature | From 255°C to 270°C |
| Table temperature | From 90°C to 110°C |
| Filament type | Nylon PA12+CF15 |
| Spool diameter | 200mm |
| Spool width | 80mm |
| Mounting hole diameter | 52mm |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Roundness | +/- 0.01mm |
| Package dimensions | 205x205x90mm |
| Net weight | 0.5 kg |
