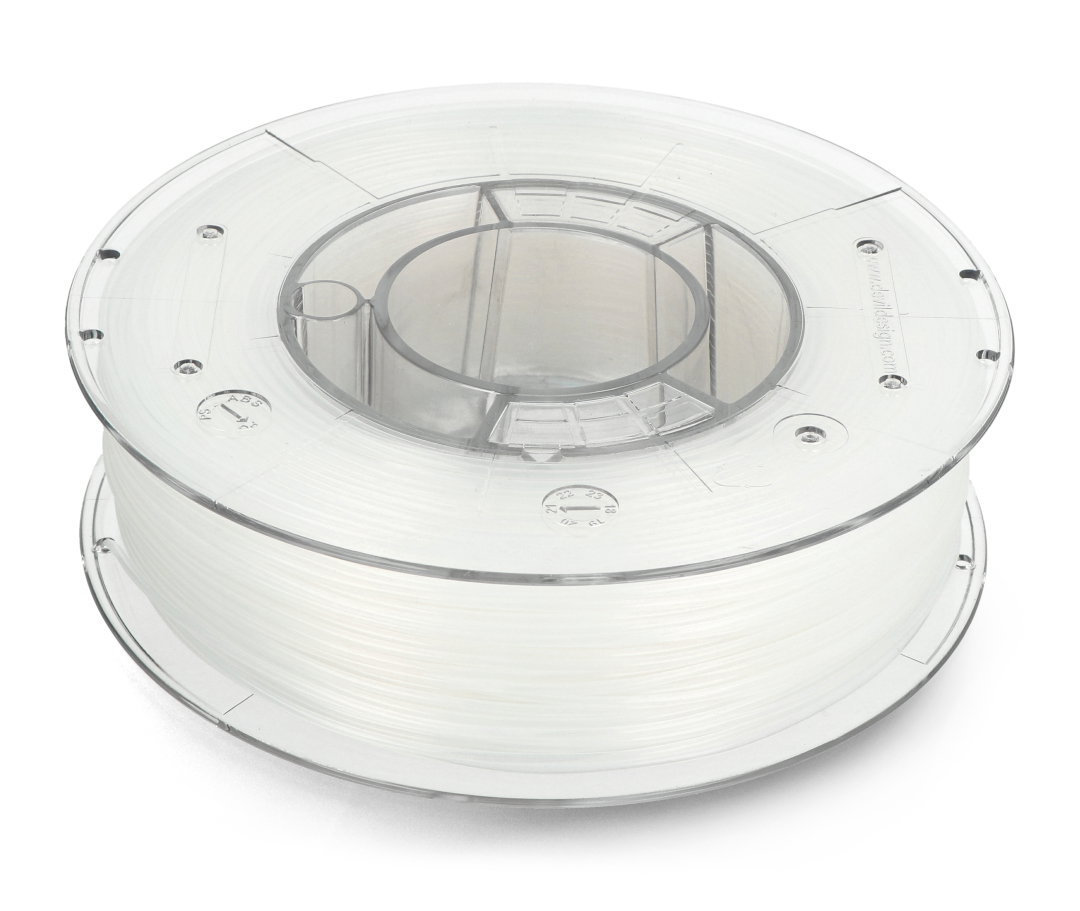

Description: Devil Design Nylon PA12 1,75 mm 0,33 kg - Natural
High quality Nylon PA12 nylon filament by Devil Design. The diameter is 1,75 mm and the net weight of the material is 0,33 kg. Feltament has natural color. It is resistant to high temperatures and alcohols. Filament can be used to print mechanical parts such as guides, gears or technical parts like nuts or plain bearings. Nylon PA12 filament is designed for printing in FFF / FDM technology.
In our offer of filaments you will also find other materials and colors.
Filament Devil Design Nylon PA12 1,75 mm 0,33 kg - Natural.
Properties Nylon PA12
- Resistant to abrasion
- Resistant to alcohols and high temperature
- Flexible and does not require drying
- Suitable for mechanical and technical applications
- Can be machined with metal tools and painted
- Can extend up to 50% before breaking
- Not resistant to compressed acids and alkalis
Suggested parameters for printing with the filament
| Printing temperature | 240°C to 270°C |
| Table temperature | 95°C to 120°C |
| Print cooling | Optional |
| Due to differences in printer construction, the above data should be treated as guidelines, and the appropriate values should be determined experimentally. |
Technical specification and physical properties of the felt
| Parameter | Range |
|---|---|
| Filament diameter | 1,75 mm |
| Dimensional tolerance of the filament | +/- 0.05 mm |
| Colour | Natural |
| Printing temperature | From 240°C to 270°C |
| Table temperature | From 95°C to 120°C |
| Material | Nylon PA12 |
| Spool diameter | 160 mm |
| Spool width | 41 mm |
| Mounting hole diameter | 52 mm |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Roundness | +/- 0,02 mm |
| Packaging dimensions | 163 x 165 x 50 mm |
| Net weight | 0.33 kg |
