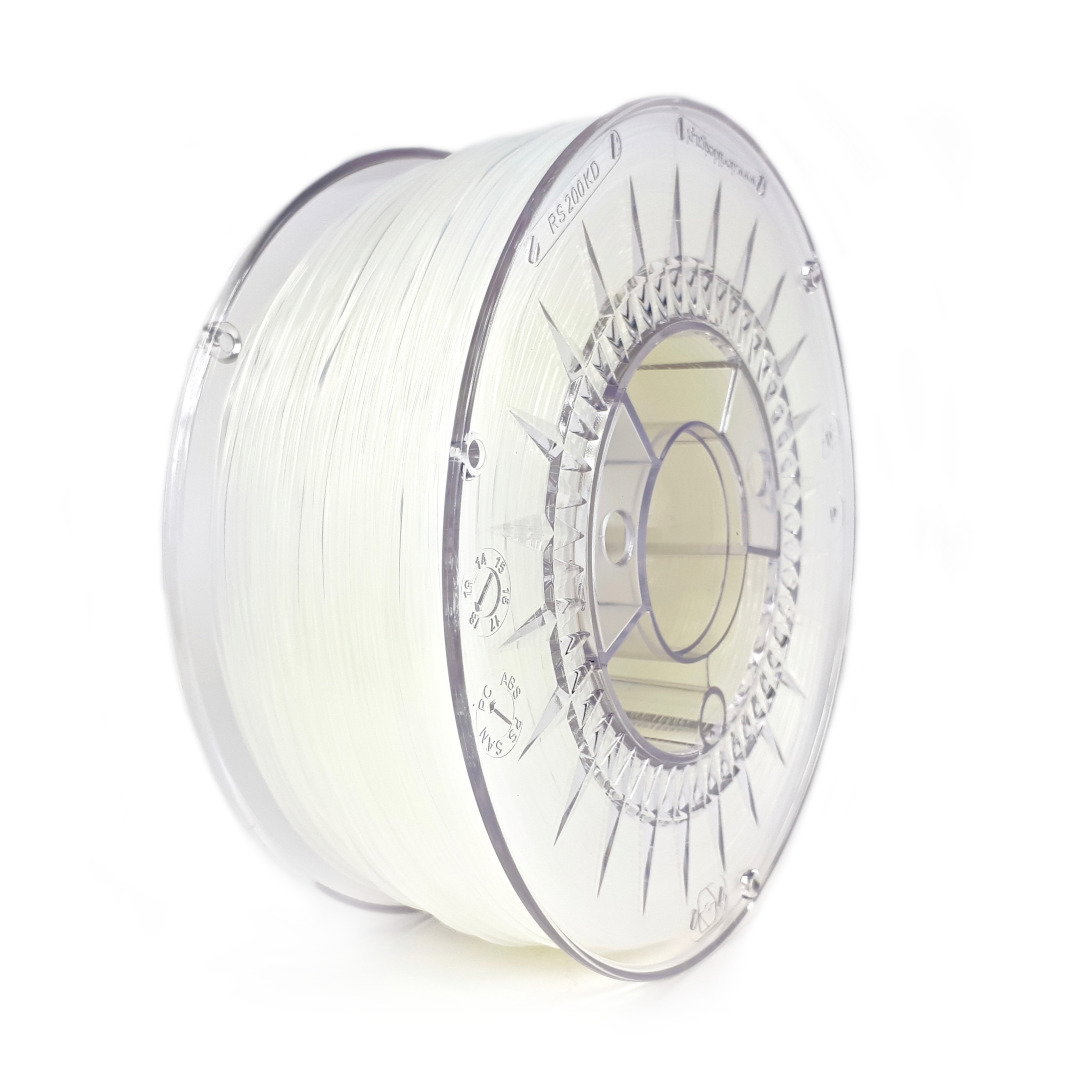

Description: Devil Design PA12 1,75 mm 0,8 kg - Natural
PA12 (nylon) filament from Devil Design is designed for 3D printers working in FFF technology. Material in Natural color, with diameter of 1.75 mm and net weight of 0.8 kg is pre-wound on a spool. Filament is characterized by high impact strength, good resistance to greases, oils, fuels, hydraulic fluids, salt solutions and solvents. It can be used in a wide temperature range. PA12 felt is a difficult material to print, recommended for experienced 3D printer users.
In our offer of filaments you will also find other materials and colors.
Devil Design PA12 1,75 mm 0,8 kg - Natural.
Properties PA12 felt
- Does not emit an unpleasant odor during printing
- Insoluble in water
- Has high material shrinkage
- High impact strength, good resistance to greases, oils, fuels, hydraulic fluids, salt solutions and solvents
- Can be used in a wide temperature range
Suggested parameters for printing with the filament
| Head temperature | 240°C to 270°C |
| Table temperature | 95°C to 120°C |
| Print cooling | Recommended |
| Remarks | Recommended low printing speed |
| Due to differences in printer construction, the above data should be treated as guidelines, and the appropriate values should be determined experimentally. |
Technical specification and physical properties of Devil Design PA12 felt
| Parameter | Range |
|---|---|
| Felt diameter | 1,75 mm |
| Dimensional tolerance of the felt | +/- 0.05 mm |
| Roundness of the filament | +/- 0,02 mm |
| Material surface | Satin |
| Material shrinkage | Large |
| Product weight | 0.8 kg net, 1.16 kg gross |
| Material | Transparent polycarbonate |
| Weight of empty spool | 250 g |
| Spool diameter | 200 mm |
| Spool width | 70 mm |
| Mounting hole diameter | 52 mm |
| Color | Natural |
| Package dimensions | 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
