Product description: 3D scanner - Creality Otter Lite - Outlet
Current product status:
- The product comes from a customer return
- The device is fully functional
- No protective foils
- Sticky markers on the rotating platform

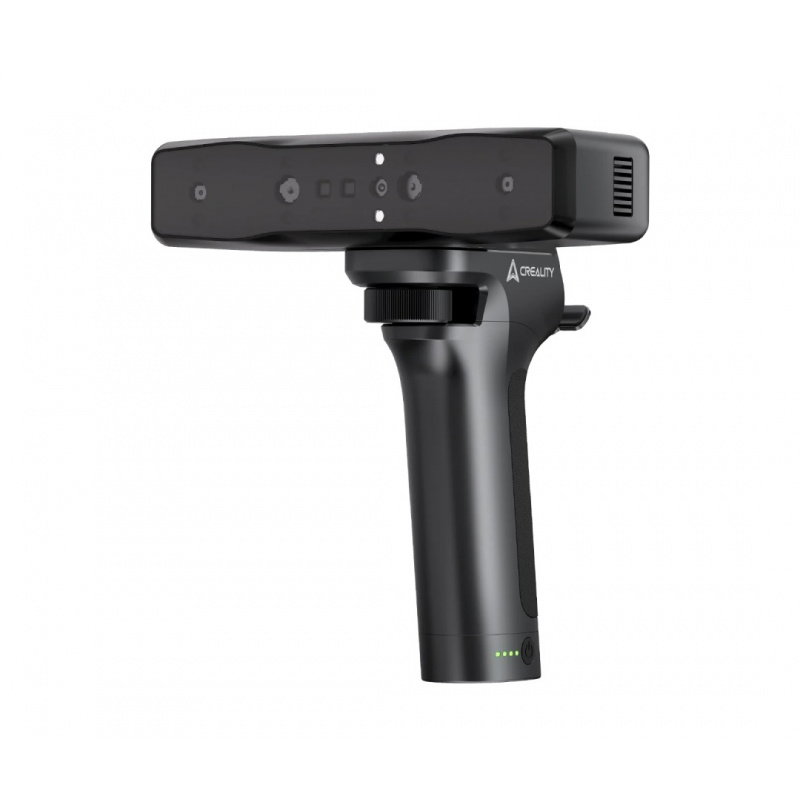

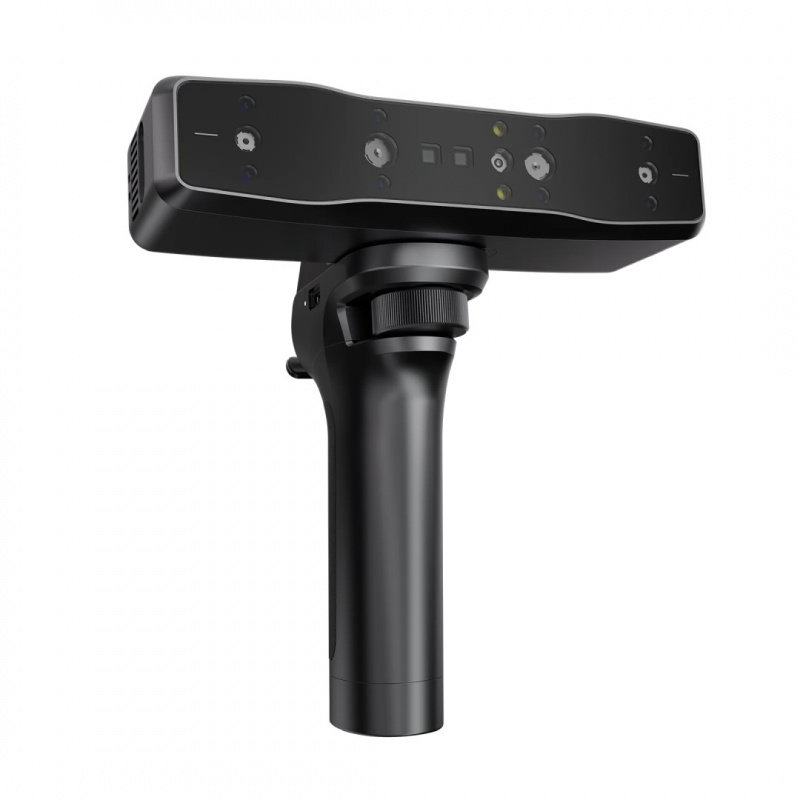

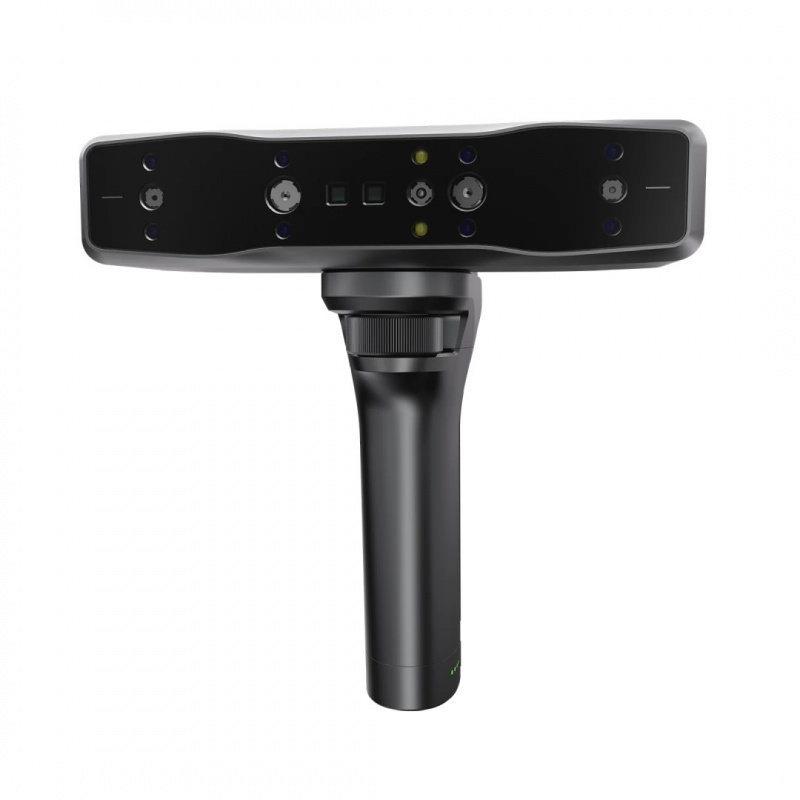

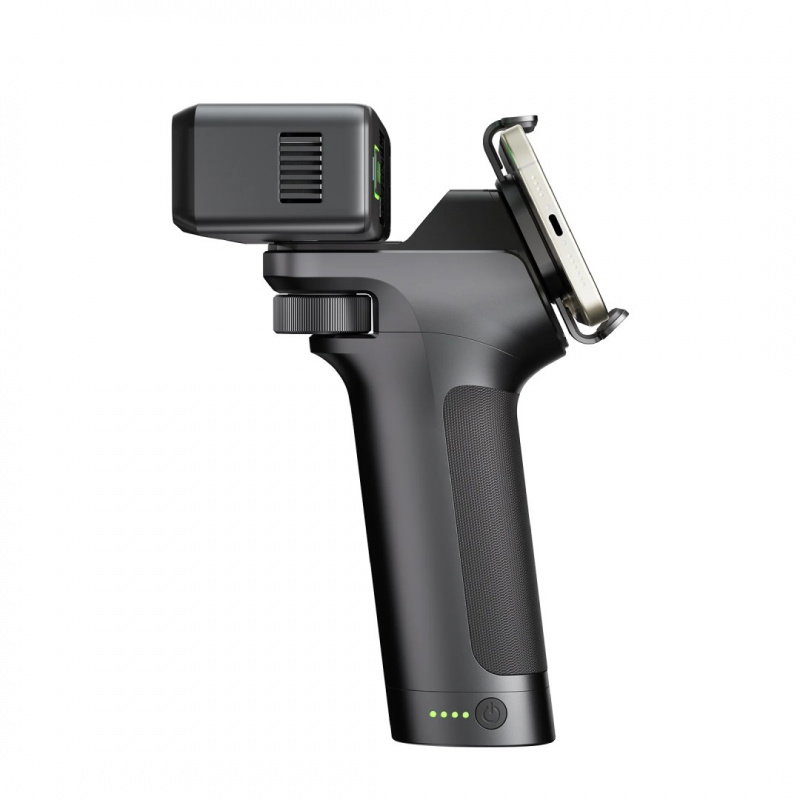

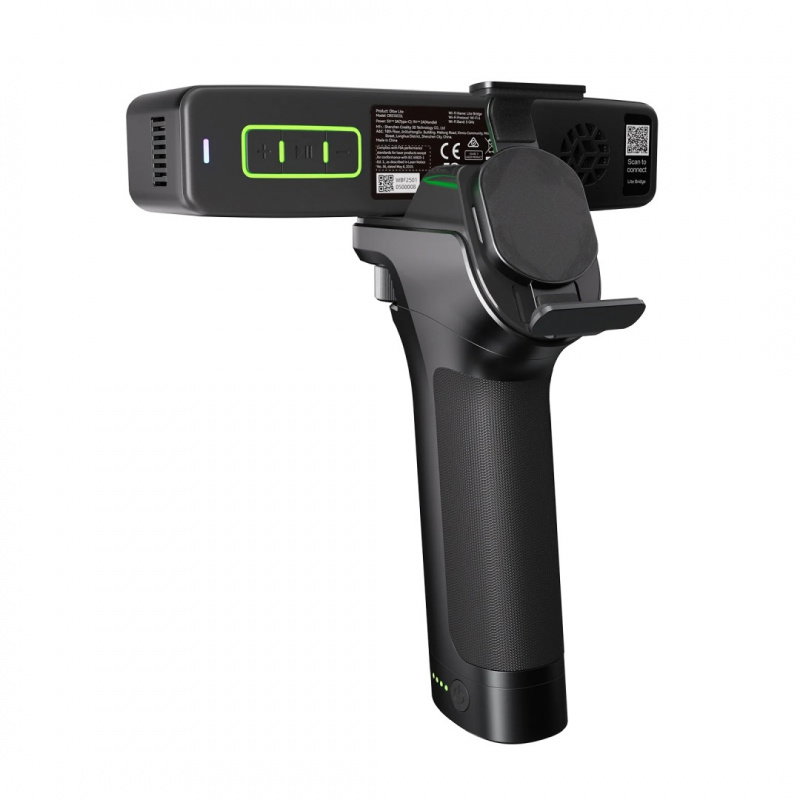

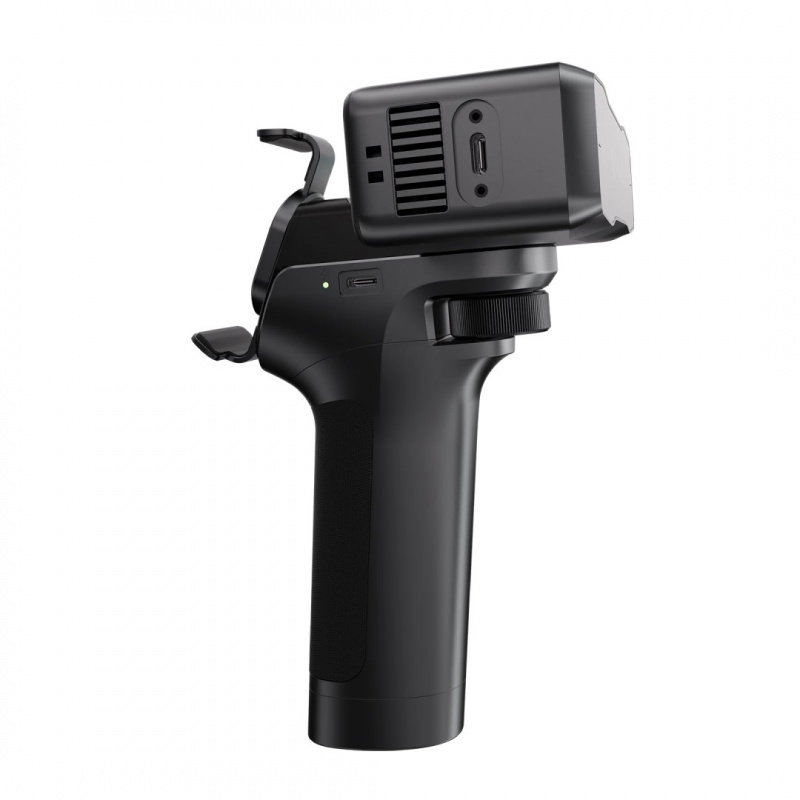

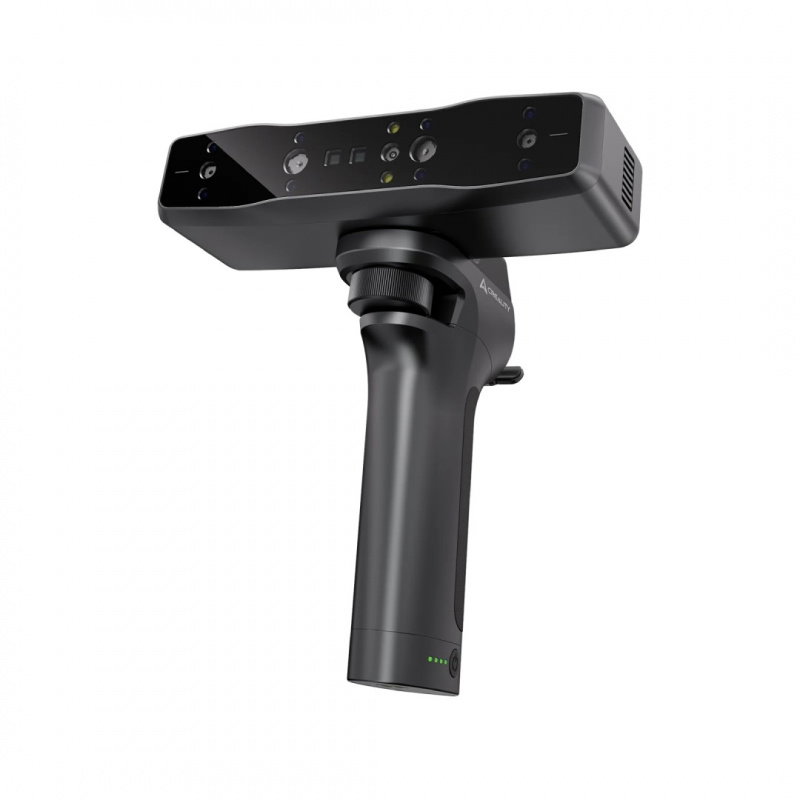

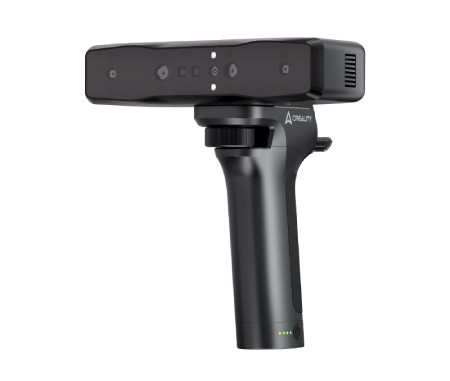

3D scanner - Creality Otter Lite.
| Creality Otter Lite 3D Scanner Technical Specifications | |
|---|---|
| Scan mode | NIR (structured light - binocular infrared) |
| Accuracy | up to 0.05 mm @ 100 mm |
| 3D resolution | from 0.1 mm to 2 mm |
| Minimum scan volume | 20 x 20 x 20 mm |
| Working range (physical) | from 120 mm to 1200 mm |
| Single capture area | Close mode: 100 x 62 mm @ 120 mm 160 x 130 mm @ 250 mm Far mode: 352 x 254 mm @ 300 mm 788 x 509 mm @ 600 mm 1460 x 1017 mm @ 1200 mm |
| Scanning speed | up to 30 fps |
| Scan alignment | marker / geometry / texture |
| Output formats | OBJ / STL / PLY |
| Color scanning | yes - 24-bit RGB camera |
| Assist light | 2 x white LED + 8 x NIR LED |
| Laser safety | class 1 (eye safe) |
| Data connectors | USB Type-C / USB 3.0 / USB 2.0 |
| Wireless connectivity | WiFi 6 (AX6000), backward compatible |
| Wireless transfer | up to 4.7 Gbps, latency ~ 10 ms |
| Power supply | USB 5V 3A / WiFi 12V 2A |
| Battery | 3400 mAh (lithium-ion) |
| System compatibility | Windows 10/11 (64-bit) macOS (M1/M2/M3) Android 10.0+ / Snapdragon 888+ iOS 15+ / iPhone 13+ |
| Dimensions | 173 x 39 x 56 mm |
| Mass | 300 g (main unit), 306 g (Lite Bridge) |
| Creality Otter and Creality Otter Lite 3D Scanners Comparison | ||
|---|---|---|
| Parameter | Creality Otter Lite | Creality Otter |
| Scan mode | NIR (binocular structured light) | NIR (binocular structured light) |
| Accuracy | up to 0.05 mm @ 100 mm | up to 0.02 mm @ 60 mm |
| 3D resolution | from 0.1 mm to 2 mm | from 0.05 mm to 2 mm |
| Minimum scan volume | 20 x 20 x 20 mm | 10 x 10 x 10 mm |
| Working range | from 120 mm to 1200 mm | from 110 mm to 1000 mm |
| Capture Range (Long) | 352 x 254 mm @ 300 mm 788 x 509 mm @ 600 mm 1460 x 1017 mm @ 1200 mm | 358 x 254 mm @ 300 mm 784 x 509 mm @ 600 mm 1350 x 840 mm @ 1000 mm |
| Data transfer | WiFi 6 + USB Type-C | USB Type-C |
| Color support | yes - RGB 24-bit | yes - RGB 24-bit |
| Spray-free scanning | Yes | Yes |
| System compatibility | Windows, macOS, iOS, Android | Windows, macOS, iOS, Android |
| Dimensions | 173 x 39 x 56 mm | 165 x 37 x 59 mm |
| Mass | 300 g | 390 g |
