JetBot - set for building a 2-wheeled Al robot platform with a camera, DC drive and OLED display - Waveshare 16909
A kit for building a 2-wheeled JetBot intelligent robot platform based on the Nvidia Jetson Nano minicomputer. The robot is equipped with a high quality image sensor camera that allows it to track objects, detect faces, and move autonomously through its environment. Powered by three 18650 Li-Ion batteries (not included).
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: JetBot - kit for building 2-wheeled Al robot platform with camera and DC drive and OLED display - for Nvidia Jetson Nano - Waveshare 16909
Kit for building a 2-wheeled JetBot intelligent robot platform based on the Nvidia Jetson Nano minicomputer. The robot is equipped with a high quality image sensorcamerathat allows it to track objects, detect faces and navigate its environment autonomously. Powered by three 18650 Li-Ionbatteries (not included).
The kit does not include the Nvidia Jetson Nano minicomputer, which is required for proper operation of the robot.It can be purchased separately in our shop. |

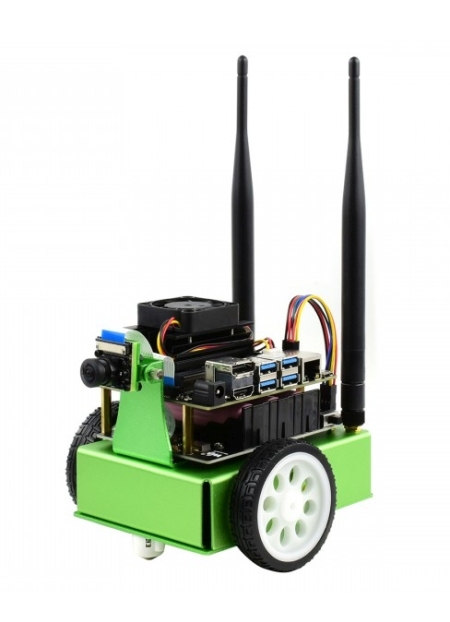

JetBot platform is a racing vehicle using artificial intelligence through Nvidia Jetson Nano.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

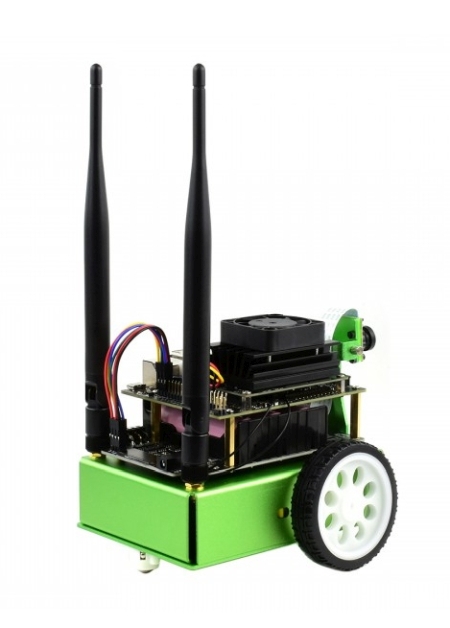

JetBot has two antennas that support dual-band WiFi 2.4 GHz / 5 GHz.
JetBot platform specifications
- Controller: Jetson Nano (not included)
- Operating system: Ubuntu 18.04 LTS
- Programming language: Python
- Camera resolution: 8 MPx
- Camera viewing angle: 160° FOV
- Display: 0.91" 128 x 32 px
- Wireless communication: 2.4 GHz / 5 GHz dual band WiFi + Bluetooth 4.2
- Platform Power: 12.6 V x 318650rechargeable battery (not included)
- Control: gamepad / via website
- Protection: against discharge, overcurrent, short circuit, reverse connection
- Drive type: 2WD
- Motor: 240 rpm
- Expert level: basic
Kit contents
- Metal case
- Aluminum alloy chassis
- Camera holder
- Acrylic plate
- JetBot expansion board
- IMX219-160 camera
- WiFi communication module AC8265 with antennas
- 2PCS motor - 2 pcs.
- Wheel - 2 pcs.
- Support ball - 2 pcs.
- 12.6V power supply with adapter
- Gamepad
- Screwdriver
- 6-pin connection cable (length 6 cm)
- Set of screws and mounting spacers
- Fan
- MicroSD card reader

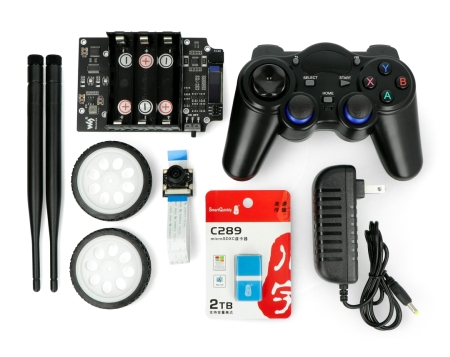

Kit includes gamepad to control the robot.
Useful links
| Name | Value |
|---|---|
| Age | 9+ |
| Robot type | 2-wheel |
| Robot power supply | Rechargeable battery |
| Control platform | Nvidia |
| Robot form | Self-assembly |
| Width | 26.5 cm |
| Height | 8.5 cm |
| Depth | 18.5 cm |
| Weight | 1 kg |
