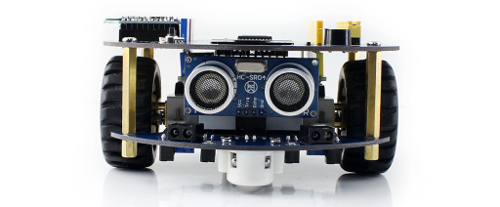

AlphaBot2 - Ar Acce Pack - 2-wheel robot platform with sensors and DC drive and OLED display - Waveshare 12911
Universal platform for Arduino with two wheels and ball support. It has two micro DC motors with the motor control unit, LED diode RGB, line sensor, obstacle avoidance, and remote control. The set also includes OLED 0,96" display and bluetooth.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Universal platform for Arduinowith two wheels and ball support. It has two micro DC motors with the motor control unit, LED diode RGB, line sensor, obstacle avoidance, and remote control. The set also includes OLED 0,96" display and bluetooth.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The platform is very easy to install, to run the robot just screw both platforms together and add the Raspberry Pi. On the platform there are the motor drivers TB6612FNG, two N20 motors, two reflective IR sensors: ST188 and ITR20001/T, potentiometer, two wheels 42 mm and others. It also has a lot of connectors that facilitate the connection of additional modules.
The product is compatible with Arduino and Raspberry Pi The manufacturer offers auser guide, along withan exemplary programfor Arduino and Raspberry. |
Contents of the AlphaBot2-Base platform
Contents of the AlphaBot2-Base platform
- Control interface AlphaBot2: for connecting various sensors
- Ultrasonic interface module
- Indicators of avoiding obstacles
- Two ball supports type Omni
- ST188: relfective IR sensor for obstacle avoidance
- ITR20001/T: relfective IR sensor for line detecting
- Potentiometer: to set the range of avoiding obstacles
- TB6612FNG: 2-channel H bridge - motors driver
- LM393: voltage comparator
- 2 motors micro N20: reducer 1:30, 6 V, 600 rpm
- 2 rubber wheels: diameter 42 mm, width 19 mm
- The power switch
- Battery container: supports battery type 14500
- WS2812B diode: RGB LCD
- LED power indicator
Contents of the AlphaBot2-Ar platform
Contents of the AlphaBot2-Ar platform
- Control interface AlphaBot2: to connect with AlphaBot2-Base
- Arduino outputs: to connect with Arduino
- Arduino interface: for connecting compatible Arduino contoller
- Xbee connector: for connecting Bluetooth module, remote control to control the robot via Bluetooth
- IR receiver
- PC8574: expander I/O SPI interface
- Jumper, Arduino
- Buzzer
- OLED 0,96: SSD1306 controller, resolution 128 x 64
- Joystick
The set
The set includes:
| L. p. | Photo | Description |
|---|---|---|
| 1 |  | Main board AlphaBot2-Base. |
| 2 |  | AlphaBot2-Ar:adapter plate for Arduino. |
| 3 |  | Ultrasonic sensor |
| 4 |  | Connecting tape FC-20P. |
| 5 |  | Screws and spacers. |
| 6 |  | Mini screwdriver. |
| 7 |  | IR remote control. |
| 8 |  | Cable USB - microUSB |
The set does not contain theArduinoandbatteries 14500. They must be purchased separately. |
OLED 0,96":SSD1306 controller, resolution 128 x 64
Useful links
| Name | Value |
|---|---|
| Robot type | 2-wheel |
| Robot power supply | Rechargeable battery |
| Control platform | Arduino |
| Robot form | Self-assembly |
| Width | 14 cm |
| Height | 6 cm |
| Depth | 22 cm |
| Weight | 0.353 kg |
