Zumo v1.2 - minisumo robot KIT for Arduino - Pololu 2509
Fighting education robot for self-assembly. The platform has the opportunity to plug in Arduino Uno or Leonardo modules. The kit includes: main board Zumo Shield, a chassis with tracks and a bumper in a form od a plow.
We could not load the price.
The promotional price does not combine with quantity discounts.
Pololu Zumo v1.2 - minisumo robot KIT for Arduino
Kit for building fighting minisumo robot based on an Arduino Uno or Leonardo controller. The kit includes: main board with the ability to connect to Arduino, chassis with tracks and plow - that is bumper to fight other robots. For the operation of the robot also required:pair of micro motors, fourbatteriesAA and Arduino module.
The set does not contain the motors. They canbe purchased separatelywith the selected gear. |
Main board
The controller allows you to build fighting minisumorobot based on the popular module Arduino Uno or Leonardo. It offers dual-channel motor driver, voltage regulator, and a 3-axis accelerometer and gyroscope. Detailed description of the mainbBoard can be found athere.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.

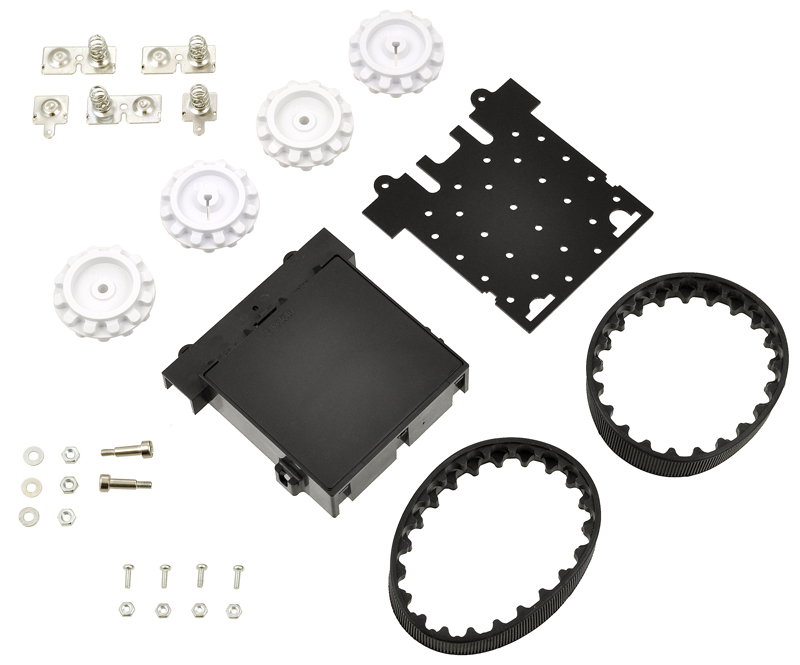

Chassis
Kit of mechanical parts for building a chassis of the minisumorobot. The kit includes: tracks, container for the battery and mounting plate. Accurate description of the mechanical elements is located underhere.

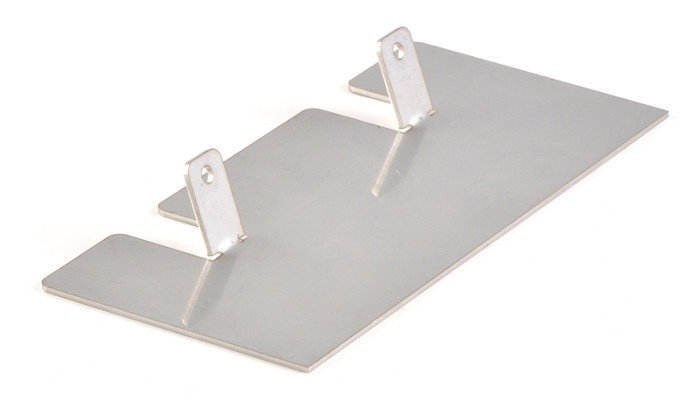

Plow
Package also includes a metal plow, that is the bumper, to fight other robots. Detailed description can be found athere.
Dimensions

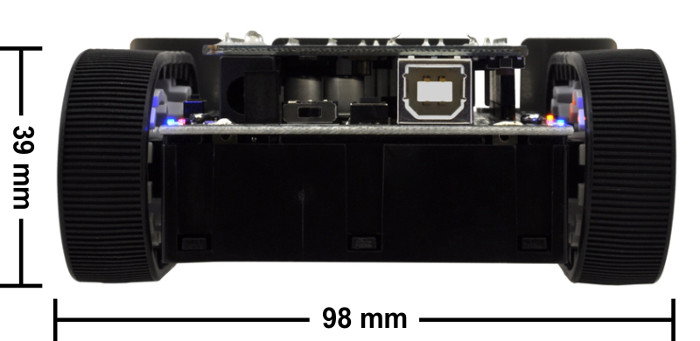

The Zumo robot has been designed in such a way that the dimensions of the assembled structure was placed in a square 10 x 10 cm, which is consistent with the international rules of fighting robots.
Set includes
- 1 xMain board with connector for ArduinoZumo Shield v1.2
- 1 xChassis(without motors)
- 1 xMetal plow
Required elements
The following components are not included in the kit in order to leave a choice of the designer. He can pick according to your needs the parameters of the engine and to select the corresponding version of the Arduino. In addition, the user can use the items you already have, such as the popular Arduino module.
Required elements
- Two Pololu micro motors: Pololu provides a whole series of micro-motors with gearboxes. They differ in capacity and volume reflection. The most popular among designers of fighting robots are versions of the HighPower with gear 30:1 and 50:1.
- Four AA batteries: To power the robot, four batteries AA are required. We recommend you to use NiMH batteries because they have the possibility of multiple charging.
- Arduino module: The kit works with both Uno and Leonardo versions. Compatible also with older models with the same distribution of outputs, for example, Arduino Duemilanove.
Additional items
In addition to the above listed items necessary for the operation, the user can select additional components, such as:
Additional items
- Reflective sensors strip: Allows you to define the white line located on the edge of the ring. Thanks to the dedicated software, the robot can stop itself from falling outside the designated area.
- Charger NiMH: Allows you to recharge and reuse the NiMH batteries.
- Distance sensors: The optical elements to determine where the enemy is. Most often used digital sensors with a range of 40cm. Their advantages are small size and speed of measurement.
Useful links
- Manufacturer website - Pololu #1418: Manufacturer website - Pololu #1418
- Library Arduino: Library Arduino
- Model program for edge detection using sensors QTR: Model program for edge detection using sensors QTR
- Manual for a set of Zumo (eng): Manual for a set of Zumo (eng)
- Main circuit board scheme: Main circuit board scheme (.pdf)
- Description of the main board outputs: Description of the main board outputs (.pdf)
- Documentation of the motor driver DRV8835: Documentation of the motor driver DRV8835 (.pdf)
- Documentation of the accelerometer LSM303DLHC: Documentation of the accelerometer LSM303DLHC (.pdf)
Kit for building fighting minisumorobot based on an Arduino Uno or Leonardo controller. The kit includes: main board with the ability to connect to Arduino, chassis with tracks and plow - that is bumper to fight other robots. For the operation of the robot also required:pair of micromotors, fourbatteriesAA and Arduino module.
| Name | Value |
|---|---|
| Robot type | Tracked |
| Robot power supply |
|
| Control platform | Arduino |
| Robot form | Self-assembly |
| Width | 10 cm |
| Height | 17 cm |
| Depth | 6 cm |
| Weight | 0.158 kg |
