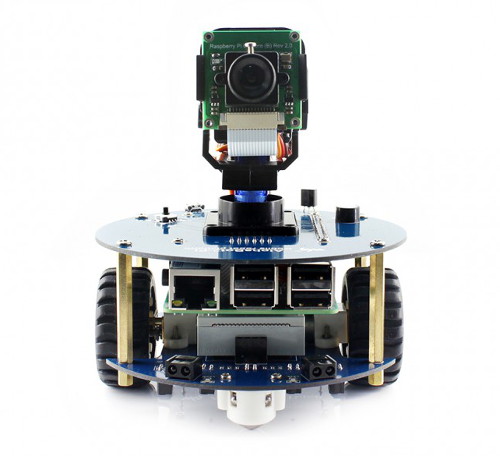

AlphaBot2 - Pi Acce Pack - 2 wheel robot platform with sensors, DC drive and camera for Raspberry Pi - Waveshare 12992
Universal platform for Raspberry Pi with two wheels and ball support. It gas two micro DC motors with the motor control unit, diode RGB, line sensor, obstacle avoidance, and remote control. The kit also includes a camera for Raspberry Pi, power supply and a 16 GB memory card.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Universal platform for Raspberry Pi with two wheels and ball supportt. It gas two micro DC motors with the motor control unit, diode RGB, line sensor, obstacle avoidance, and remote control. The kit also includes a camera forRaspberry Pi, power supply and a 16 GB memory card.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
The platform is very easy to install, to run the robot just screw both platforms together and add the Raspberry Pi. On the platform there are the motor drivers TB6612FNG, two N20 motors, two reflective IR sensors: ST188 and ITR20001/T, potentiometer, two wheels 42 mm and others. It also has a lot of connectors that facilitate the connection of additional modules.
The product is compatible with Arduino and Raspberry Pi The manufacturer offers auser guide, along withan exemplary programfor Arduino and Raspberry. |
Contents of the AlphaBot2-Base platform
Contents of the AlphaBot2-Base platform
- Control interface AlphaBot2: for connecting various sensors
- Ultrasonic interface module
- Indicators of avoiding obstacles
- Two ball supports type Omni
- ST188: relfective IR sensor for obstacle avoidance
- ITR20001/T: relfective IR sensor for line detecting
- Potentiometer: to set the range of avoiding obstacles
- TB6612FNG: 2-channel H bridge - motors driver
- LM393: voltage comparator
- 2 motors micro N20: reducer 1:30, 6 V, 600 rpm
- 2 rubber wheels: diameter 42 mm, width 19 mm
- The power switch
- Battery container: supports battery type 14500
- WS2812B diode: RGB LCD
- LED power indicator
Contents of the AlphaBot2-PI platform
Contents of the AlphaBot2-PI platform
- Control interface AlphaBot2: AlphaBot2-Base
- Interface Raspberry Pi: to connect to the Raspberry Pi
- Interface servos
- Converter USB - UART: via USB
- LM2596: voltage regulator
- TLC1543: 10-bit Converter A/C, allows the use of analog sensors with the Raspberry
- PCA9685: controller, servos,
- CP2102: converter USB - UART
- Joystick
- IR receiver
- Buzzer
The set
The se includes:
| L. p. | Photo | Description |
|---|---|---|
| 1 |  | Main board AlphaBot2-Base. |
| 2 |  | AlphaBot2-PI:adapter plate for Raspberry Pi. |
| 3 |  | HD Camera B- camera with adjustable focus for the Raspberry Pi. |
| 4 |  | Holder for servos micro Pan/Tilt. |
| 5 |  | Connecting tape FC-20P. |
| 6 |  | Screws and spacers. |
| 7 |  | Mini screwdriver. |
| 8 |  | Servo-type micro - 2 PCs. |
| 9 |  | IR remote control. |
| 10 |  | Memory card 533x, SanDisk Ultra microSD 16GB 80MB/s UHS-I class 10 without adapter. |
| 11 |  | A card reader microSD. |
| 12 |  | Switching power supply 5 V / 3 A, with microUSB connector. |
The kit does not contain batteries14500andRaspberry Pi. They must be purchased separately. |
Universal platform for Raspberry Pi with two wheels and ball support. It gas two micro DC motors with the motor control unit, diode RGB, line sensor, obstacle avoidance, and remote control. The kit also includes a camera forRaspberry Pi, power supply and a 16 GB memory card.
Useful links
| Name | Value |
|---|---|
| Robot type | 2-wheel |
| Robot power supply | Rechargeable battery |
| Control platform | Raspberry Pi |
| Robot form | Self-assembly |
| Width | 22.5 cm |
| Height | 5.7 cm |
| Depth | 14 cm |
| Weight | 0.459 kg |
