3pi+ Turtle Edition - robot platform with 32U4 controller and LP 75:1 motors - Pololu 4976
An assembled version of the 3pi+ Turtle Edition advanced robot platform from Pololu. The robot is equipped with two DC LP motors with 75:1 gearing and a controller based on the ATmega32U4 chip. Pololu 3pi+ also features 9DoF sensors, IR reflective sensors for line detection, collision sensors (located in the front of the case), a 128 x 64 px OLED graphic display, a buzzer and a power switch. The Turtle Edition has motors with 75:1 gearing and encoders that allow the robot to move at 0.4 m/s.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 3pi+ Turtle Edition - robot platform with 32U4 controller and LP 75:1 motors - Pololu 4976
Assembled version of the 3pi+ Turtle Edition advanced robot platform from Pololu. The robot is equipped with two DC LP motors with 75:1 gearing and a controller based on the ATmega32U4 chip. Pololu 3pi+ also features 9DoF sensors, IR reflective sensors for line detection, collision sensors (located in the front of the case), a 128 x 64 px OLED graphic display, a buzzer and a power switch. The Turtle Edition version has motors with 75:1 gearing and encoders that allow the robot to move at 0.4 m/s.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
Robot 3pi+ Turtle Edition.
3pi+ robot equipment
The 9.7 cm diameter robot platform contains a controller based on the ATmega32U4 chip. The controller board is equipped with microUSB interface for programming and Arduino compatible bootloader. In order to program the robot use microUSB - USB cable (not included). The robot can be programmed in Arduino IDE environment, free libraries and sample codes for Arduino are also available. For more advanced users, additional ports are available, through which the robot can be expanded and additional accessories can be connected. The board also includes an H-bridge for motor control and sensors, along with encoders. Among the sensors we find: 3-axis accelerometer, gyroscope and magnetometer, 5 IR reflective sensors to detect surface edges, as well as right and left collision sensors, three buttons for any user use, LCD display, buzzer and status LEDs.
What is needed to get started with the robot?
- Four AAA batteries - 3Pi+ works with alkaline batteries and Ni-MH batteries, the manufacturer recommends using Ni-MH batteries.
- MicroUSB cable - required to connect the robot to a computer for programming and debugging.
3pi+ Turtle Edition robot specifications
- Motor: DC LP 6 V 75:1 170 rpm
- Robot movement speed: 0.4 m/s
- Chip: ATmega32U4
- Dimensions: 97 x 96 x 36 mm
- Weight: 100 g

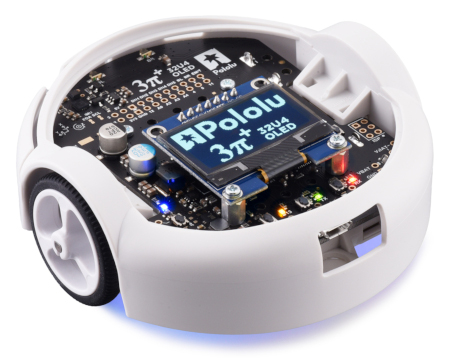

Robot 3pi+ - assembled version.
Useful links
| Name | Value |
|---|---|
| Robot type | 2-wheel |
| Robot power supply |
|
| Control platform | Arduino |
| Robot form | Ready to use |
| Width | 12 cm |
| Height | 11 cm |
| Depth | 5.5 cm |
| Weight | 0.16 kg |
