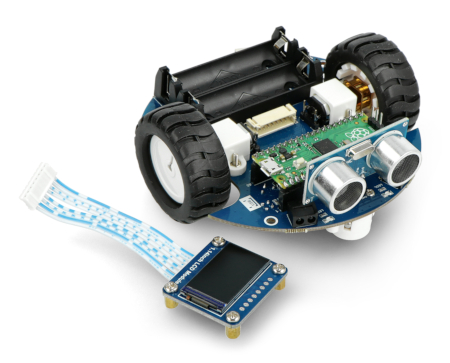

PicoGo Mobile Robot - remote controled robot for Raspberry Pi Pico - Waveshare 20396
A platform that allows you to create a remote controlled Waveshare PicoGo robot. A Raspberry Pi Pico microcontroller module is required for proper operation of the robot, which also allows you to learn programming in micro Python. The robot platform is equipped with a two-wheel drive, a distance and line tracking sensor and a small LCD display. A Bluetooth communication module and an IR receiver enable remote control of the robot. The whole is powered by two Li-Ion batteries.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: PicoGo Mobile Robot - remote controlled robot for Raspberry Pi Pico - Waveshare 20396
A platform that allows you to create a remote controlled Waveshare PicoGo robot. A Raspberry Pi Pico microcontroller module is required for proper operation of the robot, which also allows you to learn programming in micro Python. The robot platform is equipped with a two-wheel drive, a distance and line tracking sensor and a small LCD display. A Bluetooth communication module and an IR receiver enable remote control of the robot. The whole is powered by two power Li-Ion batteries (not included).
The PicoGo robot platform requires the Raspberry Pi Pico module to function properly, which can be purchased separately.
PicoGo robot platform. Raspberry Pi Pico and Li-Ion batteries not included.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.
PicoGo Mobile Robot - a remote controlled robot for Raspberry Pi Pico.
Main features of the PicoGo robot
- Standard connector to connect Raspberry Pi Pico.
- Battery protection circuit to protect the batteries from over or under charging, over current, short circuit, reverse connection.
- Charger circuit, allows programming / debugging while charging.
- 5-channel infrared line sensor with analog output with PID algorithm.
- Built-in sensors such as line tracking sensor, distance sensor, no unnecessary wiring.
- 1.14" IPS LCD display with 240 x 135 px resolution and 65k colors.
- Integrated Bluetooth allowing you to remotely control the robot and change the RGB LED color, make buzzer sounds, etc. via mobile app.
- Equipped with DC N20 micro motors with metal gears, low noise and high accuracy.
- Features colored RGB LED lights.

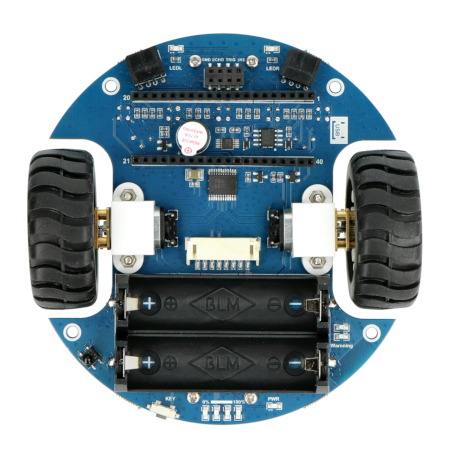

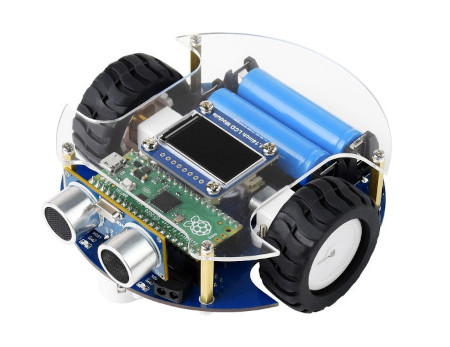

PicoGo robot platform based on Raspberry Pi Pico
The PicoGo robot requires the Raspberry Pi Pico module to work properly. The main features of the Pico are:
- RP2040 microcontroller designed by Raspberry Pi foundation.
- Dual core ARM Cortex M0+ processor clocked at up to 133 MHz.
- 264 kB SRAM and 2 MB Flash memory.
- USB 1.1.
- Low power consumption.
- Drag & drop programming as USB mass storage.
Raspberry Pi Pico - module not included.
Li-Ion batteries not included.
Longer battery life and more security
The PicoGo robot platform is powered by two 14500 Li-Ion batteries (not included), with the ability to run while charging. It is equipped with a battery protection system against over-discharge and over-charging, as well as over-current, short-circuit and reverse polarity protection, ensuring longer battery life. Additionally, it has a voltage and charge monitor.
PicoGo robot functionality
- Obstacle avoidance - equipped with an IR reflection sensor to help avoid obstacles.
- Line tracking - 5 reflective sensors placed under the platform, can detect a black line for the robot to follow. The PID algorithm improves the stability of the robot's movement.
- Ultrasonic sensor -ultrasonic signal is faster and easier to calculate, suitable for real-time robot control and obstacle avoidance.
- Object tracking - using ultrasonic or IR sensor, the robot is able to detect objects and follow them.
- Infrared remote control - with the IR receiver built into the robot, it is possible to control the robot remotely using the IR remote control.
- Bluetooth control - a Bluetooth module has been built into the robot board, which enables remote control of the robot using a mobile device application.

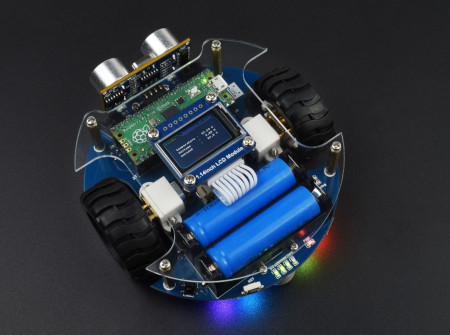

The PicoGo robot is equipped with a number of sensors and a display.

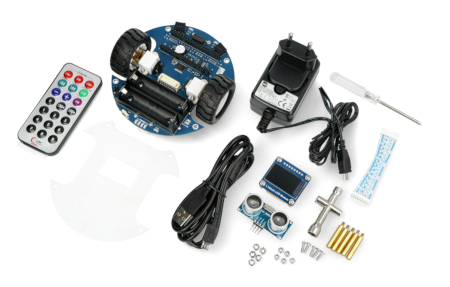

PicoGo kit contents.
Contents of the kit
- PicoGo main circuit board
- PicoGo acrylic panel
- LCD display module 1.14"
- Ultrasonic sensor
- IR remote control
- USB A to microUSB cable 1.2 m
- Cable 8-pin raster 2 mm - 5 cm
- Cross wrench
- Screwdriver
- Set of screws and spacers
Useful links
| Name | Value |
|---|---|
| Robot type | 2-wheel |
| Robot power supply | Rechargeable battery |
| Control platform | Raspberry Pi |
| Robot form | Self-assembly |
| Width | 6 cm |
| Height | 14.5 cm |
| Depth | 23 cm |
| Weight | 0.442 kg |
