JetRacer Pro Al Kit - 4-wheeled Al racing robot platform + Nvidia Jetson Nano Dev Kit - Waveshare 18433
The four- wheel JetRacer robot platform from Waveshare , which works on the basis of the Nvidia Jetson Nano Dev module included in the set. JetRacer Pro Al Kit is a robot equipped with a high-quality camera. The platform also features an OLED display with a resolution of 128 x 32 px and an E6001 servo. The chassis was based on the Ackerman steering system and enriched with a high-speed brush motor. It supports popular development platforms such as: Nvidia , TensorFlow, OpenCV, Python, TensorRT as well as Keras and PyTorch . The platform is powered by 4 Li-Ion 18650 batteries (not included). The set also includes a map with the track and a controller for remote vehicle control. Intended for partial assembly.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: JetRacer Pro Al Kit - 4 Wheel Al + Nvidia Jetson Nano Dev Kit Racing Robot Platform - Waveshare 18433
The four- wheel JetRacer robot platform from Waveshare , which works on the basis of the Nvidia Jetson Nano Dev module included in the set. JetRacer Pro Al Kit is a robot equipped with a high-quality camera that allows you to detect objects, avoid obstacles and move around on your own. The platform also features an OLED display with a resolution of 128 x 32 px and an E6001 servo. The chassis was based on the Ackerman steering system and enriched with a high-speed brush motor, which makes the vehicle also suitable for highly advanced robotic competitions. It supports popular development platforms such as: Nvidia , TensorFlow, OpenCV, Python, TensorRT as well as Keras and PyTorch . The platform is powered by 4 Li-Ion 18650 batteries ( not included). The set also includes a map with the track and a controller for remote vehicle control. Intended for partial assembly.
The set includes a minicomputer Nvidia Jetson Nano Dev Kit , which is required for the proper functioning of the robot, and a micro SD memory card with a capacity of 64 GB. |

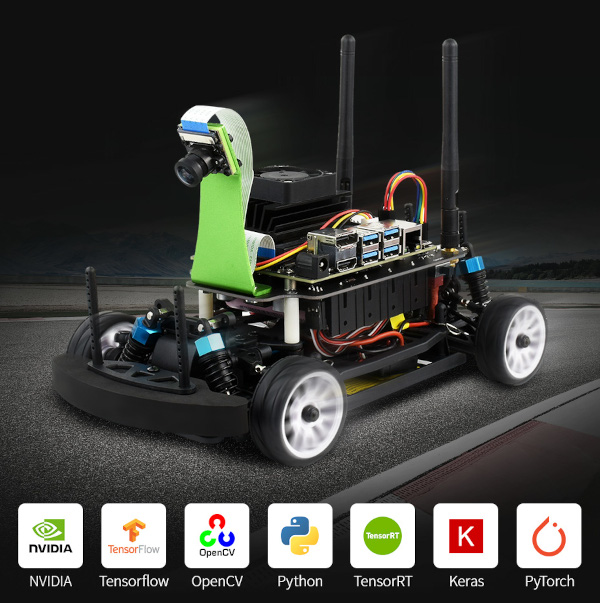

Development platforms supported by JetRacer Pro Al Kit.
Botland is an official distributor of Waveshare devices. Their versatility and compatibility, particularly in display and power technology, have won over customers all over the world. Our team guarantees that all Waveshare products presented here are original.

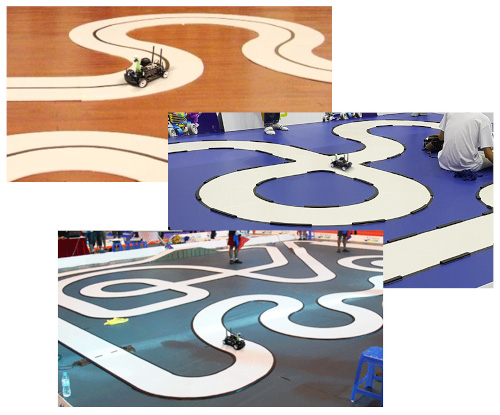

Autonomous movement and deep learning technology.
Autonomous movement and Deep Learning technology
The JetRacer Pro Al Kit autonomous racing vehicle can move independently in a certain area. It has the ability of Deep Learning, thanks to the use of a neural network and the use of the Open Source DonkeyCar package .
The vehicle also collects data about the route on which it is traveling. For this purpose, it uses a camera connected to the Nvidia Jetson Nano Dev Kit minicomputer (minicomputer is included in the set). Each subsequent ride along this route causes the database to expand with more information and thus allows the robot to navigate this environment on its own.

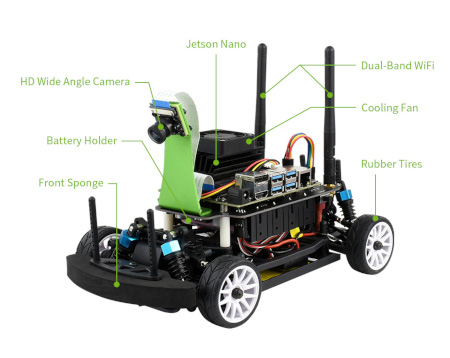

Arrangement of elements on the platform
The JetRacer Pro Al Kit robot works on the basis of Nvidia Jetson Nano Dev. It has a 4-wheel drive, a torsion front axle, a high-quality HD camera, a motherboard equipped with an OLED display, a basket for 4 rechargeable batteries, a front protective bumper and a cooling fan . Two WiFi antennas enable proper wireless communication.
Specification of the JetRacer Pro Al Kit platform
Arrangement of elements on the platform.

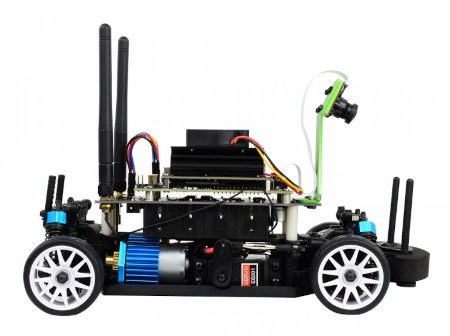

Nvidia Jetson Nano Dev Kit on board the platform.
Nvidia Jetson Nano Dev Kit
Nvidia Jetson Nano Dev Kit is a board equipped with the Nvidia Jetson Nano module based on a quad-core ARM Cortex A57 clocked at 1.43 GHz and an Nvidia Maxwell graphics processor with 128 CUDA cores . The basic Nvidia Jetson Nano has 4 GB of DDR4 RAM , while the Dev Kit board extends the internal memory by 16 GB through the eMMC module. On the board you can find an Ethernet Gigabit port, 4x USB 3.0, HDMI, DisplayPort, GPIO, I2C, I2S, SPI, UART, 2x camera connectors and a microSD card slot . The set also includes a microSD card with a capacity of 64 GB.
Set contains
- Nvidia Jetson Nano Dev Kit
- Nvidia Jetson Nano board
- Jetson Nano module with 16 GB eMMC
- Official Nvidia Heatsink
- 64 GB microSD memory card
- Platform kit
- JetRacer Pro expansion board
- USB wireless network adapter with antennas
- Sony IMX219-160 camera
- Acrylic camera pad
- Camera holder
- Wireless gamepad
- Cooling fan
- 6-pin cable
- MicroSD card reader
- Screwdriver - 2 pcs.
- 8.4V charger with EU plug
- Set of screws and caps
- Map with the route

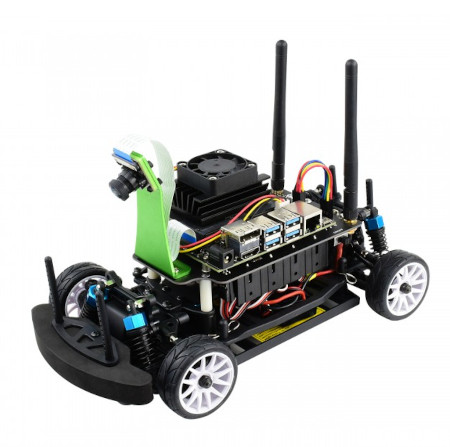

JetRacer Pro Al Kit.
Useful links
| Name | Value |
|---|---|
| Robot type | 4-wheel |
| Robot power supply | Rechargeable battery |
| Control platform | Nvidia |
| Robot form | Self-assembly |
| Width | 34.5 cm |
| Height | 19.5 cm |
| Depth | 18.7 cm |
| Weight | 2.926 kg |
