Product description: Enviro Indoor with Raspberry Pi Pico W - module with BME688 and BH1745 sensor + accessories - Pimoroni PIM638
Enviro Indoor is a module that allows you to monitor the environment inside buildings . It is equipped with a Raspberry Pi Pico W board. Enviro Indo has a built-in BME688 sensor, which measures temperature, pressure and air humidity with high precision, and also detects the presence of various types of gases in the room that can deteriorate air quality. The BH1745 sensor is responsible for determining the color and intensity of light. It can be used to detect dangerous blue light and adjust the light intensity depending on the time of day. The board with the RP2040 microcontroller is responsible for controlling the device system. The wireless communication capabilities of Raspberry Pi Pico W allow Enviro to integrate with other systems - so you can place measurement data in a database, Smart Home systems or share them on the Internet.
Enviro Indoor module with accessories.

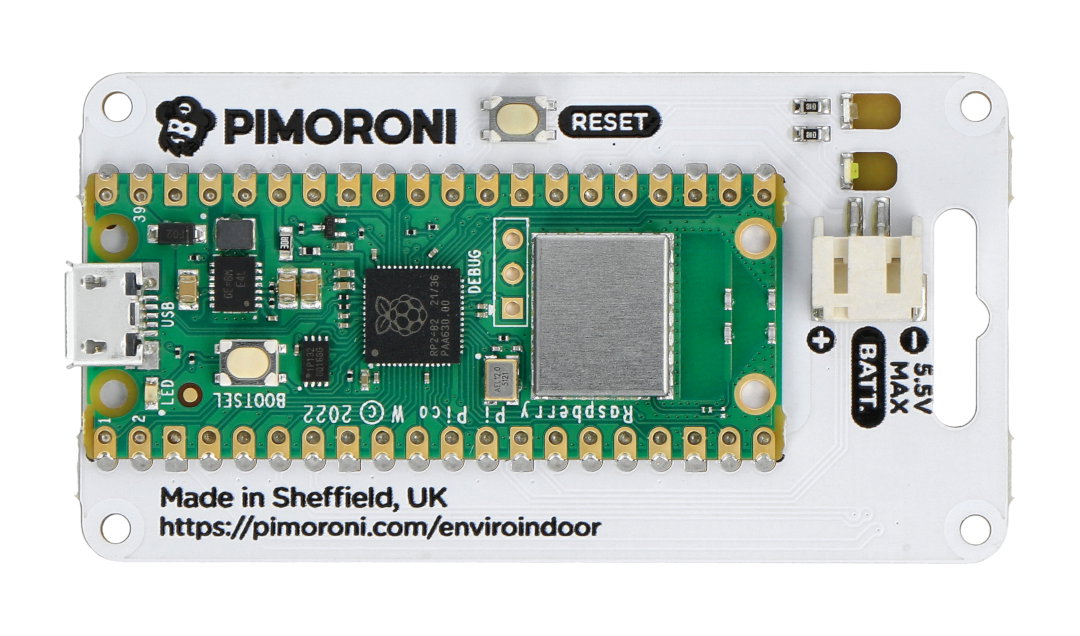

The module has a built-in Raspberry Pi Pico W board.
Enviro Indoor power supply
By adding more devices to your space that are supposed to provide us with comfort, we do not want it to be associated with a ton of tangled, unsightly wires . Each Enviro module is designed to run on battery power . The device has a built-in real-time clock ( RTC ), so it can wake up from sleep mode, take measurements, and then go back to sleep. This feature gives the Enviro months of battery life .
Enviro Indoor technical specification
- Raspberry Pi Pico W
- Dual Arm Cortex M0+ running at up to 133MHz with 264KB SRAM
- 2 MB QSPI flash supporting XiP
- Powered and programmable via microUSB type B
- 2.4 GHz WiFi wireless communication
- Controlling the set using the RP2040 microcontroller
- Deep sleep/wake function via RTC
- Reset button
- Warning LED
- Qw/ST connector available to expand the system and add more I2C sensors
- No soldering required
- Dimensions: 69 x 36 x 9.9mm

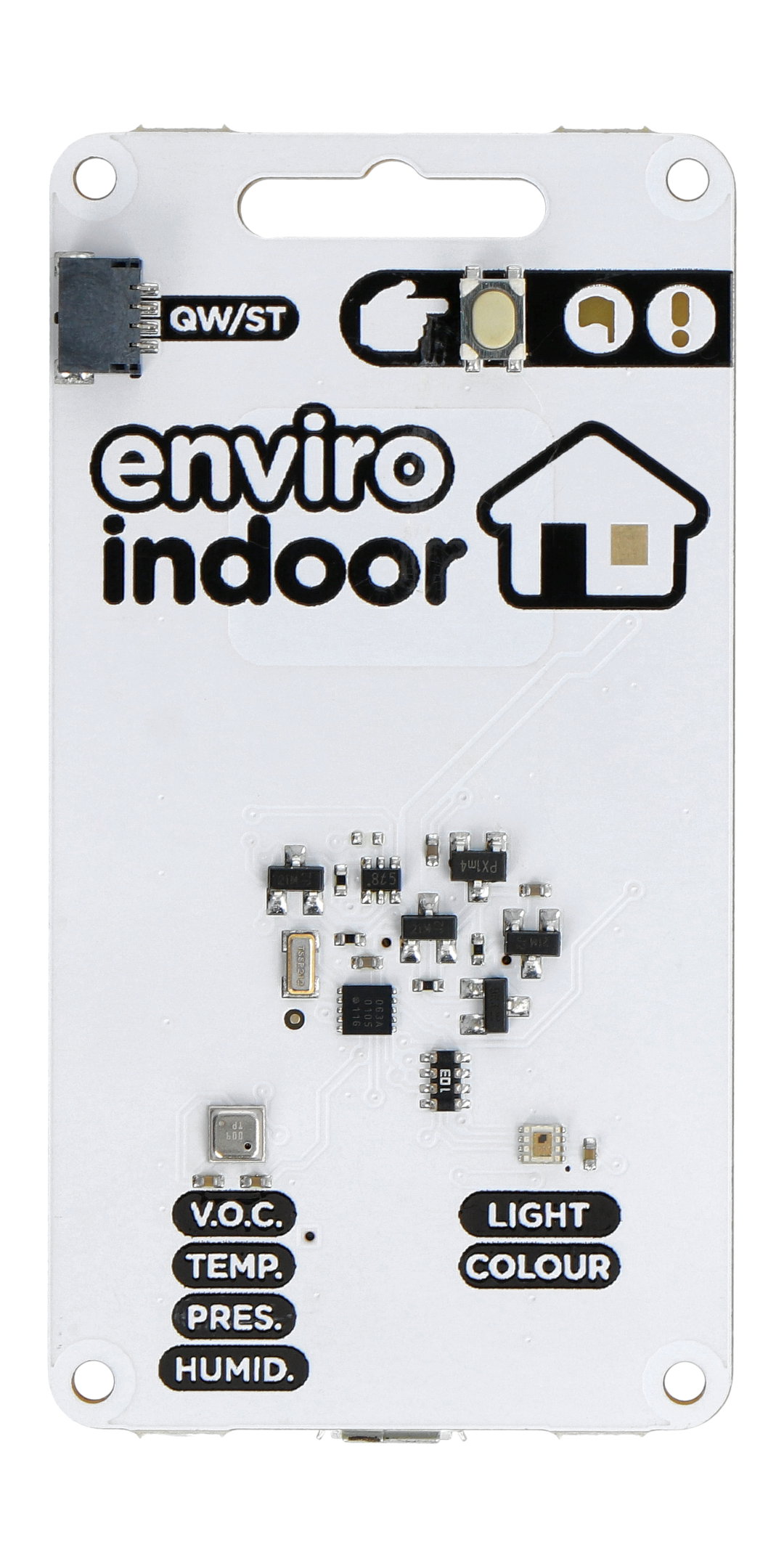

Thanks to the BME688 and BH1745 sensors, you can monitor the air and light inside the building.

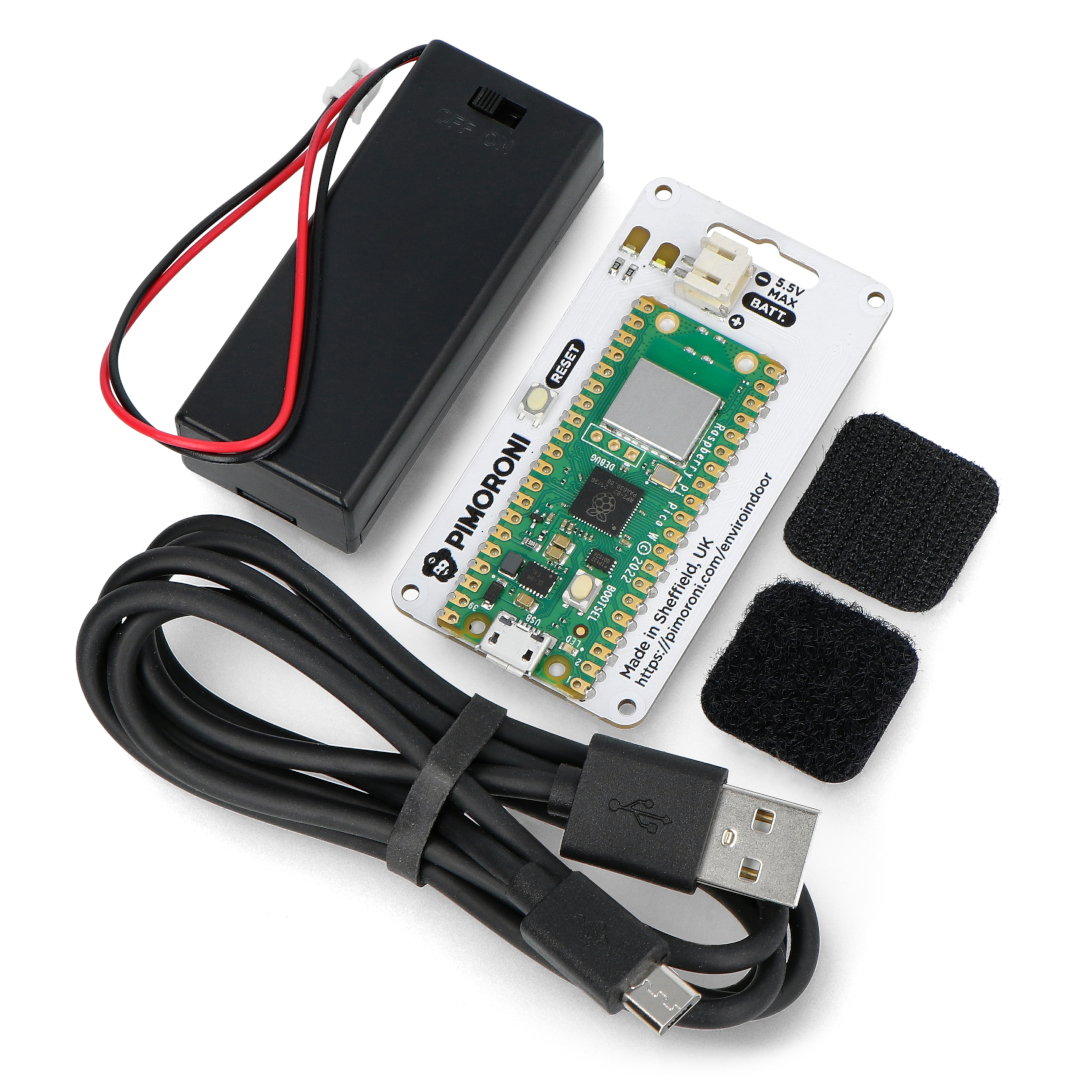

Components included in the set.
Technical specification of the BME688 sensor
- Temperature measurement range: -40°C to 85°C
- Air humidity measurement range: 0% to 100%
- Atmospheric pressure measurement range: from 300 hPa to 1100 hPa
Technical specification of the BH1745 sensor
- Red, green and blue color detection
- Light intensity detection range: from 0.005 lux to 40,000 lux
- Light noise rejection 50 Hz / 60 Hz
- IR cut filter
- 16-bit data output
- Reverse connection protection
Kit contents
- Enviro Indoor module
- Basket for two AAA batteries
- MicroUSB-USB cable
- Velcro
