Product description: 3D printer - Elegoo OrangeStorm Giga
Current product status:
- Customer return product
- Mileage: 17h
- Slight scratches on the structure and PEI overlays
- No filament included

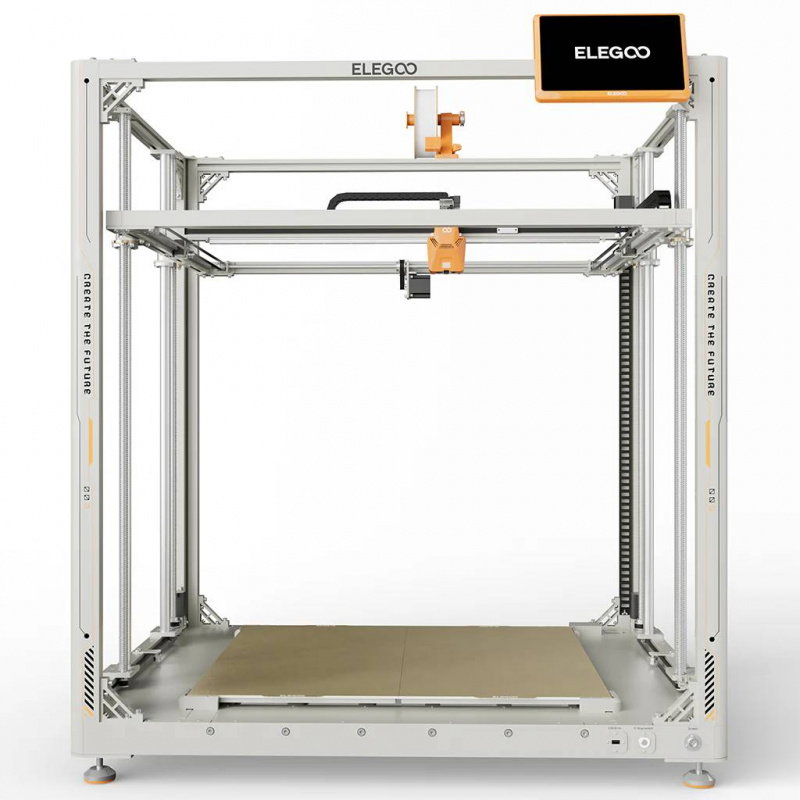

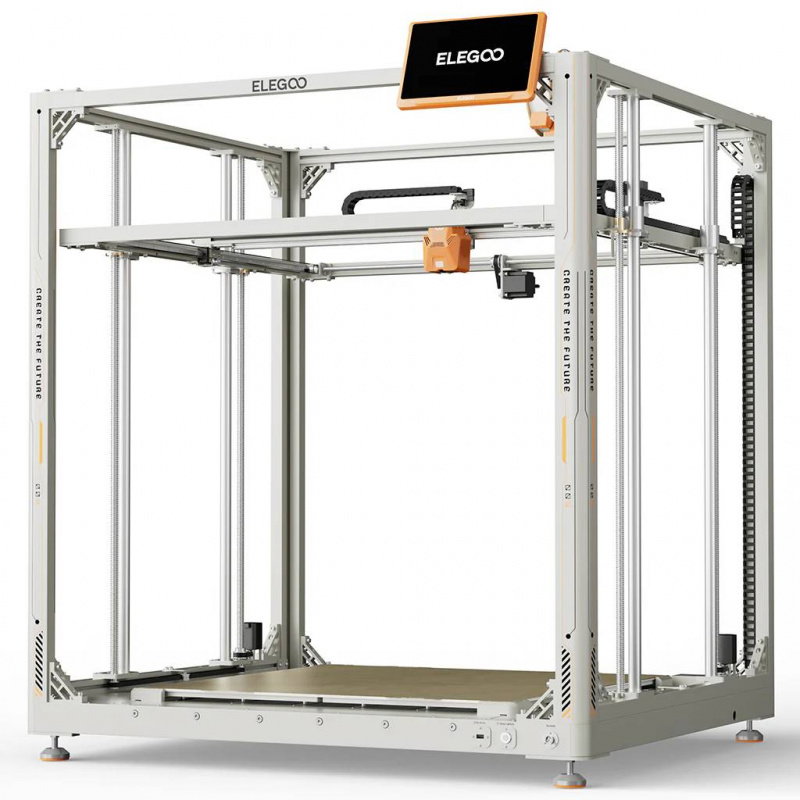

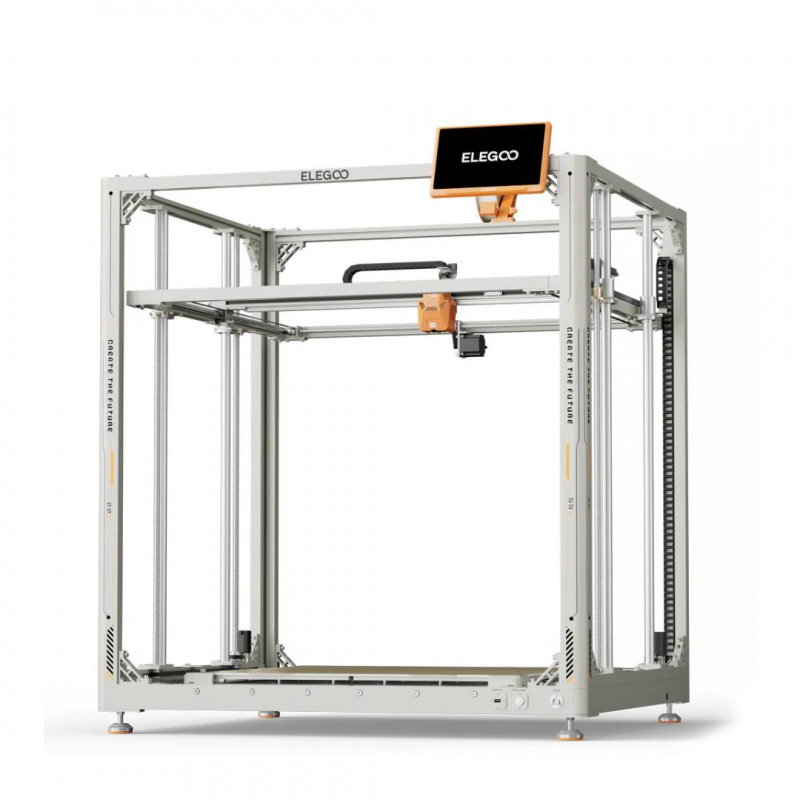

3D Printer - Elegoo OrangeStorm Giga.
| Technical specifications of the Elegoo OrangeStorm Giga 3D printer | |
|---|---|
| Printing technology | FDM |
| Working field | 800 x 800 x 1000 mm |
| Print speed | from 30 mm/s to 300 mm/s (recommended 150 mm/s) |
| Default acceleration | 5000 mm/s² |
| Maximum acceleration | 5000 mm/s² |
| Print accuracy | ±0.1 mm |
| Layer height | from 0.1 mm to 0.5 mm (recommended 0.24 mm) |
| Supported filaments | PLA, PETG, TPU, Nylon |
| Filament diameter | 1.75 mm |
| Dimensions of the work platform | 820 x 820 mm (4 independent PEI plates 410 x 410 mm) |
| Extruder | dual-gear direct extruder (2 fans) |
| Nozzle | brass |
| Nozzle diameter | 0.6mm (optional 0.4mm / 0.8mm / 1mm) |
| Table surface | PEI Spring Steel Sheet |
| Table leveling | manual + 100-point auto-leveling |
| Heat Break | titanium alloy |
| Z axis | 4 drive screws + 4 linear guides |
| Drives | silent controllers on all axes |
| Motherboard | Klipper High-Speed Quiet Motherboard |
| Maximum nozzle temperature | 300°C |
| Maximum table temperature | 100°C (at an ambient temperature of 25°C) |
| Ambient operating temperature | from 5°C to 40°C |
| Filament out of print sensor | Yes |
| Resuming printing after a power outage | Yes |
| Multiple nozzle support | yes (optional up to 4 heads) |
| System | Clipper |
| Screen | 10.1" color capacitive touchscreen |
| Languages | EN, FR, DE, RU, IT, ES, JP, CN |
| Communication | USB, LAN, WiFi |
| Software | Elegoo Slicer (recommended), Orca, Cura |
| Input format | STL, OBJ |
| Output format | Gcode |
| Maximum working space of the device | 1224 x 1520 x 1570 mm |
| Device dimensions | 1224 x 1164 x 1425 mm |
| Package dimensions | Base + XY: 1350 x 1215 x 420 mm Z-Axis (x2): 1350 x 1215 x 350 mm |
| Input voltage | 100V to 120V AC / 220V to 240V AC, 50/60 Hz |
| Output voltage | 24V |
| Rated power | 1530 W (1 nozzle) + 100 W for each additional nozzle (max. 1830 W with 4 nozzles) |
| Dimensions | 1224 x 1164 x 1425 mm |
| Mass | 104 kg |
