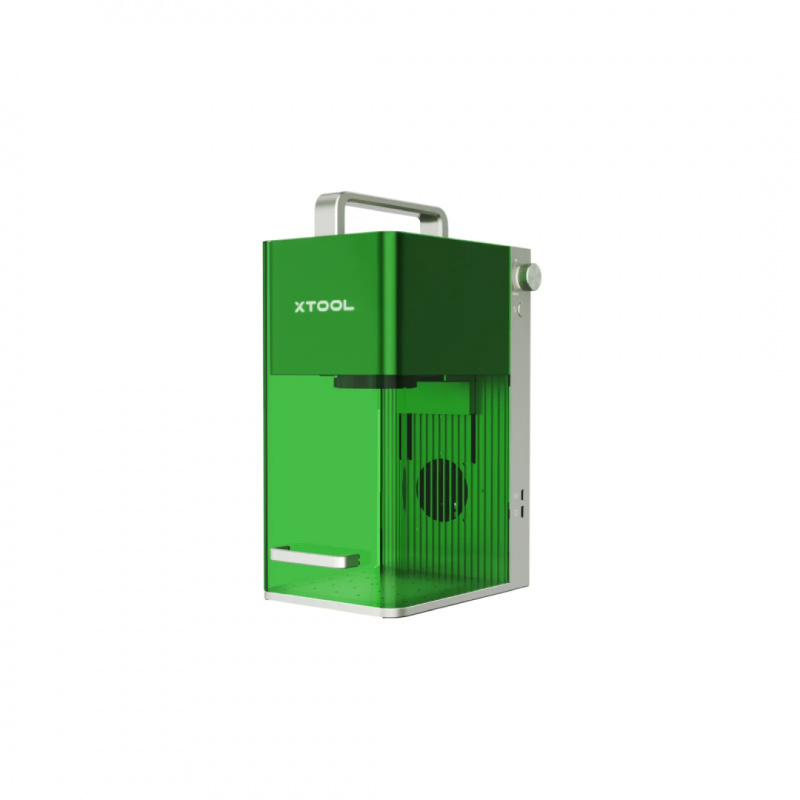

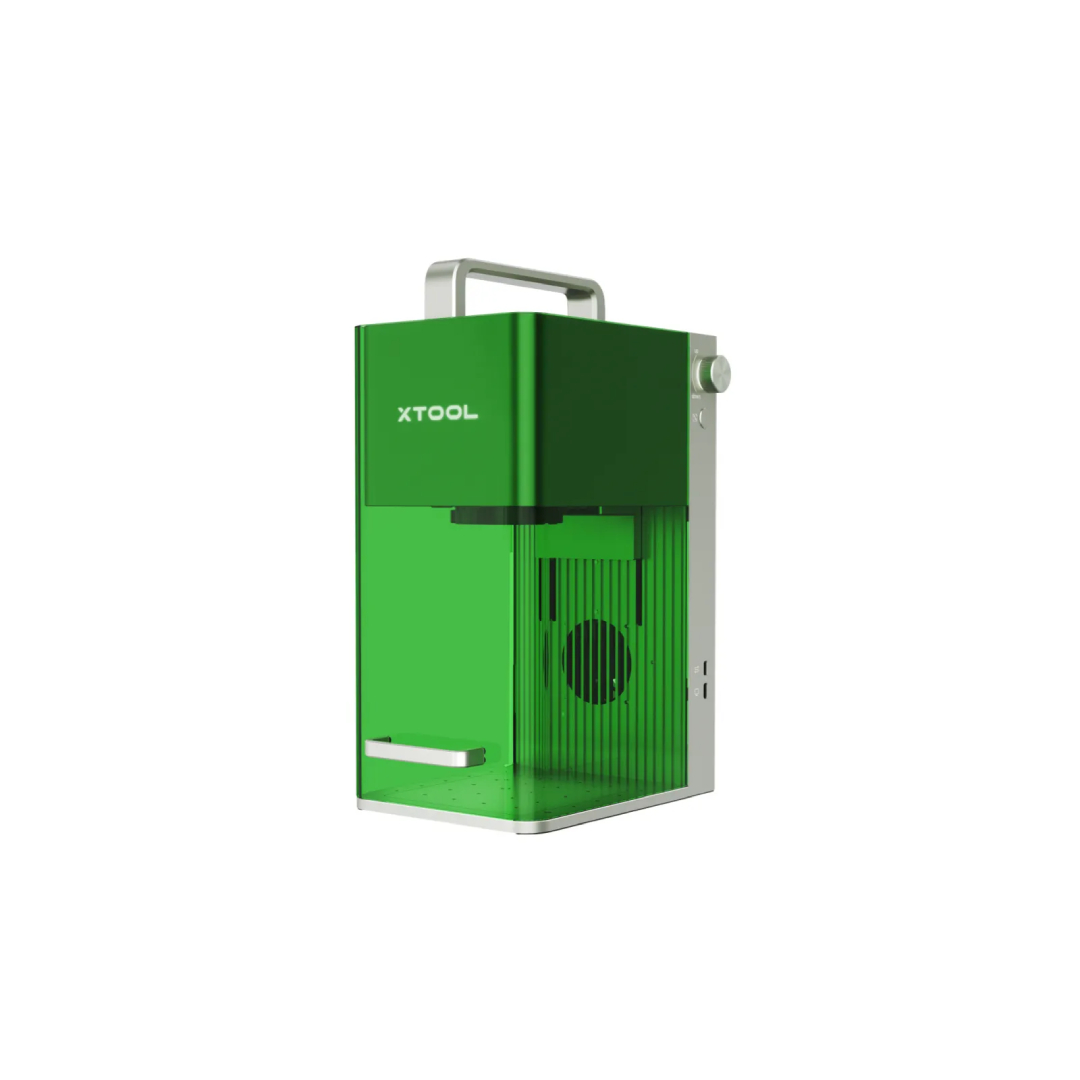

Product description: xTool F1 - 10 W diode laser engraver and 2 W infrared laser engraver + smoke purifier
The xTool F1 is a compact yet extremely powerful laser engraver that enables quick and precise marking of over 300 materials , such as wood, leather, acrylic, metal, glass, ceramics, and cork. With a speed of up to 4000 mm/s and a movement accuracy of 0.00199 mm , the device allows for personalized engraving in less than 10 seconds. The F1 is equipped with two laser sources – a 10 W diode and a 2 W infrared – enabling not only cutting and marking organic materials but also engraving metals such as stainless steel, aluminum, gold, silver, and brass . Automatic focus and a pattern preview function via a built-in camera make operation extremely simple and intuitive. The enclosed design with a protective cover and smoke extraction system allows for safe use in public places – at events, in shops, and service outlets. The xTool F1 is the perfect tool for personalizing products, creating souvenirs, and working with custom orders . The kit also includes an air purifier – the xTool Desktop Smoke Purifier.
xTool F1 - 10 W diode laser engraver and 2 W infrared laser engraver + smoke purifier.
The xTool F1 is a compact yet extremely powerful laser engraving machine that allows you to quickly and precisely mark over 300 materials.Special features
- The xTool F1 model is equipped with two lasers: a 10 W diode and a 2 W infrared laser, which allows for the processing of precious metals and non-metals; the Lite version uses only the 10 W diode laser
- Extreme engraving speed up to 4000 mm/s - up to six times faster than traditional devices in this class
- The standard 115 x 115 mm working area can be extended to 400 x 115 mm with the optional Slide Extension base, allowing you to work on larger formats
- Unparalleled precision: 0.00199mm movement accuracy and 0.03 x 0.03mm infrared laser spot size (for exceptionally detailed patterns); 0.08 x 0.06mm diode laser spot size
- Mobile design: compact dimensions (179 x 235 x 334 mm) and low weight (4.6 kg) allow for easy carrying and operation in almost any conditions
- Integrated class 4 protective housing , equipped with an air filter and automatic fan, ensures safe use even in service, office and event spaces
Practical applications
The xTool F1 is ideal wherever speed, precision, and personalization are essential. It's indispensable at events, trade shows, service points, and gift shops, allowing you to quickly create individual projects—from personalized keychains and jewelry to decorative labels and plaques . Thanks to its compact design and high performance, the F1 also excels in workshop environments and low-volume production, enabling the marking of metal and plastic components with the highest quality.
With a speed of up to 4000 mm/s and a movement accuracy of 0.00199 mm, the device allows you to make a personalized engraving in less than 10 seconds.
xTool F1 is the perfect tool for personalizing products, creating souvenirs and working with individual orders.

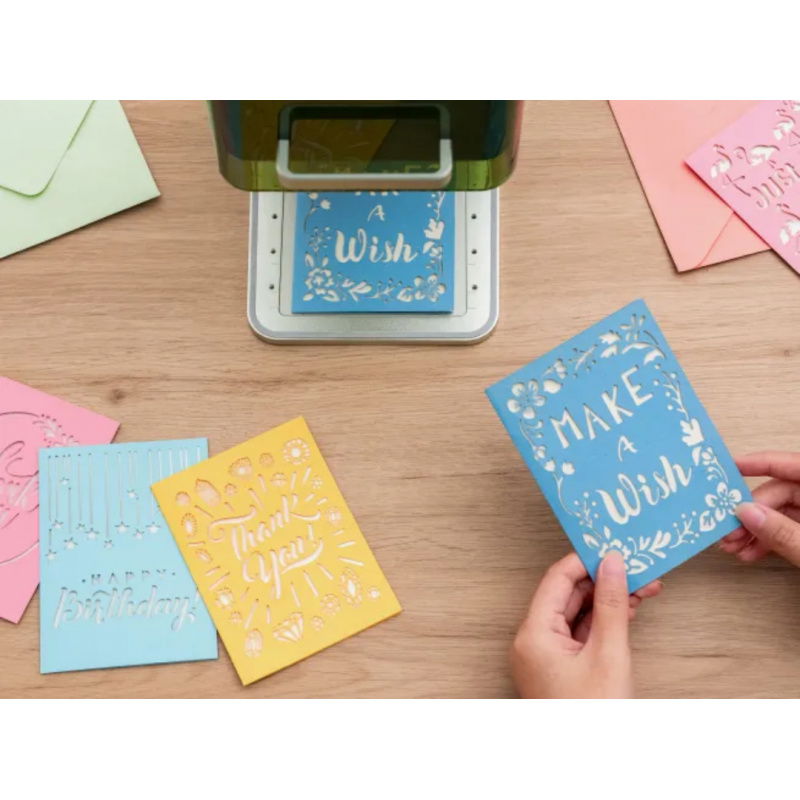

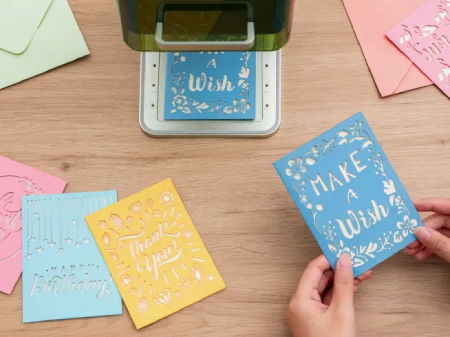

Create unique cards and gifts with xTool F1
The xTool F1 is the perfect tool for creating personalized greeting cards, invitations, and keepsakes. With precise HD engraving , you can capture the smallest details and transform an ordinary design into a lasting and aesthetically pleasing keepsake . Whether it's a wedding, birthday, anniversary, or holiday, the F1 allows you to perfectly reproduce designs and text on cards, decorative paper, or thin wood.

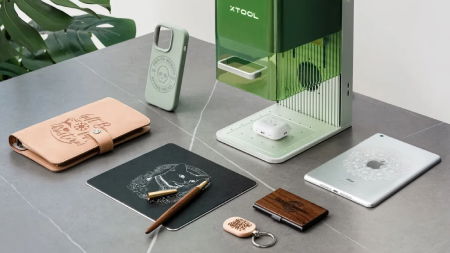

Like a printer, but for even more materials
The xTool F1 works like a versatile printer, using a laser instead of ink and virtually any material instead of paper . Wood, leather, stone, acrylic, cork, or metal—each of these surfaces becomes a canvas for your creativity. You can personalize everyday items, create unique promotional items, or create artistic decorations.
xTool F1 is perfect wherever speed, precision and personalization are important.
The xTool F1 model is equipped with two lasers: a 10 W diode and a 2 W infrared laser.Professional results in a mobile form

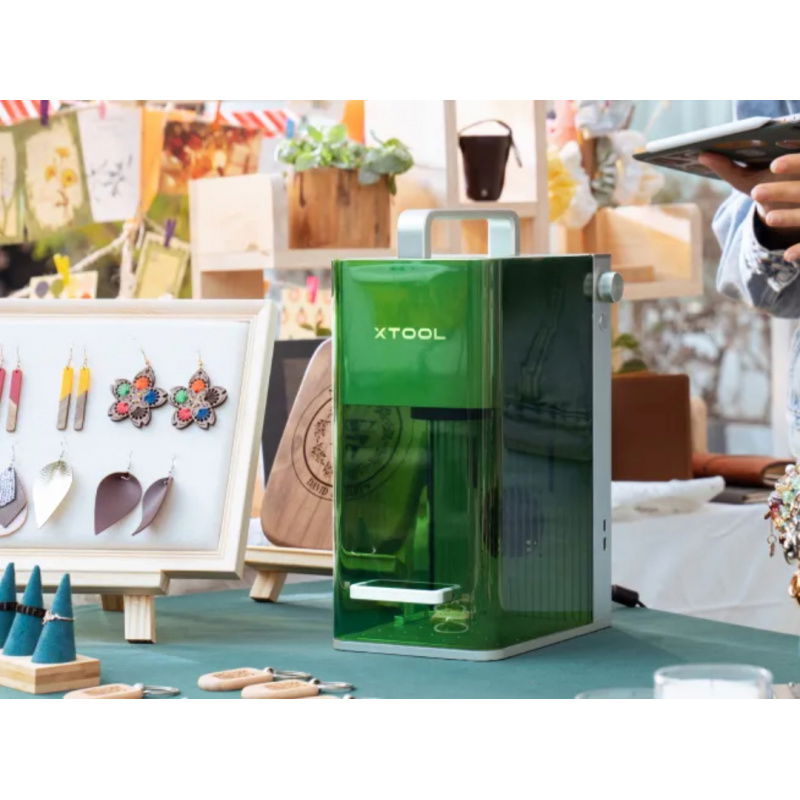

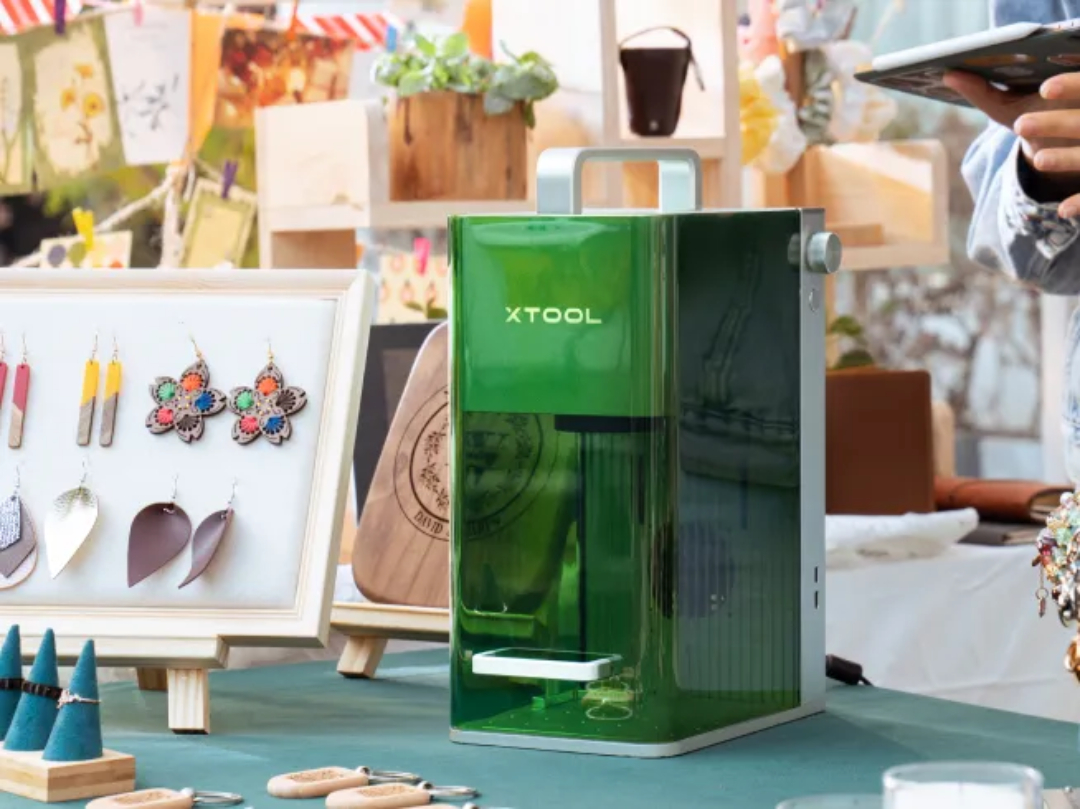

Thanks to its compact size and low weight, the xTool F1 is ideal for mobile work – at trade shows, events, or directly at the customer's premises . Its ultra-fast engraving speed (up to 4000 mm/s) allows for the processing of multiple orders in a short time, translating into real profits. The F1 is a well-thought-out solution for those looking to start a personalization business or expand an existing one.

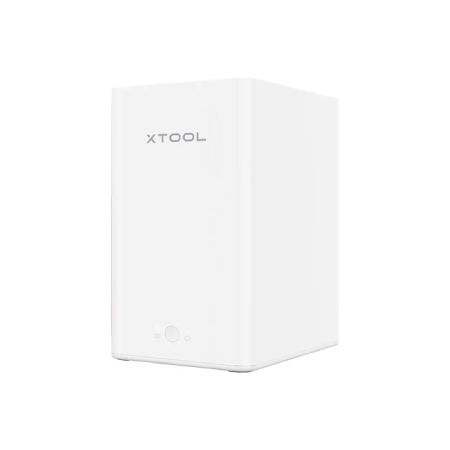

xTool Desktop Smoke Purifier - effective filtration for a clean work environment
The xTool Desktop Smoke Purifier is a compact filtration system designed for use with laser engravers such as the xTool F1, F1 Ultra, and D1 Pro . The device effectively removes smoke, dust particles, and unpleasant odors generated during engraving and cutting, ensuring a clean and safe working environment—even in enclosed office spaces. Thanks to multi-layer filters (including HEPA and activated carbon), the purifier meets high standards for safety and user comfort, while its quiet operation and compact design allow for easy integration into any workstation.
The set also includes an air purifier - xTool Desktop Smoke Purifier.| Element | Quantity |
|---|---|
| xTool F1 | 1 pc. |
| xTool Desktop Smoke Purifier | 1 pc. |
| Power cord | 1 pc. |
| Charger | 1 pc. |
| USB cable | 1 pc. |
| Screwdriver | 1 pc. |
| Dust-free cloth | 1 pc. |
| Positioning element (L-shape) | 1 pc. |
| Material Starter Kit | 1 set |
| Quick Start Guide | 1 pc. |
| Safety instructions | 1 pc. |
| Specification | xTool F1 Ultra | xTool F1 |
|---|---|---|
| Laser type | 20W diode laser + 20W fiber laser | 10W diode laser + 2W infrared laser |
| Operating mode | Laser engraving and cutting | Laser engraving and cutting |
| Materials - cutting | LED: paper, wood, leather, MDF, felt, some dark acrylics Fiber optic: brass, stainless steel, aluminum |
LED: paper, wood, leather, MDF, felt, some dark acrylics |
| Materials - engraving | LED: paper, wood, leather, MDF, stainless steel, ceramics, glass, etc. Fiber optic: stainless steel, aluminum, plastic, titanium, gold |
LED: paper, wood, MDF, glass, steel Infrared: metal, plastic, black acrylic |
| Working field | 220 x 220 mm (up to 220 x 500 mm with feeder) | 115 x 115 mm (up to 400 x 115 mm with accessories) |
| Maximum operating speed | 10000 mm/s | 4000 mm/s |
| Cutting wood (linden) | up to 15 mm (multiple passes) | up to 8 mm (multiple passes) |
| Cutting acrylic | up to 12 mm (multiple passes) | up to 6 mm (multiple passes) |
| Maximum workpiece height | 145 mm | 113 mm |
| Maximum diameter for rotary engraving | 145 mm | 113 mm |
| Supported software | xTool Creative Space, Lightburn | xTool Creative Space, Lightburn |
| Operating systems | Android, iOS, iPadOS, Windows, macOS | Android, iOS, iPadOS, Windows, macOS |
| Connection methods | USB, WiFi, IP connection, hotspot | USB, WiFi |
| Supported file formats | SVG, DXF, JPG, PNG, BMP, TIF | SVG, DXF, JPG, PNG, BMP, TIF |
| Pre-assembled | Yes | Yes |
| Built-in camera | 16 MP smart camera | NO |
| Positioning method | Camera positioning | Lack |
| Focusing | Autofocus | Manual focus |
| Laser point size | 0.08 x 0.1 mm (diode), 0.03 x 0.03 mm (fiber optic) | 0.08 x 0.06 mm (diode), 0.03 x 0.03 mm (infrared) |
| Movement accuracy | 0.00482 mm | 0.00199 mm |
| Safety certificate | Class 4 | Class 4 |
| Device dimensions | 273 x 373 x 492 mm | 179 x 235 x 334 mm |
| Device weight | 14.7 kg | 4.6 kg |
| Maximum input power | from 250 W to 275 W | 120 W |
| Power supply input voltage | from 100 V to 240 V AC 50/60 Hz | from 100 V to 240 V AC 50/60 Hz |
