Product description: LA10 150 N 40 mm/s 12 V electric actuator - 30 cm extension
Linear actuatorsupplied with 12 V. The maximum lifting capacity of the actuator is15 kg (150 N). Operating speed is 40 mm/sec. The device has an IP65 protection class. Thelimitswitchesprovideprotection againstexceeding the maximum extension of 30 cm.

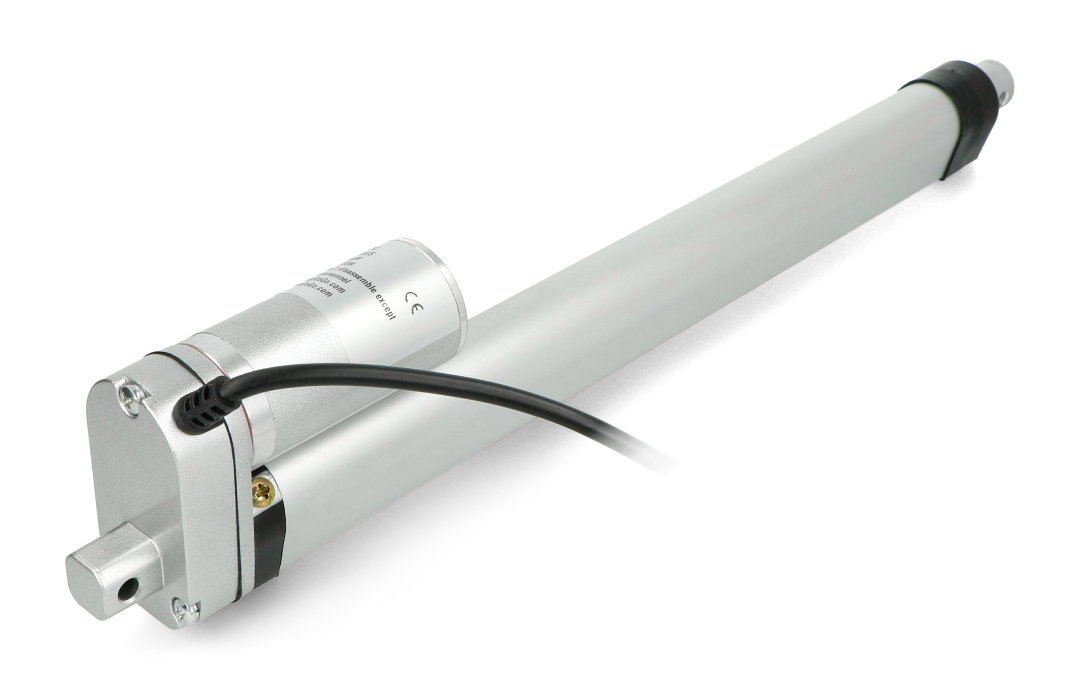

Electric actuator LA10 150N 40 mm/sec 12 V - 30 cm extension.
Application of linear actuators
-
Industrial and agricultural machinery components
-
Opening industrial valves
- Home automation as a system component for tilting windows and doors
- Adjustment of the tilt angle of the solar panel in photovoltaics
- Flap adjustment in motor vehicles
- Precise elements of industrial automation
|
As inDC motors,the direction is changed by reversing the polarity. |
Linear actuator specification LA10 150 N
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 40 mm/s |
| Maximum power | 150 N (15 kg) |
| Duty cycle | 25% |
| Extension length | 300 mm |
| Total length in folded condition (Lmin) | 413 mm |
| Diameter | 20 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Dimensions of the LA10 150 N.
