Product description: TOOCAA L2 10W laser plotter
The TOOCAA L2 laser plotter is a modern, versatile device for precise cutting and engraving of various materials. Equipped with a 10W laser, it enables the quick and accurate execution of artistic, decorative, and functional projects. Its work area of 415 x 395 mm and engraving speed of up to 400 mm/s allow for the completion of medium-sized projects with high precision. It is compatible with Toocaa Studio and LightBurn software, as well as Windows, macOS, and Linux systems. The robust aluminum and acrylic panel construction ensures durability and aesthetic appeal, while built-in LED lighting facilitates process control.

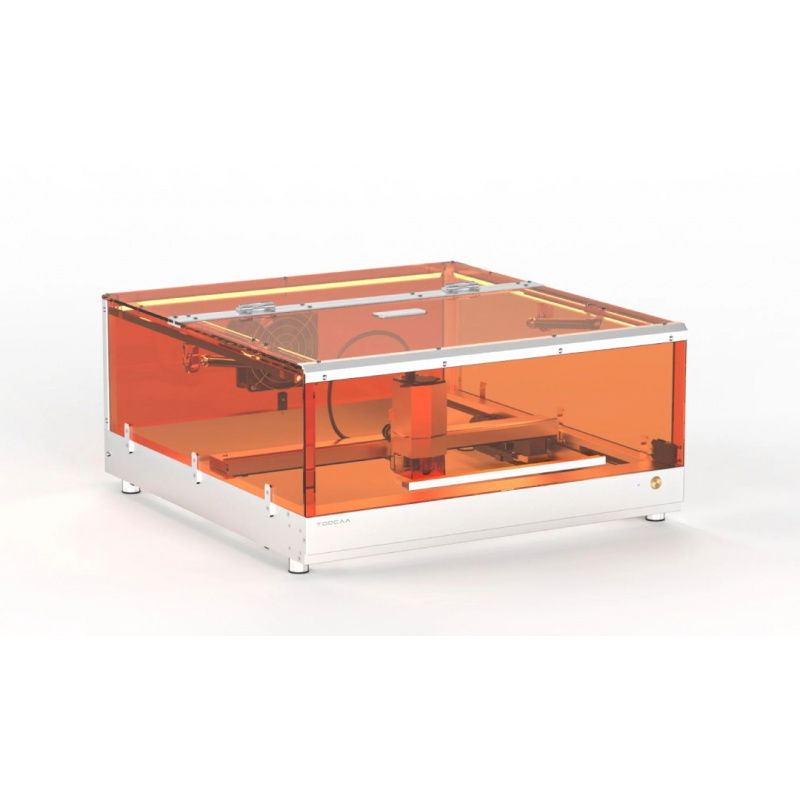

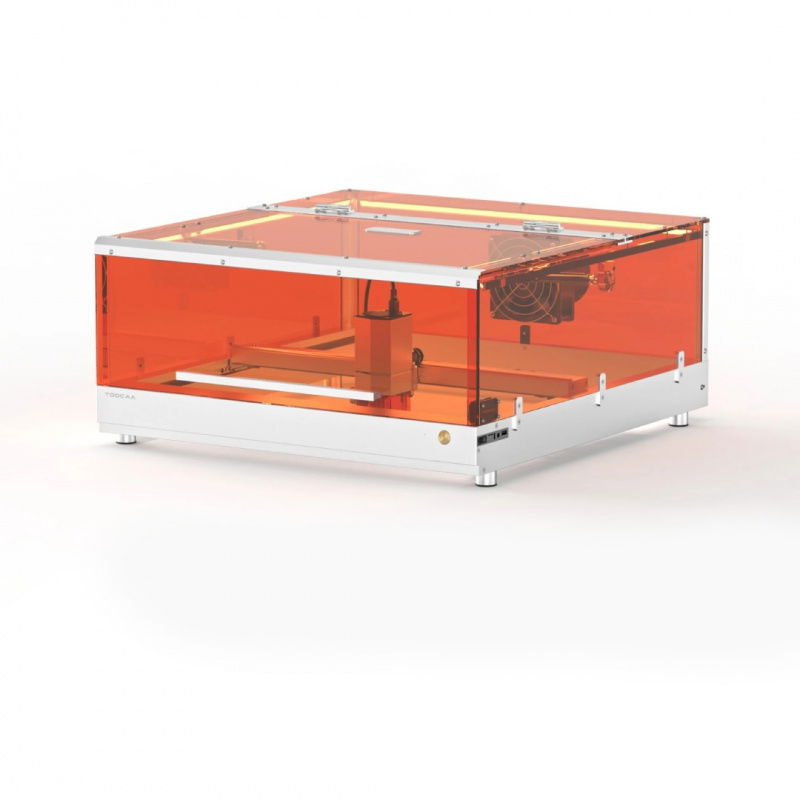

TOOCAA L2 10W Laser Plotter

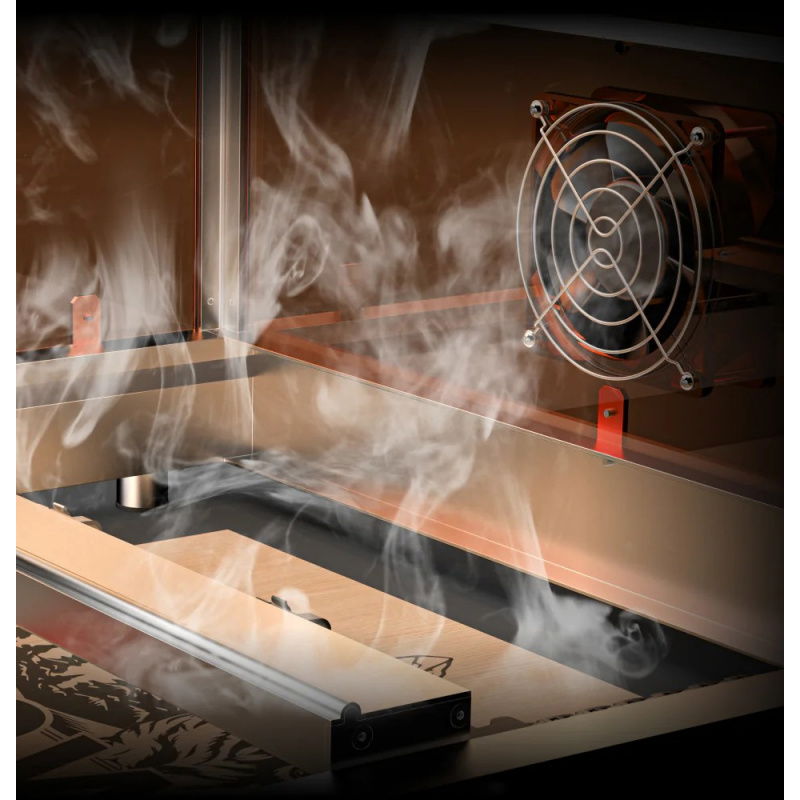

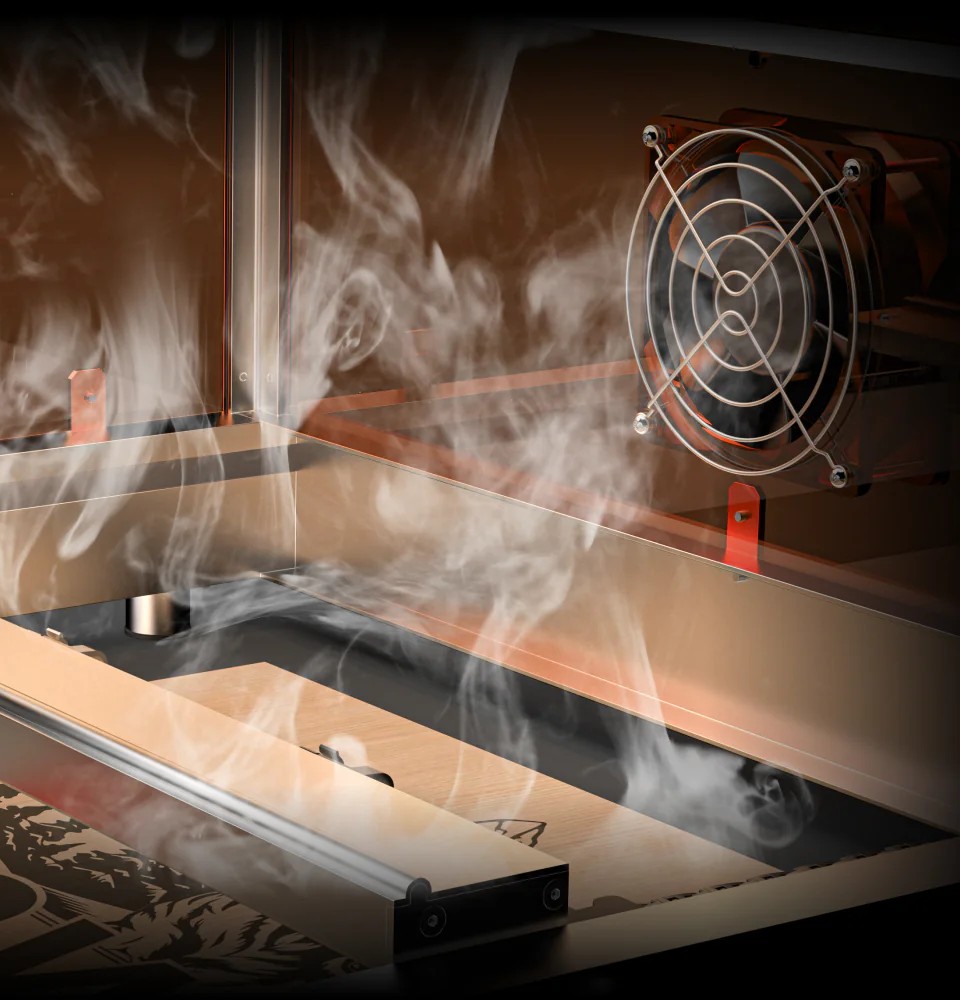

The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems
The TOOCAA L2 features eight layers of protection , including a lid intrusion detector, a gyroscopic detector, a flame detector, and a USB interlock. The machine meets Class 1 laser safety standards, so you can safely operate it even in your home workshop. Overload and travel limit protection ensure trouble-free and safe operation.

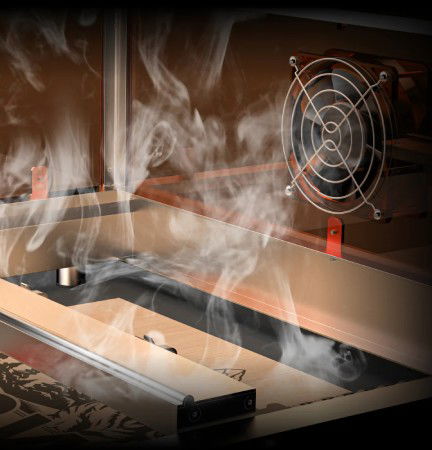

Effective smoke extraction system
Dust and fumes released during engraving are effectively extracted thanks to a smoke filtration system combined with a fan . This helps maintain a clean and safe work environment, minimizing the impact of harmful substances on the operator and the surrounding environment.
Easy installation and pre-assembly

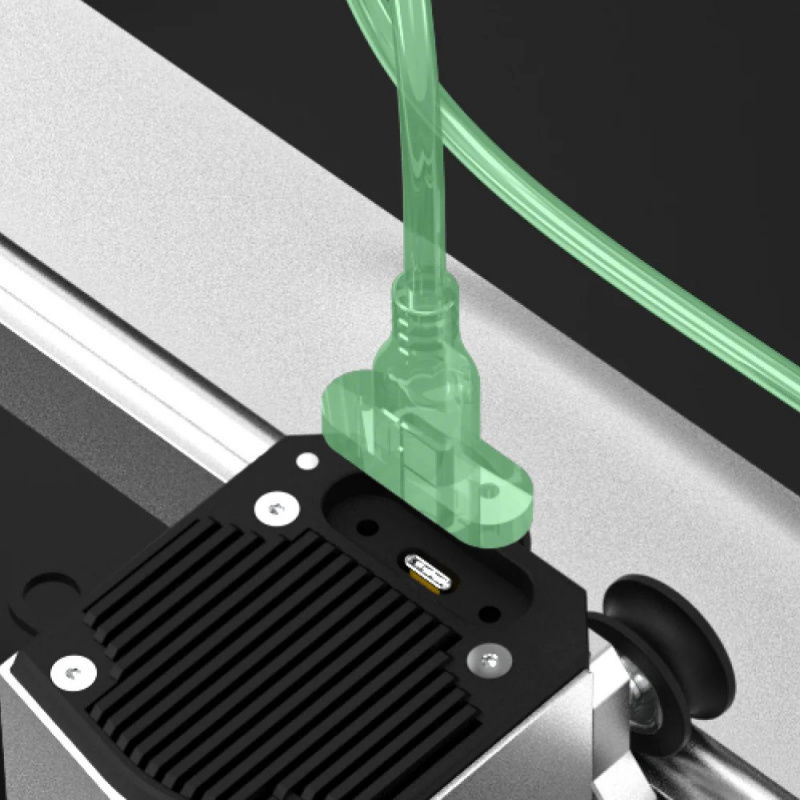

The plotter comes pre-assembled , saving up to 95% of assembly time compared to other devices. Quick connection via USB Type-C or TF card allows you to get started immediately, without lengthy setup.
Versatility and compatibility
The TOOCAA L2 supports a variety of materials, including wood , acrylic, leather, and metal . With Toocaa Studio, LightBurn , and LaserGRBL support, the device is compatible with multiple workflows, allowing for a wide range of projects.

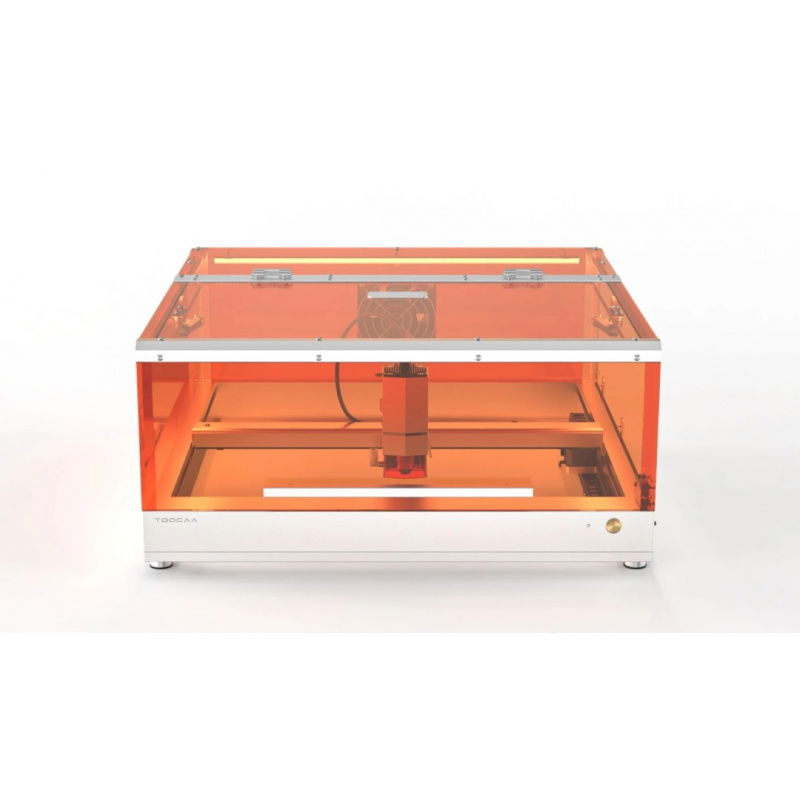

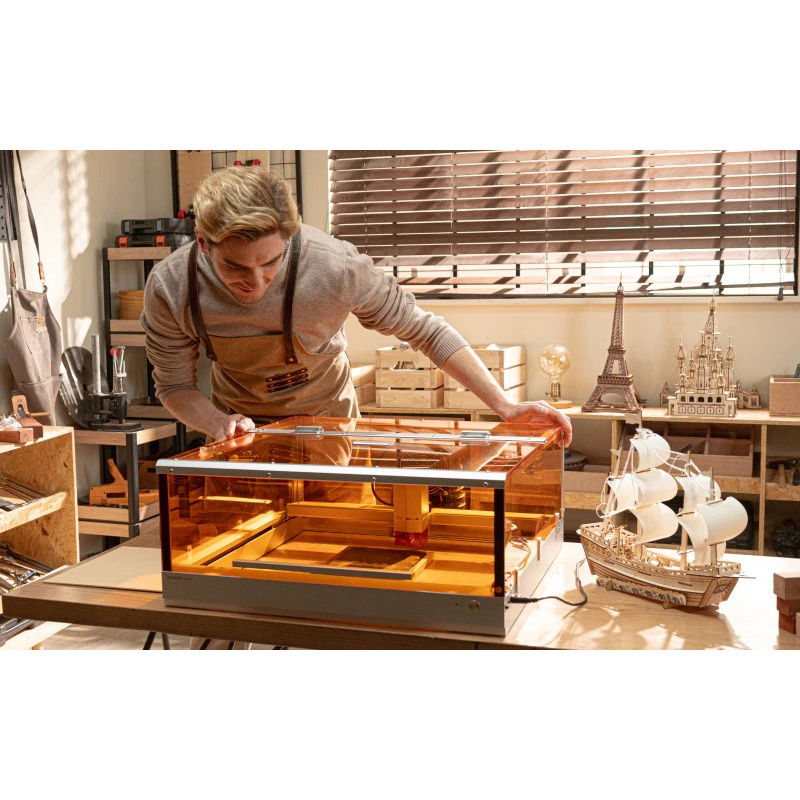

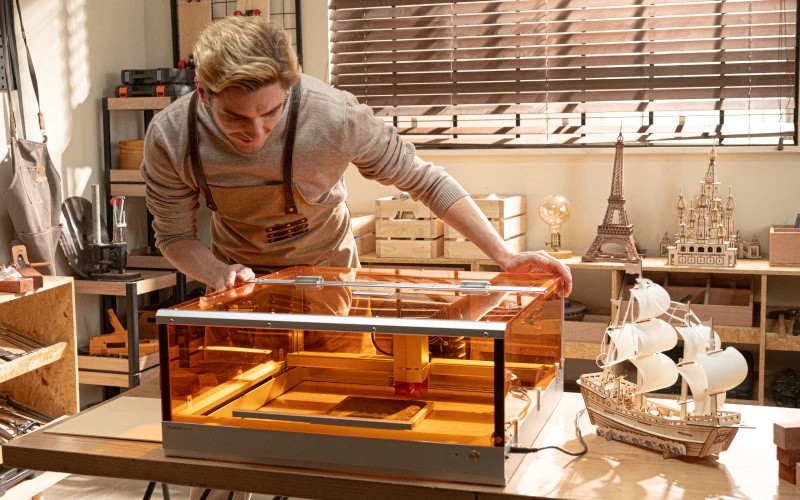

The TOOCAA L2 offers a large work area (415 x 395 mm) that allows you to complete medium-sized projects such as cutting acrylic, wood or leather accessories.

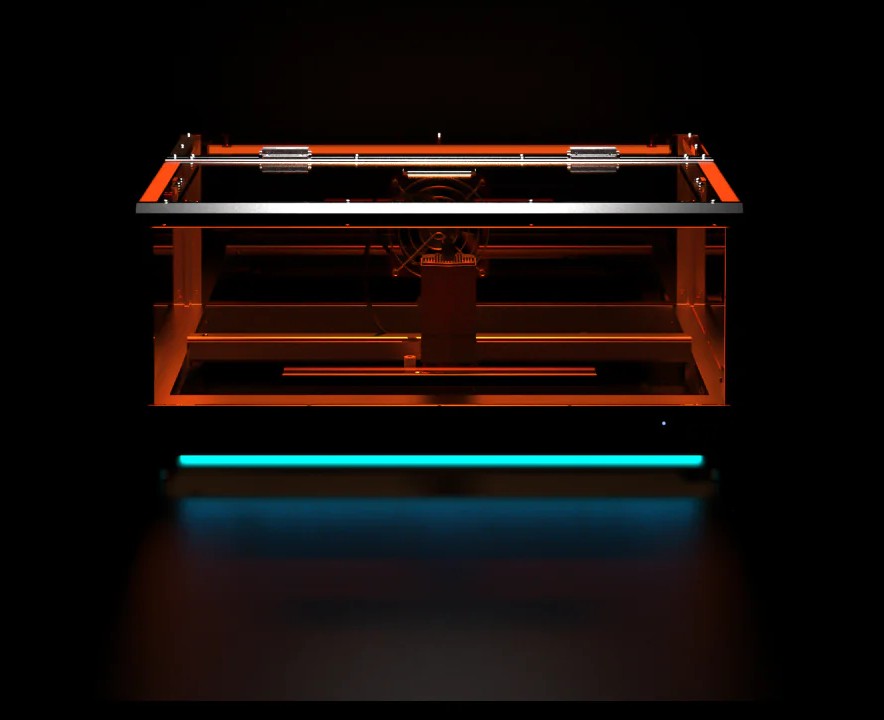

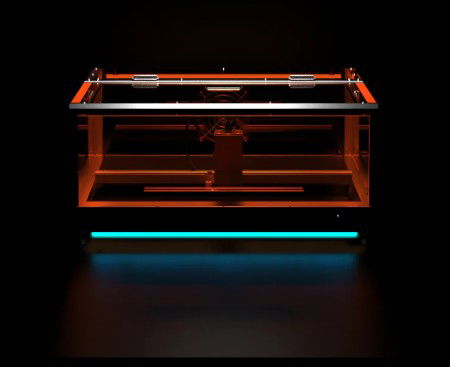

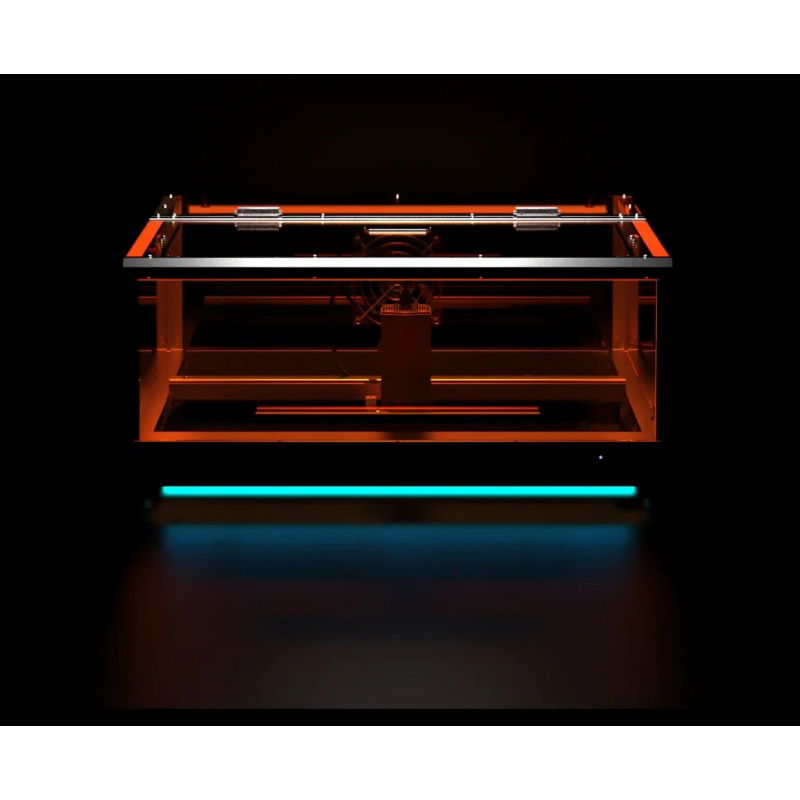

The LED strip shows the operating states of the plotter by displaying different colors.
Lighting and process control
The machine is equipped with a built-in LED strip that indicates various operating states and allows you to monitor the engraving process. Additionally, ambient lighting makes it easier to monitor project progress , increasing comfort and precision.
Optional accessories - expand your engraving and cutting capabilities
The TOOCAA L2 cutter offers a range of optional accessories that enhance its capabilities and comfort. These include a honeycomb panel for precise cutting, a smoke purifier, a smart camera for process monitoring, a rotation module for working with cylindrical objects, and an air assist kit . These add-ons allow you to implement more advanced projects and achieve even better quality finishes on engraved and cut materials.
Contents of the set
- TOOCAA L2 laser plotter
- 10W laser module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- Samples of materials for cutting and engraving
- User manual

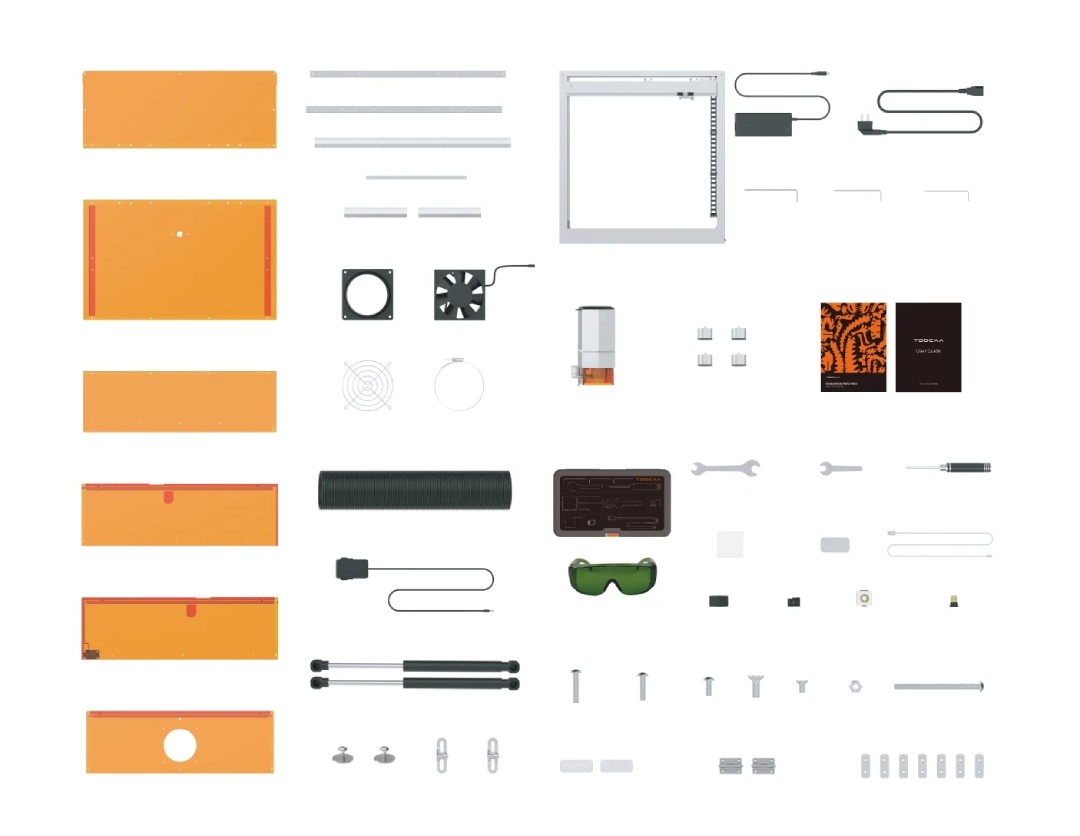

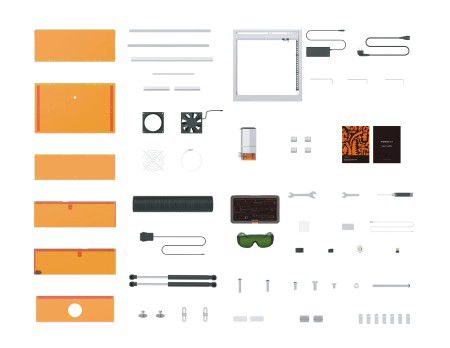

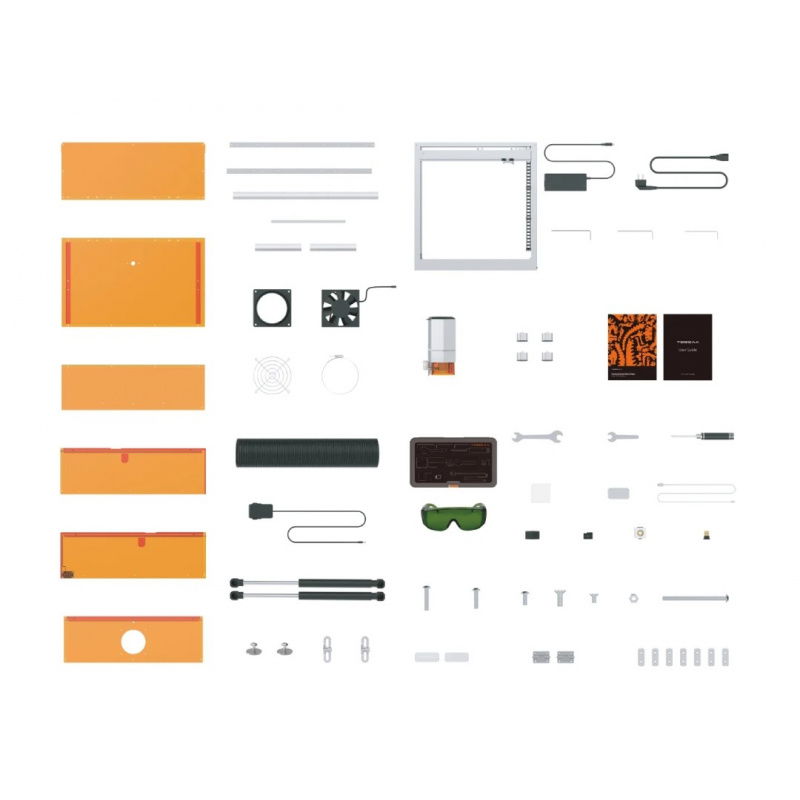

Elements included in the set.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 10 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 6 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.08 x 0.18 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 3A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 72 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
