Product description: TOOCAA L2 20 W laser plotter
The TOOCAA L2 is a high-end laser plotter designed for cutting and engraving materials such as wood , leather, acrylic, painted metal, ceramics, and glass. The device combines high 20W power , precision, and intuitive operation, making it an ideal choice for both hobbyists and professionals. A large work area of 415 x 395 mm allows for the completion of medium- to large-scale projects, while an engraving speed of up to 400 mm/s ensures efficient work. The aluminum and acrylic construction guarantees stability, durability, and aesthetics. The TOOCAA L2 works with TOOCAA Studio , LightBurn , and LaserGRBL software, and its compatibility with Windows, macOS, and Linux ensures versatile applications. Equipped with advanced safety systems and smoke filtration, it is suitable for both home workshops and small production facilities.

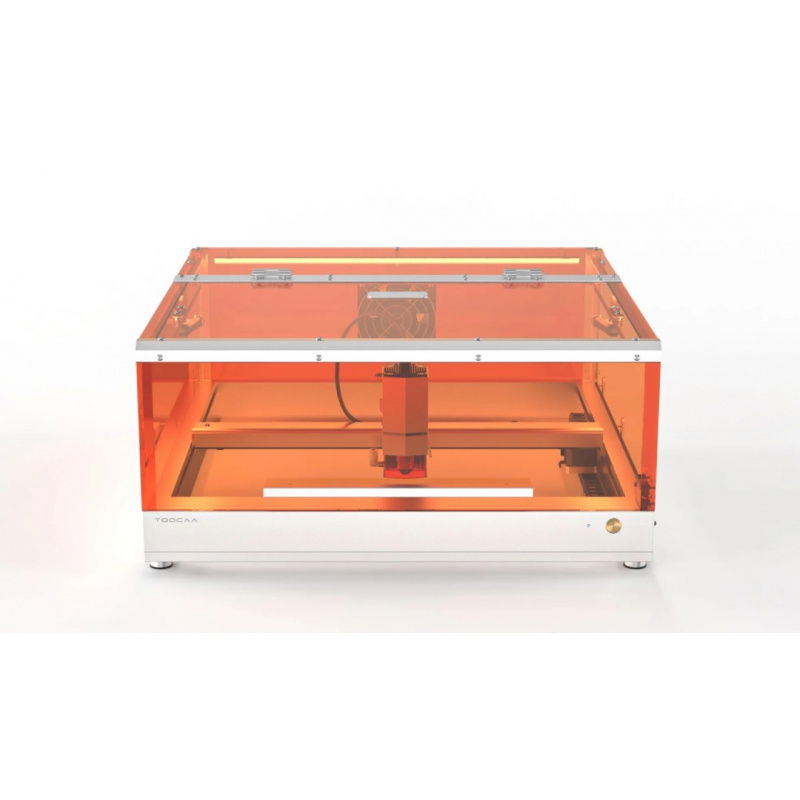

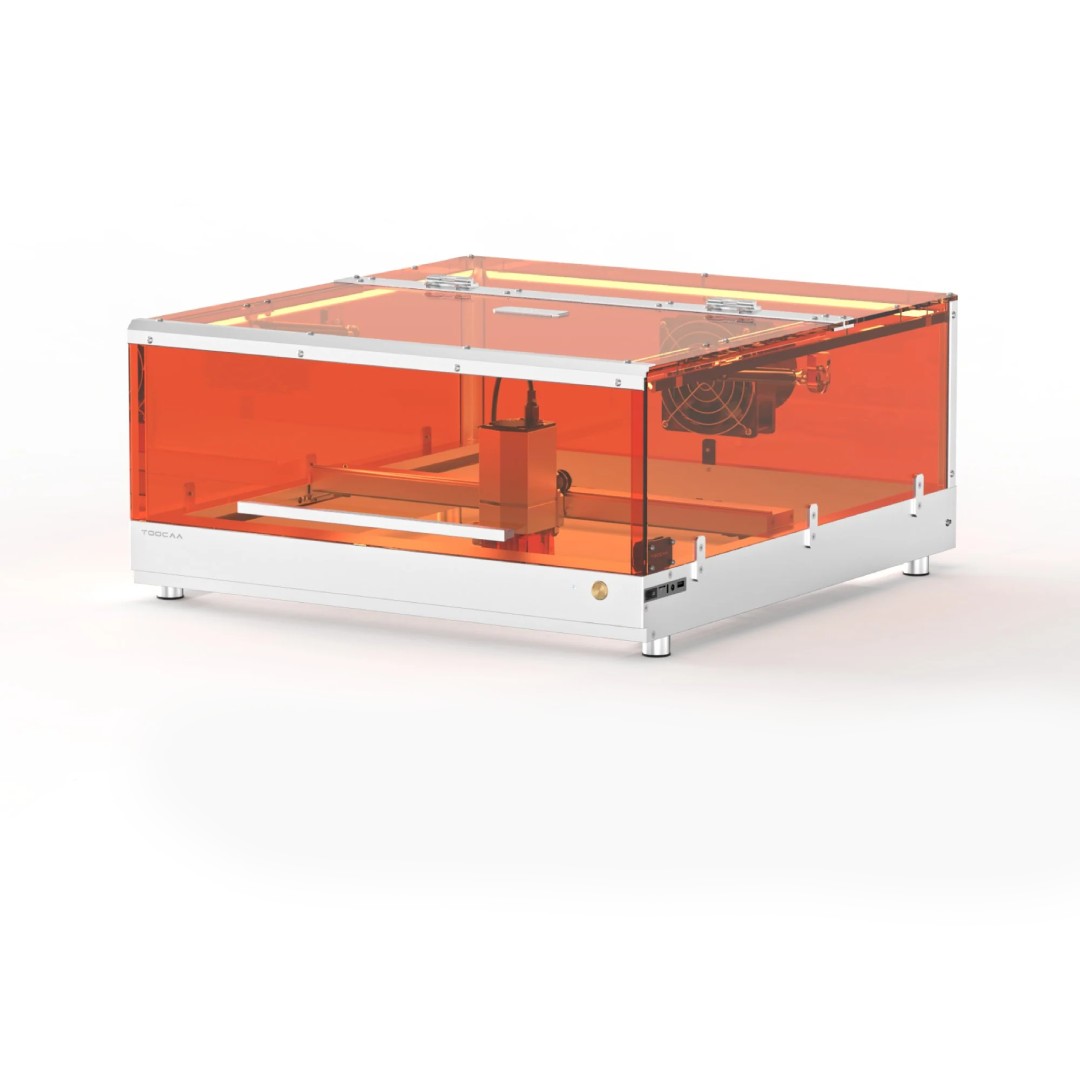

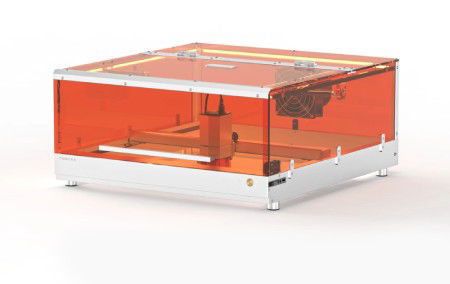

TOOCAA L2 20 W Laser Plotter

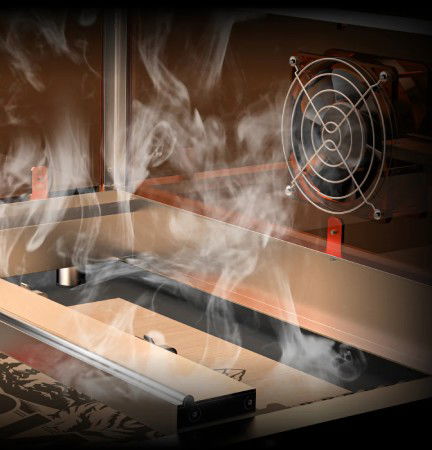

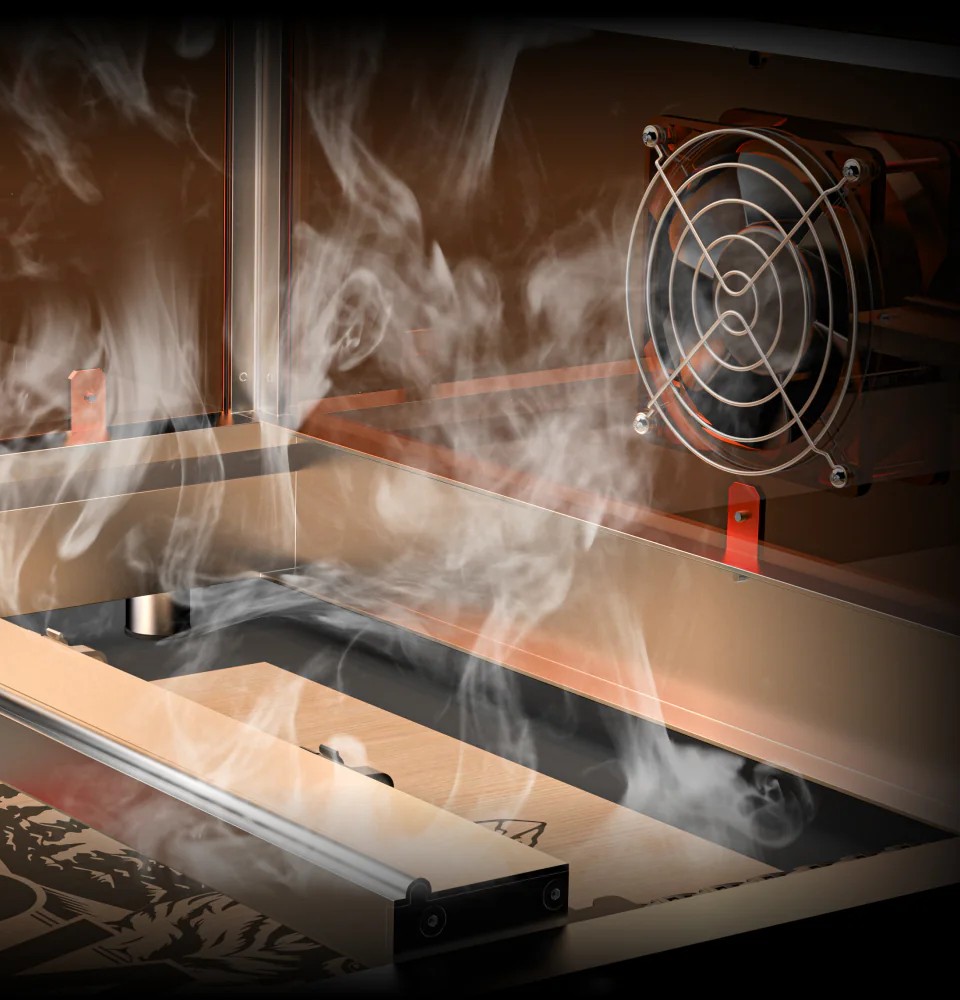

The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems
The TOOCAA L2 is equipped with a full suite of advanced safety features, including a fire detector, tilt sensor, USB interlock, and a lid lock . The device meets Class 1 laser standards, ensuring user safety in any work environment. Additional safeguards protect both the equipment and the operator from accidental damage or misuse.

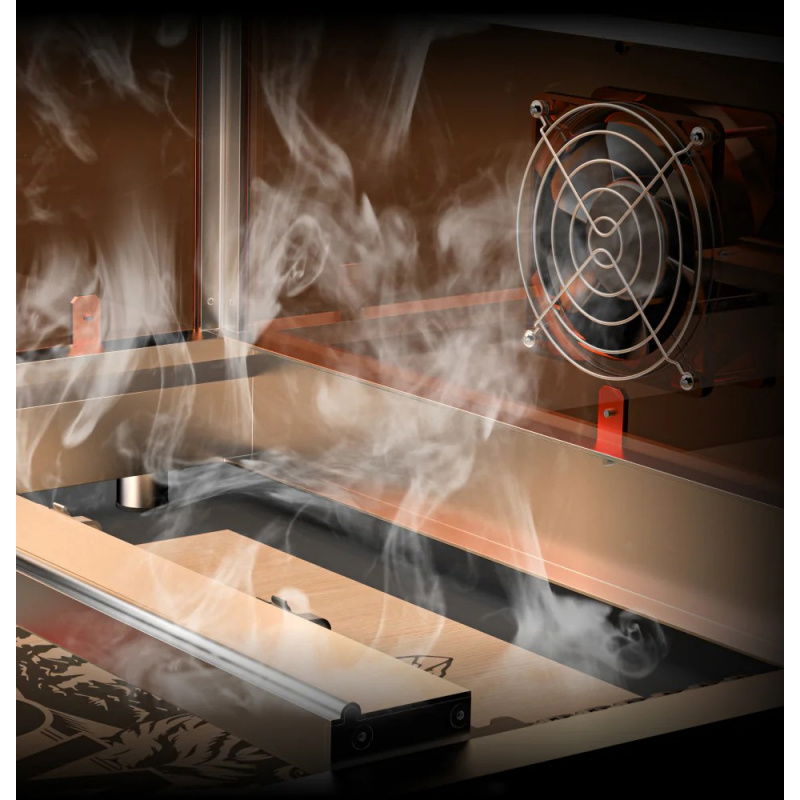

Effective removal of smoke and dust
A fume extraction system with a fan and exhaust pipe removes harmful fumes generated during engraving and cutting. This solution significantly improves work comfort, especially during intensive plotter use. Filtration of contaminants also improves the quality and precision of processed surfaces.
Easy installation and preparation for operation
The TOOCAA L2 comes pre-assembled , significantly reducing startup time. In just a few steps, you're ready to go, with no specialist skills required . The plotter supports USB Type-C and TF card connectivity, enabling convenient and fast data transfer.
Versatile material handling and compatibility
The plotter supports a wide range of materials, including wood, acrylic, leather, fabric, cardboard, plastic, ceramics, and anodized aluminum . Compatible with TOOCAA Studio , LightBurn , and LaserGRBL , the TOOCAA L2 can be easily integrated into any work environment. You get a versatile tool, ideal for both hobbyist and professional use.

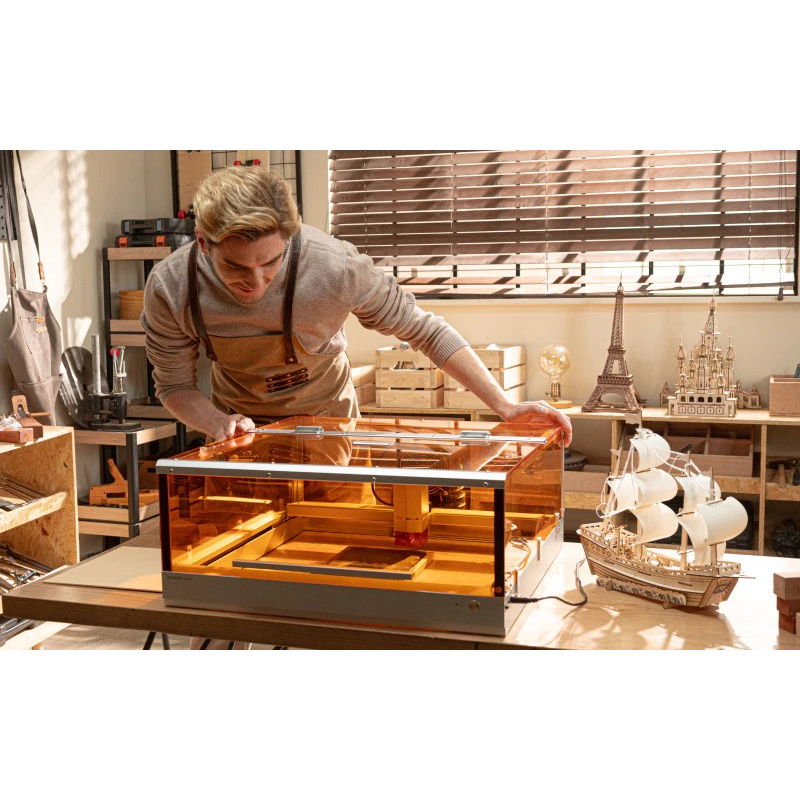

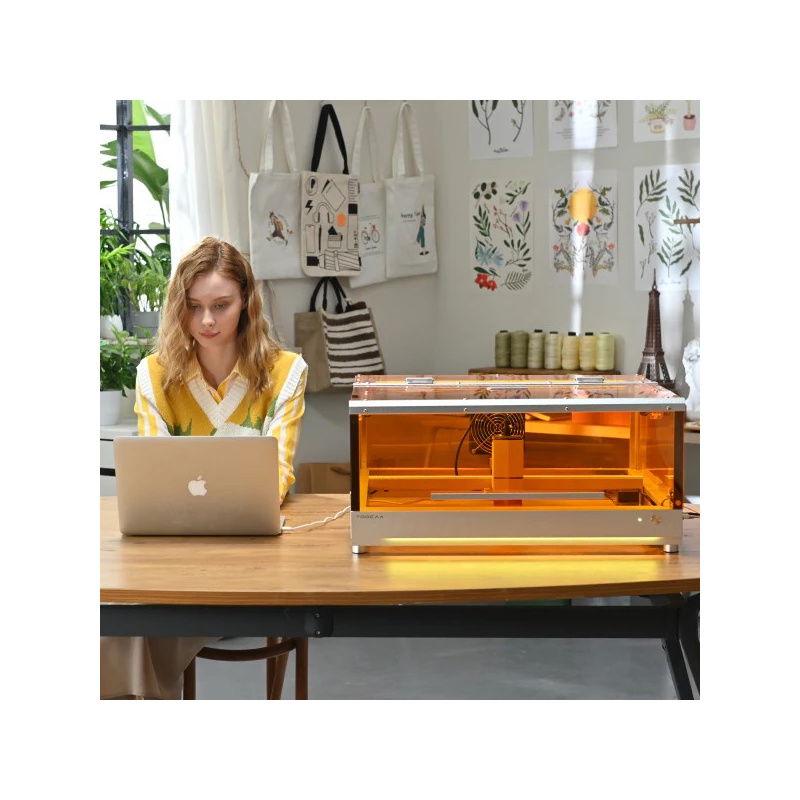

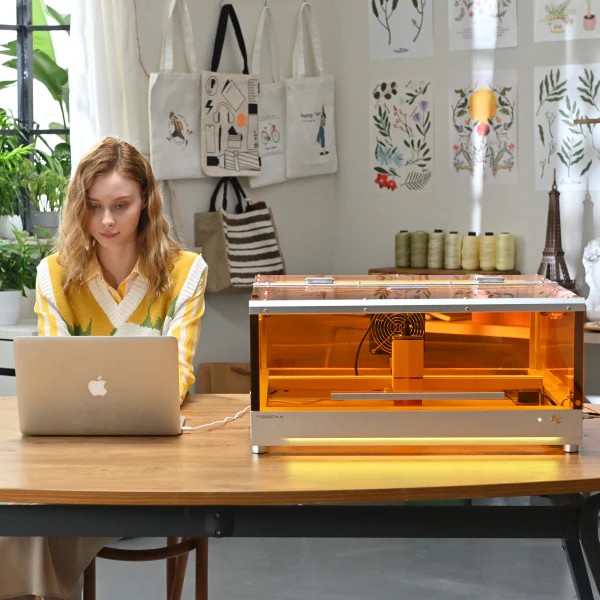

TOOCAA L2 offers a large working area (415 x 395 mm), which allows you to carry out medium-sized projects such as cutting acrylic, wood or leather accessories.

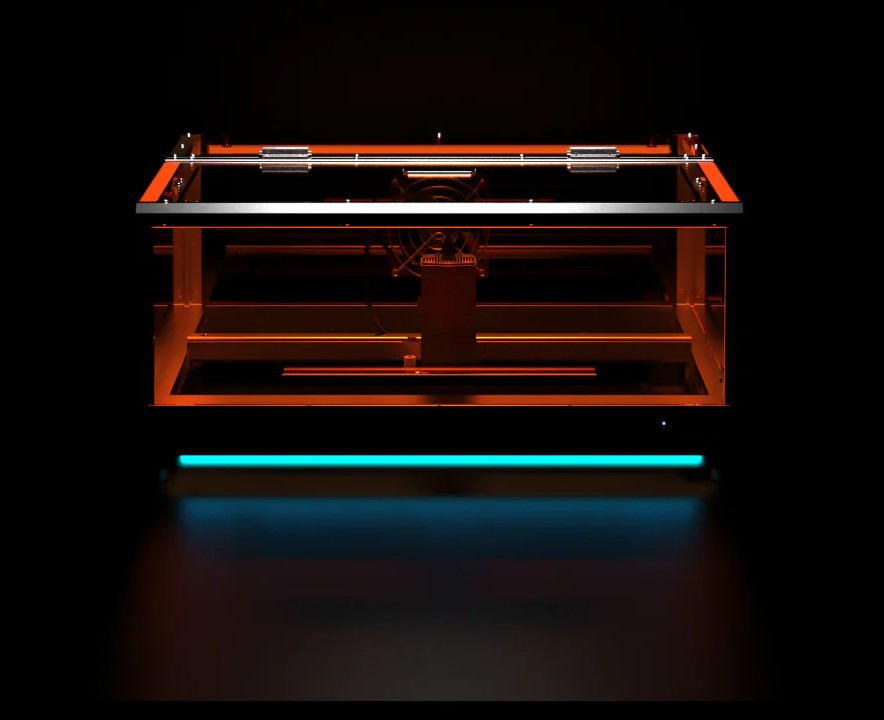

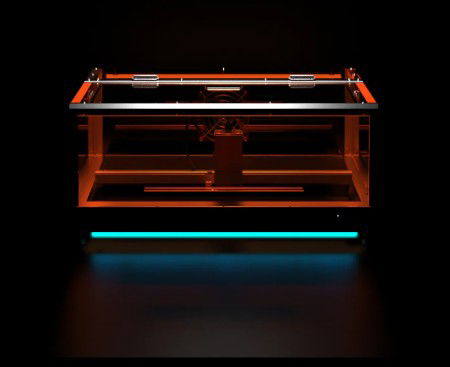

The LED strip shows the operating states of the plotter by displaying different colors.
Intuitive operation and process control
The TOOCAA L2 20W is equipped with an LED strip that indicates the device's operating status using changing colors . This solution allows you to constantly monitor project progress and quickly respond to changes. Work area lighting further facilitates visual monitoring and increases user comfort.
Expandable - optional accessories
The TOOCAA L2 cutter is compatible with a range of optional accessories , including a rotary module, a smoke purifier, a honeycomb work panel, and an air assist kit. These accessories expand the device's capabilities, especially when cutting complex shapes or working with cylindrical objects. This allows the TOOCAA L2 to grow with the user's evolving needs.
Contents of the set
- TOOCAA L2 laser plotter
- 20W laser module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- Samples of materials for cutting and engraving
- User manual

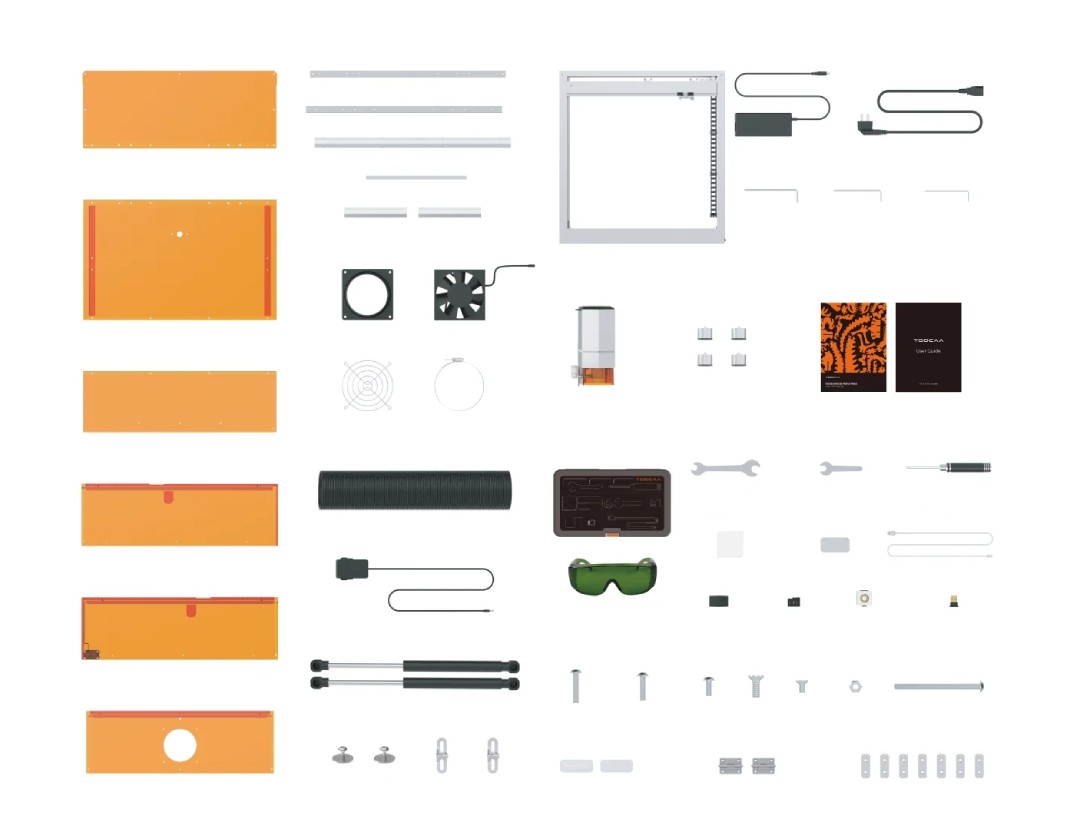

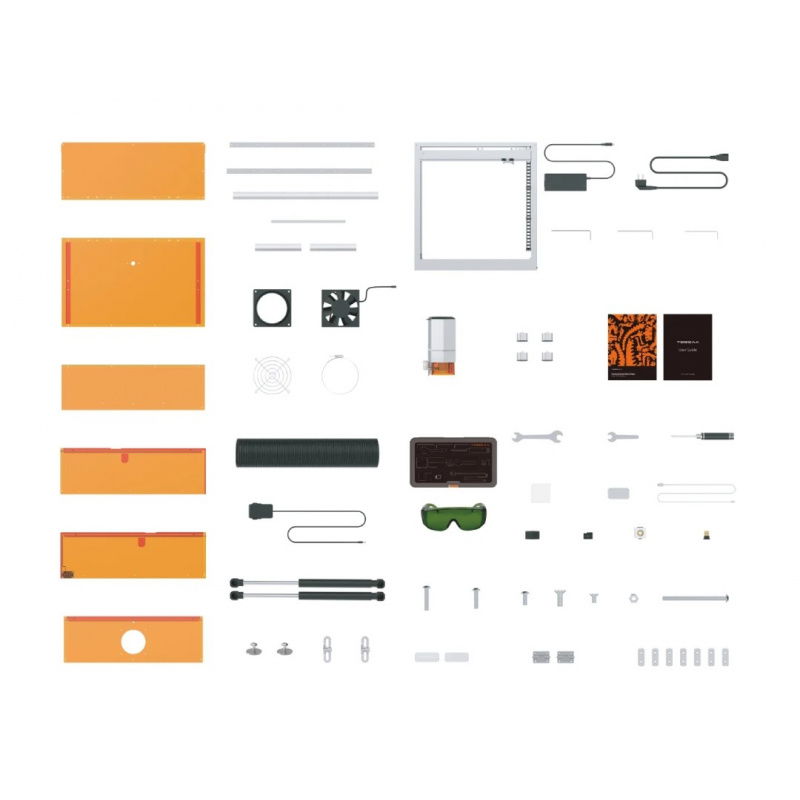

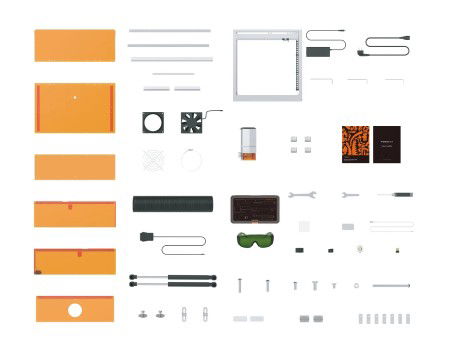

Elements included in the set.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 20 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 10 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.15 x 0.27 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 5A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 120 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
