Product description: TOOCAA L2 40 W Laser Plotter - Pro Kit
The TOOCAA L2 is a laser plotter designed for users who demand high performance and precision. The 40W diode laser enables efficient cutting of materials up to 15mm thick (wood, MDF) and allows for clear, deep engraving. A large 415 x 395mm work area combined with a positioning accuracy of 0.01mm allows for the completion of even the most demanding projects while maintaining the highest quality of detail. The robust aluminum and acrylic construction ensures stability, durability, and an aesthetically pleasing design. The plotter supports TOOCAA Studio, LightBurn, and LaserGRBL and is compatible with Windows, macOS, and Linux , offering a flexible working environment. The extensive Pro version includes Air Assist , a 400 x 400mm honeycomb panel, a positioning camera, a rotary module, an air purifier , and a set of materials , ensuring the device is fully operational from the very first time.

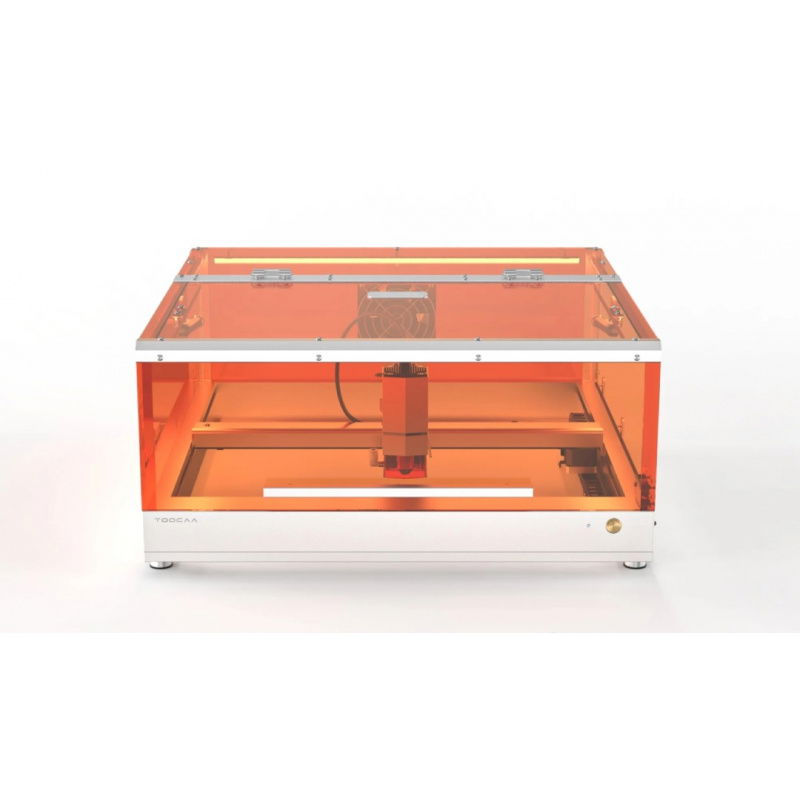

TOOCAA L2 40 W laser plotter - Pro kit.

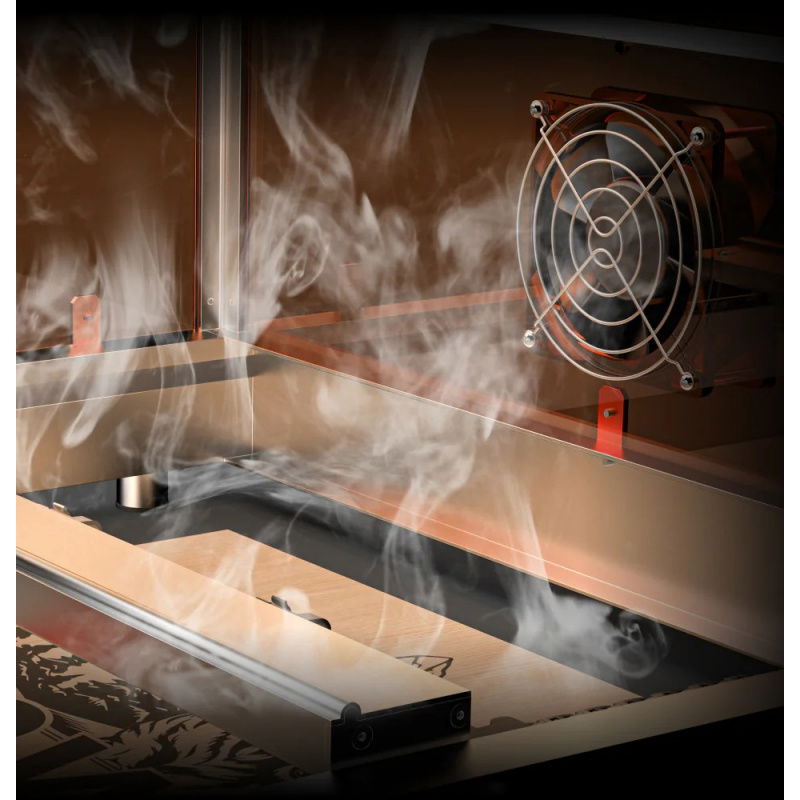

The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems and closed design
The TOOCAA L2 laser cutter is designed with maximum user safety in mind, both in home and professional environments. The sealed acrylic housing effectively blocks laser radiation, and the Open Lid Interlock system instantly turns off the laser when the cover is opened . The device is also equipped with a flame sensor, a tilt sensor, and a physical USB security key , significantly minimizing the risk of malfunctions or uncontrolled operation. These features allow you to focus on your project while maintaining full control over the process.
Efficient smoke extraction and intelligent LED lighting

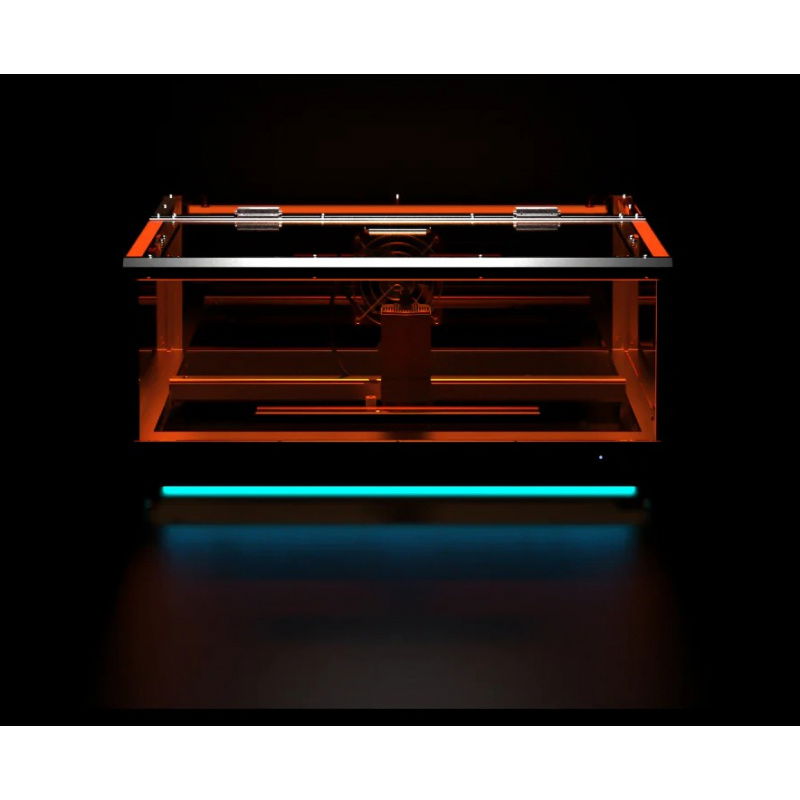

The TOOCAA L2 features a sophisticated smoke extraction system that effectively removes fumes generated during engraving and cutting. The enclosed housing allows for easy connection of an optional air purifier or external ventilation, improving work comfort and engraving quality. Built-in LED lighting serves as an information display and illuminates the work area, facilitating precise material positioning. Dynamic lighting also allows for quick recognition of the device's current operating status.
Easy installation and quick preparation for operation
The TOOCAA L2 laser cutter is designed as a plug-and-play device, ready to operate almost immediately after unpacking . The factory-assembled design and quick-connect laser module significantly reduce installation and setup time. Intuitive guides and a closed mechanical system ensure stable operation without the need for complex calibration . This makes the device suitable for both beginners and advanced operators.
Versatile material handling and compatibility
The plotter supports a wide range of materials, including wood , acrylic, leather, fabric, cardboard, plastic, ceramics, and anodized aluminum . USB Type-C and TF card connectivity allow for flexible project management without the need for a constant connection to a computer. Compatible with TOOCAA Studio , LightBurn , and LaserGRBL for Windows, MacOS, and Linux, TOOCAA L2 can be easily integrated into your work environment.

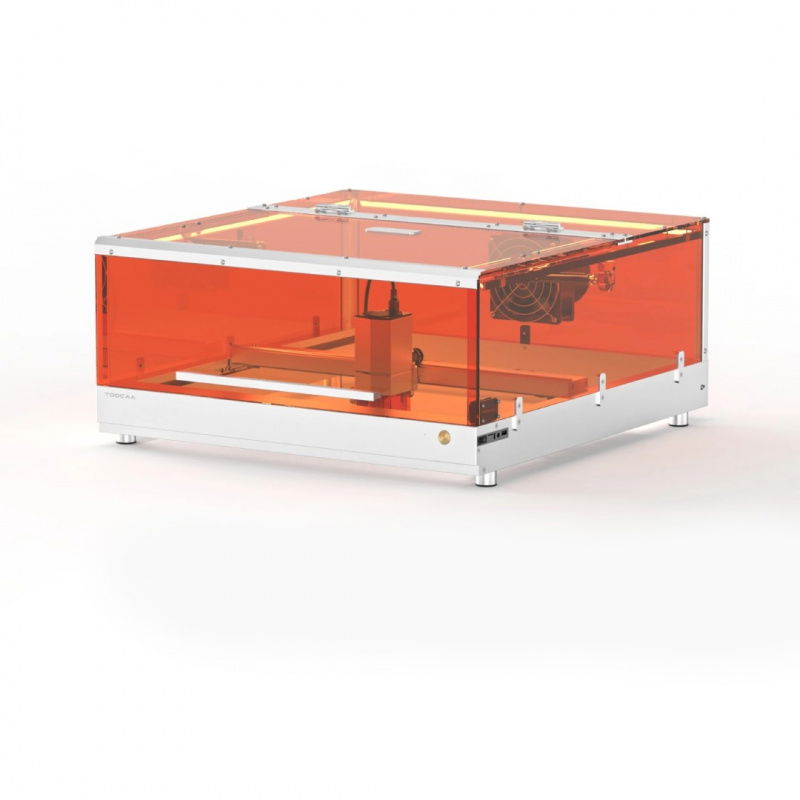

TOOCAA L2 offers a large work area (415 x 395 mm) that allows you to complete many projects.

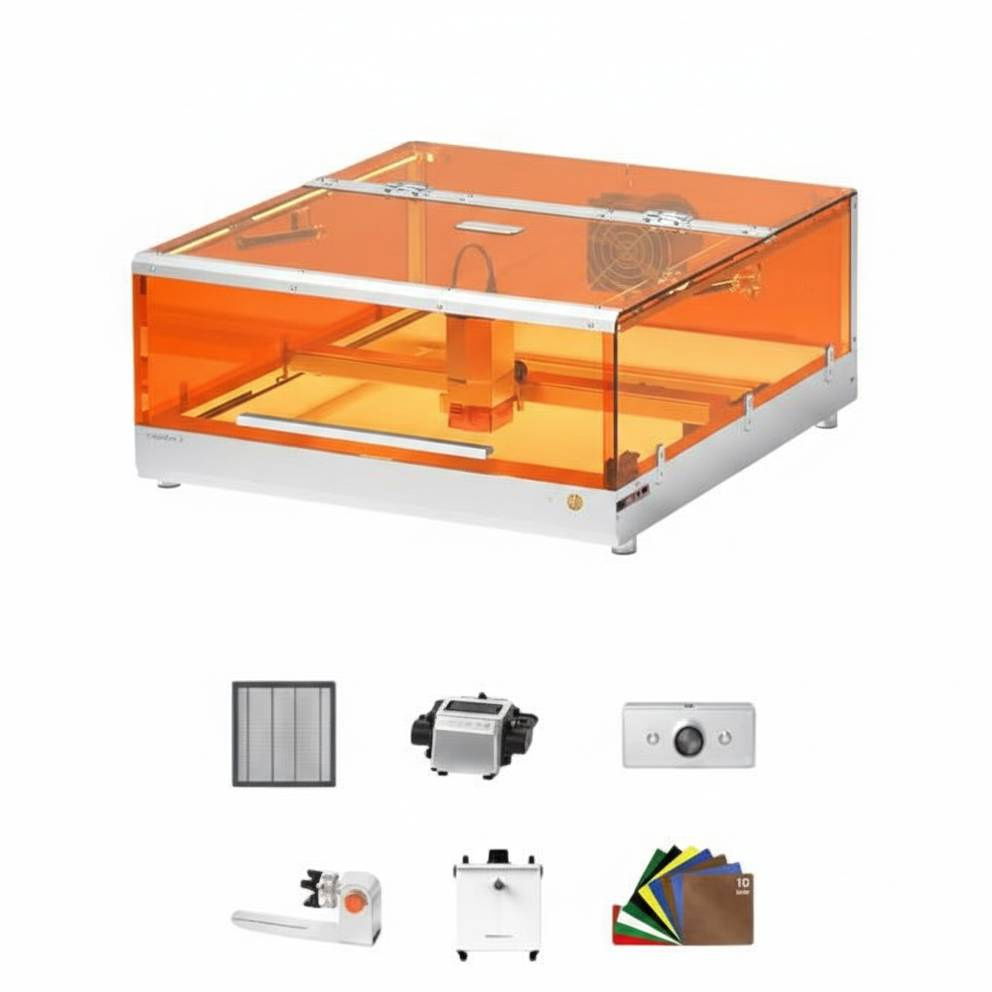

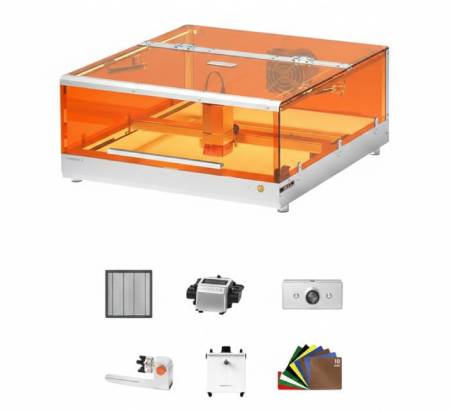

A rich set of accessories expands the plotter's capabilities.
Professional accessory set for TOOCAA L2 40 W - maximum functionality

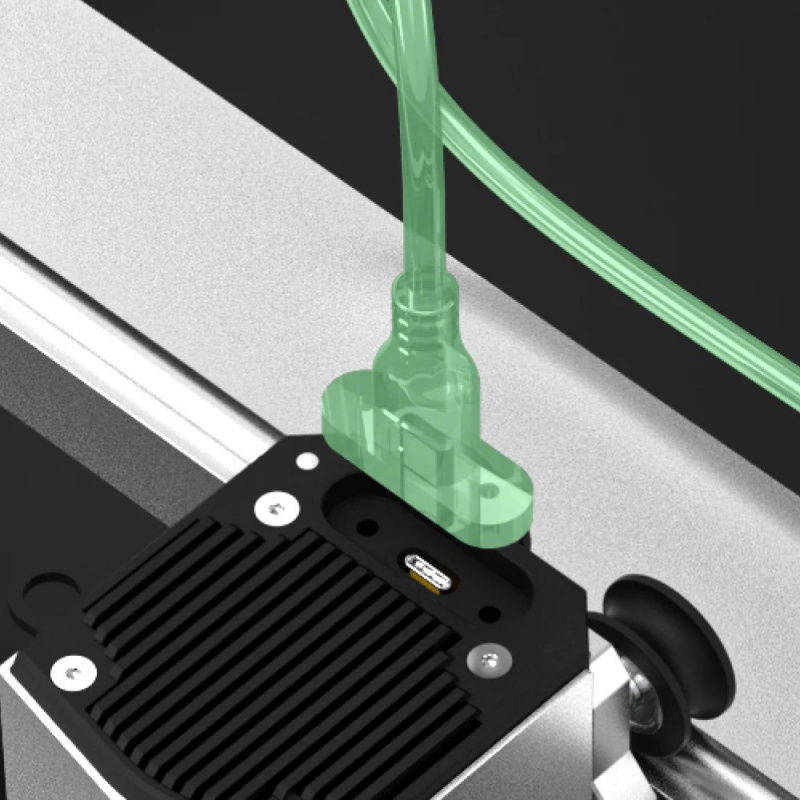

The enhanced version of the TOOCAA L2 40W laser plotter includes a complete accessory package that allows you to fully utilize the device's potential. The Air Assist module improves cutting quality by continuously blowing air into the laser area, reducing burn marks and improving material edges. The 400 x 400 mm honeycomb work surface stabilizes the workpiece and reduces beam reflections, resulting in a better finish. The positioning camera allows for precise design placement on the material, while the rotary module allows for engraving cylindrical objects such as mugs, bottles, and thermoses. Additionally, the kit includes a Smoke Purify air purifier , which effectively filters smoke and fumes generated during operation, and a Magic Box – a set of cutting and engraving materials , making the device fully ready for intensive use from the very first time you turn it on.
Contents of the set
- TOOCAA L2 laser plotter
- 40W laser module
- Air Assist module
- Honeycomb work panel 400 x 400 mm
- Camera
- Rotary module
- Air purifier
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- Samples of materials for cutting and engraving
- User manual

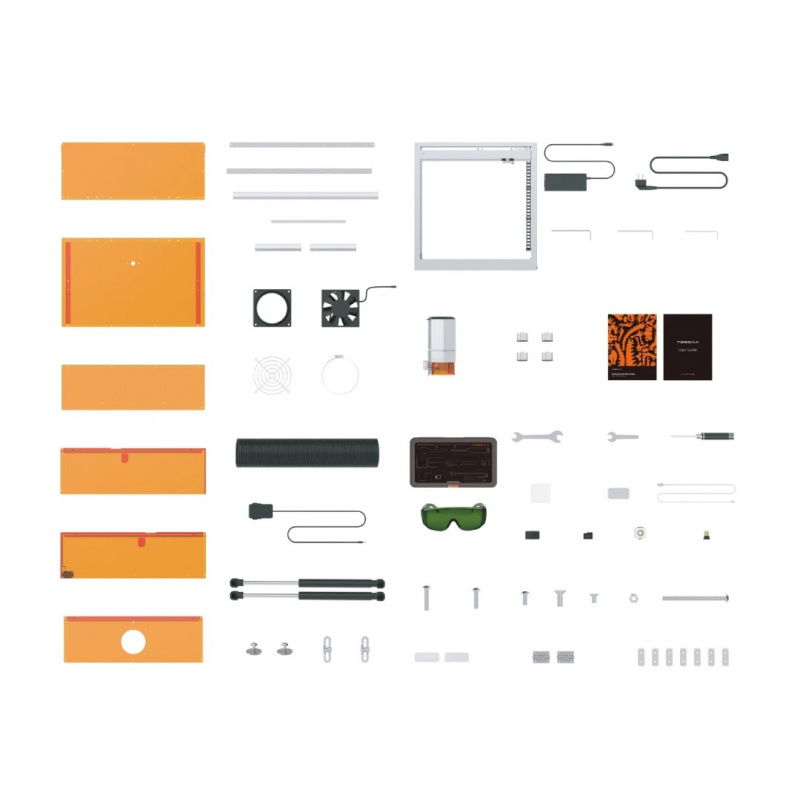

Elements included in the set.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 40 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 15 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.13 x 0.15 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 10A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 240 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
