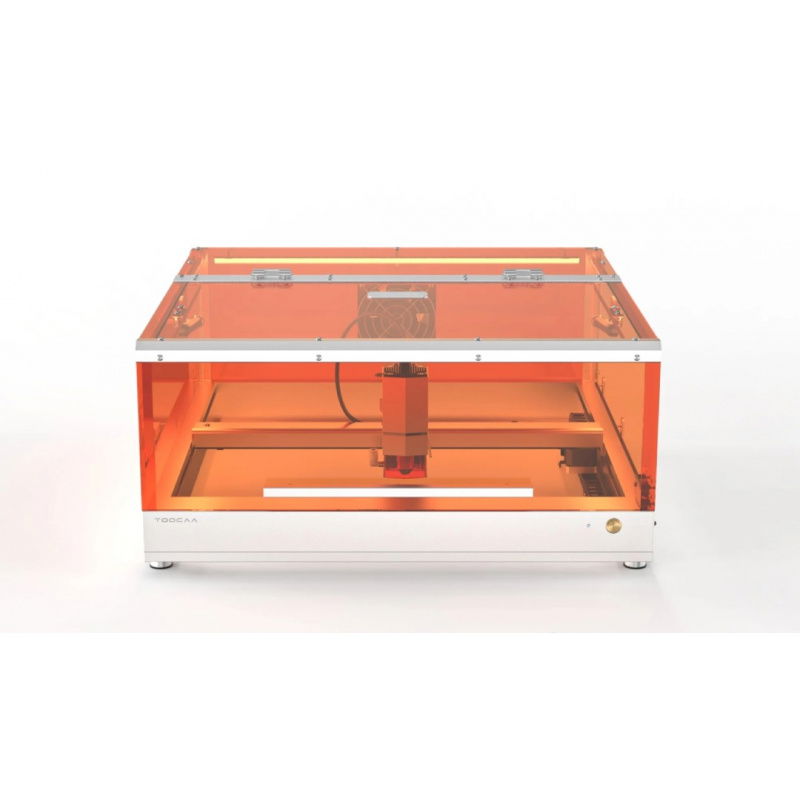

Product description: TOOCAA L2 40 W laser plotter - Plus set
The TOOCAA L2 is a powerful laser plotter designed for users who demand high power and precise material processing. Equipped with a 40W diode laser , it enables efficient cutting of elements up to 15mm thick (wood, MDF) and precise, deep engraving. A spacious 415 x 395mm work area combined with a 0.01mm positioning accuracy allows for the implementation of even complex projects while maintaining high-quality details. The robust aluminum and acrylic construction ensures stability, durability, and a modern look. The plotter is compatible with TOOCAA Studio, LightBurn, and LaserGRBL software, as well as Windows, macOS, and Linux systems, providing a flexible design environment. The Plus version has been expanded with Air Assist , a 400 x 400mm honeycomb panel, a positioning camera, and a set of materials , ensuring the device is fully prepared for operation from the very first time.

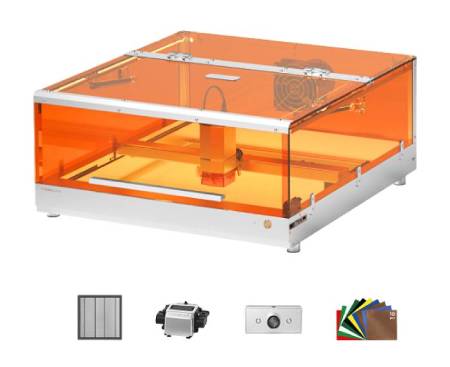

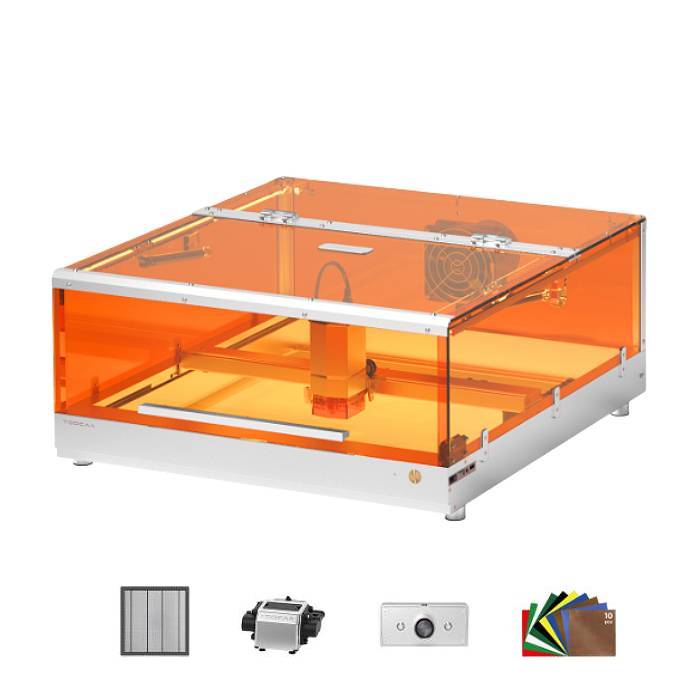

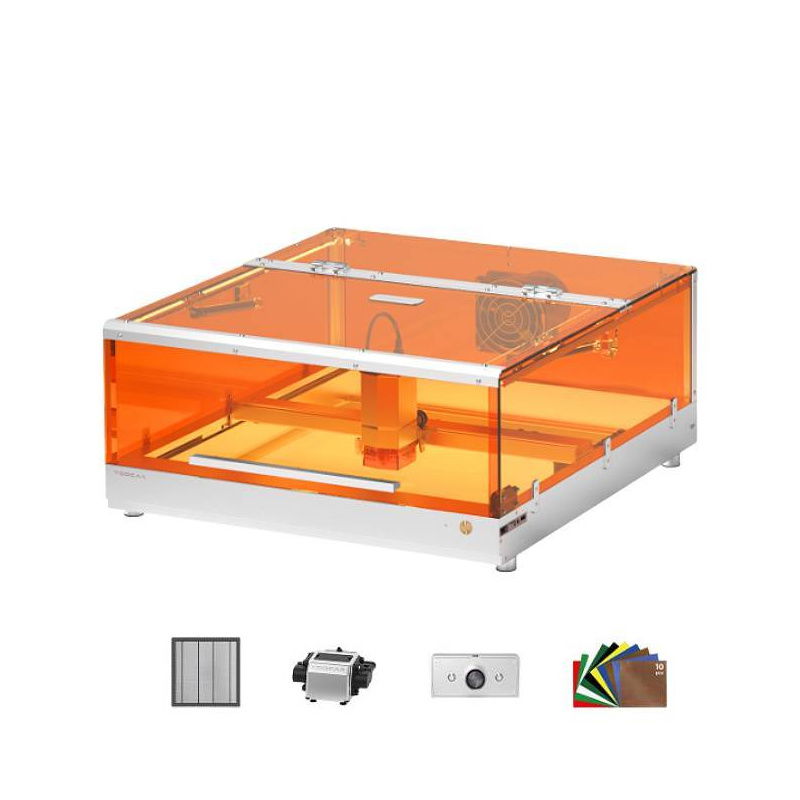

TOOCAA L2 40 W laser plotter - Plus kit.
The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.

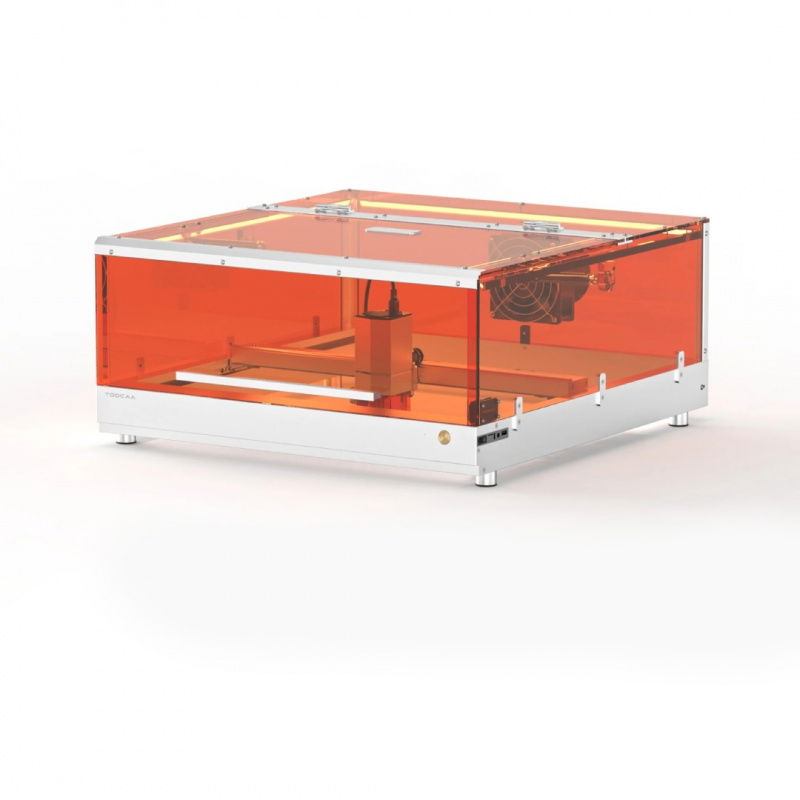

Advanced security systems and closed design
The TOOCAA L2 laser cutter is designed with maximum user safety in mind, both in home and professional environments. The sealed acrylic housing effectively blocks laser radiation, and the Open Lid Interlock system instantly turns off the laser when the cover is opened . The device is also equipped with a flame sensor, a tilt sensor, and a physical USB security key , significantly minimizing the risk of malfunctions or uncontrolled operation. These features allow you to focus on your project while maintaining full control over the process.
Efficient smoke extraction and intelligent LED lighting

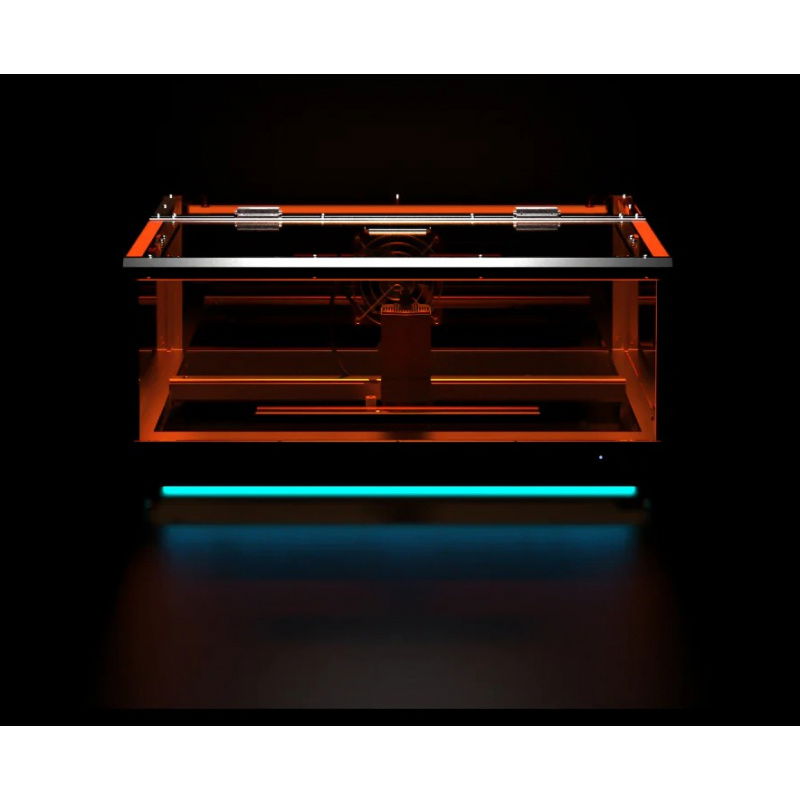

The TOOCAA L2 features a sophisticated smoke extraction system that effectively removes fumes generated during engraving and cutting. The enclosed housing allows for easy connection of an optional air purifier or external ventilation, improving work comfort and engraving quality. Built-in LED lighting serves as an information display and illuminates the work area, facilitating precise material positioning. Dynamic lighting also allows for quick recognition of the device's current operating status.
Easy installation and quick preparation for operation
The TOOCAA L2 laser cutter is designed as a plug-and-play device, ready to operate almost immediately after unpacking . The factory-assembled design and quick-connect laser module significantly reduce installation and setup time. Intuitive guides and a closed mechanical system ensure stable operation without the need for complex calibration . This makes the device suitable for both beginners and advanced operators.
Versatile material handling and compatibility
The plotter supports a wide range of materials such as wood , acrylic, leather, fabric, cardboard, plastic, ceramics, and anodized aluminum. USB Type-C and TF card connectivity enable flexible project management without the need for a constant connection to a computer. Compatible with TOOCAA Studio , LightBurn , and LaserGRBL for Windows, macOS, and Linux, TOOCAA L2 can be easily integrated into your work environment.
TOOCAA L2 offers a large work area (415 x 395 mm) that allows you to complete multiple projects.
A rich set of accessories expands the plotter's capabilities.
Extended accessory package for TOOCAA L2 40 W - fully ready to work

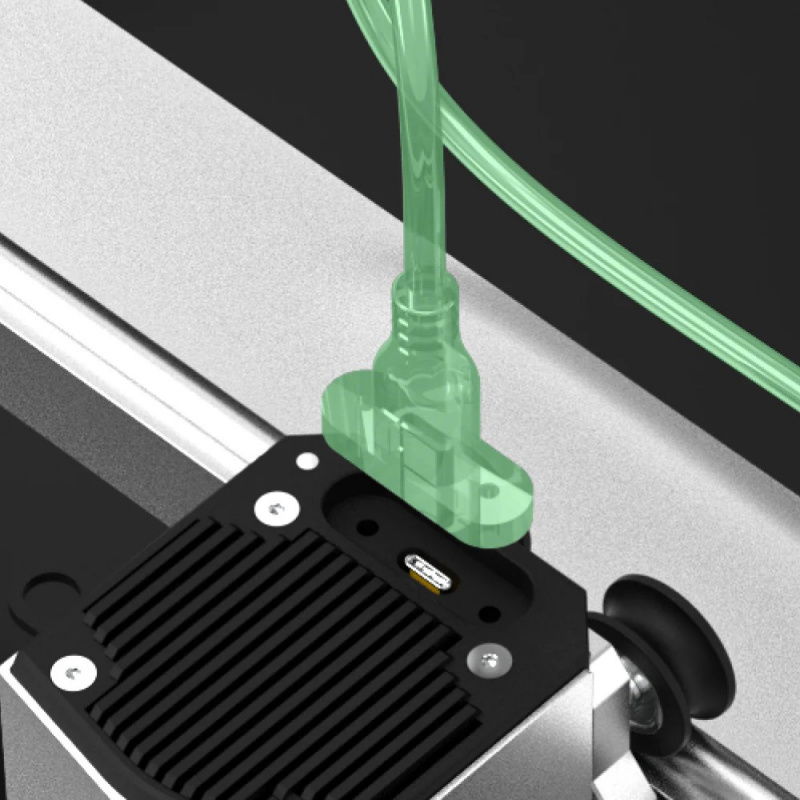

The Plus version of the TOOCAA L2 40W laser plotter includes a carefully selected set of accessories that allow you to maximize the device's capabilities. The Air Assist system ensures constant airflow in the laser's operating area, reducing burns and improving edge quality during cutting. A 400 x 400 mm honeycomb panel stabilizes the material and reduces beam reflections from the substrate, resulting in an aesthetic and precise finish. A positioning camera facilitates precise design placement on the workpiece, increasing comfort and efficiency. The set also includes a Magic Box – a set of cutting and engraving materials , ensuring the device is fully prepared for intensive use from the very first time.
Contents of the set
- TOOCAA L2 laser plotter
- 40W laser module
- Air Assist module
- Honeycomb work panel 400 x 400 mm
- Camera
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- Samples of materials for cutting and engraving
- User manual

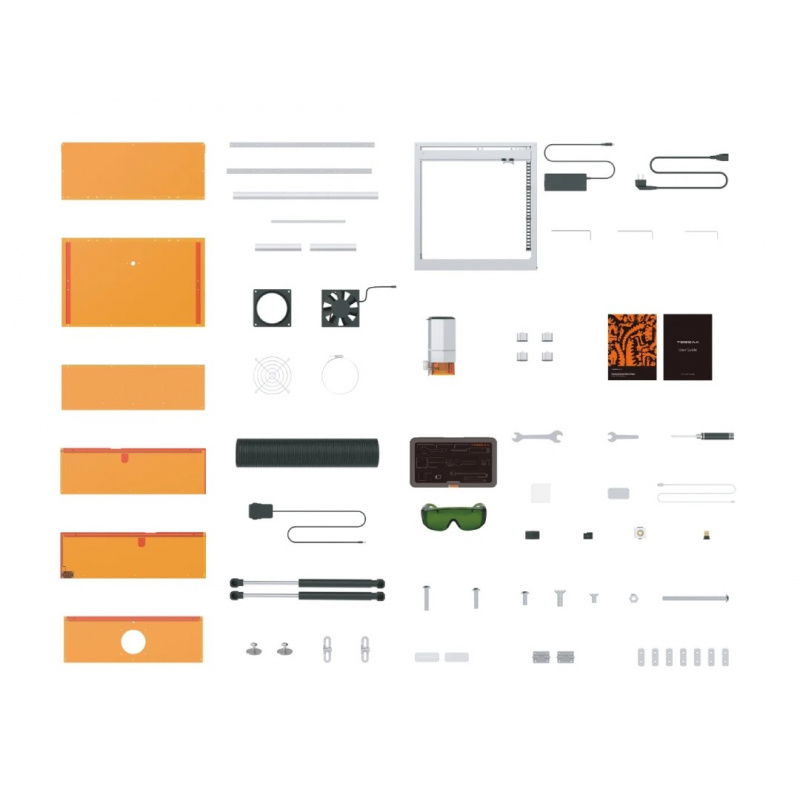

Elements included in the set.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 40 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 15 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.13 x 0.15 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 10A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 240 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
