Product description: TOOCAA L2 20 W laser plotter - Advanced kit
The TOOCAA L2 is a modern laser plotter that combines high-power 20W laser technology with a functional housing. A large work area of 415 x 395 mm allows for medium- and large-scale projects, while an engraving speed of up to 400 mm/s ensures efficient work. The enclosed design with transparent acrylic panels effectively blocks laser radiation and allows for process control . A stable aluminum frame and enclosed guides ensure high accuracy and long-lasting operation. The plotter supports popular TOOCAA Studio, LightBurn, and LaserGRBL software, allowing for easy integration into existing design environments. A USB Type-C interface and TF card support allow for convenient project transfer. Built-in safety systems, such as flame detection, a tilt sensor, and a cover lock , make the TOOCAA L2 ideal for both hobbyist and professional workshops. The Advanced kit includes additional accessories such as Air Assist, camera, honeycomb panel and rotating module , which significantly expand the application possibilities.

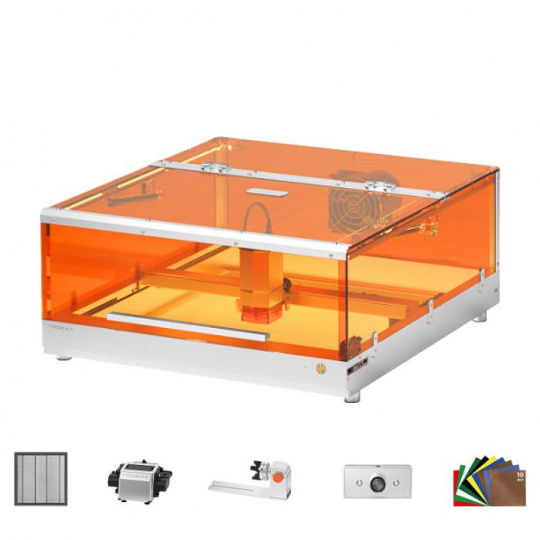

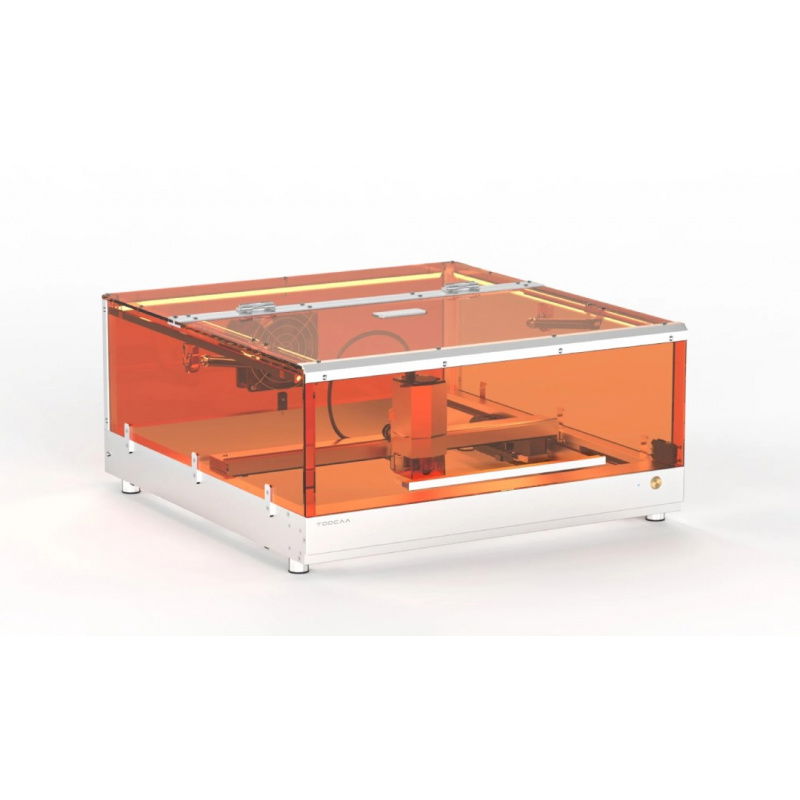

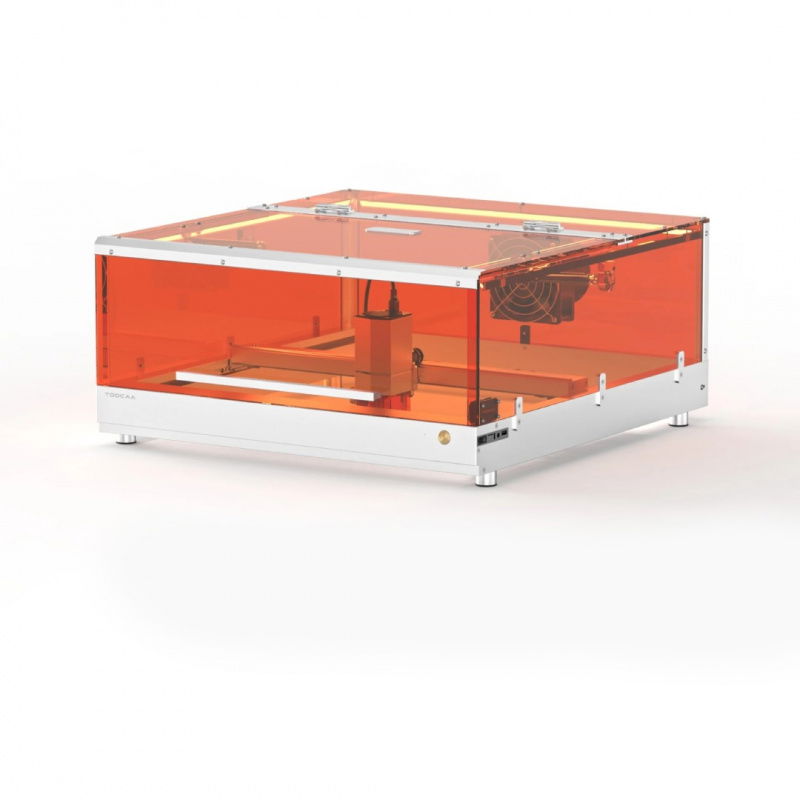

TOOCAA L2 20 W laser plotter - Advanced kit.

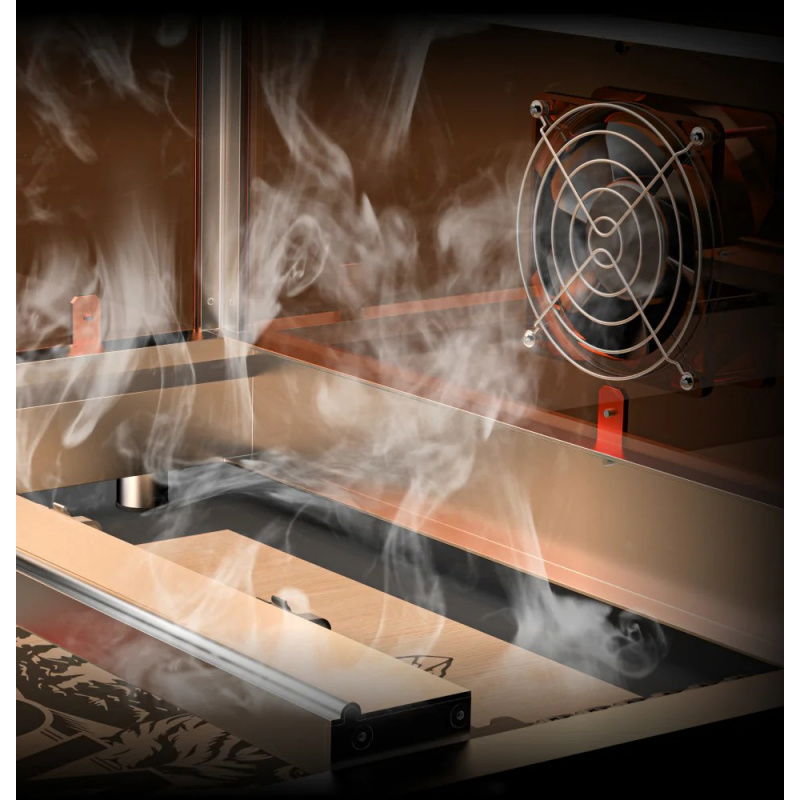

The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems and closed design
The TOOCAA L2 20W laser cutter is designed with maximum user safety in mind, both in home and professional environments. The sealed acrylic housing effectively blocks laser radiation, and the Open Lid Interlock system instantly turns off the laser when the cover is opened . The device is also equipped with a flame sensor, a tilt sensor, and a physical USB security key , significantly minimizing the risk of malfunctions or uncontrolled operation. These features allow you to focus on your project while maintaining full control over the process.

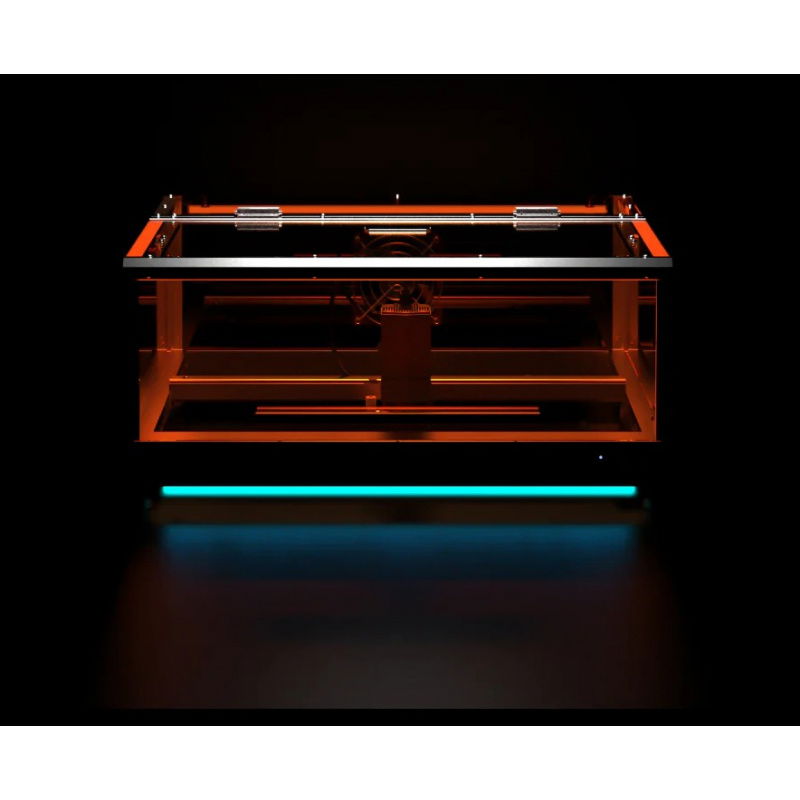

Efficient smoke extraction and intelligent LED lighting
The TOOCAA L2 features a sophisticated smoke extraction system that effectively removes fumes generated during engraving and cutting. The enclosed housing allows for easy connection of an optional air purifier or external ventilation, improving work comfort and engraving quality. Built-in LED lighting serves as an information display and illuminates the work area, facilitating precise material positioning. Dynamic lighting also allows for quick recognition of the device's current operating status.
Easy installation and quick preparation for operation

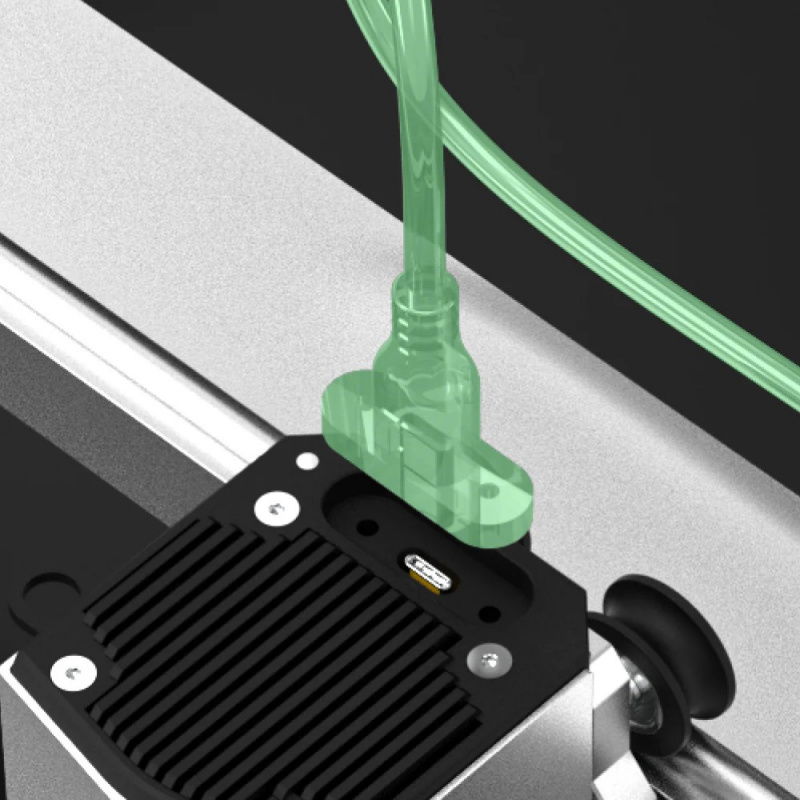

The TOOCAA L2 laser plotter is designed as a plug-and-play device, ready to use almost immediately after unpacking . The factory-assembled design and quick-connect laser module significantly reduce installation and setup time. Intuitive guides and a closed mechanical system ensure stable operation without the need for complex calibration . This makes the device suitable for both beginners and experienced users. as well as advanced operators.
Versatile material handling and compatibility
The plotter supports a wide range of materials, including wood , acrylic, leather, fabric, cardboard, plastic, ceramics, and anodized aluminum . USB Type-C and TF card connectivity allow for flexible project management without the need for a constant connection to a computer. Compatible with TOOCAA Studio , LightBurn , and LaserGRBL for Windows, MacOS, and Linux, TOOCAA L2 can be easily integrated into your work environment.

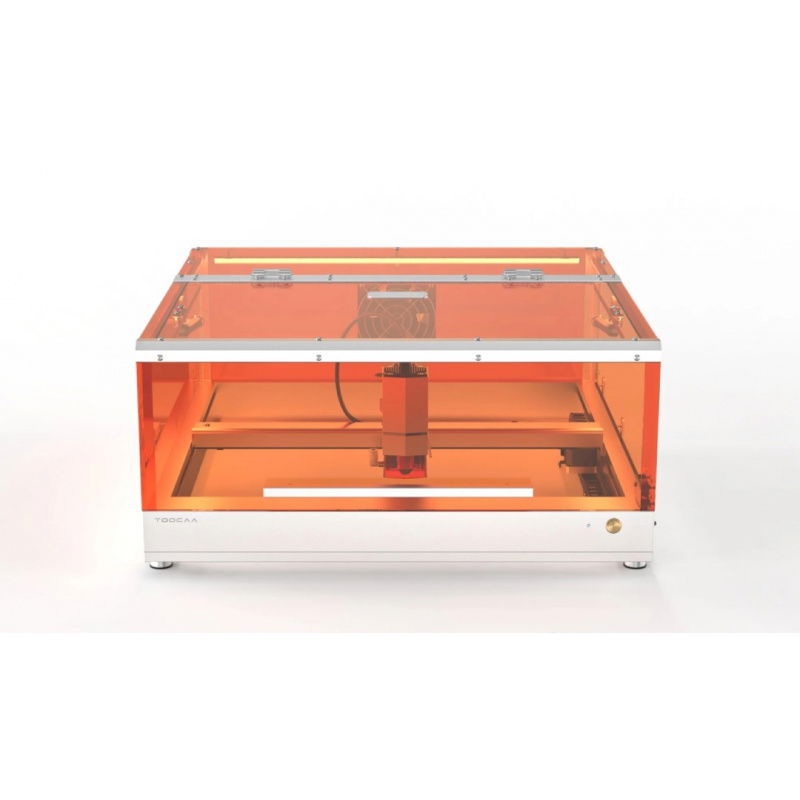

TOOCAA L2 offers a large work area (415 x 395 mm) that allows you to complete multiple projects.
A rich set of accessories expands the plotter's capabilities.
An extended set of accessories to increase your work possibilities
The TOOCAA L2 20W Advanced Laser Plotter comes with a full set of accessories that significantly expand the device's range of applications. The Air Assist module improves cutting and engraving quality by effectively removing smoke and reducing burnt edges. The honeycomb work panel facilitates stable material positioning and reduces laser beam reflections from the substrate. A positioning camera allows for precise design placement directly on the material, while the rotary module allows for engraving cylindrical objects such as cups and bottles. Additionally, the set includes a Magic Box with cutting and engraving materials , making this package ready for advanced work from the very first time.
Contents of the set
- TOOCAA L2 laser plotter
- 20W laser module
- Air Assist module
- Honeycomb work panel 400 x 400 mm
- Camera
- Rotary module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- Samples of materials for cutting and engraving
- User manual

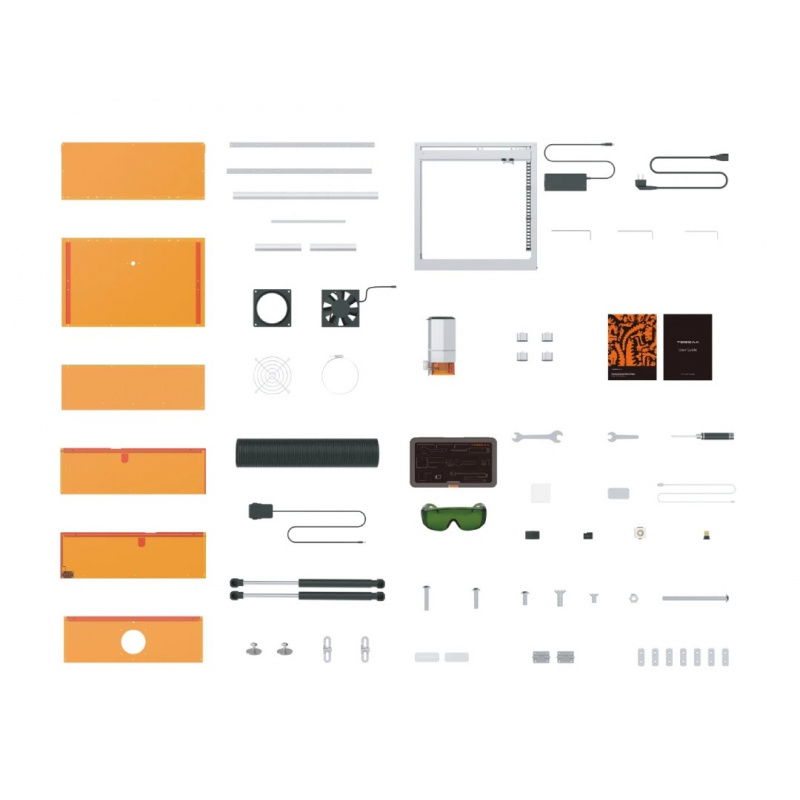

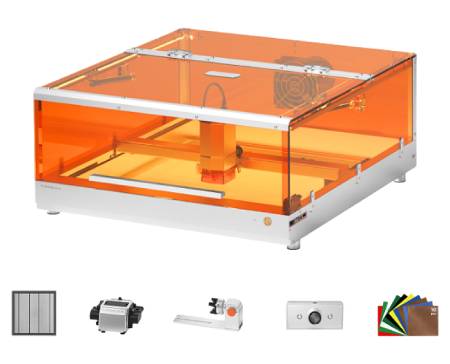

Elements included in the set.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 20 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 10 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.15 x 0.27 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 5A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 120 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
