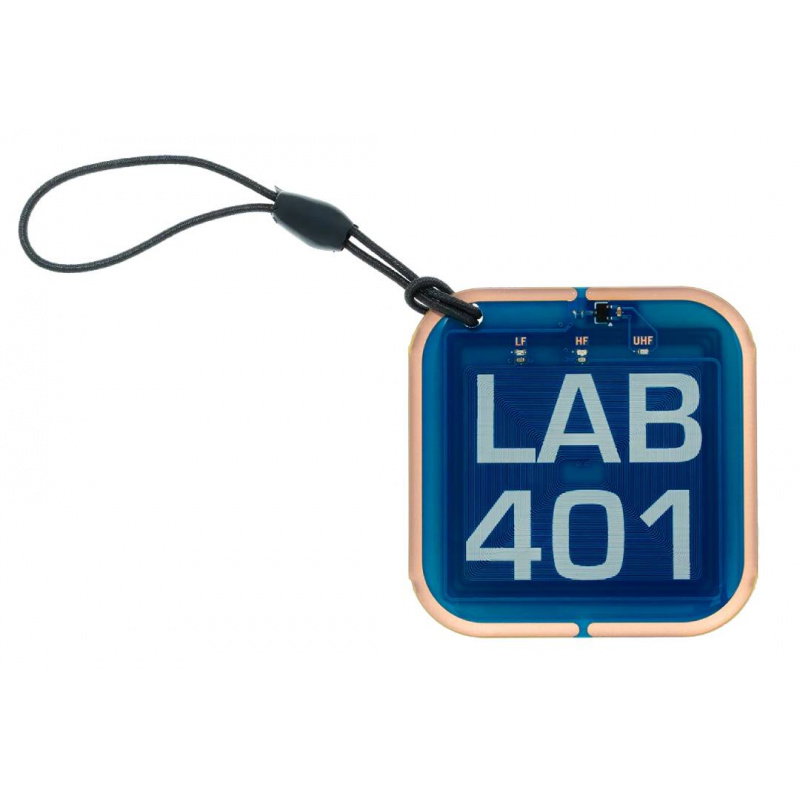

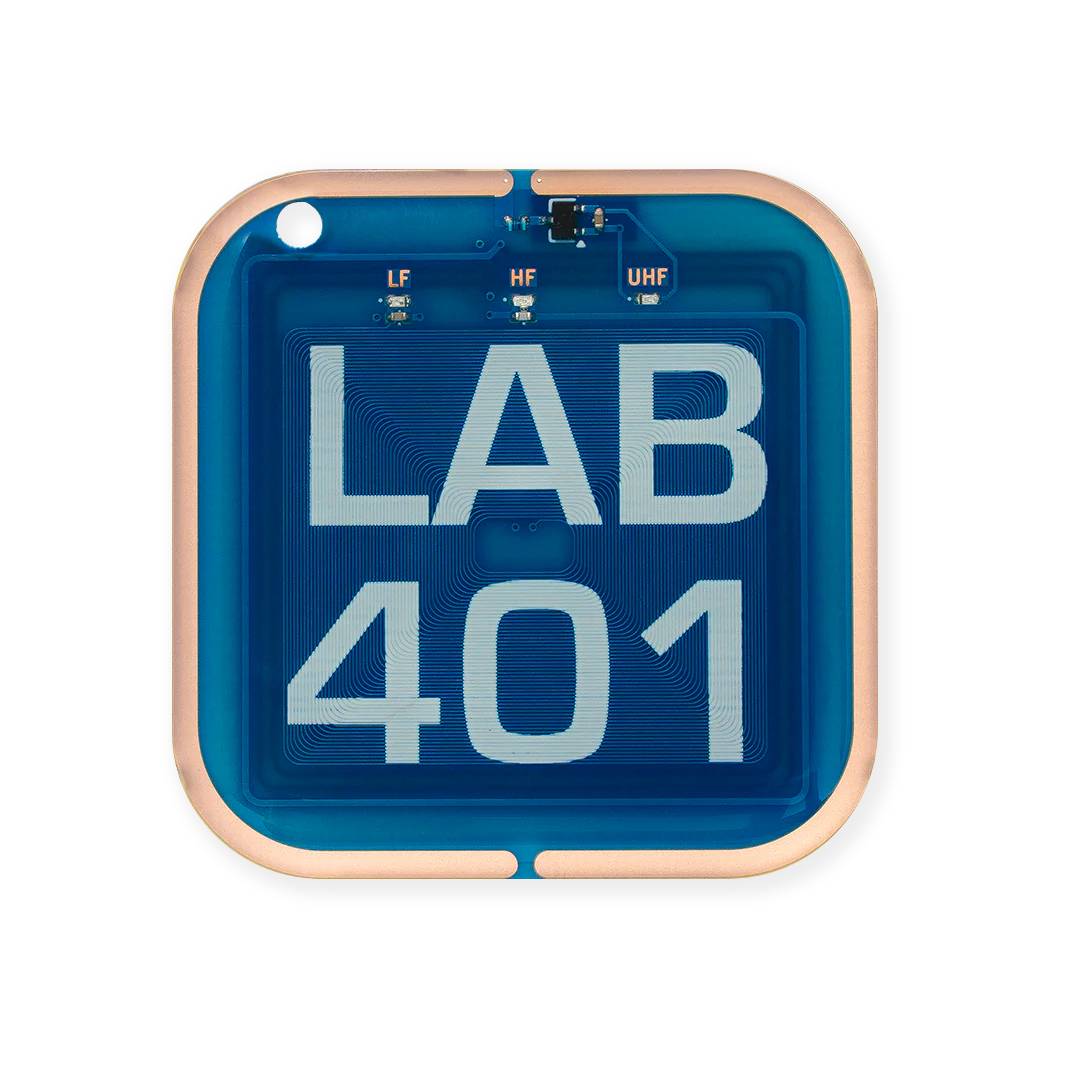

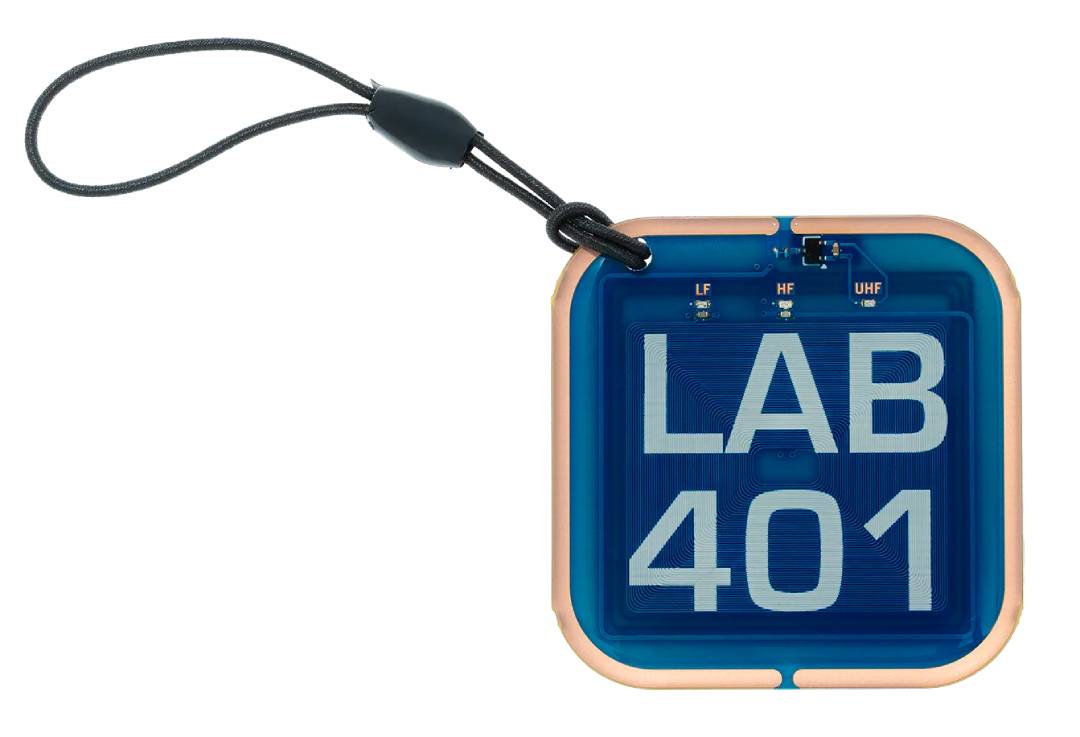

Product description: RFID Field Detector - RFID LF/HF field detector - Lab401
The RFID Field Detector from Lab401 was designed for radio frequency identification (RFID) specialists, pentesters, integrators, and electronics hobbyists. The device allows you to instantly detect the presence of an RFID field and determine the frequency being used without the need for additional measurement equipment. The detector is completely passive – it has no batteries, switches, or software requiring updates. Simply hold it near an RFID reader , and the appropriate LED will indicate the detected frequency band. Its rugged construction and compact size make the device easy to carry and practical as a diagnostic tool.

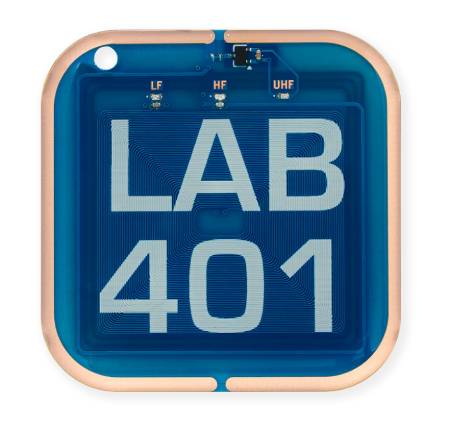

RFID Field Detector - RFID LF/HF field detector - Lab401.
The RFID field detector operated in the LF (125 kHz) and HF (13.56 MHz) bands.
Main features of the detector
- Detection of RFID LF and HF fields : detects readers operating at frequencies of 125 kHz and 13.56 MHz
- Battery-free operation : draws power directly from the RFID field, so it is always ready for use
- LED indication : allows you to quickly recognize the detected frequency band
- Compact design : small dimensions allow you to carry the device on your keys or in your pocket
- Durable construction : epoxy resin layer protects electronics against mechanical damage
- Easy to use : no configuration, firmware updates or additional software required
Technical specifications of the RFID detector
- Type: Passive RFID Field Detector
- Supported bands: LF, HF
- LF frequency: 125 kHz
- HF frequency: 13.56 MHz
- LF indication: red LED
- HF signaling: green LED
- Power supply: battery-free, energy obtained from the RFID field
- Housing: epoxy resin protected
- Mounting: keychain holder
- Dimensions: 42 x 32 x 3 mm
- Weight: 10 g
Kit contents
- 1x RFID Field Detector LF/HF
- 1x Keychain holder
The set includes a pendant to attach the detector as a keychain.
