Product description: Sonoff SNZB-05P - ZigBee flood sensor + WLDC200 cable - Android / iOS application
The Sonoff SNZB-05P + WLDC200 set is designed to protect apartments, houses and industrial facilities from flooding. The SNZB-05P sensor uses ZigBee 3.0 technology and offers exceptional precision thanks to its concave design that detects water from a level of 0.5 mm . The set includes a 2 m WLDC200 detection cable that increases the detection range and allows for serial connection for even wider space control. The device works with popular Smart Home platforms and the eWeLink application , offering push, sound and e-mail notifications.
In our offer you will also find other Sonoff devices - check them out!
Sonoff SNZB-05P - ZigBee flood sensor + WLDC200 cable - Android / iOS application.
IP67 protection class construction.
Main features of the set
- High precision moisture detection : SNZB-05P sensor detects water from a level of 0.5 mm thanks to its special concave design
- ZigBee 3.0 communication : reliable operation and lightning-fast data transfer to the gateway
- WLDC200 detection cable included : increases detection range and allows monitoring of hard-to-reach places
- IP67 sealing class : resistant to water and dust, ideal for working in difficult conditions
- Smart notifications : push via eWeLink app, sound via ZigBee gateway, e-mail (for subscribers)
- Compatibility with Smart Home platforms : Amazon Alexa, Google Home, SmartThings, IFTTT, Home Assistant
Detection at the highest level - effectiveness and resistance
The Sonoff SNZB-05P sensor features a well-thought-out design - the concave surface collects water, allowing for instant detection of even the smallest leaks . Gold-plated probes provide corrosion resistance, and the IP67 housing guarantees longevity and reliable operation even in humid environments. The additional WLDC200 cable allows for flood detection along its entire length , which increases the scope of protection, e.g. in basements, under boilers or HVAC installations.
The WLDC200 cable significantly increases the detection range of water leaks.

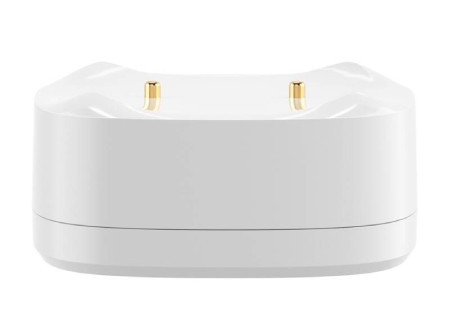

Gold-plated probes provide corrosion resistance.
ZigBee 3.0 - stable connection in every situation
ZigBee 3.0 is a fast and energy-efficient communication protocol that allows the sensor to maintain constant communication with the gateway even at a distance of up to 130 m in open space. This makes the system immune to WiFi interference , and local ZigBee scenes work even in the absence of Internet access, enabling the activation of the gateway's sound signal and automation with other devices.
The sensor requires connection to a ZigBee gateway - e.g. ZBBridge/-P/-U, NSPanel Pro or iHost .
Smart Home Integration - Full Control via eWeLink
The SNZB-05P + WLDC200 set integrates seamlessly with smart home ecosystems such as Amazon Alexa, Google Home, SmartThings or Home Assistant (ZHA/Zigbee2MQTT). The eWeLink application offers extensive water detection notifications - push, sound and e-mail (for subscribers). The ability to create automation and local scenes increases safety - the sensor can, for example, automatically turn off the solenoid valve or notify about a leak in real time.

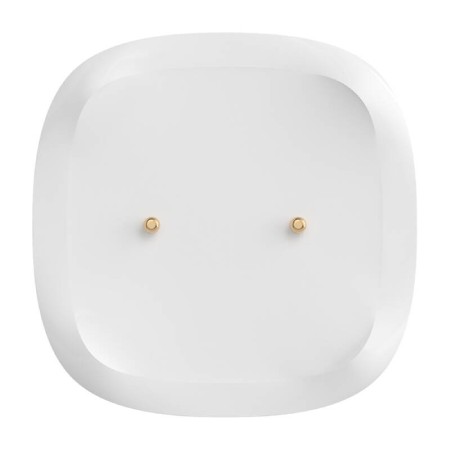

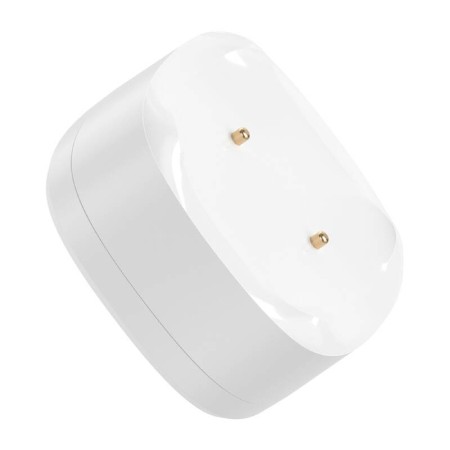

The concave design of the sensor ensures precise water detection down to 0.5 mm.
The sensor will work well in many applications and hard-to-reach places.
Practical applications
The Sonoff SNZB-05P set with the WLDC200 cable will work wherever water leakage can cause damage: in bathrooms, laundries, kitchens, basements, under dishwashers, refrigerators or water tanks . Thanks to its compact dimensions and the possibility of flexible cable arrangement, you can adapt the installation to the specifics of the room. It is also an ideal solution for home automation users - the sensor can become part of a larger security system.
Technical specification of the set
Sensor SNZB-05P
- Communication protocol: ZigBee 3.0
- Power supply: CR2477 3V battery (included)
- Battery life: up to 5 years
- Detection range: water level from 0.5 mm
- Communication range: up to 130 m (in open space)
- Tightness class: IP67
- Compatibility: Amazon Alexa, Google Home, SmartThings, IFTTT, Home Assistant (ZHA, Zigbee2MQTT)
- Operating temperature: -10°C to 60°C
- Operating humidity: 0% RH to 100% RH
- Housing material: PC + ABS
- Dimensions: 48 x 48 x 21.6 mm
- Weight: 45 g
WLDC200 Cable
- Compatibility: SNZB-05P sensor
- Operating temperature: -10°C to 60°C
- Operating humidity: 0% RH to 80% RH
- Material: PC, ABS
- Length: 2 m
- Weight: 32 g
Kit Contents
- 1x Sonoff SNZB-05P Flood Sensor
- 1x Leak Detection Cable WLDC200
- 3x Cable clamps

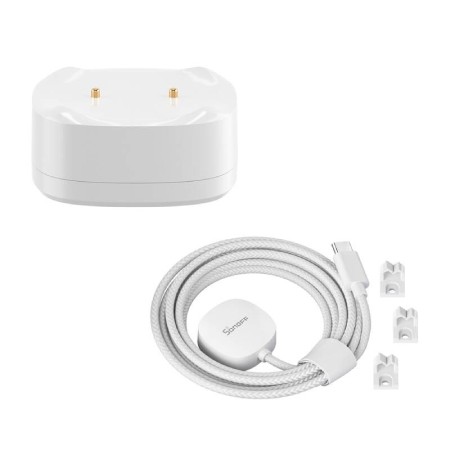

Items included in the set.
