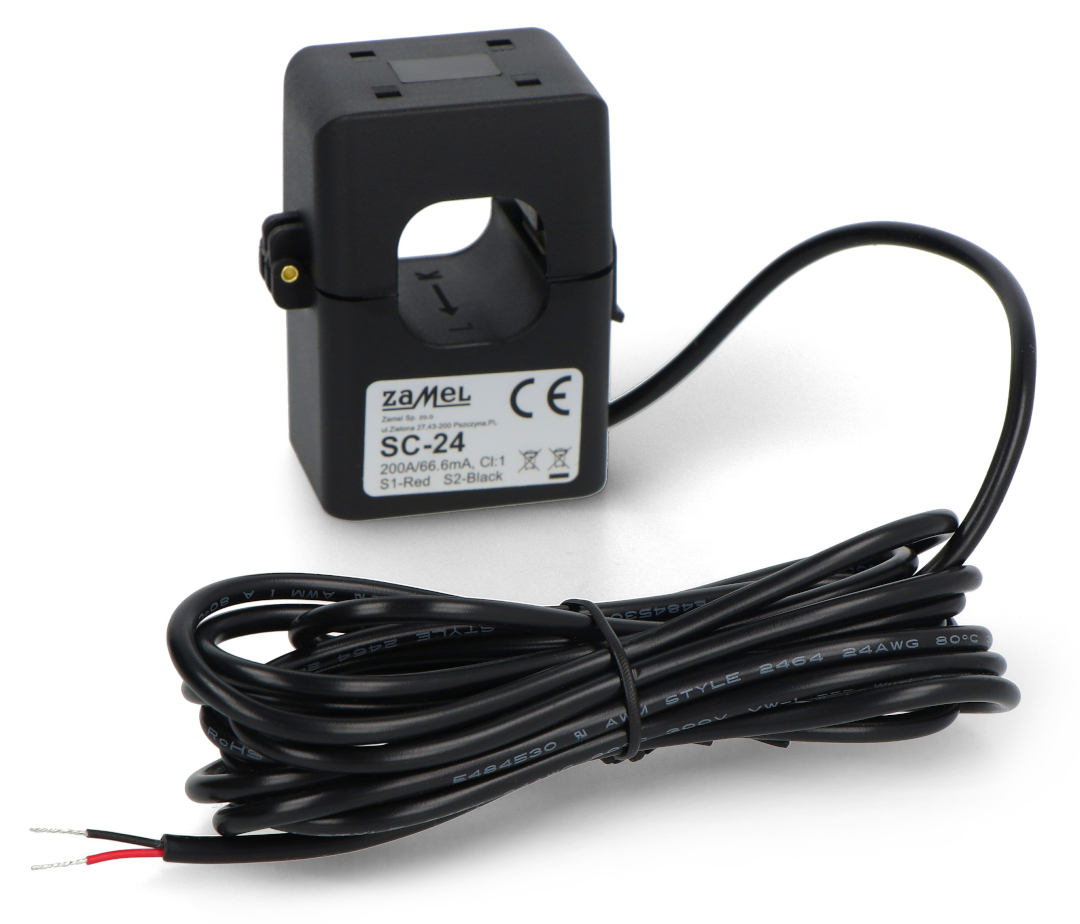

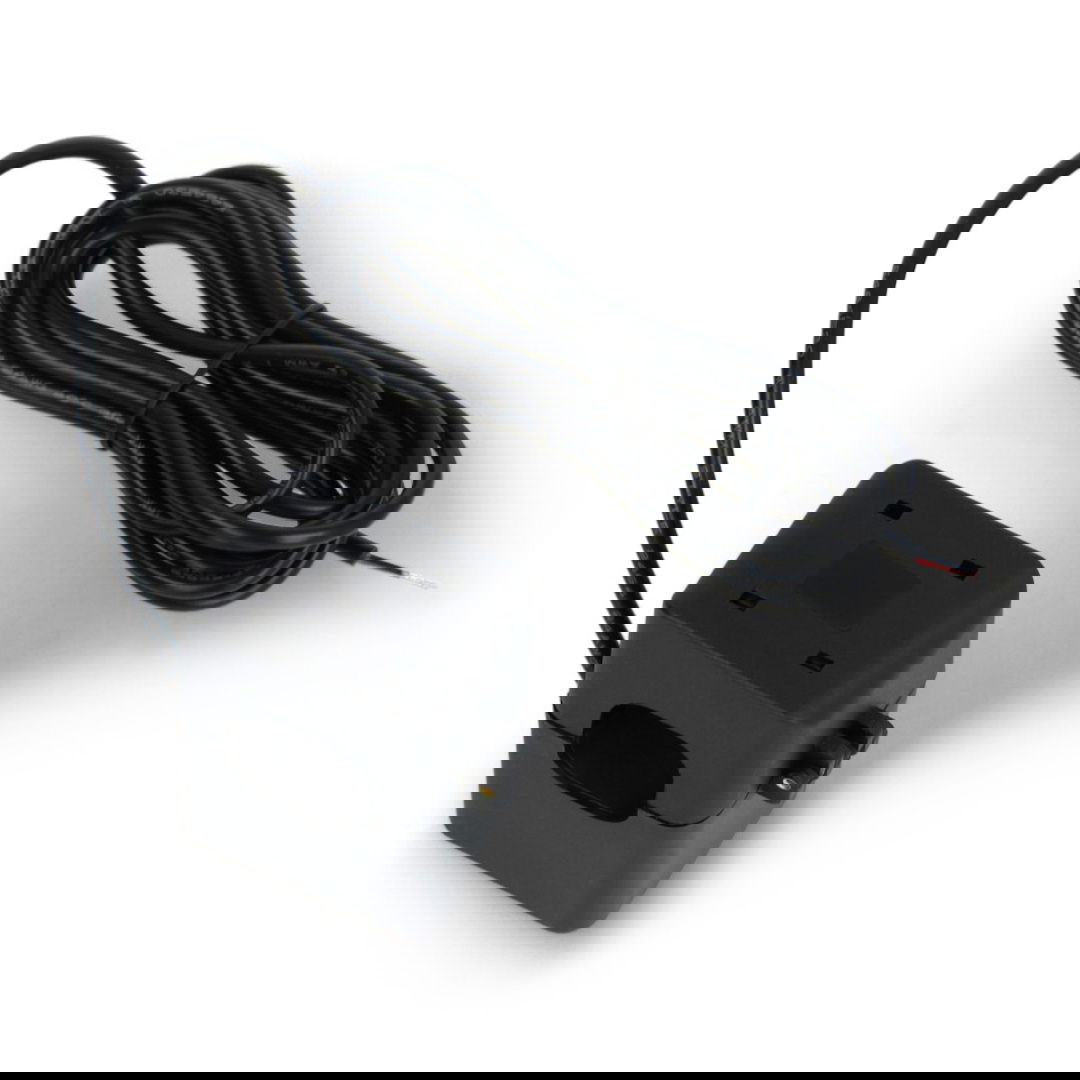

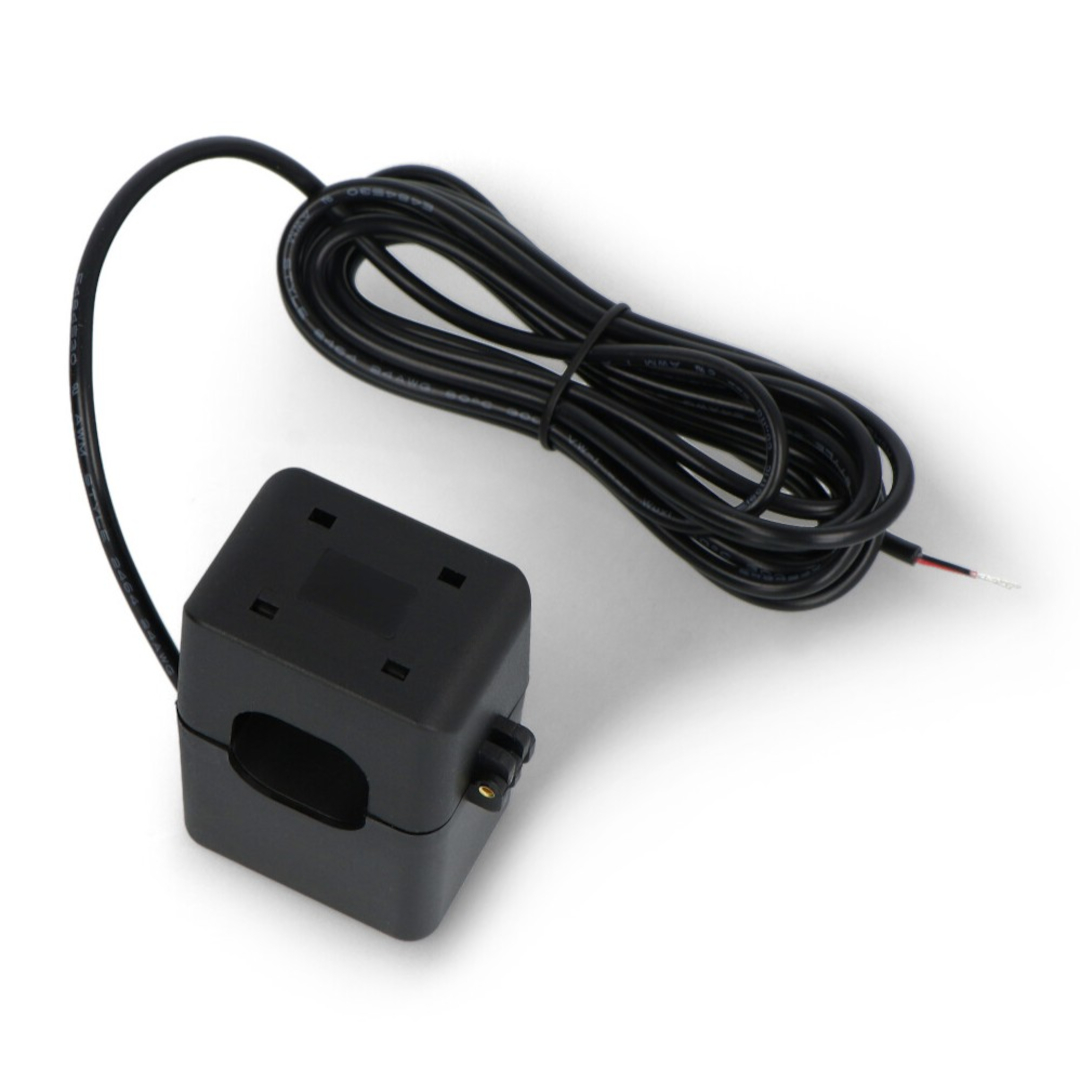

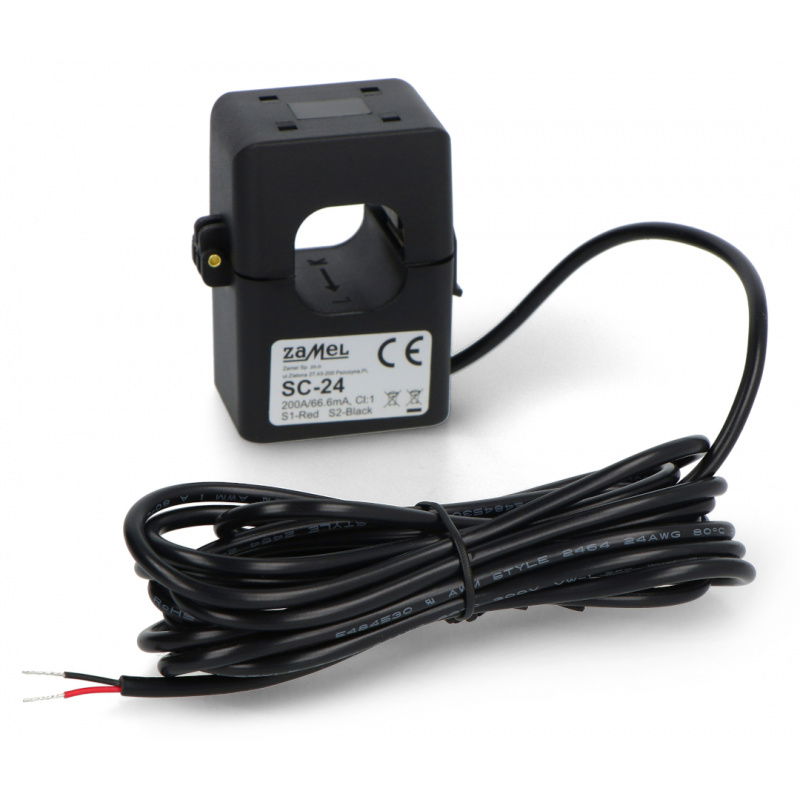

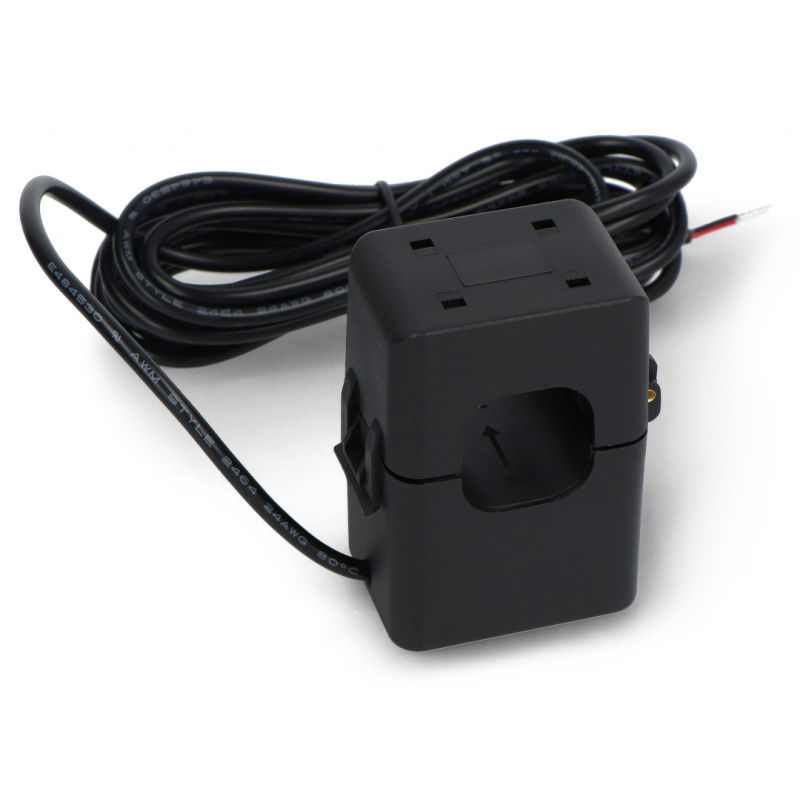

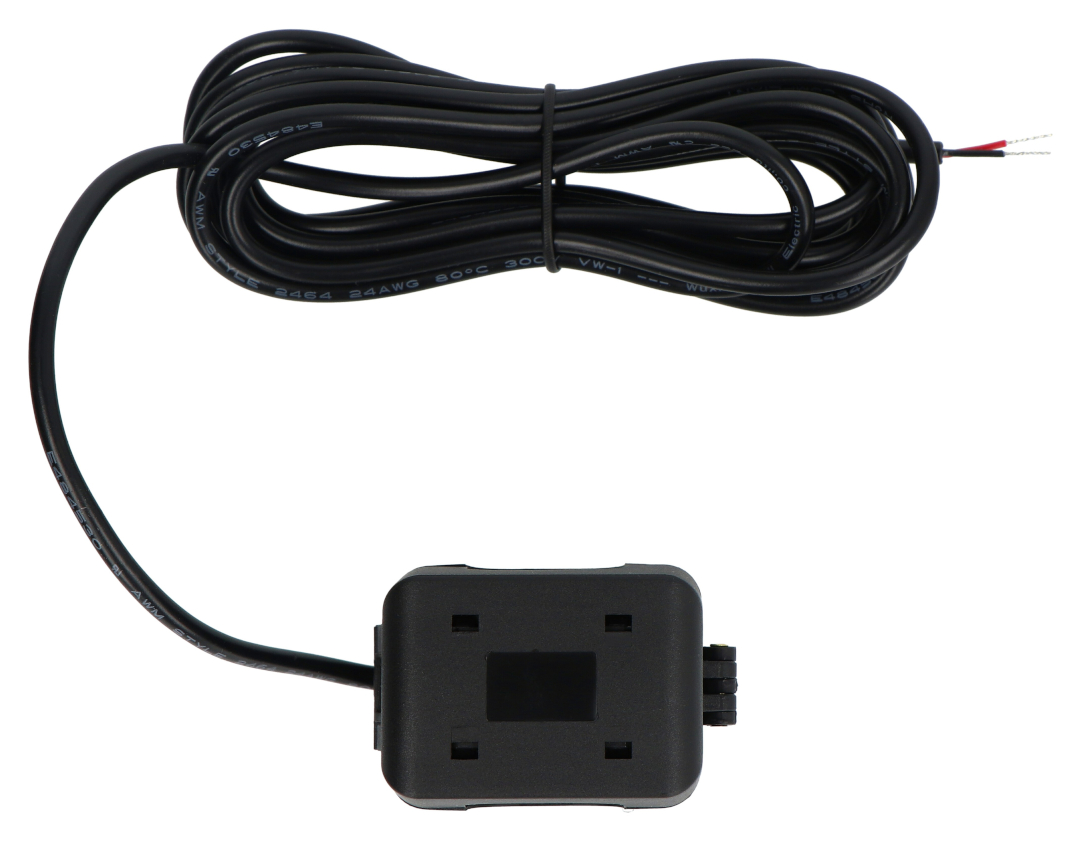

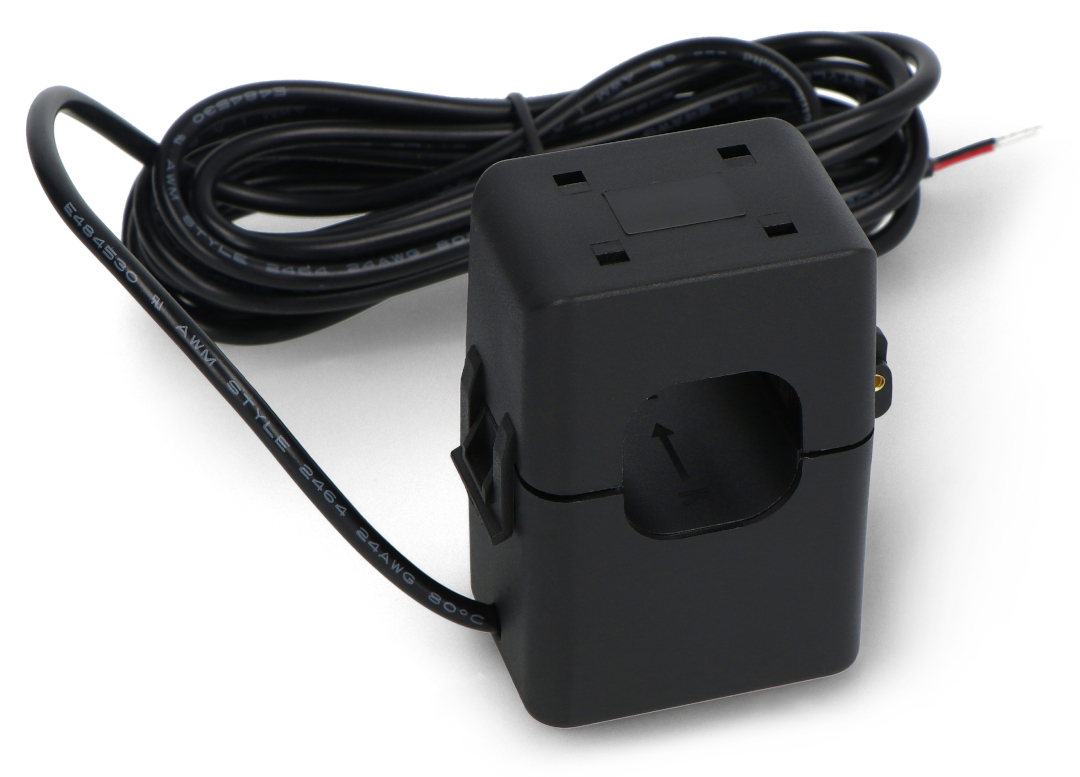

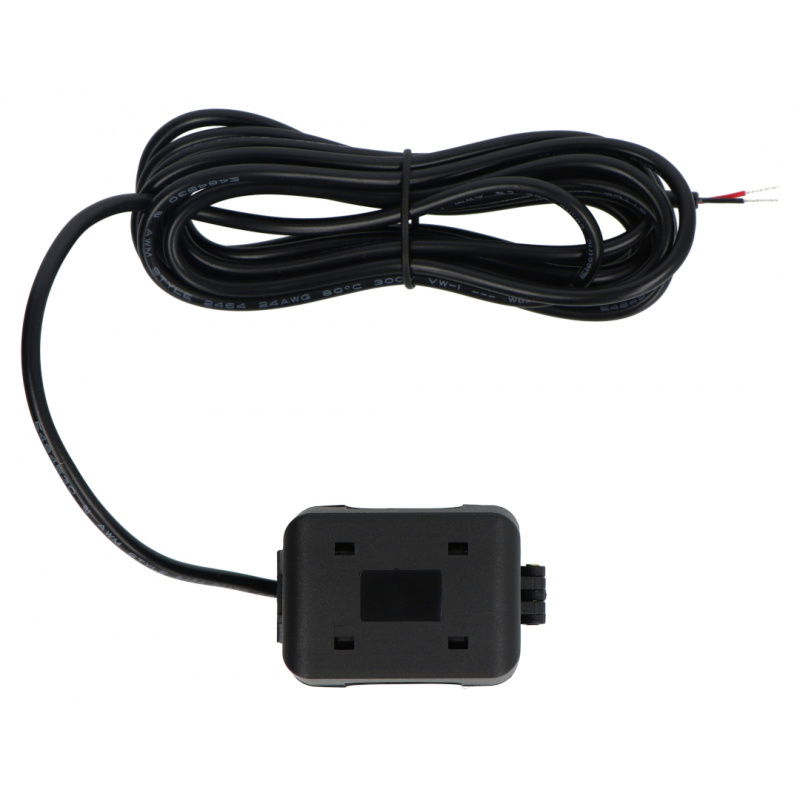

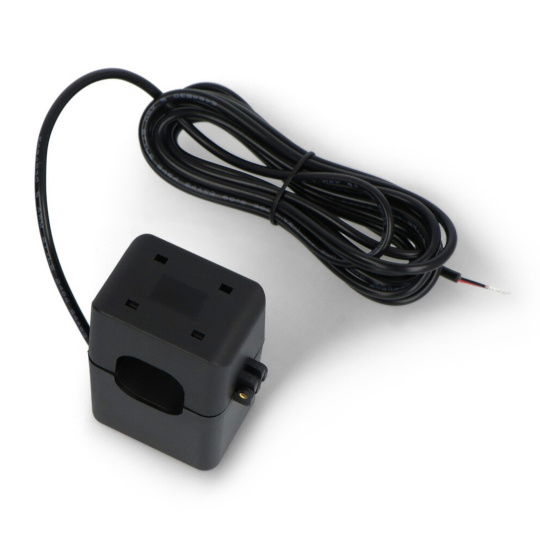

Product description: Current transformer for MEW-01 - 200 A / 66.6 mA - WiFi - Zamel SC-24
The Zamel SC-24 current transformer is a key component enabling accurate energy consumption monitoring in three-phase systems . Designed to work with the MEW-01 monitor , Wi-Fi technology transmits data wirelessly to a mobile app or Supla Cloud panel , making consumption monitoring easy. The device is easy to install, requiring no complicated electrical or telecommunications installation. The SC-24 allows for precise energy consumption tracking, offering data export in popular formats (XLSX, ODS, HTML, CSV), and supports integration with API and MQTT systems. This allows you to continuously monitor energy consumption and generate detailed reports, helping you effectively manage your energy efficiency.
A maximum of 3 transformers can be connected to the MEW-01 energy monitor. The transformers must be connected to the MEW-01 via the MRP-200A expansion module .
Current transformer for MEW-01 - 200 A / 66.6 mA - WiFi - Zamel SC-24.
The SC-24 current transformer must be connected to the MEW-01 via the MRP-200A expansion module.
Main features of a current transformer
- Compatibility with the MEW-01 monitor : allows you to expand its measurement capabilities, ensuring full control over electricity consumption
- Cooperation with the MRP-200A module : the current transformer is designed to work with the expansion module, which enables more accurate measurements in 3-phase systems
- Data analysis in the mobile application : the transformer enables convenient monitoring of energy consumption and export of data to popular formats: xlsx, ods, html, csv
- Wireless communication via WiFi : facilitates integration and control of energy consumption without the need for complex infrastructure
- API and MQTT integration support: enables advanced integration with other systems
- High measurement accuracy: accuracy class 1, ensuring precise results
How does the SC-24 current transformer work?
The SC-24 current transformer works in energy monitoring systems, enabling current measurement in three-phase installations . The device transmits measurement data wirelessly to a mobile app or the Supla Cloud panel , allowing for real-time monitoring of energy consumption in the electrical installation. It is a reliable solution for energy management systems, ensuring accuracy and ease of use thanks to integration with popular systems such as API and MQTT. Thanks to its precise design and easy installation, it allows for quick energy monitoring , providing full control over the performance of electrical systems. Measurement data can be exported to popular formats. such as xlsx or csv, facilitates the creation of reports and analyses in various work environments.
Allows you to control energy consumption via the WiFi network.
The kit allows you to analyze measurements in the mobile application and the Supla Cloud panel.
Technical specifications of the SC-24 transformer
- Maximum continuous primary current: 200 A
- Secondary current: 66.6 mA
- Accuracy: Class 1
- Insulation voltage: 0.66 kV
- Phase angle: less than 2 degrees at 50% of rated current
- Frequency: 50 Hz to 60 Hz
- Operating temperature: -15°C to 60°C
- Pins: two-core cable: S1 - red, S2 - black
- Cable hole diameter: 24 mm
- Transformer cable length: 3 m
- Dimensions: 67 x 54 x 35 mm
- Weight: 0.274 kg
Contents of the set
- 1x Current transformer SC-24
