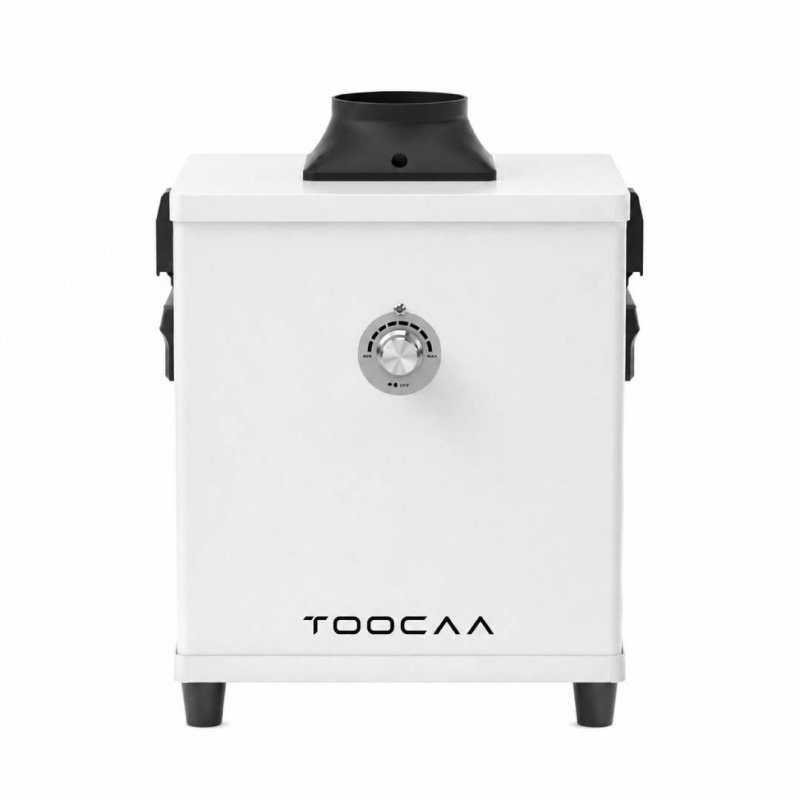

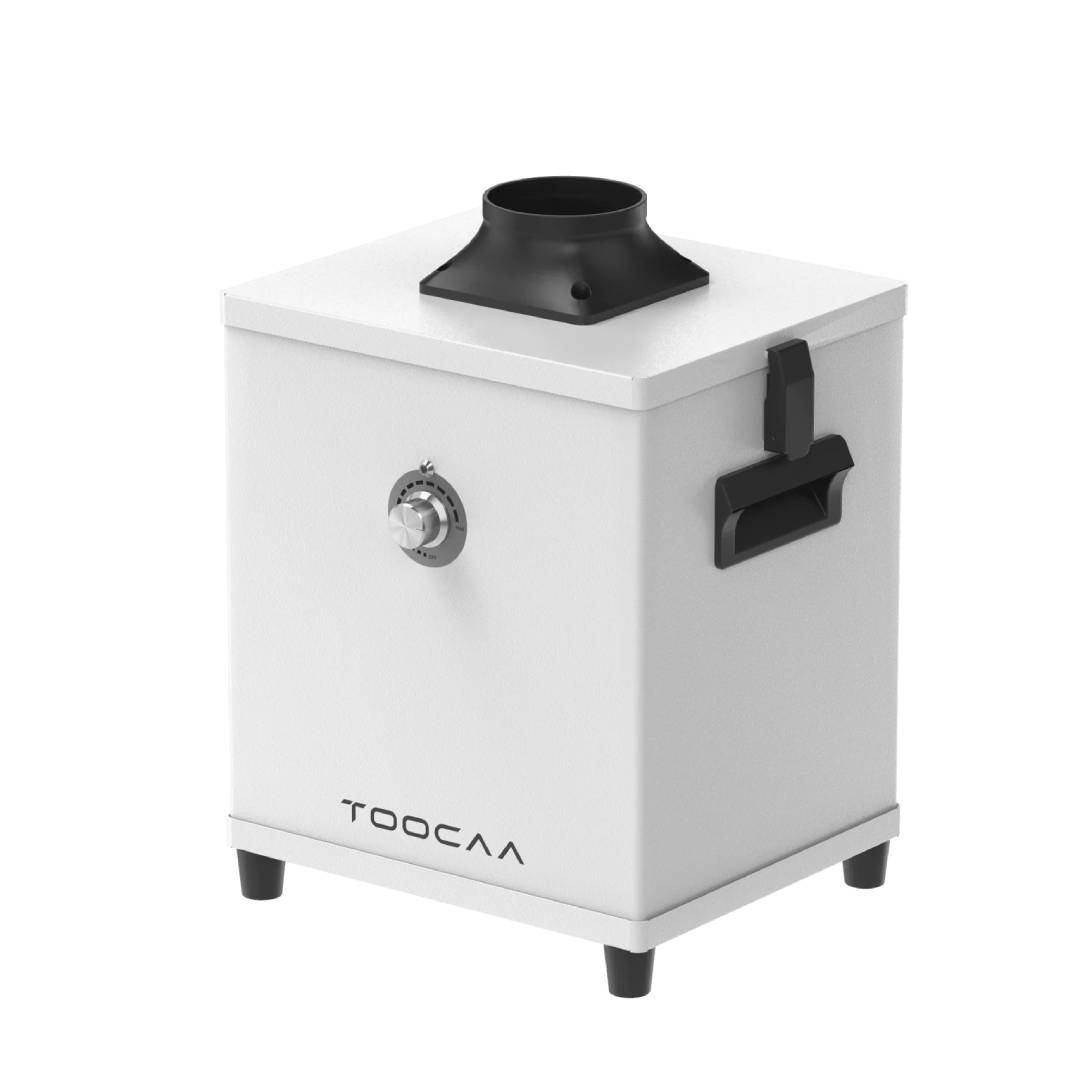

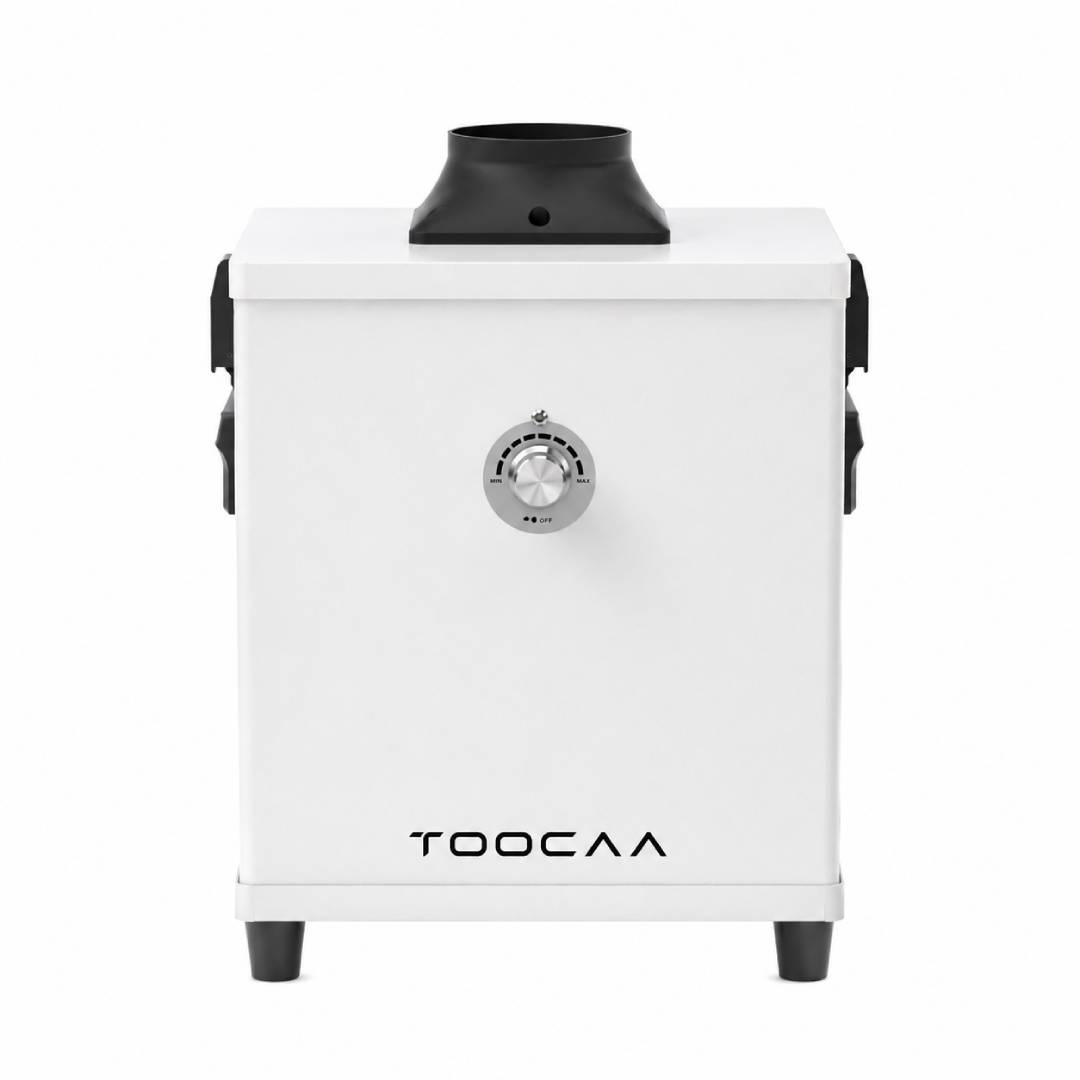

Product description: Smoke Purifier - air purifier for TOOCAA NOVA laser plotters
The TOOCAA Smoke Purifier is a professional smoke purifier for TOOCAA NOVA laser engravers , designed to effectively remove dust, smoke, and unpleasant odors generated during material processing. It utilizes a 3-layer filtration system that captures fine particles and improves air quality in the workplace. With a filtration efficiency of 99.97% for particles as small as 0.3 µm, the purifier is ideal for workshops, DIY studios, technical schools, and makerspaces.
Smoke Purifier - air purifier for TOOCAA NOVA laser plotters.
The smoke purifier is dedicated to TOOCAA NOVA laser engravers.
Main features of the air purifier
- 3-layer filtration system : effectively removes dust, smoke and unpleasant odors generated during laser operation
- Filtration efficiency 99.97% : captures particles as small as 0.3 µm
- Efficient airflow of 258 m³/h : allows for quick removal of smoke from the work area
- Maximum vacuum pressure of 2200 Pa : ensures stable operation during cutting and engraving
- Low noise level below 50 dB : allows for comfortable use in a studio or workshop
- Ø50 mm inlet : for easy connection to compatible laser engravers and CNC machines
- 1.2 m smoke extraction tube : ensures convenient connection of the purifier to the workstation
Air purifier technical specifications
- Model: TC-NOVA-SP
- Power: 150 W
- Input voltage: AC 220 V 50/60 Hz
- Maximum vacuum: 2200 Pa
- Number of filtration layers: 3
- Air flow: 258 m³/h
- Inlet interface diameter: Ø50 mm
- Smoke pipe length: 1.2 m
- Filtration efficiency: 99.97% at 0.3 µm
- Noise level: <50 dB
- Dimensions: 300 x 242 x 343 mm
- Weight: 9.5 kg
Contents of the set
- TOOCAA NOVA Smoke Purifier
- Smoke exhaust pipe (pipe) 1.2 m
- Filter set
The smoke purifier uses a 3-stage filtration system, effectively removing particles as small as 0.3 µm with an efficiency of 99.97%.
