Product description: reTerminal Sticky - e-paper display - 3.97'' 800 x 480 px - WiFi - Seeedstudio 100056818

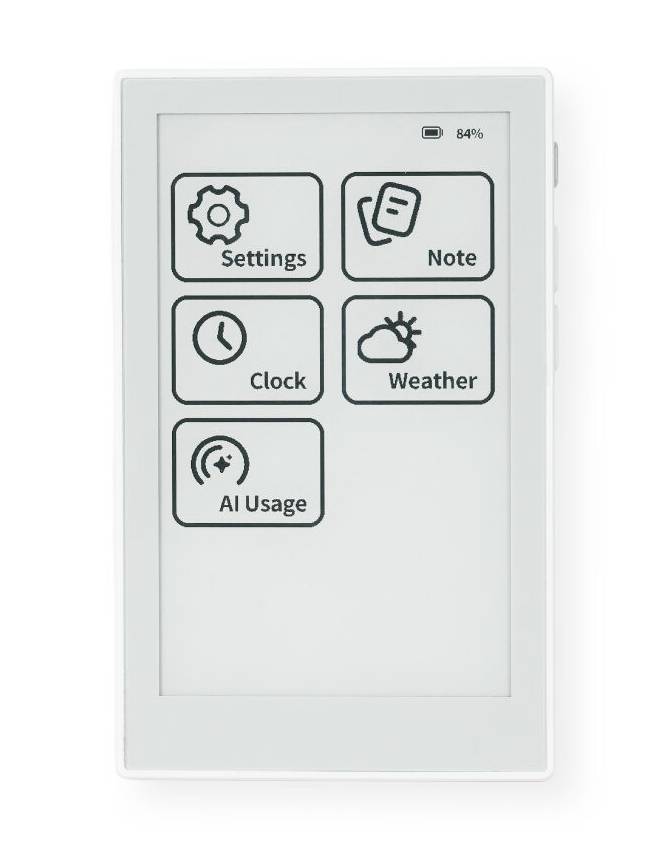

reTerminal Sticky is a compact 3.97" e-paper display with a resolution of 800 x 480 px , designed to present critical information without having to constantly reach for your smartphone. It can display notes, reminders, weather, a clock, photos, and pre-made graphic designs . Touchscreen operation makes switching between views easy, and speech recognition allows you to create notes without using a keyboard. The device communicates via 2.4 GHz WiFi and BLE 5.0 , has a 750 mAh battery, 32 MB of flash memory, and a microSD card slot. A built-in magnet allows for quick placement of the display, for example, on a refrigerator or metal cabinet.

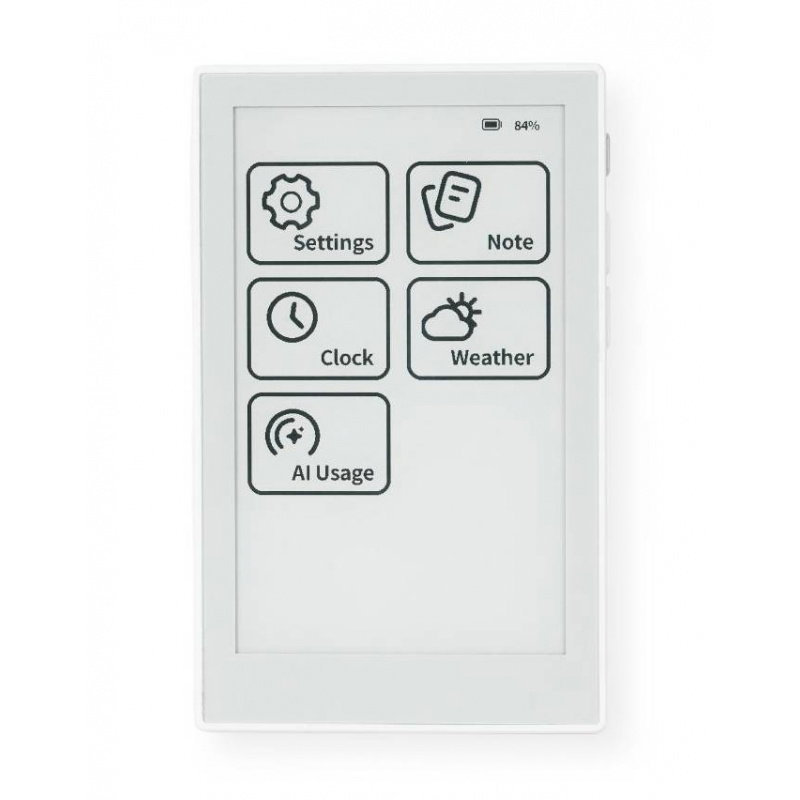

reTerminal Sticky - e-paper display - 3.97'' 800 x 480 px - WiFi - Seeedstudio 100056818.

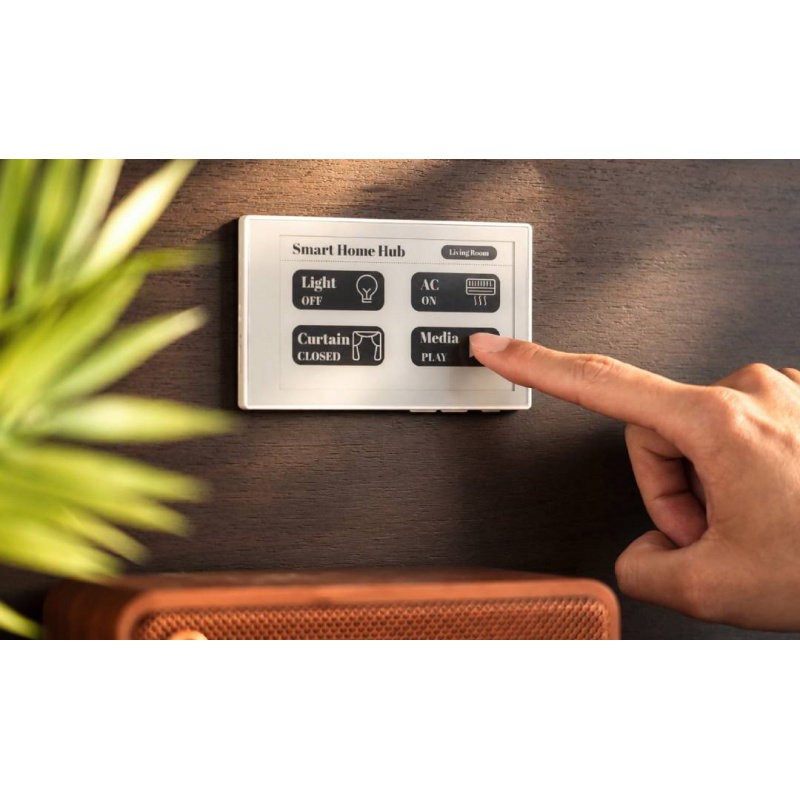

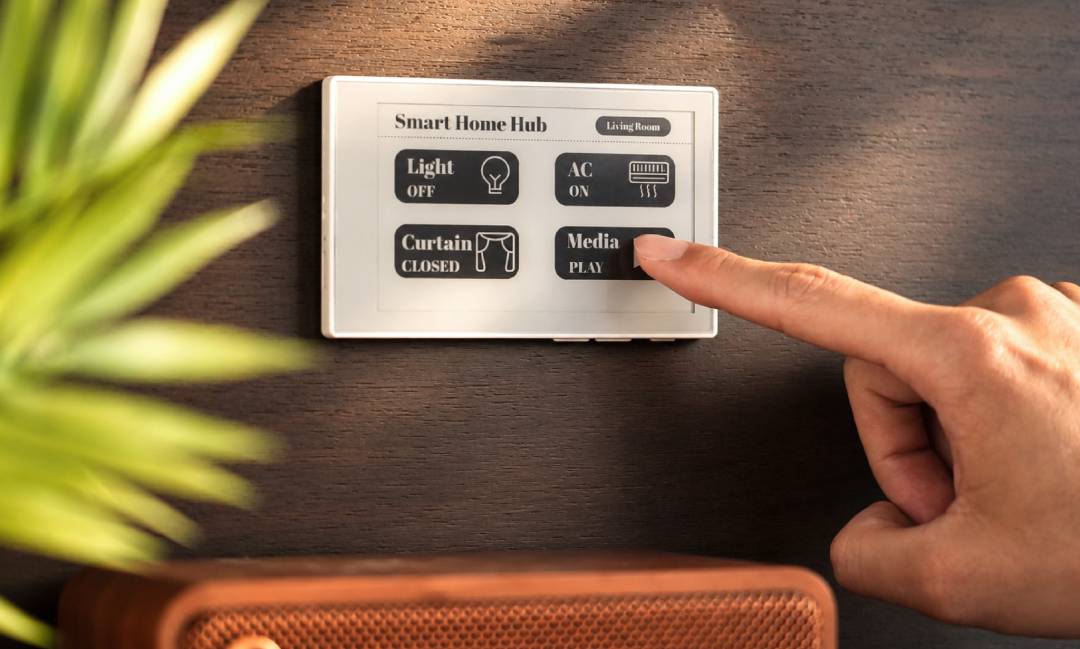

After changing the firmware, the reTerminal Sticky can be used as an e-book reader or a Smart Home panel.
Main features of reTerminal Sticky
- 3.97" e-paper screen : provides a clear presentation of notes, weather, time, photos and other information
- 800 x 480 px resolution : allows you to display detailed content on a compact surface
- Touch control : allows you to conveniently open apps, select content, and navigate between screens
- Creating voice notes with AI : the device recognizes your speech and automatically converts it into a note visible on the screen
- 2.4 GHz WiFi and BLE 5.0 connectivity : allows you to configure the device and synchronize content
- Seeedash app : allows you to manage your device, send notes, photos and other information from your smartphone
- Seeedash Web : allows you to create more complex designs and screen layouts in your browser
- Built-in magnet : allows direct mounting of the screen on metal surfaces
- Magnetic ring included : allows you to mount the screen also on suitable non-metallic surfaces
- 750 mAh lithium battery : allows you to use the device without being permanently connected to a power source
- MicroSD card slot : allows you to expand the device's capabilities, including your own font packs
- Alternative software : after changing the firmware, the device can be used, among others, as a reader, dashboard or Home Assistant panel
Voice memos and magnetic mounting reTerminal Sticky
Creating a message on reTerminal Sticky is easy, even without using the keyboard – just hold down the voice button, speak your message, and the device will recognize your voice and prepare a note for display . This feature allows you to quickly leave a reminder, a chore list or a short message for other household members. Currently, the manufacturer officially supports English and Simplified Chinese language recognition , with additional languages to be added in the future. A built-in magnetic system allows the device to be mounted directly to metal surfaces, such as a refrigerator door, metal cabinet, or a suitable stand. For non-metallic surfaces , the included self-adhesive magnetic ring can be used. Thanks to its small size, the screen can be placed exactly where the information presented will be most useful.

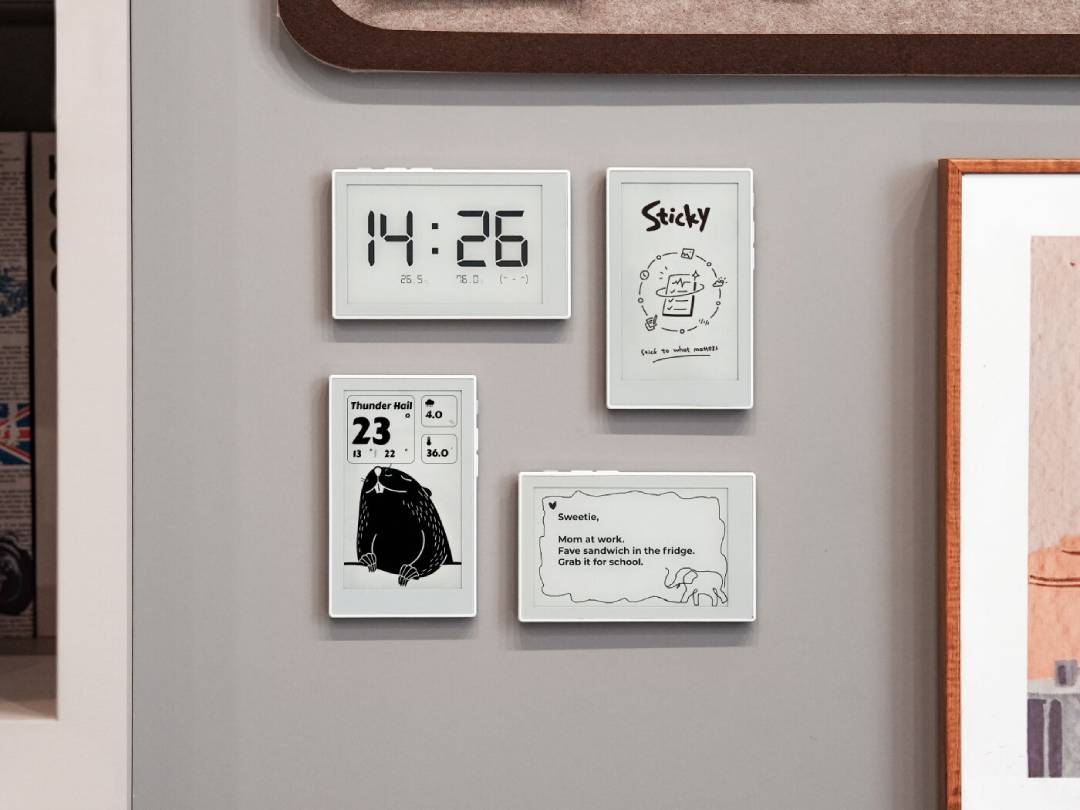

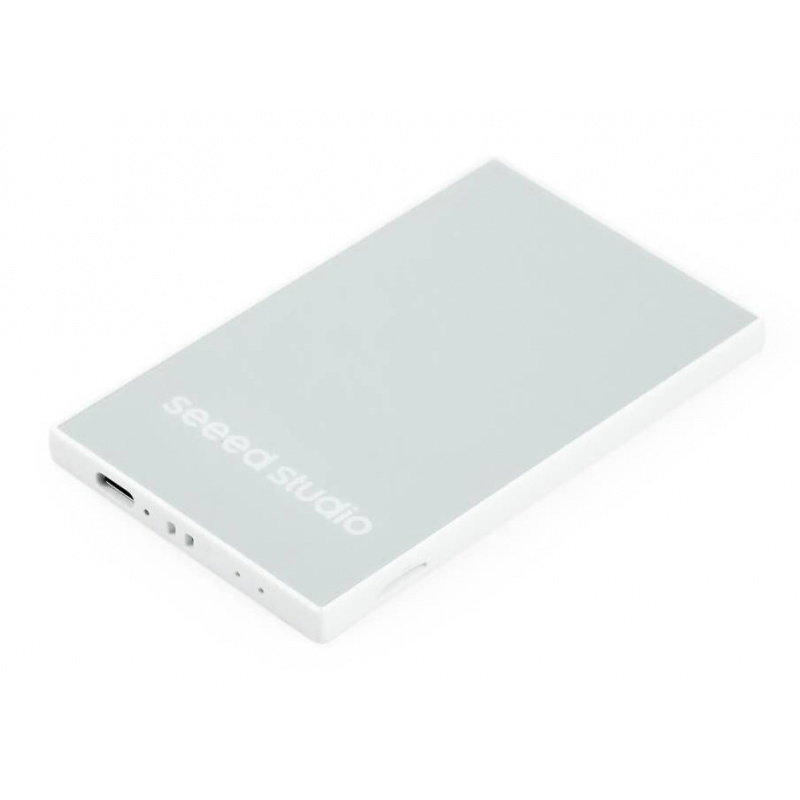

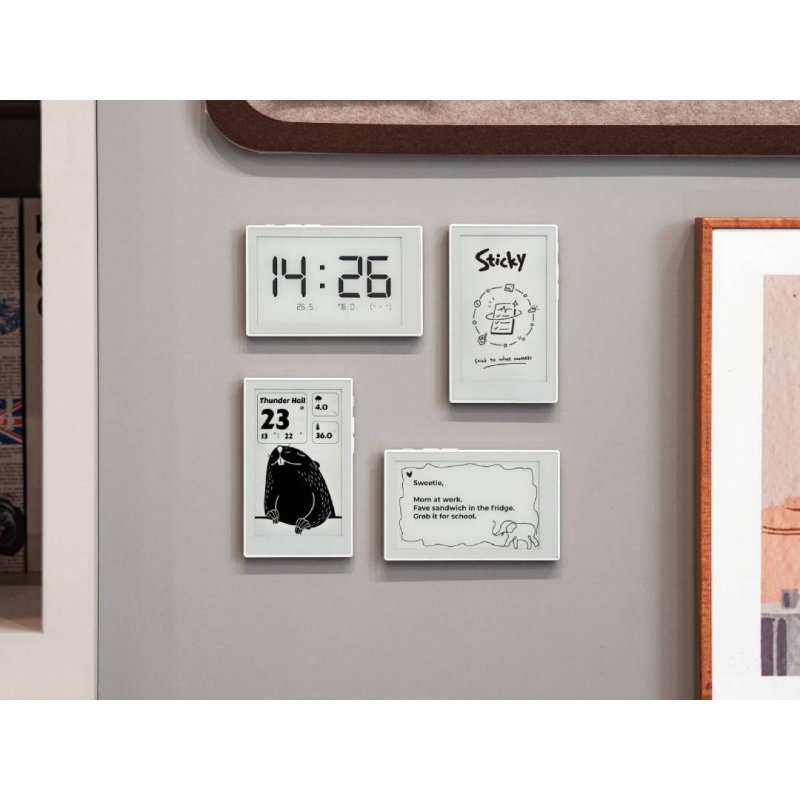

The slim and lightweight design allows the screen to be mounted on various surfaces.

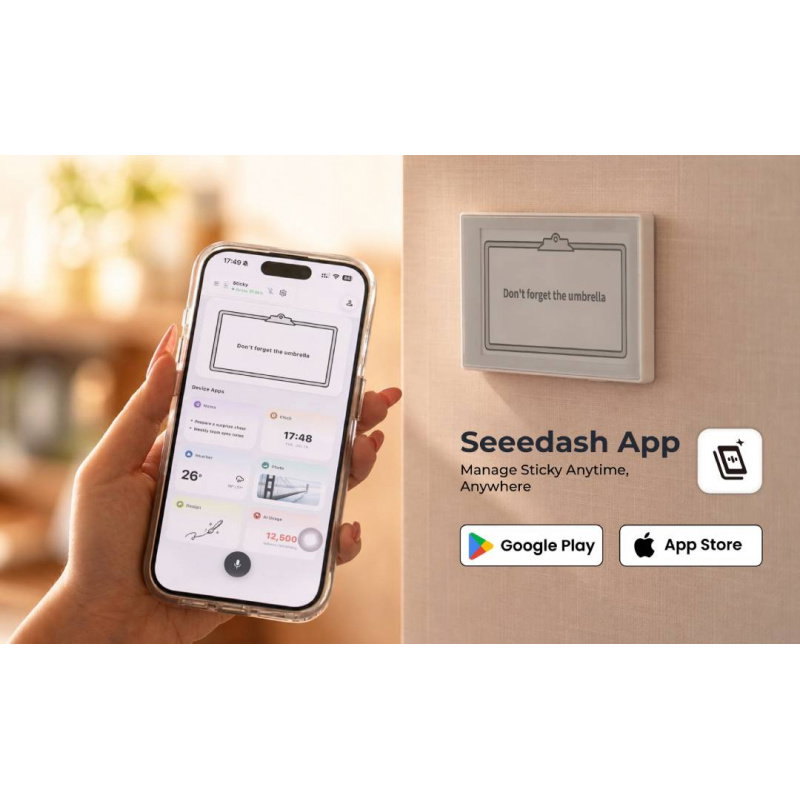

The Seeedash app allows you to manage your content from your phone.
Seeedash app for remote e-paper screen management
The Seeedash app serves as a mobile management center for the reTerminal Sticky. From your smartphone, you can create and send notes, upload photos, set the weather and clock, check device information, and manage its configuration. The app also allows you to add additional Sticky screens, allowing you to use multiple devices in different areas of your home. Initial setup is performed via Bluetooth, and then the device connects to a 2.4 GHz Wi-Fi network and can operate independently. The manufacturer offers the Seeedash app for iOS 14 or later and Android 8 or later . A Seeedash Web version is also available, allowing you to create custom layouts and more complex pages displayed on the Sticky.
Technical Specifications of reTerminal Sticky
- Display type: e-paper
- Screen diagonal: 3.97''
- Resolution: 800 x 480 px
- Control: touchscreen
- Flash memory: 32 MB
- Supported storage media: microSD card
- Microphone: single
- Wireless connectivity: WiFi 2.4 GHz, BLE 5.0
- Mounting method: built-in magnet
- Battery: 750 mAh lithium
- Charging connector: USB Type-C
- Recommended USB power supply voltage: 5V
- Operating temperature: 0°C to 45°C
- Officially supported voice languages: English, Simplified Chinese
- Mobile app requirements: iOS 14 or later, Android 8 or later
- Dimensions: 106 x 65.5 x 7.3 mm
- Weight: 70 g
Contents of the set
- 1x reTerminal Sticky
- 1x USB Type-C cable
- 1x Magnetic mounting ring

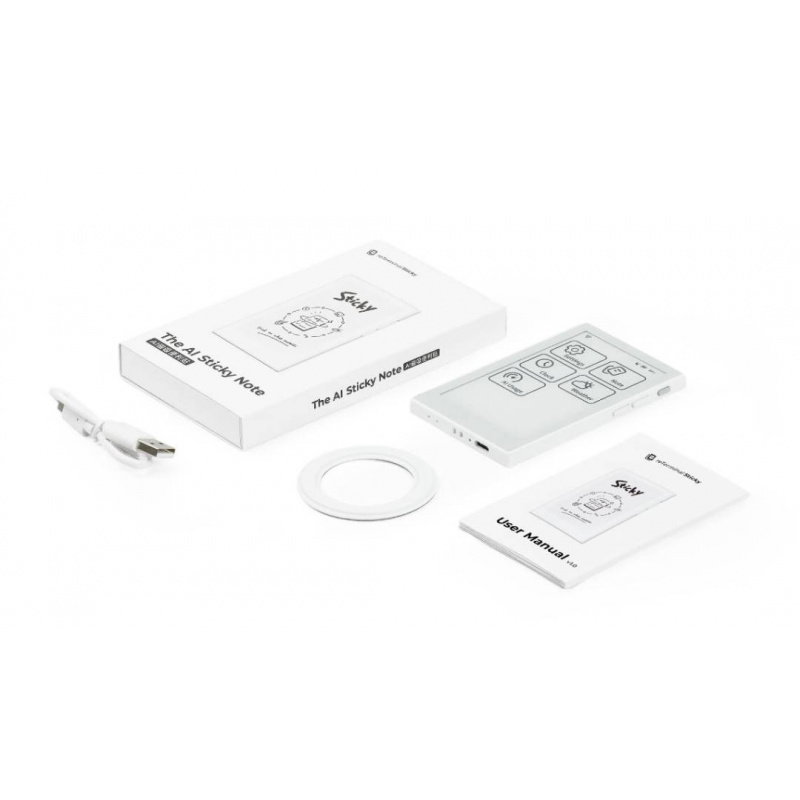

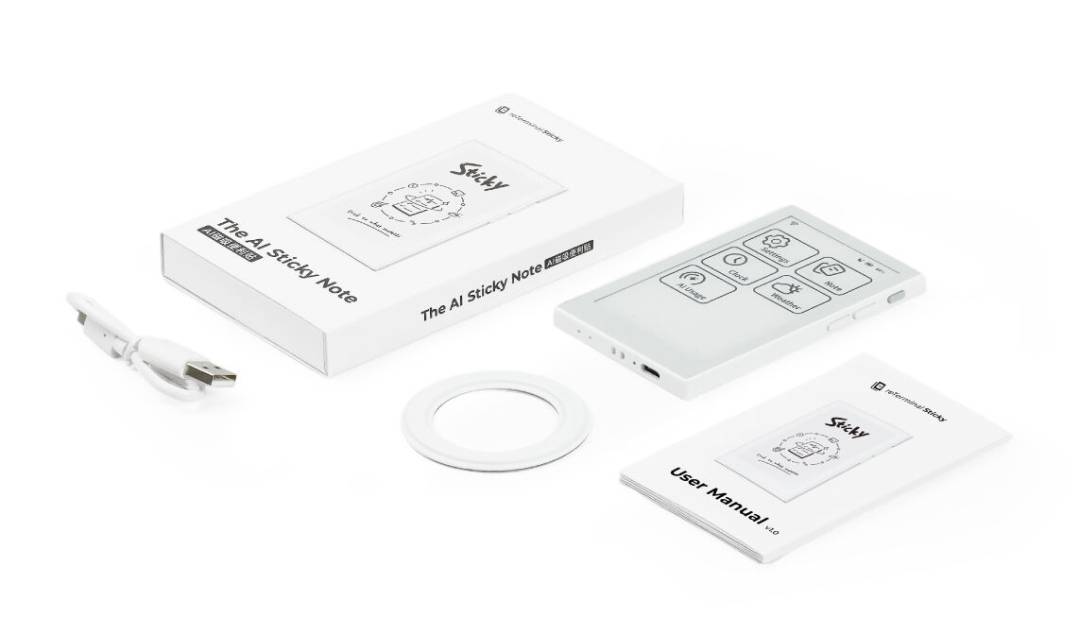

Elements included in the set.
