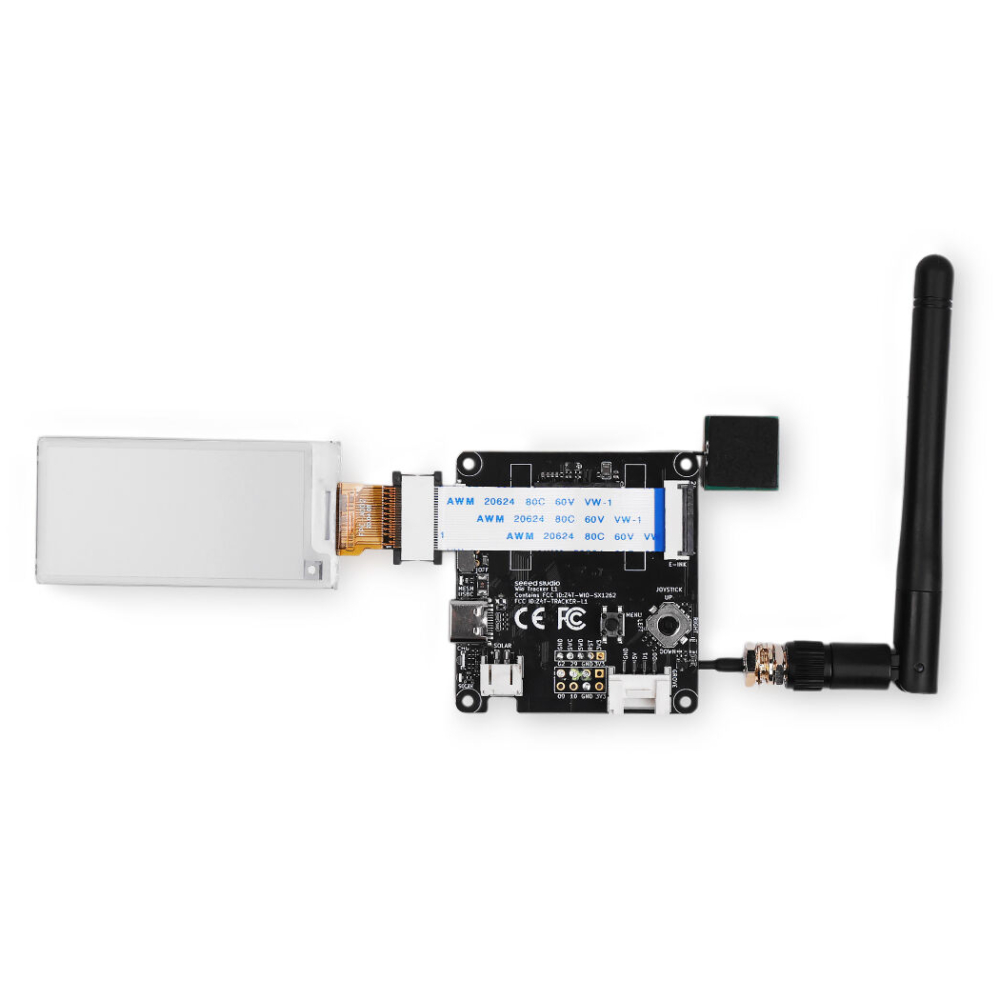

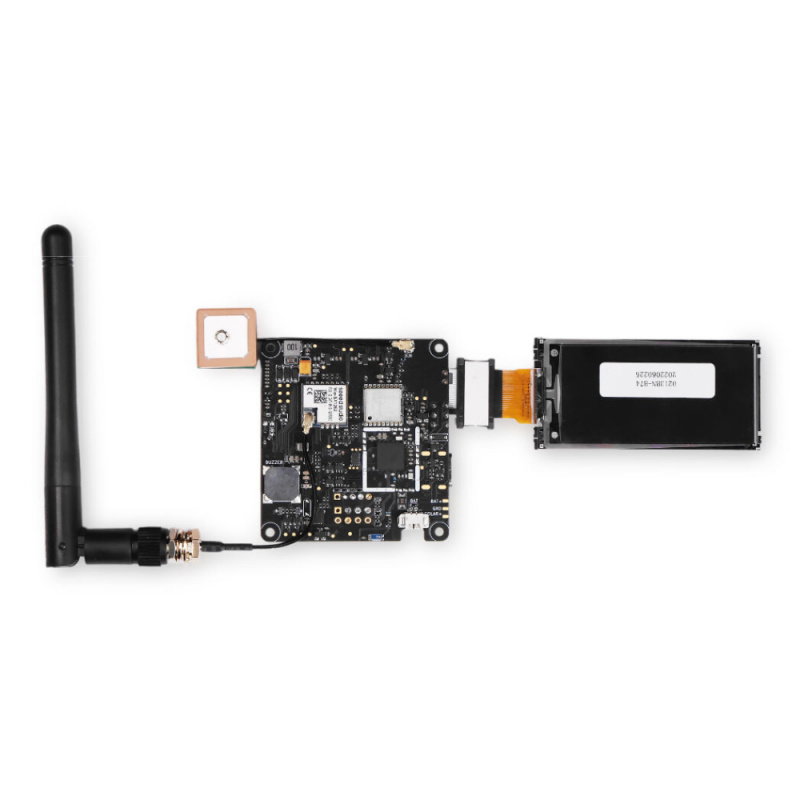

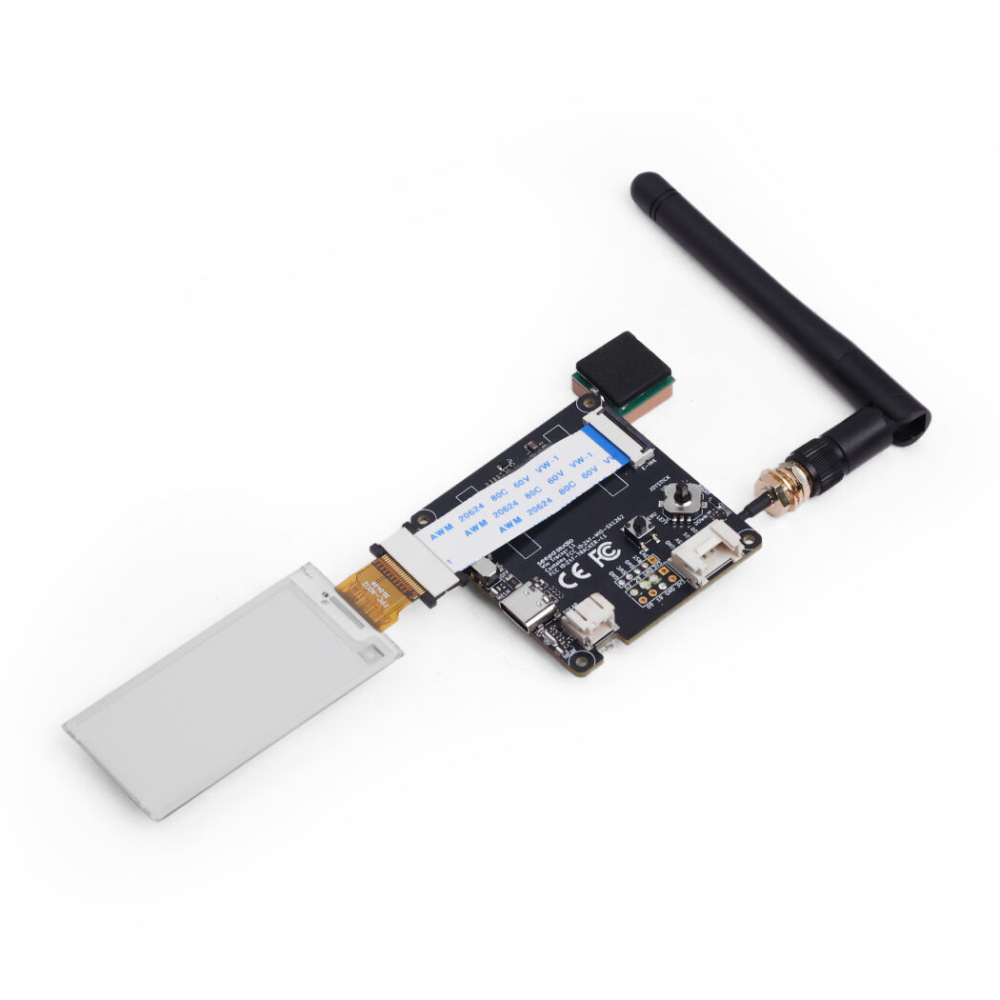

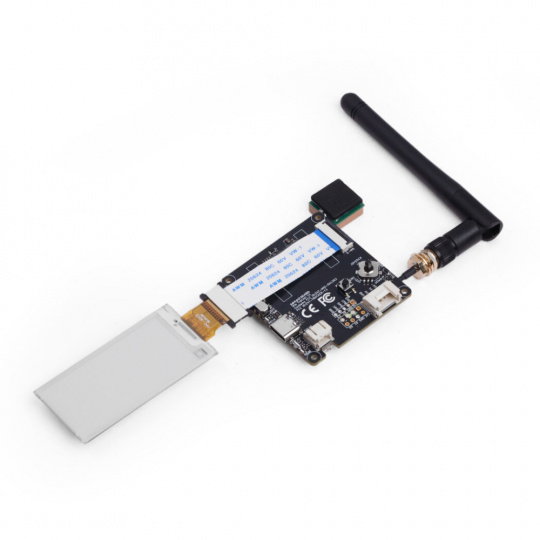

Product description: Wio Tracker L1 E-Ink - Meshtastic LoRa module with E-Ink display and GPS - Seeedstudio 114993654
The Wio Tracker L1 E-Ink is an energy-efficient Meshtastic communication module designed for building LoRa Mesh networks and IoT projects requiring long runtime and reliable wireless communication. Equipped with a powerful Nordic nRF52840 microcontroller, an SX1262 LoRa module , and an L76K GPS receiver , the device enables both long-range communication and precise location tracking. The E-Ink version features a detachable 2.13" display , ensuring very low power consumption and the ability to continuously display information without constantly powering the screen. The module comes with pre-installed Meshtastic firmware, allowing you to get started almost immediately after powering it on.
Wio Tracker L1 E-Ink - Meshtastic LoRa module with E-Ink display and GPS - Seeedstudio 114993654.
The Wio Tracker L1 E-Ink is an energy-efficient Meshtastic communication module designed for building LoRa Mesh networks and IoT projects.
Special features
- 13.3" e-paper display: large screen with 1600 x 1200 px resolution and 6-color support for attractive visualizations
- E-Ink Spectra 6 technology: very low energy consumption and excellent readability even in direct sunlight
- ESP32-S3 microcontroller: dual-core processor up to 240 MHz for high performance
- Wireless connectivity: built-in 2.4 GHz WiFi and Bluetooth 5 LE
- Memory: 32 MB Flash and 16 MB PSRAM for extensive applications
- Low power consumption: deep sleep mode at around 14 µA enables long battery life
- Partial Update: Sparkle partial update support allows you to refresh only a portion of the screen
- Project expansion: 3 Qwiic (I2C) connectors, microSD slot and GPIO expander
- Built-in RTC: PCF85063A with battery backup for precise scheduling
- Extensive programming support: compatible with Arduino IDE, MicroPython, ESP-IDF and LVGL
Practical applications
- Meshtastic Networks and LoRa Mesh Communications
- GPS trackers and device location
- Low-power IoT projects
- Environmental monitoring systems
- E-Ink electronic information boards
- Field and outdoor communication
- Smart solar systems
- STEM education and embedded projects
Technical specifications
- Microcontroller: Nordic nRF52840
- Core: ARM Cortex-M4 with FPU up to 64 MHz
- Memory: 1 MB Flash, 256 kB RAM
- LoRa connectivity: SX1262, band 862 MHz to 930 MHz
- Bluetooth: Bluetooth 5.0
- GPS: L76K (GPS, BeiDou, GLONASS, QZSS)
- Display: E-Ink 2.13"
- Display resolution: 122 x 250 px
- Display colors: black / white
- Grayscale: 4 levels
- Partial refresh time: 0.42 sec
- Full refresh time: 3 s
- Display power consumption: 10.5 mW
- Standby power consumption: 0.003 mW
- Interfaces: Grove, UART, I2C, GPIO, analog PTH, SWD
- USB Type-C Power Supply: 5V/1A
- Solar power: 5V/1A
- Battery power supply: Li-Ion 3.7 V / 1 A
- Active area: 48.55 x 23.70 mm

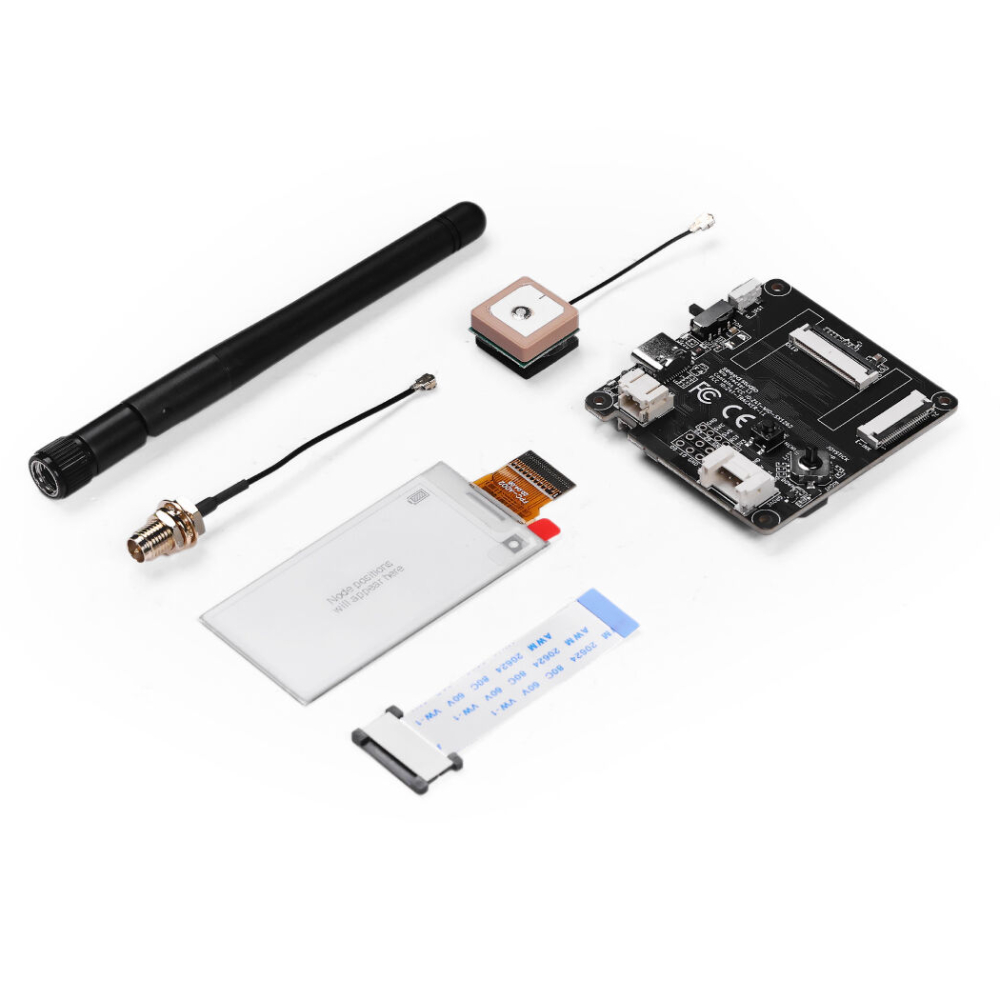

Contents of the set
- Wio Tracker L1 Board
- 2.13" E-Ink display
- 60mm RF Cable (RP-SMA Female to IPEX)
- LoRa antenna
- GPS antenna
- FPC 24P 0.5mm connector
- FFC 24 tape
The module comes with Meshtastic firmware pre-installed, allowing you to start working almost immediately after powering it on.
